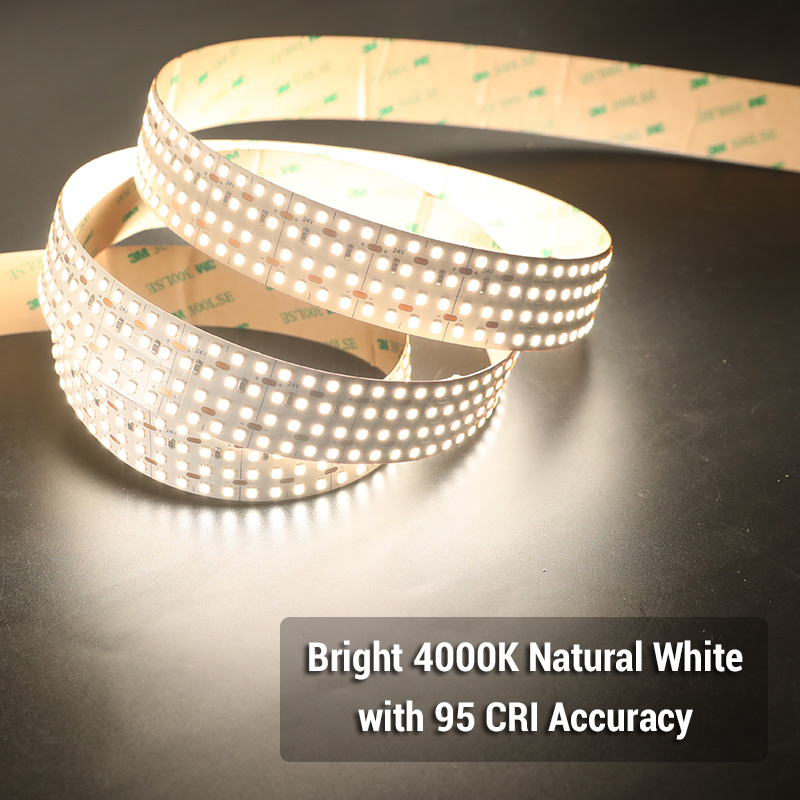

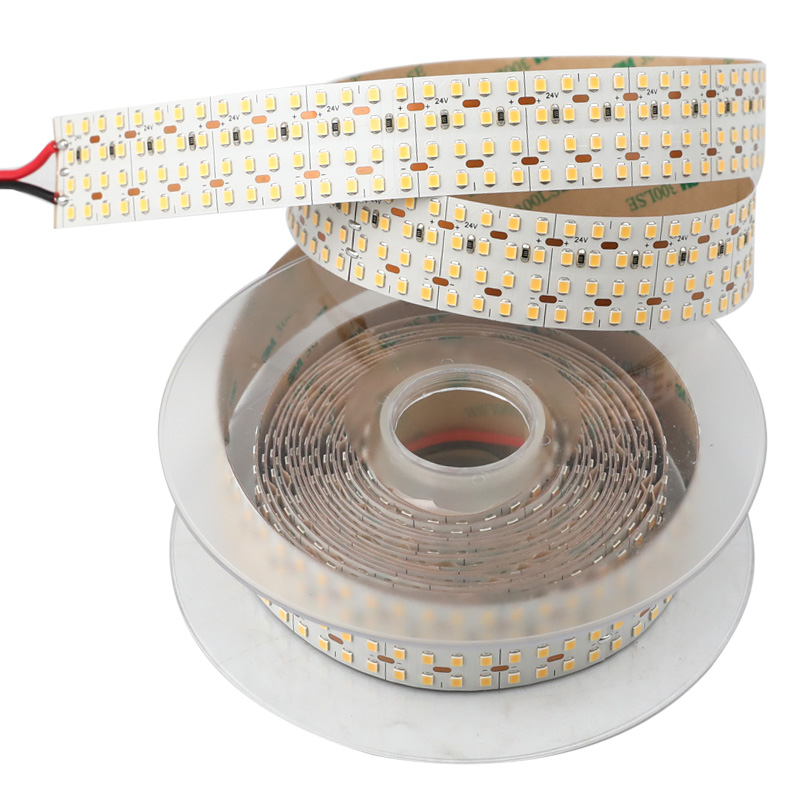

4-Row 30mm Ultra Bright 2835 SMD Industrial LED Strip Light CRI 95 24VDC 956lm/ft

Model: FSLQR-30MM-2835X576
4-Row 30mm Ultra Bright 2835 SMD Industrial LED Strip Light CRI 95 24VDC 956lm/ft
  • 4-Row 30mm Ultra Bright 2835 SMD Industrial LED Strip Light CRI 95 24VDC 956lm/ft
  • 4-Row 30mm Ultra Bright 2835 SMD Industrial LED Strip Light CRI 95 24VDC 956lm/ft

Select Specifications:

Select Length:

Starting at: $56.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-19
$56.98
20-49
$55.84
50-99
$54.70
100+
$53.56
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    One of the indispensable ultra bright light strips for any high brightness accent lighting. Equipped with four rows of SMD 2835 LEDs, this 576LEDs/m high-density led strip light with ultra-high brightness and high lumen output creates uniform illumination, luminous flux: 2700K RA80 3136lm/m 956lm/ft, 3000K RA80 3200lm/m 975lm/ft, 4000K RA80 3360lm/m 1024lm/ft, 6000K RA80 3456lm/m 1053lm/ft.

    It emits a range of white light from 2200K to 7000K to suit a variety of moods and atmospheres. In addition, with its expansive 30mm strip width, this 2835 LED strip light effortlessly illuminates vast areas. For industrial applications, we also offer higher brightness versions.

    We offer you three color rendering indexes (CRI): CRI80, CRI90, and CRI95. While CRI 80 LED lights have an average overall performance, CRI 90 and CRI 95 LED strip lights guarantee excellent color accuracy and vibrancy. Among them, CRI 95 LED is the best.

    In terms of use, aluminum led strip profile is an excellent partner for high power led strips, helping to dissipate heat and thus extending the life of the light strip.



    Standards and Certifications

    24VDC CE FCC RoHS ISA SGS ISO LIFETIME warranty

    Product Specification

    LED Strip Type:  High Bright 4-Row 2835 LED Strip
    LED Chip:   2835 SMD LED
    Working Temperature:  -4°F (-20°C) ~ 122°F (50°C)
    Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
    White Light Color Temperature: Very Warm White (2200K), Warm White(2700K/3000K),  Natural White(4000K), Daylight White(6000K), Cool White (7000K)

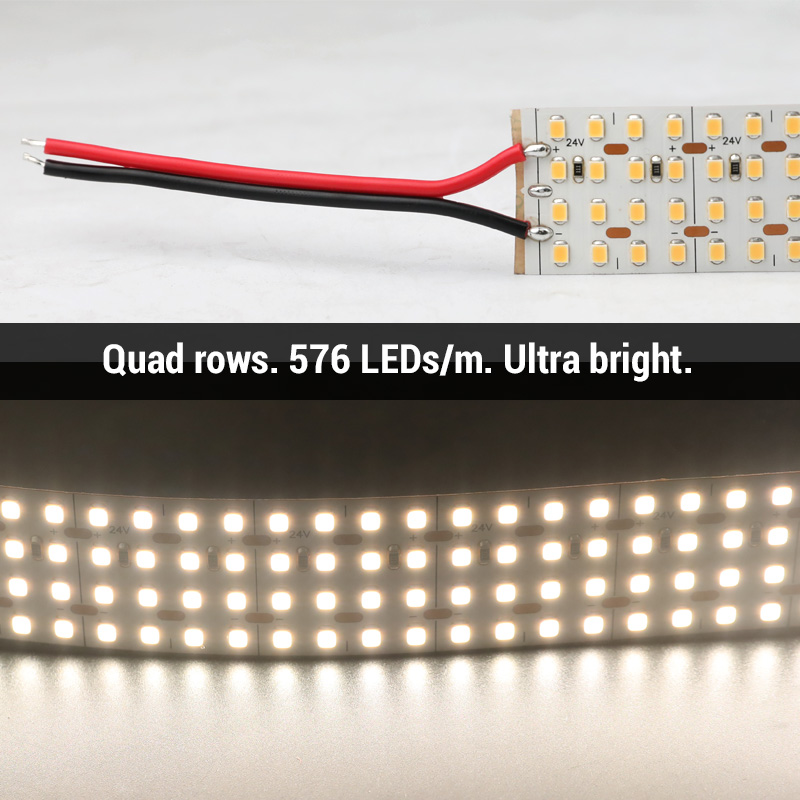

    LED Quantity: 576LEDs/m, 175LEDs/ft
    PCB Wide:  30mm/1.2in
    Input Voltage(V): 24VDC
    Working Power: 32W/m, 9.76W/ft, 160W per roll max
    Cuttable: 13.88mm/0.54in, 8 lights
    Beam Pattern:  120 degrees
    Waterproof Rating: Non-waterproof IP20, Waterproof IP67



    CRI 80 vs CRI 90 vs CRI 95

    cri 80 vs cri 90 vs cri 95 led strip lights



    How to Wire 2835 White LED Strip?

    During the wiring process, please pay attention that the positive and negative terminals should not be reversed. (Red wire V+, Black wire V-)

    2835 led strip wiring

    4-Row 30mm Ultra Bright 2835 SMD Industrial LED Strip Light CRI 95 24VDC 956lm/ft

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    4-Row 30mm Ultra Bright 2835 SMD Industrial LED Strip Light CRI 95 24VDC 956lm/ft4-Row 30mm Ultra Bright 2835 SMD Industrial LED Strip Light CRI 95 24VDC 956lm/ft
