Achieve flawless curves and sharp angles in your custom signage with SuperLightingLED S-Shape Bendable LED Strip. Engineered specifically for fabricating channel letters, logos, and intricate designs, its unique zigzag PCB allows for lateral bending up to 90 degrees without damaging the circuit. This model stands out as the high-brightness version in our family of 2835 S Type LED strips like the 5mm 60LED, 6mm 60LED, 8mm 60LED, 5mm 72LED, packing a dense 120 LEDs per meter onto an ultra-narrow 6mm board. This ensures exceptionally bright and uniform illumination, eliminating dark spots even in the tightest corners.
Available in a wide selection of nine vibrant colors and white light color temperatures, from Warm White 2700K to Cool White 10000K, it offers the perfect lighting solution for any branding or design requirement. Choose between 12VDC and 24VDC versions to match your project's power infrastructure.
Key Features

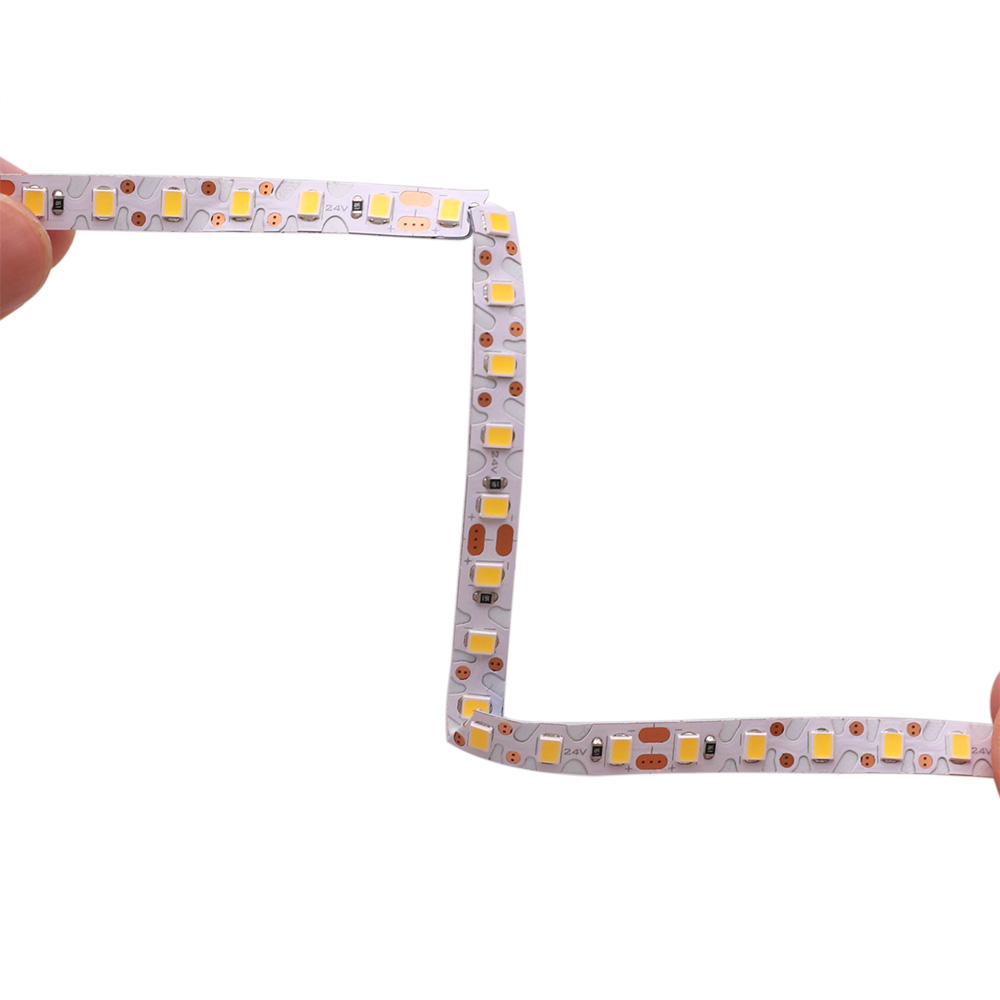

Zigzag 'S' Shape Design
Bends and flexes laterally to effortlessly follow complex contours and form sharp 90-degree angles for precise channel letter fabrication.
High-Density Illumination
Features 120 high-efficacy 2835 SMD LEDs per meter, delivering brilliant, even light output that's ideal for professional signage.
Ultra-Narrow 6mm Profile
The slim 6mm PCB width allows for installation in very slender sign letters, tight spaces, and low-profile architectural details.

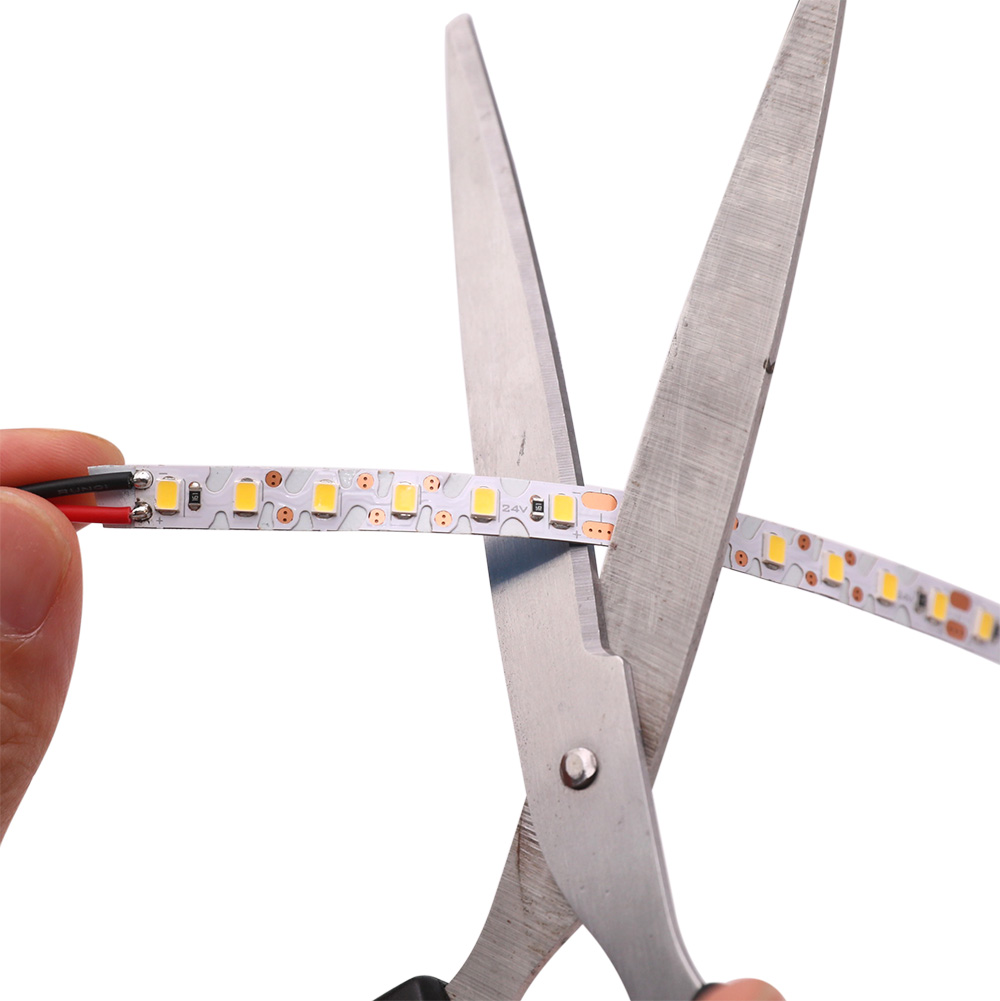

Precision Customization
Can be cut every 50mm (6 LEDs) or 25mm (3 LEDs), allowing you to create custom lengths that fit your specific design dimensions perfectly.
Technical Highlights
- Specifically engineered for backlighting channel letters and complex shapes.
- High-brightness model within the S-Type 2835 series for maximum visual impact.
- Features a 120-degree beam angle for wide, even light distribution.
- IP20 rating designates it for dry, indoor locations only.
- Constructed with high-quality 2835 SMD LEDs for reliable performance and longevity.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | FSLSR-24V-S-2835X600 |
| LED Strip Type | S Shape Bendable LED Strip |
| Operating Voltage | 12VDC / 24VDC |
| LED Chip | 2835 SMD |
| LED Quantity | 120 LEDs/meter (600 LEDs/roll) |

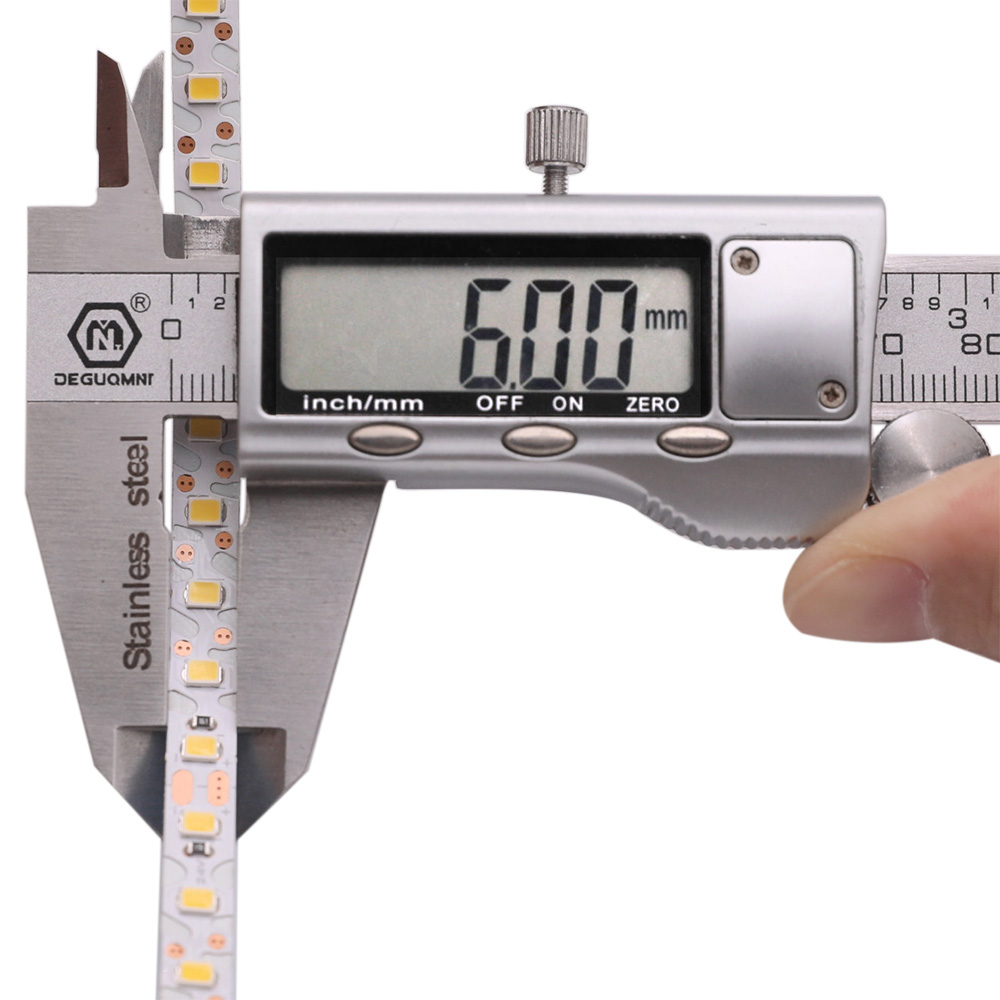

| PCB Width | 6mm / 0.23" |
| Roll Length | 5 meters / 16.4 feet |
| Max Power Consumption | 72W / 5m |

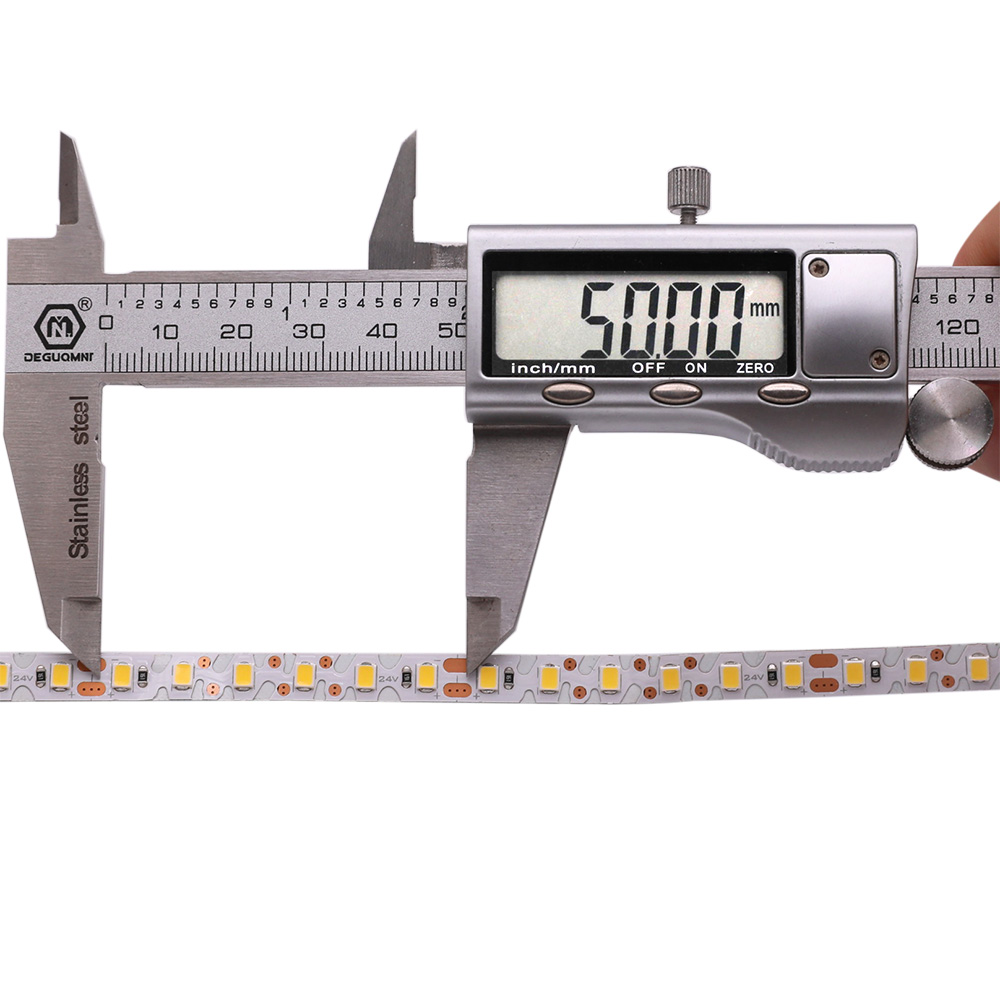

| Cuttable Unit | Every 50mm (6 LEDs) @24V / Every 25mm (3 LEDs) @12V |
| Available Colors | Green, Yellow, Blue, Red, Cool White (10000K), Neutral White (4000K), Warm White (2700K, 3000K), Daylight White (6000K) |
| Beam Angle | 120 degrees |
| Waterproof Rating | IP20 Non-waterproof |
| Working Temperature | -20°C to 50°C (-4°F to 122°F) |
Ideal for Intricate and Custom Lighting
How to Install & Use This LED Strip
- Ensure the mounting surface is clean, dry, and free of dust or oils.
- Measure and cut the strip at the designated cut marks to achieve your desired length.
- Select a compatible 12V/24V led power supply with sufficient wattage. Refer to our guide on How to calculate power for led strip lights? to make the right choice.
- Connect the strip's wires to the power supply. If you are using a dimmer, connect the strip to the LED light controller, and then the controller to the power supply.
- For detailed wiring instructions, please see our guide: How to Wire 2-pin White LED Strip Lights?

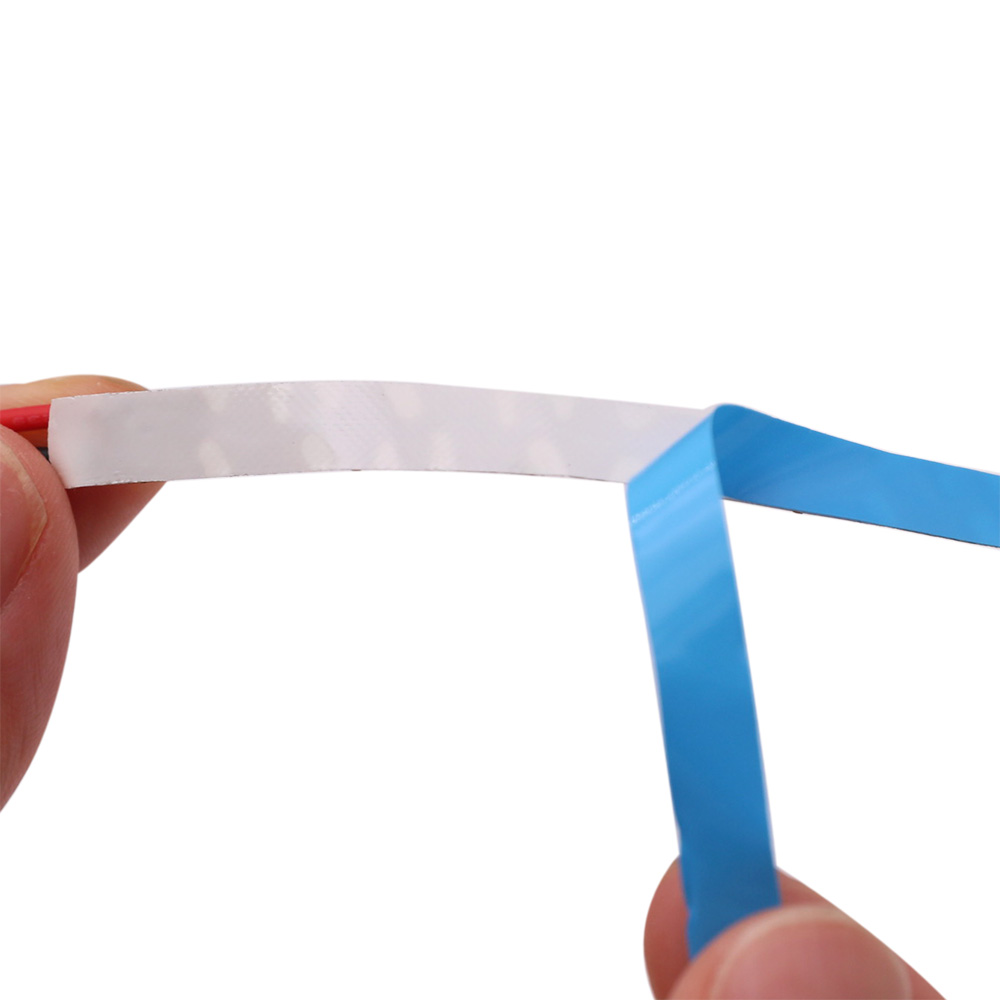

- Peel off the adhesive backing and firmly press the strip onto the prepared surface, following the curves of your design.
- Connect the power supply to your main power source to light up your installation.
- This LED strip is rated IP20 and is for indoor, dry-location use only. Do not expose to moisture.
- Always use the correct voltage (12VDC or 24VDC) as selected. Using the wrong voltage will permanently damage the strip.
- For runs longer than 5 meters, power must be injected from both ends to avoid voltage drop and ensure consistent brightness.
What's in the Box
- ✓1 x 16.4ft (5m) roll of S-Shape Bendable 2835 600LEDs Strip Light
- ✓Your choice of optional bundles:
- ✓LED Strips Only: The 5m LED strip roll.
- ✓LED Strips + Power Adapter: Includes a compatible 96W power adapter (PSPS-12V-96W or PSPS-24V-96W).
- ✓LED Strips + Controller: Includes a V1+RT1 single color dimmer kit.
- ✓Complete Kit: Includes the 5m LED strip, a 96W power adapter, and a V1+RT1 dimmer kit.
Frequently Asked Questions
Q: What makes this S-shape strip different from a regular flexible LED strip?
A:A regular strip can only bend on one axis (like a ribbon). This S-shape strip has a zigzag PCB, allowing it to bend laterally to form curves and sharp angles, which is essential for creating letters and complex shapes.
Q: Is this strip bright enough for commercial signage?
A:Absolutely. With a high density of 120 LEDs per meter, this is our high-brightness S-type model, designed specifically to provide vibrant and consistent illumination for channel letters and retail signs.
Q: How narrow of a channel can this strip fit into?
A:The strip's PCB is only 6mm wide, making it perfect for installation in very slim profiles, narrow channels, and compact sign letters.
Q: What is the difference between the 12V and 24V versions?
A:Both versions offer the same brightness. The 24V version is generally better for longer runs as it suffers less from voltage drop, ensuring more consistent brightness from start to finish.
