Product Information

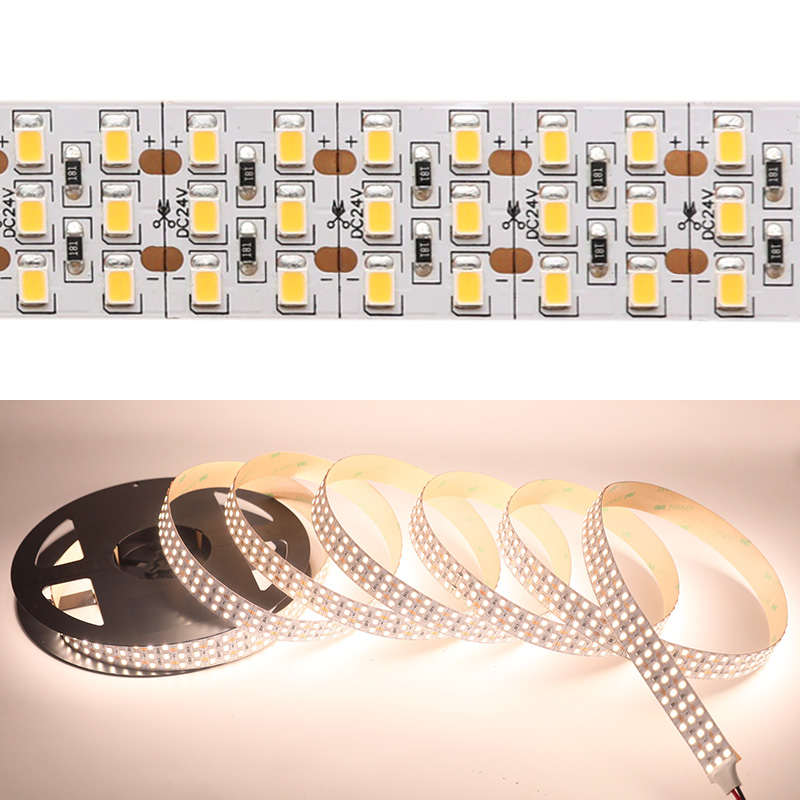

A high density 2835 led strip with three rows of LEDs, 360 diodes per meter, 1800 lights per reel. This super bright led strip is the first choice for those who need high lumens in locations such as offices, workrooms, some home spaces and commercial spaces. Its high 95 CRI light makes it perfectly suited for photographic and artistic lighting needs as well.
This 3-row 20mm wide high power 24W/m light strip is perfect for use with aluminum led profiles to create accent lighting, highlight your kitchen table or keep your surroundings visible while you focus on your work. And for recessed linear lighting, you can consider the neon light housing to hold the 2835 led tape.
-
CRI 80+, CRI90+, and CRI 95 LED optional
-
CCT Color temperature from 2200K to 7000K
-
Luminous Flux: 2700K RA80 2352lm/m 717lm/ft, 3000K RA80 2400lm/m 732lm/ft, 4000K RA80 2520lm/m 768lm/ft, 6000K RA80 2592lm/m 790lm/ft
-
Provide additional High Bright light type (5 warranty) to meet needs of some professional places [CRI 95 products all come with a five-year warranty, please select the "5 years" in the warranty option.]
Standards and Certifications
Product Specification
| LED Strip Type: | Extra Bright 3-Row 2835 LED Strip |
| LED Chip: | 2835 SMD LED |
| Working Temperature: | -4°F (-20°C) ~ 122°F (50°C) |
| Brightness: | 8-9LM/LEDs, 3,240lm/m, |
| White Light Color Temperature: | Very Warm White (2200K), Warm White(2700K/3000K), Natural White(4000K), Daylight White(6000K), Cool White (7000K) |
| LED Quantity: | 360LEDs/m, 110LEDs/ft |

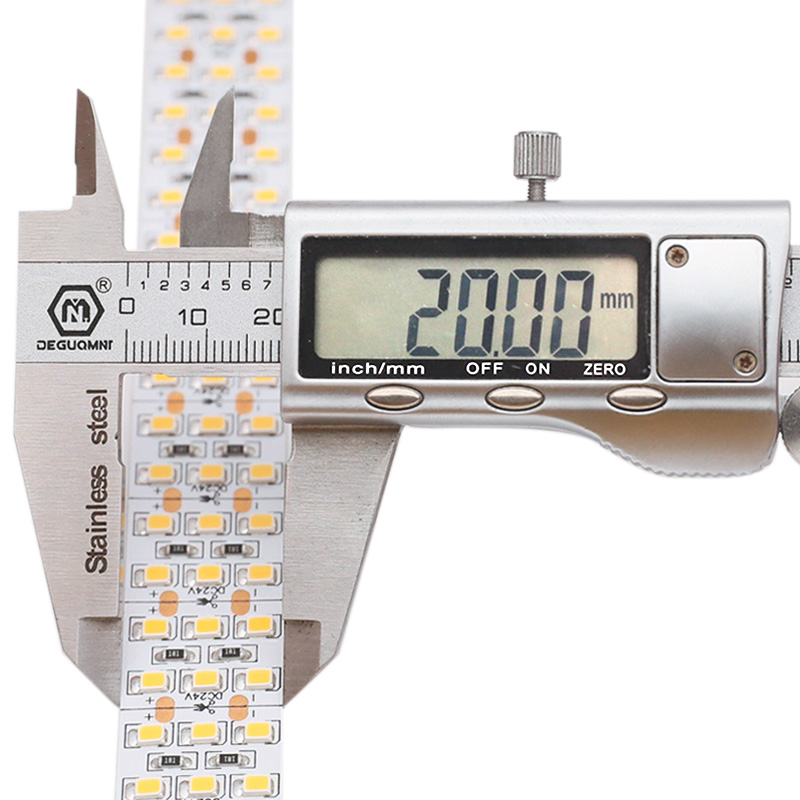

| PCB Wide: | 20mm/0.78in |
| Input Voltage(V): | 24VDC |
| Working Power: | 24W/m, 7.3W/ft, 120W per roll max |

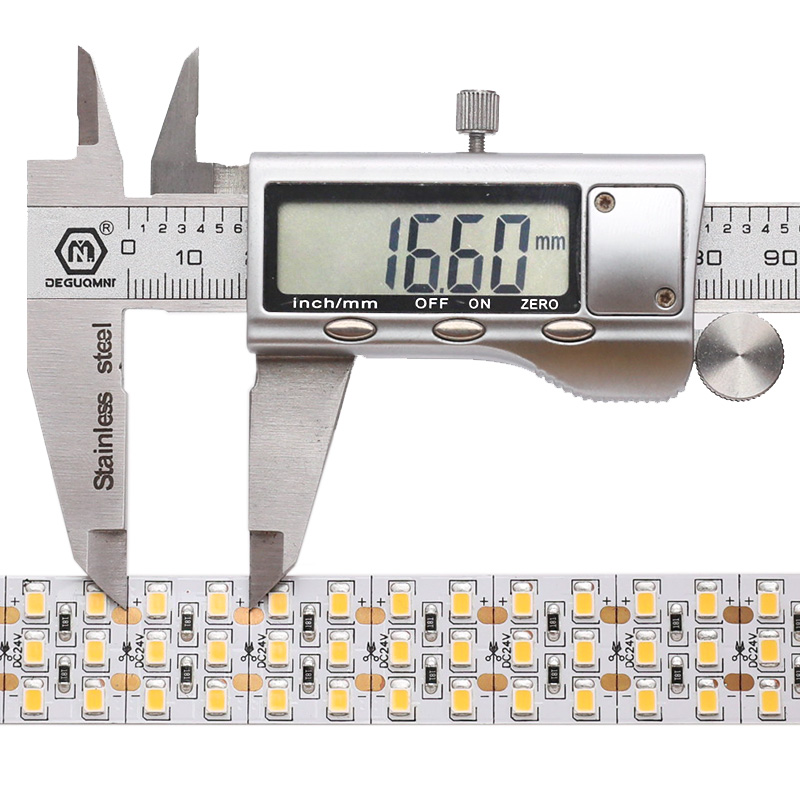

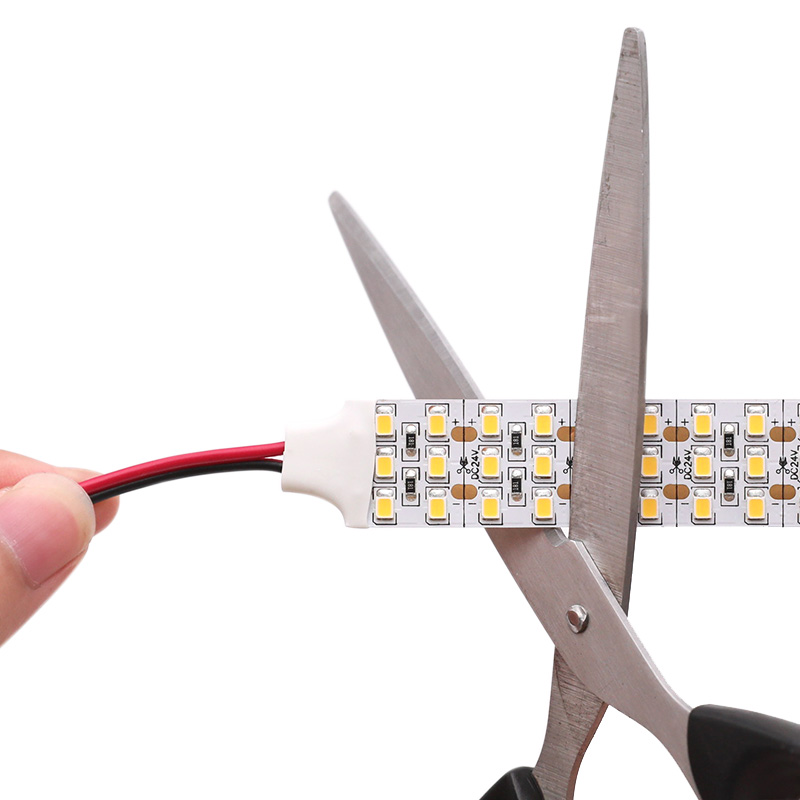

| Cuttable: | 16.66mm/0.65in, 6 lights |
| Beam Pattern: | 120 degrees |
| Waterproof Rating: | Non-waterproof IP20, Waterproof IP67 |
CRI 80 vs CRI 90 vs CRI 95 LED
CRI80+ is the lowest color rendering index that LED lights need to achieve in our daily life. The higher the color rendering index represents the better the light's ability to reproduce colors. So CRI95 lights are the best for the eyes.

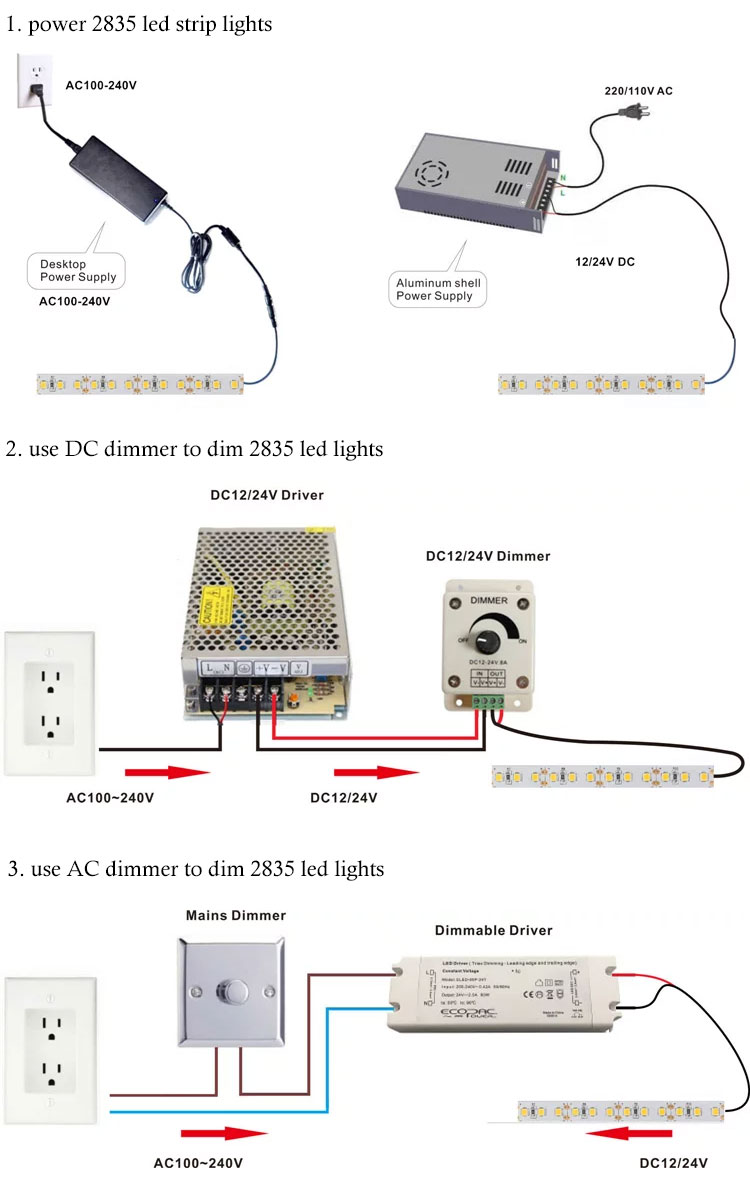

How to Wire 2835 LED Strip Lights?
During the wiring process, please pay attention that the positive and negative terminals should not be reversed. (Red wire V+, Black wire V-)
Reviews
Customer Experience
Your feedback is important to us! Share your thoughts and photos with other customers.
Downloads
Files for FSLTR-20MM-2835X360Images
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
LED Strip Light Guide
Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.
