Spcial DC12V 2835SMD 600LEDs 16.4Ft 8mm Wide Single LED Cuttable White LED Strip Light
Related Products
Spcial DC12V 2835SMD...
$29.98 $19.9833% off
08*17mm 270° Side...
$4.99
DC12-24V 20A 1CH*20A...
$24.98
96W8A DC12V Plastic Shell...
$21.99
15A*1CH Brightness LED...
$22.98
Flex Silicone LED...
$4.99
Flexible Silicone Outdoor...
$4.99-
Special Price: $29.98 $19.9833% off

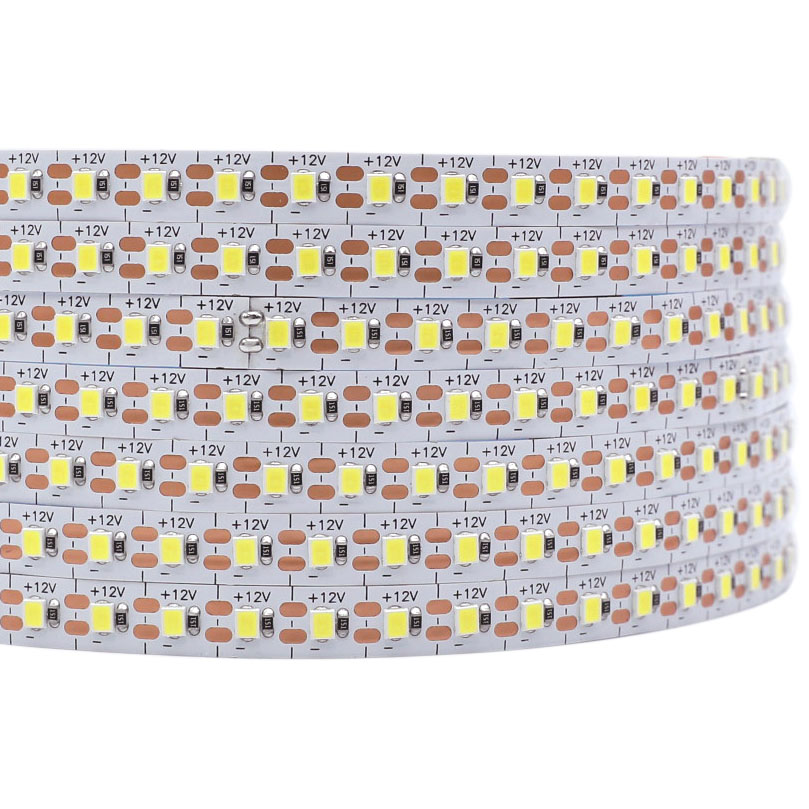

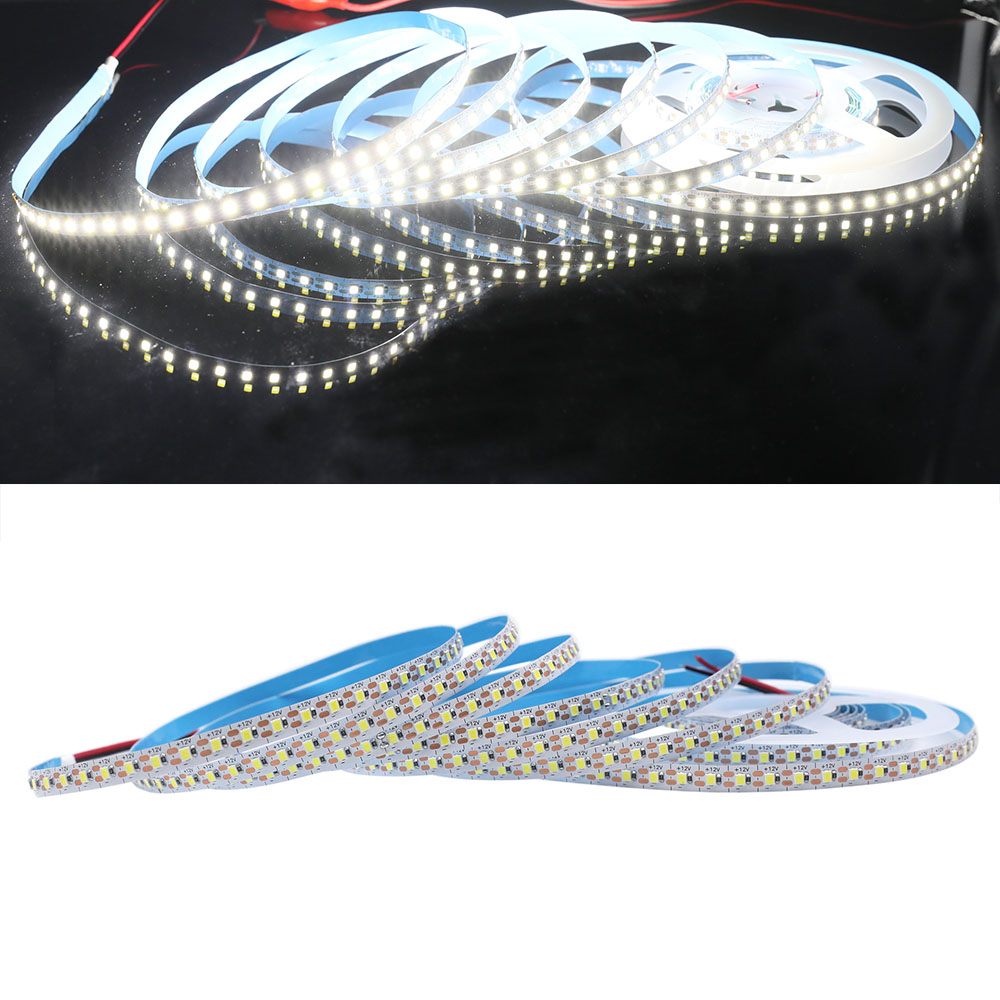

This 2835SMD white LED is different from other DC12V LED light strips. The biggest feature is that a single LED cuttable. High brightness and high quality PCB with a good heat dissipation. The white light LED strip lighting is high density 120LEDs/m, total 600LEDs per roll. And the LED PCB width is 8mm/0.31in, you can install the white led light strip in a narrow space.
LED white light color temperature 3000K warm white or 6000K daylight white(pure white) optional, you can choose different LED color temperature and waterproof rating of the 2835SMD white led strip according to your requirements.
How to choose the right white light color temperature, get your answer in the article: 3000K VS 6000K, warm white VS pure white, warm white VS cool white.
Different waterproof rating is suitable for different installation places. IP20 white LED tape lights are suitable for indoor use, while IP67 white LED strips are outdoor waterproof. If you don't know the difference between IP20 non-waterproof and IP67 waterproof rating, you can read 'What is the IP rating" to dispel your doubt.

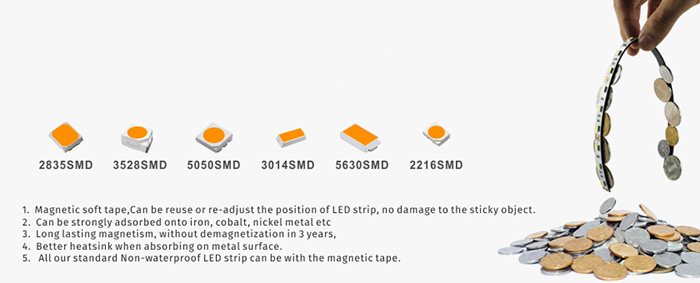

What is the difference between SMD2835 LED and SMD3528 LED?
►LED Chip Size: SMD2835 LED is L2.8mm*W3.5mm; SMD3528 LED is L3.5mm*W2.8mm
►LED external shape: SMD2835 LED chip and rectangular phosphor film are sealed in plastic reflector, SMD3528 LED chip and circular phosphor film are sealed in plastic reflector
►Single LED Power: SMD2835(PPA) is 0.1/0.2/0.5W, SMD2835(PCT) is middle & high power(0.5/1W); SMD3528 LED is 0.06W
►Single LED lumen: SMD2835 LED is 20-22lm@60mA; SMD3528 LED is 7-8lm@20mA
For more knowledge about different SMD LED, SMD2835 VS SMD5050, SMD3528 VS SMD5050, you can find it in the above article - "Top 6 Considerations Before Buying LED Strip Lights". And in that we have listed a table summarizing the differences between all the SMD LEDs.
| Product Feature | LED Light Strip Applications | |
|
• Single LED Cuttable • SMD2835 LED chip • Rectangular phosphor film • High density 120LEDs/m, 600LEDs/Roll • 8mm/0.31in wide PCB suitable for narrow space • High brightness and high quality PCB • 3M tape, easy installation • DC12V input voltage, safety and high efficienty |
|
|
What you should know about LED strip lights
LED rope lights due to its various advantages have a place in the home lighting and commercial lighting projects. Before buying LED strip lights, you should know some considerations:
• Is it worth getting led strip lights?
• Flexible led strip lights VS rigid led strip lights
Standards and Certifications
Product Specification
LED Strip Type: 2835SMD
LED Chip: Epistar super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White(3000K), Daylight White(6000K)
LED Quantity: 120LEDs/M, 600LEDs/Roll

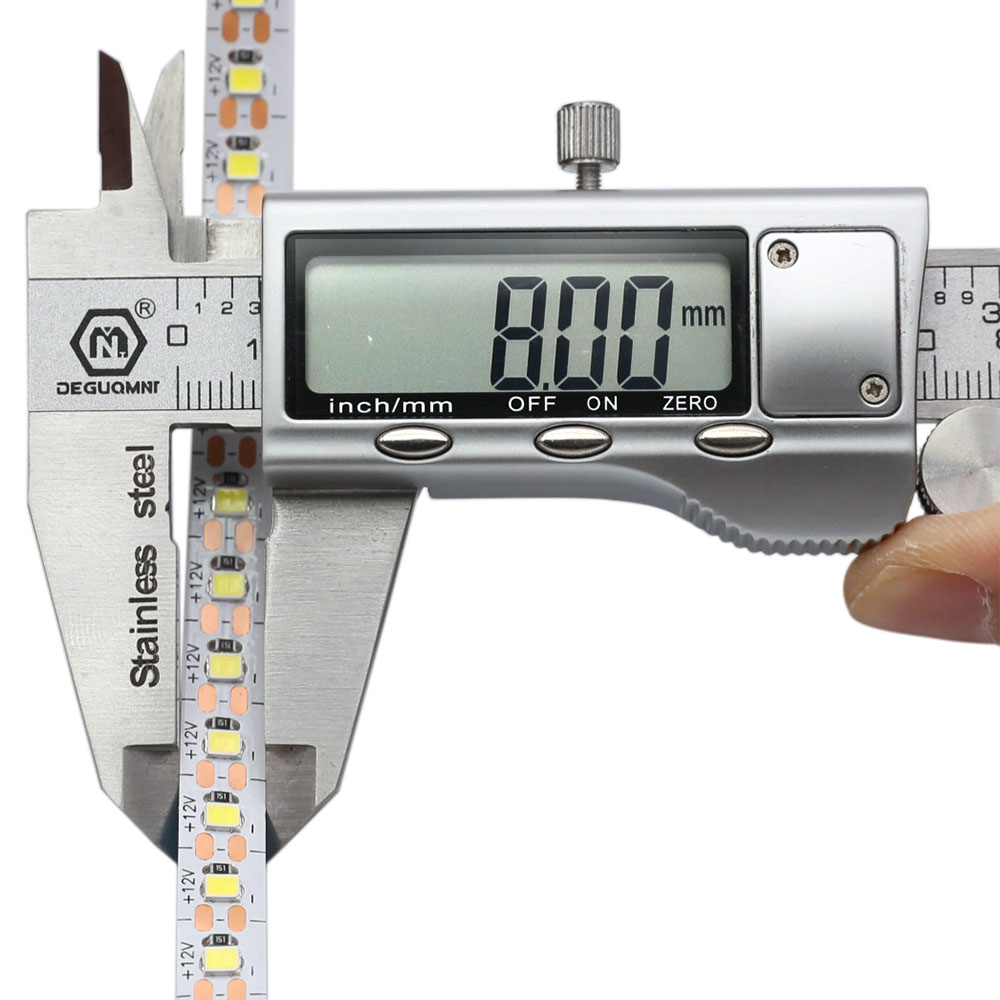

PCB Wide: 8mm/0.31in
Input Voltage(V): 12VDC
Working Power: 75W/Roll Max
Beam Pattern: 120 degrees
CRI (Ra>): 95+

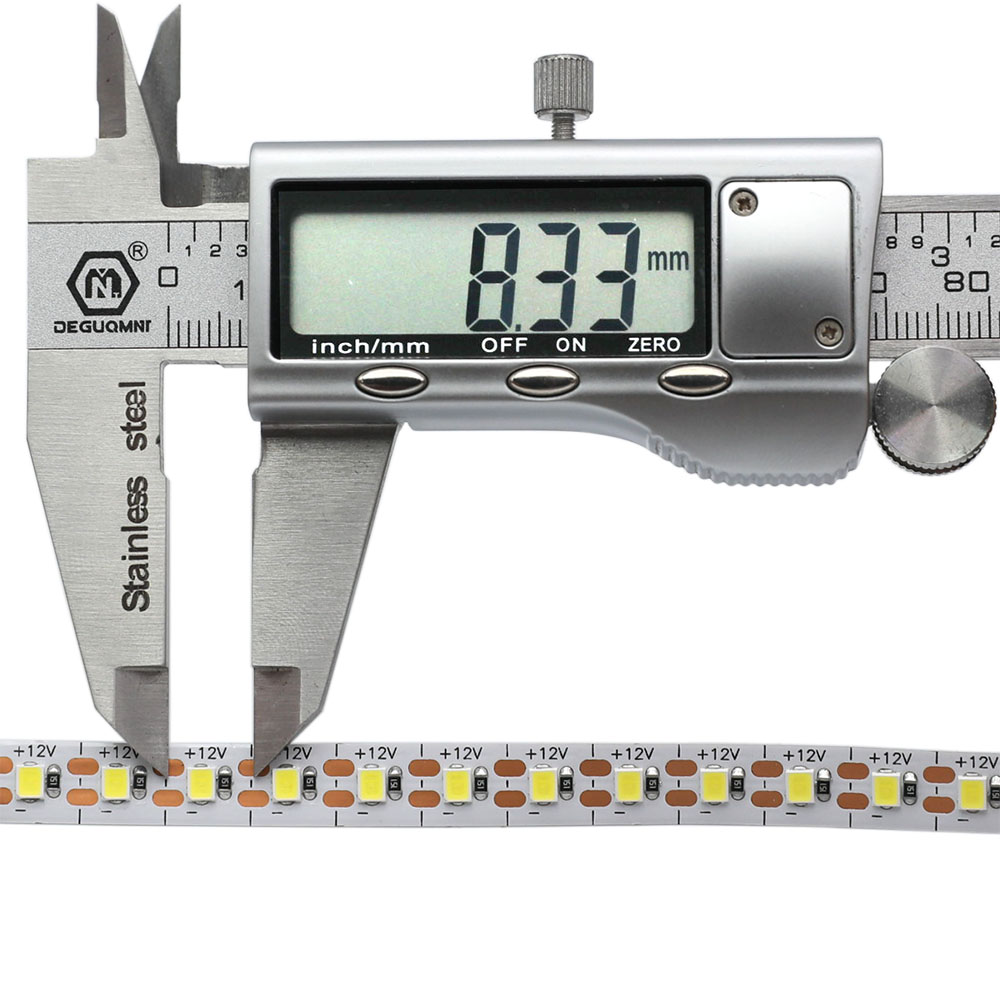

Cuttable: Single LED
Water Proof: Non-waterproof IP20 / Waterproof IP67
Lifespan: 50,000+hours
Warranty: 3 years
Product List

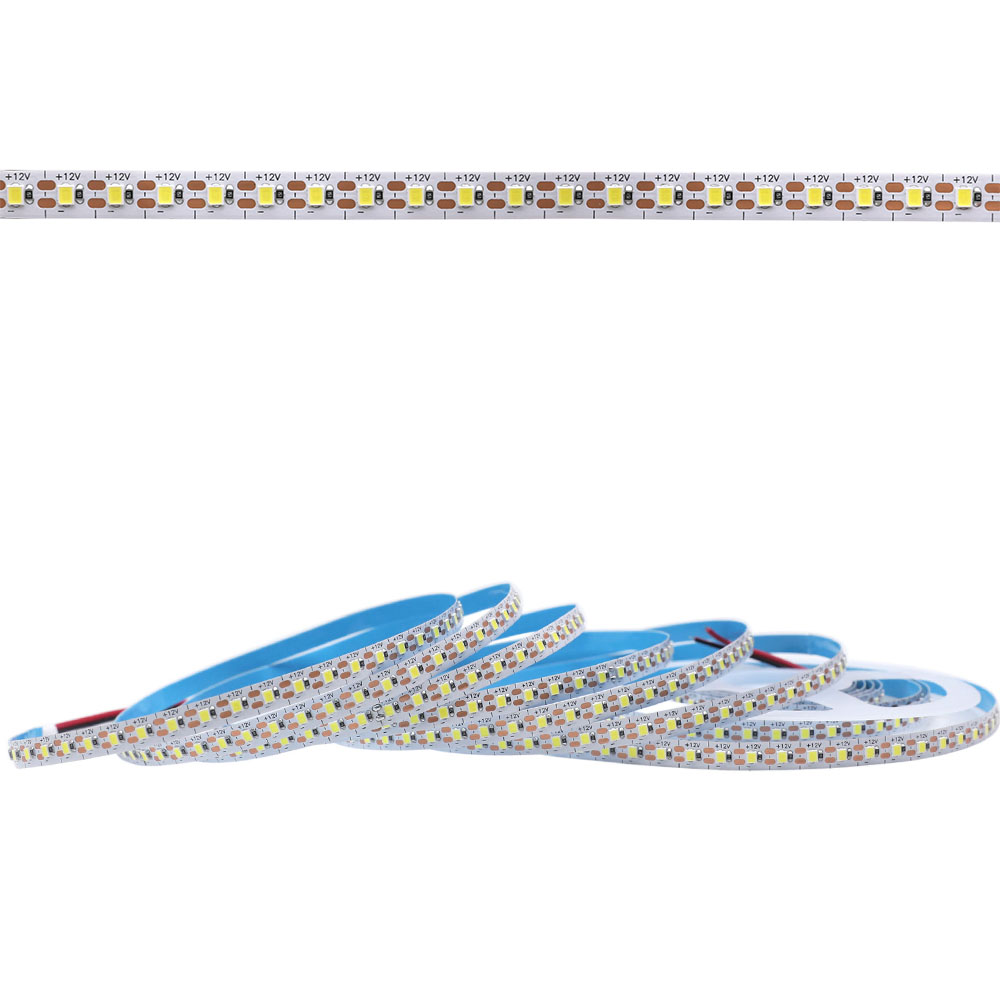

1* IP20 non-waterproof daylight white 5m/16.4Ft SMD2835 600LEDs LED strip light by default.
Want different 3000K warm white light LED strip and IP67 outdoor waterproof white LED lights, please choose the corresponding option.
If you choose the LED controller in the kit, we will send you V1 + RT1.
If you choose the LED power adapter in the kit, we will send you PSPS-12V-96W.
| Default white light LED strip | IP20 non-waterproof daylight white LED strip |
| LED strip + LED light controller | IP20 non-waterproof daylight white LED strip + V1 + RT1 |
| LED strip + power adapter | IP20 non-waterproof daylight white LED strip + PSPS-12V-96W |
| LED strip + LED light controller + power adapter | IP20 non-waterproof daylight white LED strip + V1 + RT1 + PSPS-12V-96W |
If you don't satisfied with the white light LED controller and the LED power supply, you can choose by yourself. We provide articles to help you choose the right one.
Choose a right LED controller: How to choose led strip light controllers?
Choose a right LED power supply: How to choose led strip light power supply? & How to calculate power for led strip lights?
How to install white LED strip lights?
|
|
 |
 |
|
|

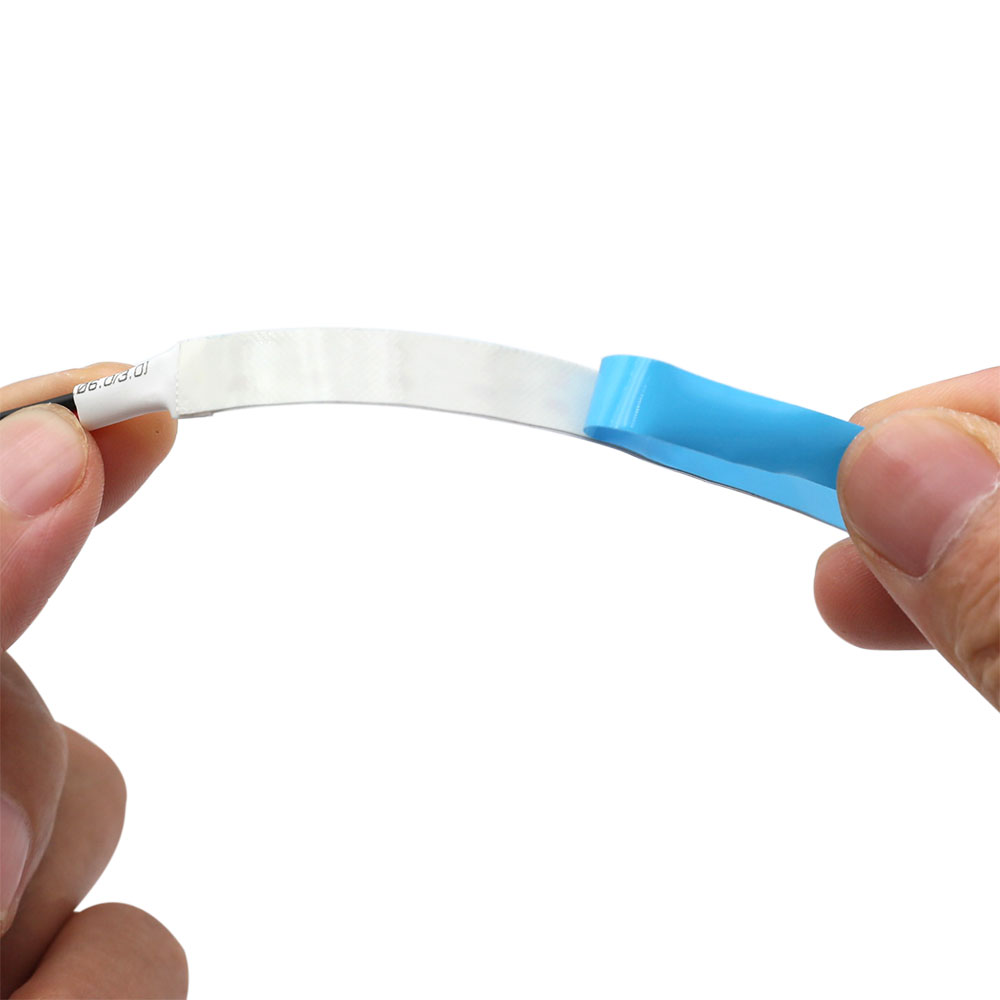

 The back of the white light strip is fitted with a strong 3M tape, allowing you to peel and stick lights. |
IP67 white LED waterproof type which will come with mounting brackets. |
All the LED light strips, absolutely including the warm white LED strips and daylight white LED strip lights, can be installed with LED aluminum channel and LED neon tube to get an uniform, soft, and no light spot LED lighting effect.
Interested in the LED aluminum profile and LED neon lights, you can read the following articles to fully understand:
Ultimate Guide on Aluminum Profile for LED Strip Lighting
How to wire white light LED strips?
The following is the single color white LED light strip wiring diagram.
The warm white light LED strip or the daylight white LED light strip is connected to the LED dimmer(LED dimmer controls the LED brightness of the light strip), and the LED driver to power supply the white LED strip and the dimmer controller.
If the LED dimmer is not necessary, you can directly connect the white LED strip to the LED transformer. An article about introducing how to connect the white light LED strip to the power supply: How to connect white led strip to the power supply? In the article, you will know diferent connection types between the white LED lights and the LED driver.
