Product Information

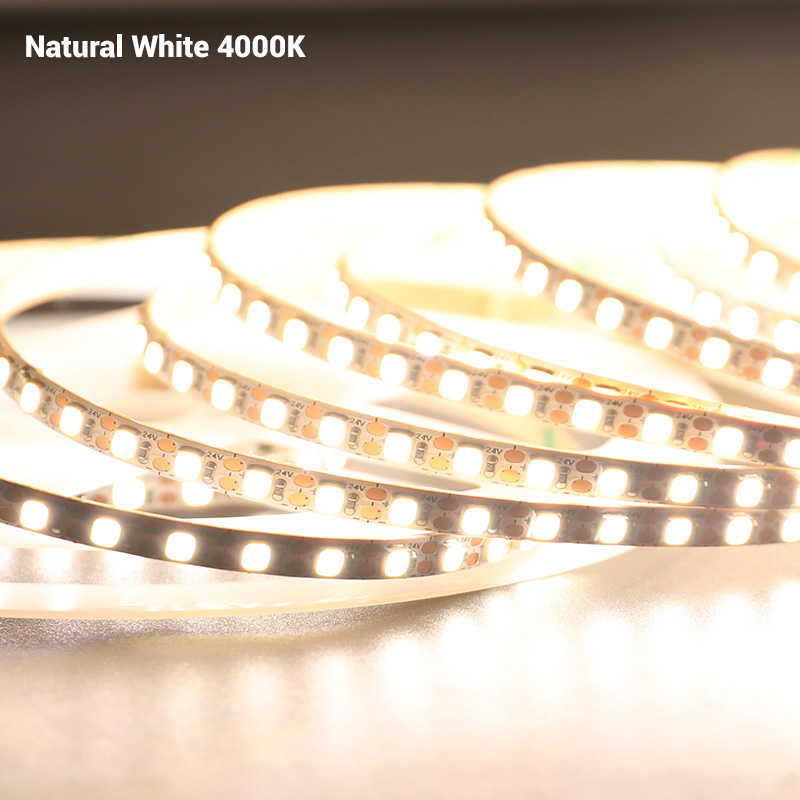

Each LED can be cut super dense 24V smd 2835 led strip, warm white 3000K or neutral white 4000K light color temperatures bringing you even lighting experience. Two LED density specifications, 140 lights per meter on 5mm wide PCB board, and 180 lights per meter on 8mm wide PCB board (please click here to buy the 8mm version). Easy to hide in narrow spaces, offering more flexible installation and layout options. This narrow, dense single LED cuttable 2835 led strip light uses a 24V voltage input, expanding the distance the LEDs can be run, making it suitable for general lighting projects and application scenarios where longer lighting lengths are required.

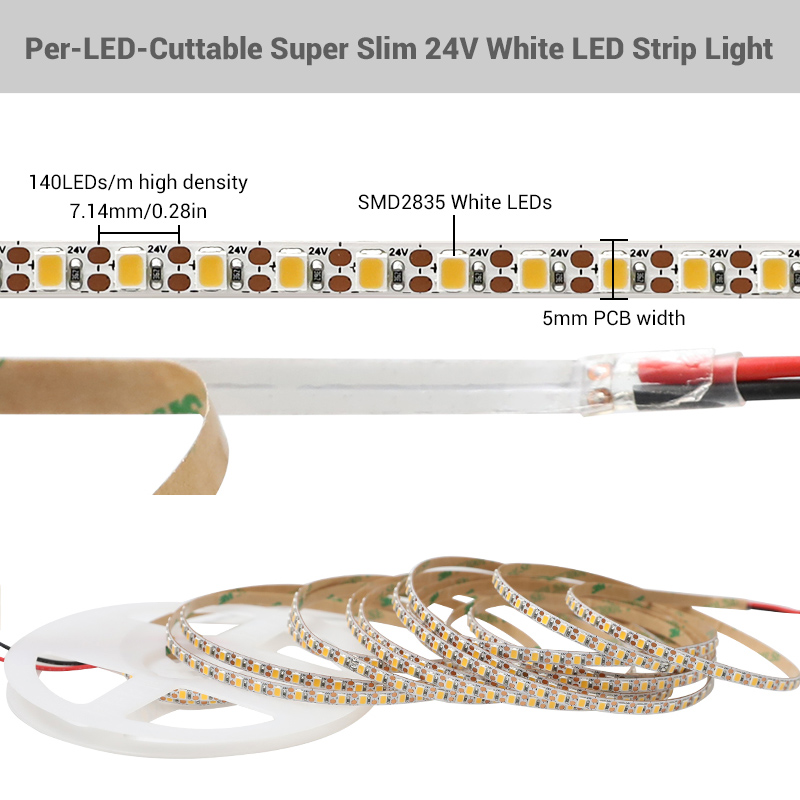

Ultra-short cut lengths of 7.14mm/0.3" or 5.55mm/0.22", each 2835 LED to be cut
5mm or 8mm light strip circuit board width for easy concealment
Super high density of 140 LEDs/m or 180 LEDs/m for uniform lighting effects, ideal for spotless neon light or aluminum profile light
Versatile 3000K 4000K 6000K white light
24V input, long running distance
One meter consumes 10 watts, one roll 5m/16.4ft consumes 50 watts, LRS-75-24 Meanwell power supply in the kit
0 to 100% brightness adjustable via external led light dimmer or dimmable led driver
Product Specification
| LED Strip Type: | 5mm 700LEDs Per LED Cuttable 24V 2835 LED Strip |
| CRI: | Ra>85 |
| Input Voltage: | DC24V |
| Power: | 10W/m, 50W/Roll |
| Working Temperature: | -20℃~+45℃ |
| PCB Width: | W5mm or W8mm |
| LED Color: | 3000K, 4000K, 6000K |
| LED Quantity: |
W5mm - 140 LEDs/m, 700 LEDs/16.4ft W8mm - 180 LEDs/m, 900 LEDs/16.4ft |
| Cuttable: |
W5mm - 7.14mm/0.3inch W8mm - 5.55mm/0.22inch |
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP67 |
| Beam Angle: | 120° |
| Lifespan: | 50,000 hours + |
