Product Information

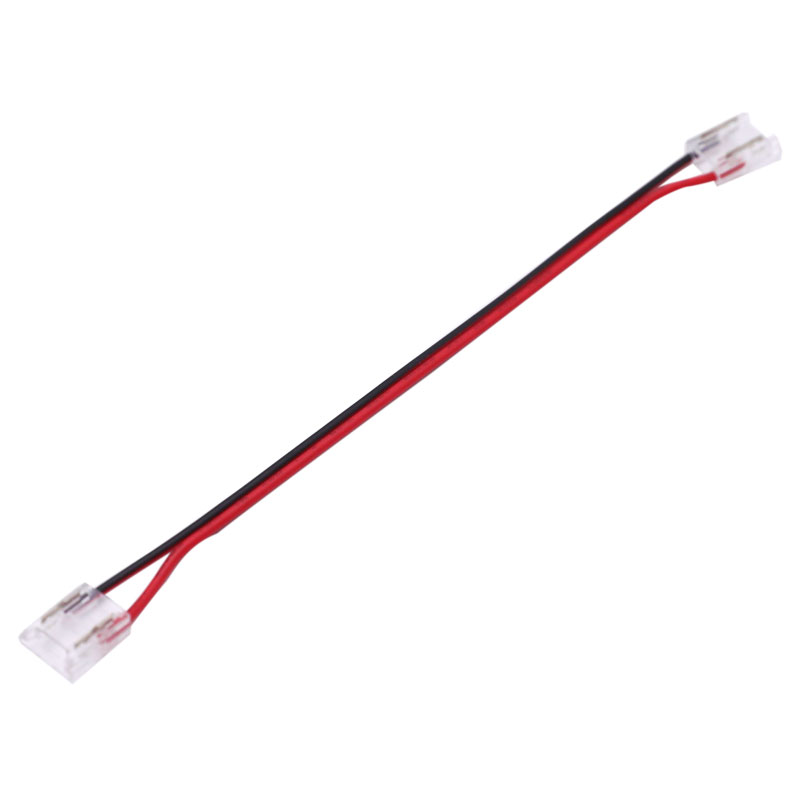

Create seamless, reliable connections between segments of your COB LED strips with our 2-Pin Strip-to-Strip Jumper Connector. Specifically engineered for the unique design of COB technology, this connector wire bridges gaps and navigates corners effortlessly. It features a 15cm (5.9") flexible cable between two piercing-style heads, providing a robust mechanical and electrical link. Ideal for custom lighting layouts in under-cabinet, cove, or display applications, this connector eliminates the need for soldering. It's available in 5mm, 8mm, and 10mm widths to perfectly match your single color, white or 2-wire CCT COB LED tape lights. As a key part of our lighting accessories and parts collection, it ensures your lighting projects are professional and durable.
Key Features
Designed for COB Strips
Engineered specifically to create a secure connection with the circuitry of 2-pin single color and 2-wire CCT COB LED strips.
Secure Piercing Connection

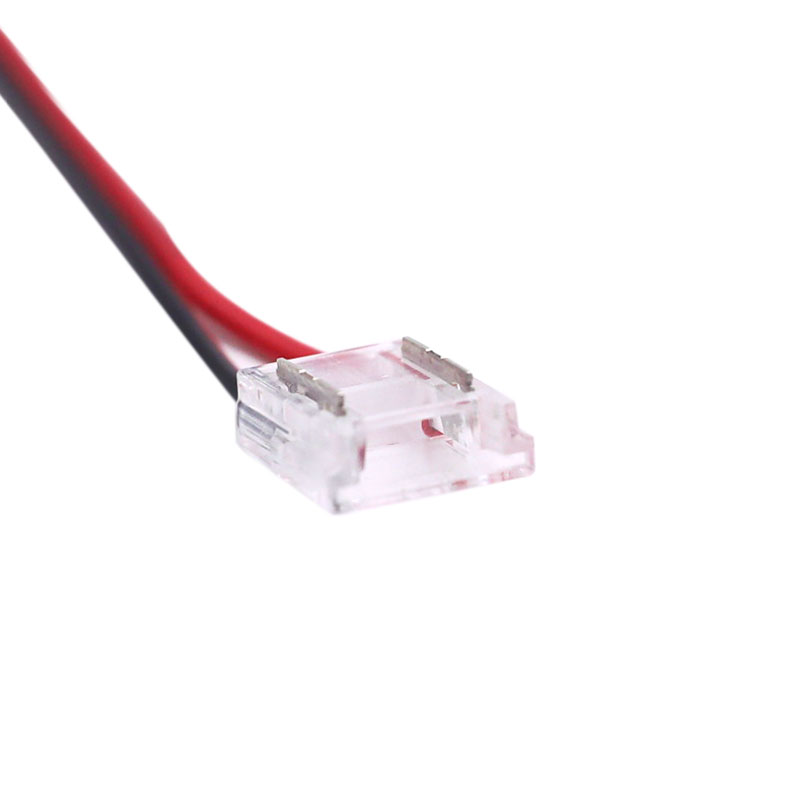

Features insulation-piercing metal pins that, when pressed with pliers, create a strong, stable, and long-lasting electrical connection.
Flexible 15cm Jumper
The 15cm (5.9") wire provides ample length to connect strips around corners, over obstacles, or across gaps in your installation.
Multiple Width Options
Available in 5mm, 8mm, and 10mm sizes to ensure a perfect fit for a wide range of common COB strip PCB widths.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | SC-ACCESSORIES-COB-STS |
| Type | COB LED Strip Cable Connector, Strip to Strip |
| Pins | 2-Pin |
| Compatible Strip Type | Single Color, 2-Wire CCT COB LED Strips |
| Compatible PCB Widths | 5mm (0.2"), 8mm (0.31"), 10mm (0.39") |
| Wire Length | 15cm / 5.9" |
| Connection Method | Insulation Piercing (Requires Pliers) |
| IP Rating | IP20 (For Indoor/Dry Locations) |
| Material | Plastic, Metal |
Application Scenarios
How to Use This COB Strip Connector
- Ensure your strip is a 2-pin, non-waterproof (IP20) COB LED strip matching the connector's width (5mm, 8mm, or 10mm).

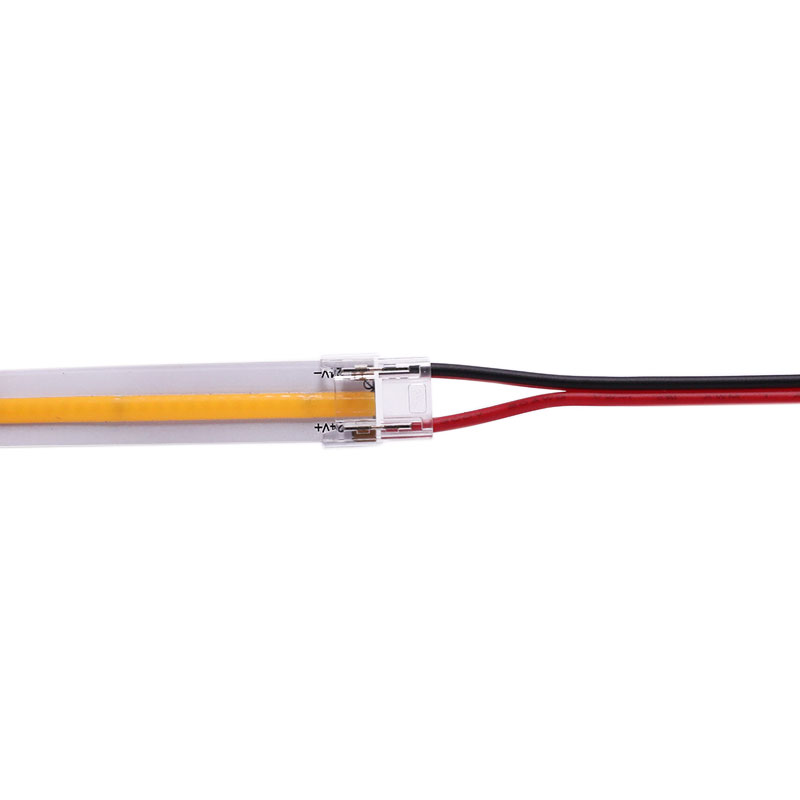

- Carefully slide the end of the first COB LED strip into one side of the connector. Make sure it is fully seated under the metal contact pins.
- Using a pair of pliers, apply firm and even pressure to press the metal pins completely down. This action pierces the strip's PCB to establish a secure electrical connection.
- Repeat steps 2 and 3 for the second COB strip segment on the other end of the connector.
- Confirm the connection is secure and test the lights to ensure a proper connection has been made before final installation.
- This connector is designed for IP20 non-waterproof COB strips only. Do not use with silicone-coated or waterproof strips.
- Ensure the polarity markings on your LED strips align correctly when making the connection.
- Pliers are required for proper installation. A standard pair of slip-joint or channel-lock pliers works well.
- Do not force the strip into a connector of the wrong size, as this can damage both the strip and the connector.
What's in the Box
- ✓1 x 2-Pin COB LED Strip to Strip Connector with 15cm Cable
Frequently Asked Questions
Q: How do I choose the correct size: 5mm, 8mm, or 10mm?
A:Measure the width of the printed circuit board (PCB) of your COB LED strip. Select the connector size that exactly matches your strip's PCB width for a proper fit.
Q: What types of COB strips does this support?
A:It is compatible with any 2-wire (2-pin) COB LED strip, which includes single color, static white, and 2-wire CCT dimmable LED strips.
Q: Is the 15cm wire between the connectors included?
A:Yes, the product is a complete unit with two connector heads pre-attached by a 15cm (5.9") flexible wire.
