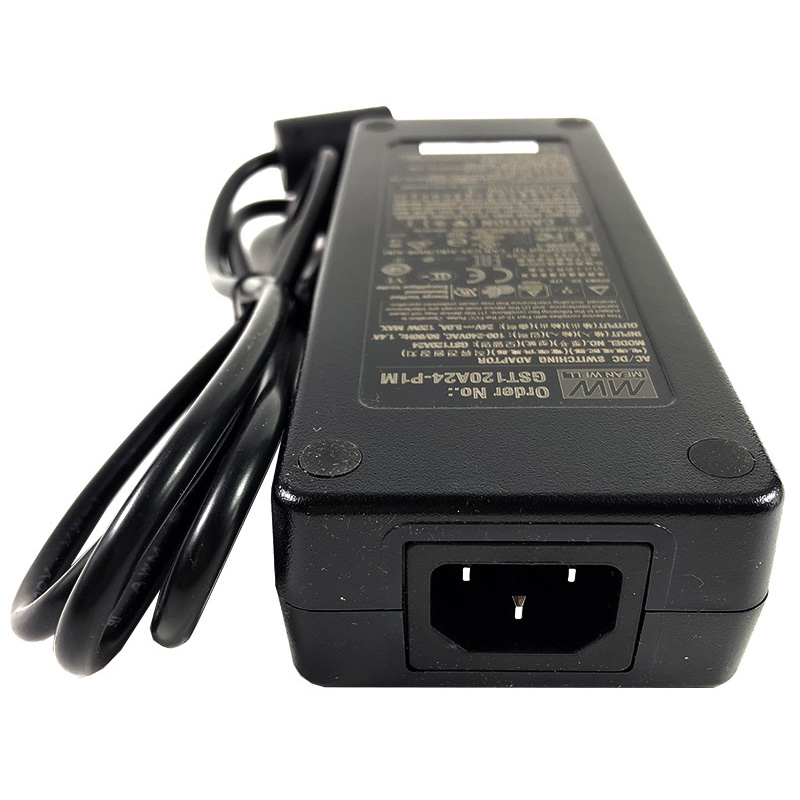

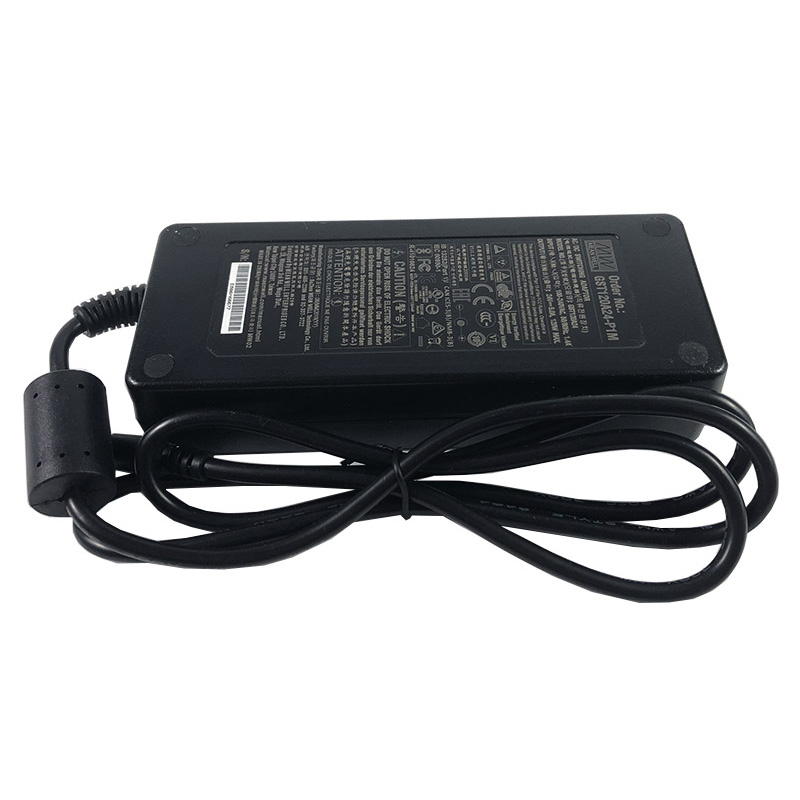

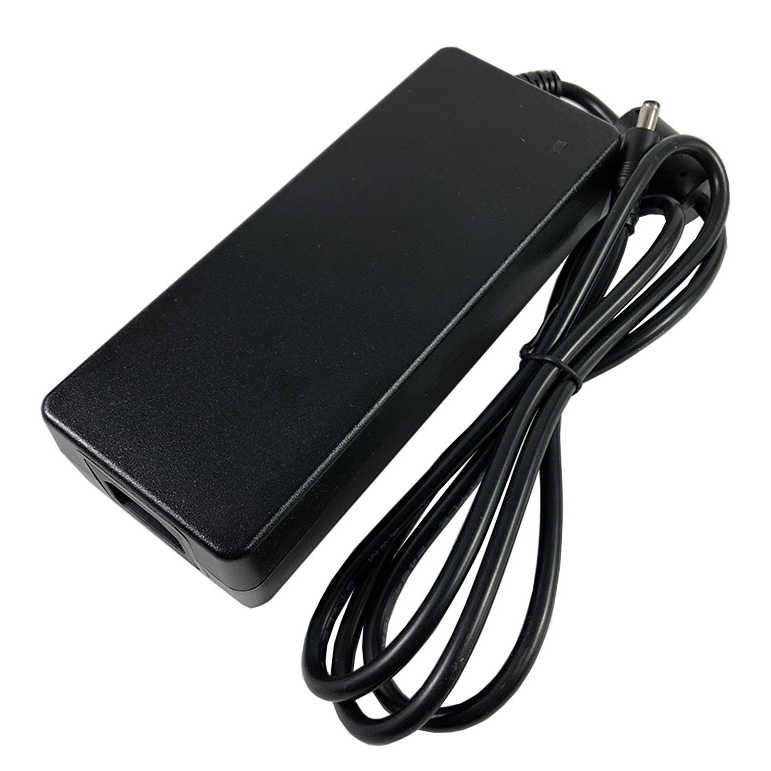

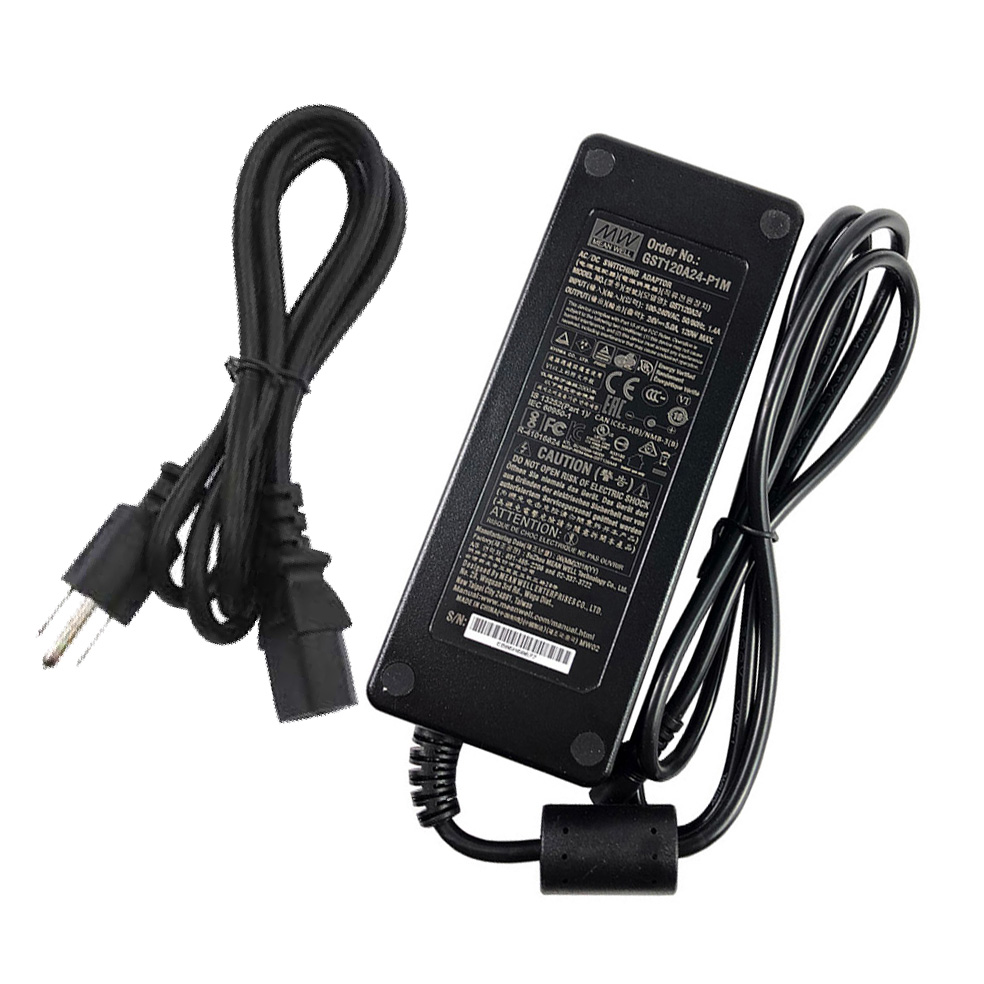

MeanWell DC24V 5A 120W GST120A24 AC To DC Reliable Green Industrial LED Power Adaptor
GST120A24 input voltage 85-264VAC, universal; output voltage is DC24V, output current is 5A, total power is 120W, suitable for DC24V LED light.
This item is power adapter (transformer) of AC -DC Low Voltage for 24V Parapet lights, Spot Light, Wall Washer, Grow Light, Single colour RGB or dream color LED strip lights and led module string.
Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage 85% of this Power supply adaptor, Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
Universal AC input / Full range
3 pole AC inlet IEC320-C14,Class I power unit
No load power consumption< 0.15W
Energy efficiency Level VI
Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
Protections: Short circuit / Overload / Over voltage/Over temperature
Fully enclosed plastic case
-30~+70°C wide range working temperature
LED indicator for power on
Built-in active PFC function
3 years warranty
Primary Output Voltage: 24VDC
Output Current: 5A
Maximum Output Power: 120W
AC Power Cord: included
Input Voltage: 85 to 264VAC
Input Frequency: 47 to 63
Maximum Input Current: 1.4A/115VAC, 0.7A/230VAC
Output Connector Type: Cylindrical Female
Output Connector Diameters: 2.5mm x 5.5mm/0.10in*0.22in
Polarity: Center Positive
Number of Outputs: 1
Product Type: AC to DC Power Supply
Agency Approvals: UL/CUL/TUV/BSMI/CCC/FCC/CE
Operating Temperature-Min (Cel): -30
Operating Temperature-Max (Cel): 70
Product Note: Level VI
Type: Auto Switching
Style: Desktop Adapter
1* GST120A24 LED power adaptor
