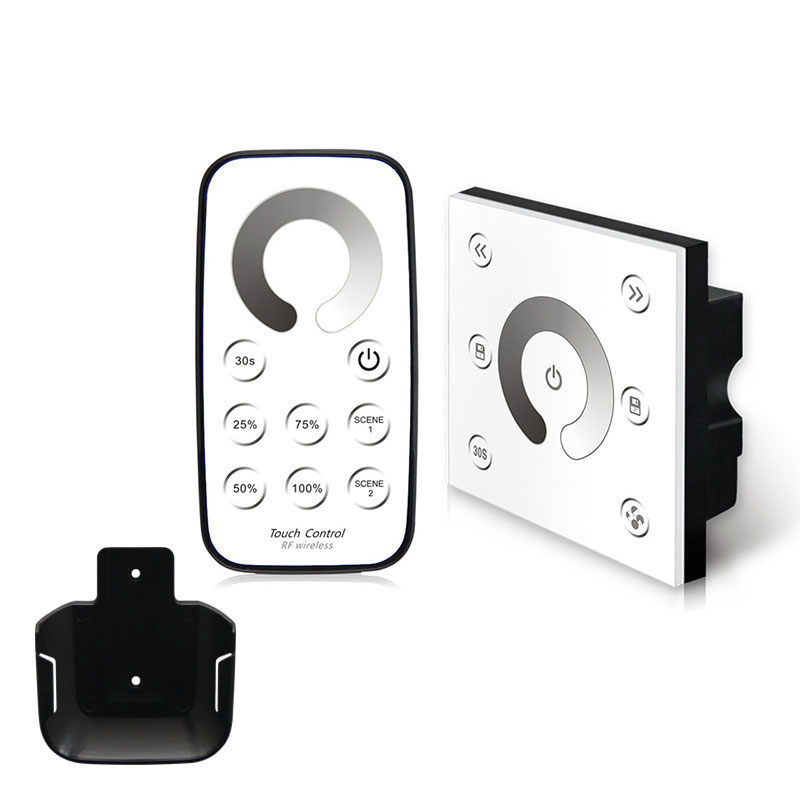

DC12V-24V Wireless Remote Single-Zone Dimmer P1+T1
this P series touch panel controller, it is wildly used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. It compatible with our T1,T2, T3 wireless remote control , realize remote control function, thus can meet demand of various occasions.

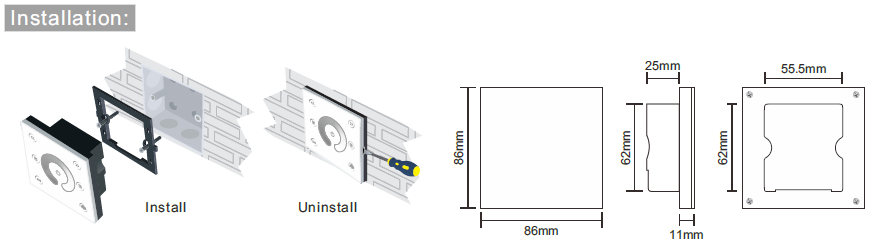

1、Fashionable appearance, simple operation, standard 86 style socket, easy to install and disassemble.
2、Workable for dimming, color temperature, RGB/RGBW control.
3、RGB/RGBW panel controller with the 10 built-in changing modes, with 4096 grey scales per channel, led lamp is more rich and vivid without flash.
Standards and Certifications
Model: P1 Dim Panel
Input Voltage: DC12V-24V
Load Current: 4A×4CH Max 16A
Grey Scale Level: 4096×4
Dimming Range: 5%-100%
Max Output Power: 192W/384W(12V/24V)
Working Temperature: -20°C~55°C
Model: Wireless Remote（T1)
Working Voltage: 3V(CR2032)
Working Frequency: 433.92MHz
Remote Distance: 40m-50m
Working Temp: -20-55℃
