AC220Vfull color programmable controller,WS2811,WS2812 controller,8 ports drive 8192 pixels,support DMX512,WS2812,For digital pixel led strip
Item Type: RGB Controler
Model Number: H801RC
Power Source: AC
Connection Mode: GND-GND,CLK-CLK,DAT-DAT
Remote Distance: none
Controled Method: controlled by master or computer
Warranty: 1 year
Max. Load Power: 10W
Features: programmable, online or offline
Applicable Lights: full color lights
ports number: 8
drive pixels number: 8192
voltage customized: Yes
(1). Eight ports drive maximum 8192 pixels. Each port control maximum 1024 pixels.
(2). H801RC works online or offline, H801RC can be connected to PC or master controller.
(3). Good control effect, grayscale level is under precisely control.
(4). Far transmission distance. Signal transmitted based on standard Ethernet protocol and the nominal transmission distance is 100 meters.
2. Supported Chips
LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, P9813, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.
Note: H801RC can support more than the chips listed above(for example UCS2903 has the same sequence diagram with UCS1903, H801RC supports them all).

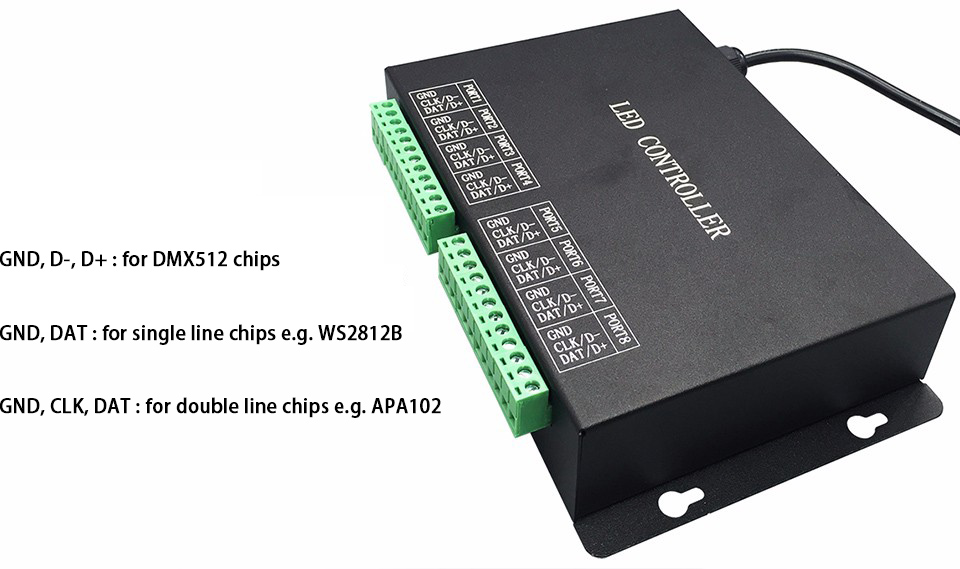

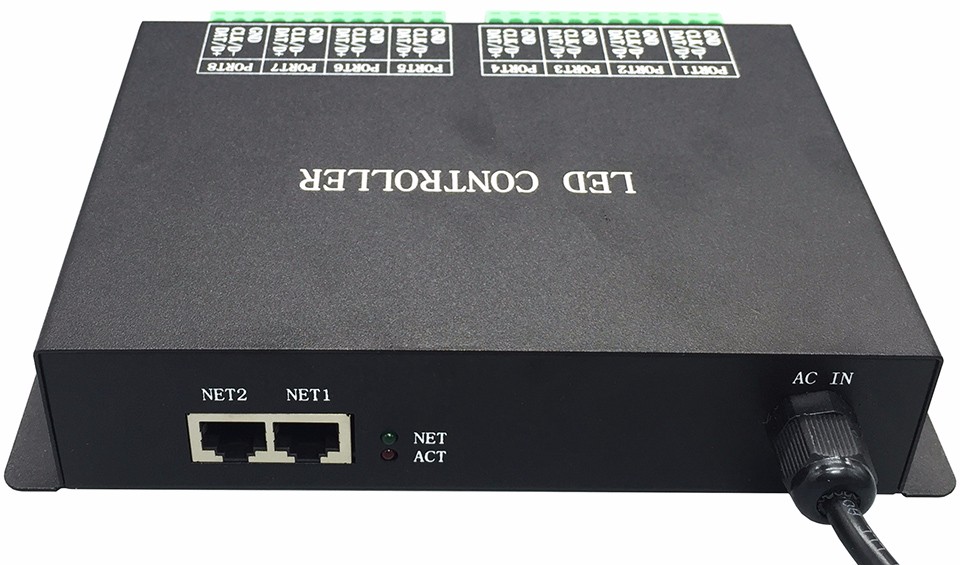

3. Product Display
4. Working Mode

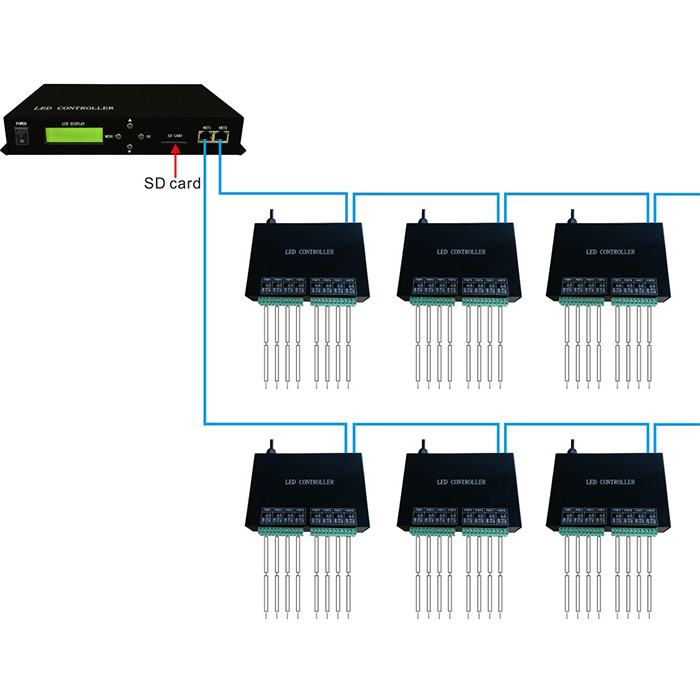

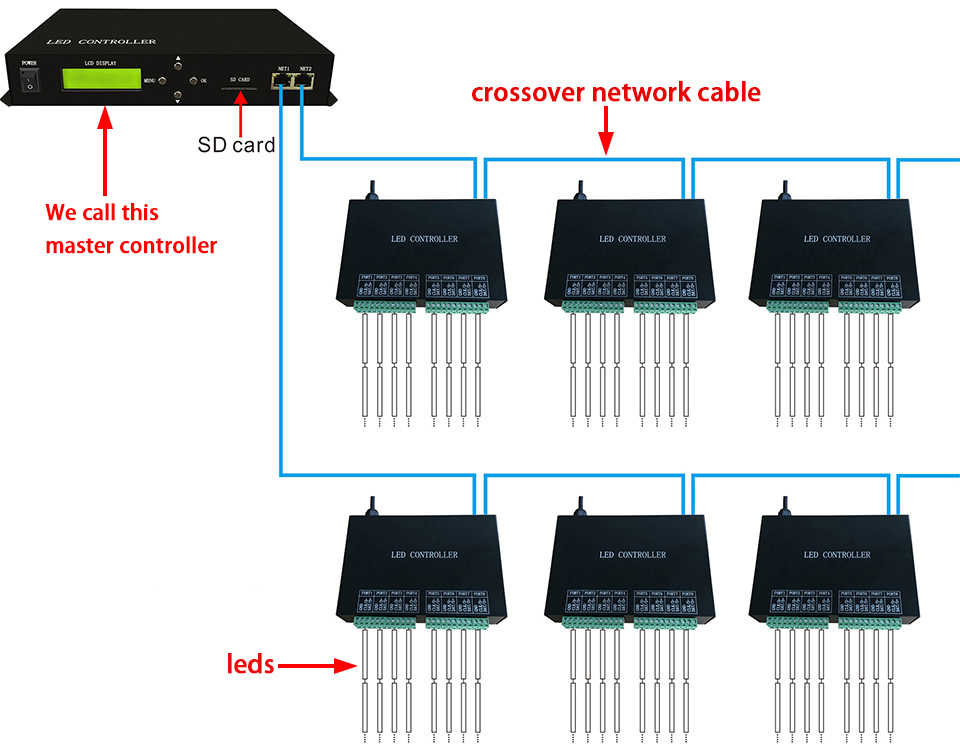

Mode 1: Connected to master controller(offline mode)
Software: LED Build
LED Build Download: https://drive.google.com/open?id=0B1gzqyV6hfOgN2pkMV8yMFozYzQ
LED Build Tutorial Video Download: https://drive.google.com/open?id=0B1gzqyV6hfOgUnFjeG9EM3VRZjA
Mode 2: Connected to PC(online mode)
Software: LED Studio
LED Studio download: https://drive.google.com/open?id=0B1gzqyV6hfOgWFpuM3BoN1VaTGs
H801RC to PC tutorial document download: https://drive.google.com/open?id=0B1gzqyV6hfOgdDJ0REVLWS1qUEU
5. Basic Workflow(online mode)

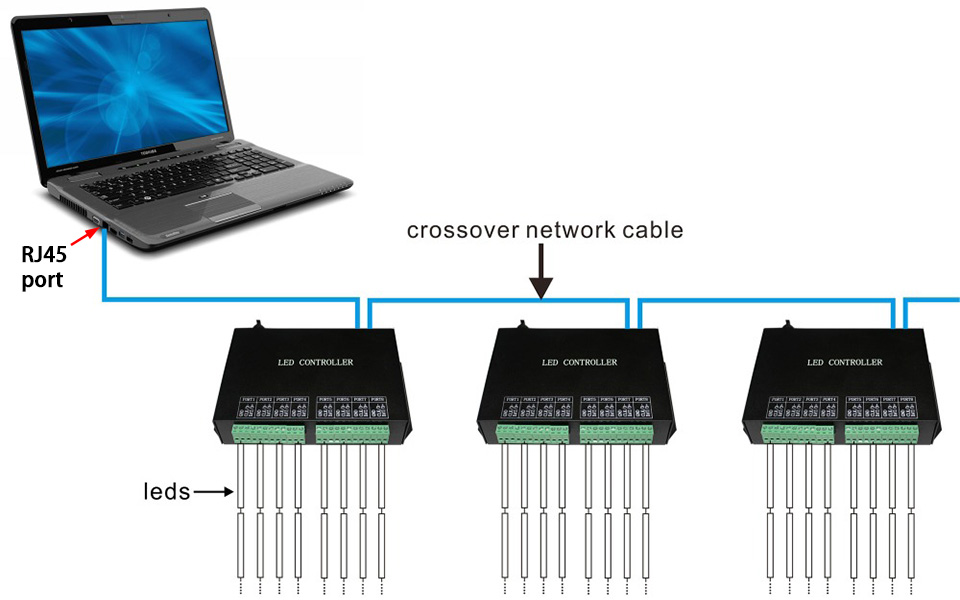

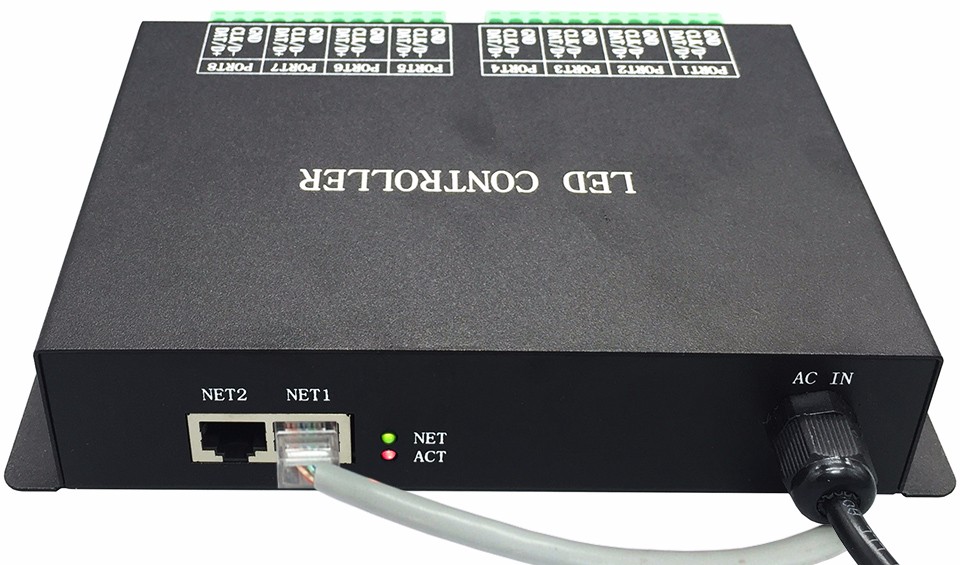

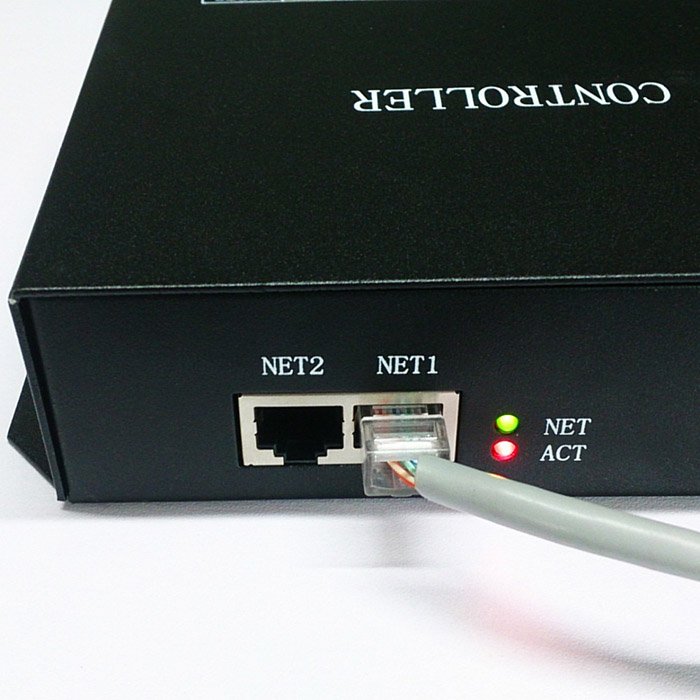

Step 1: connect H801RC to PC with crossover network cable

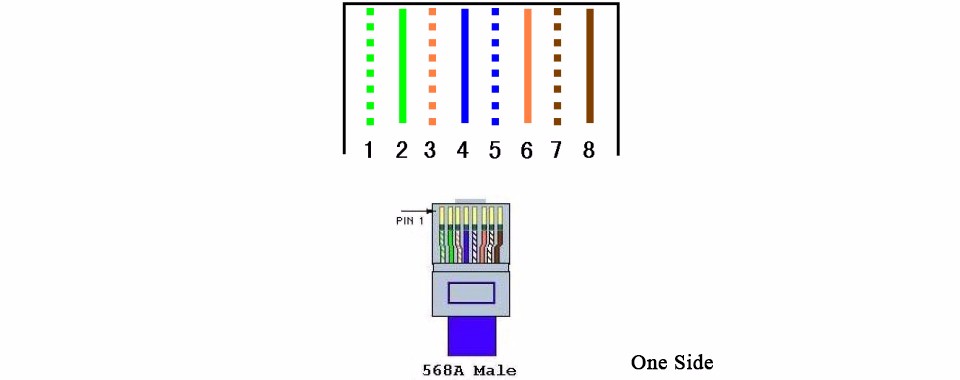

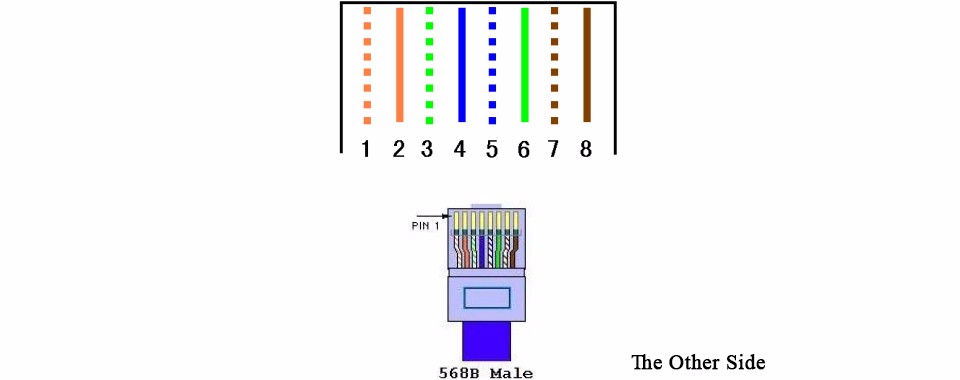

Crossover Network Cable:

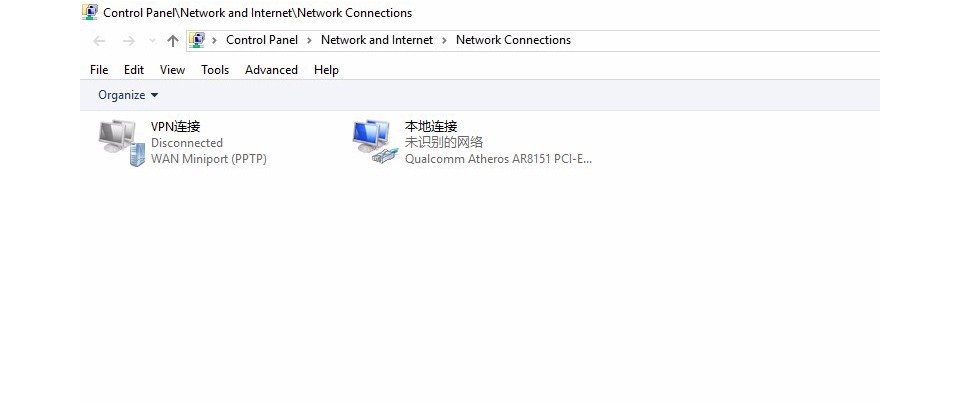

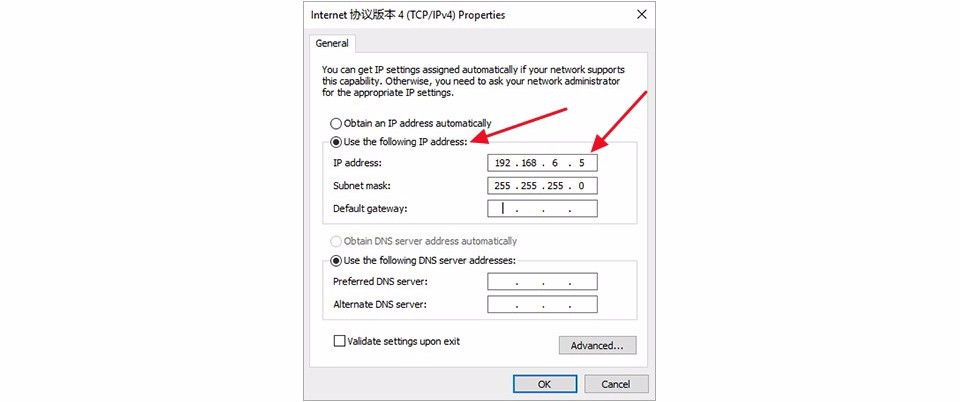

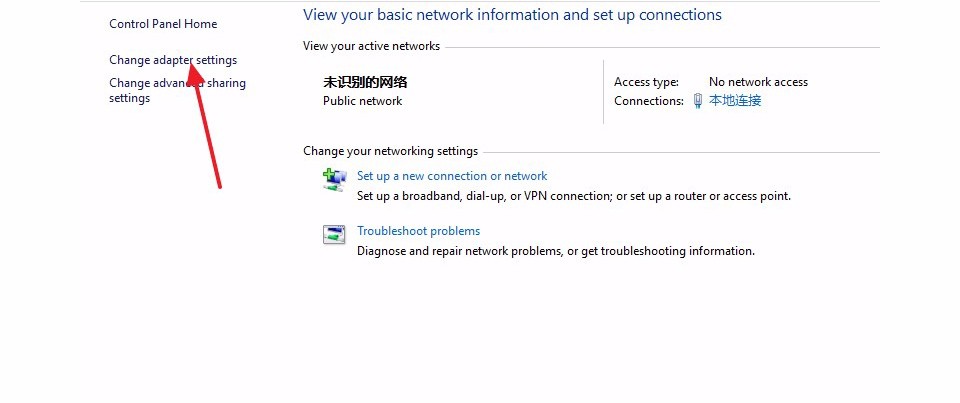

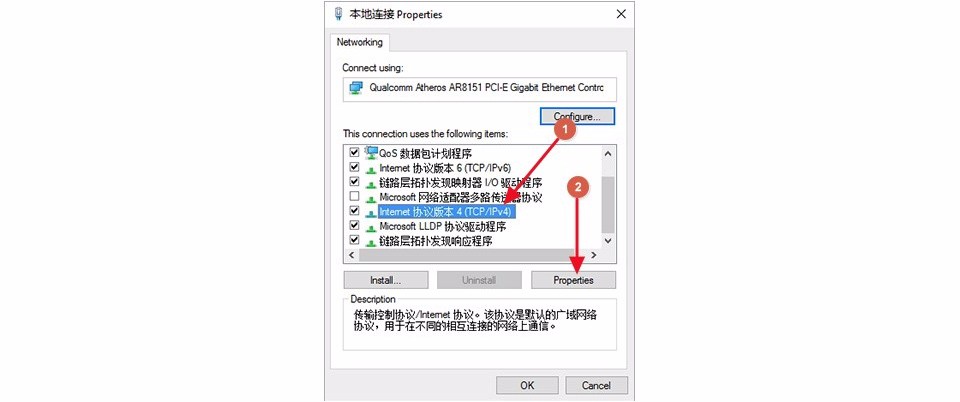

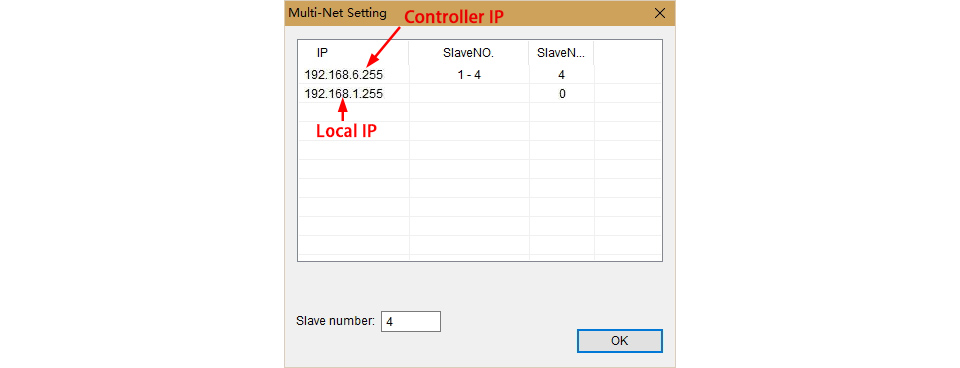

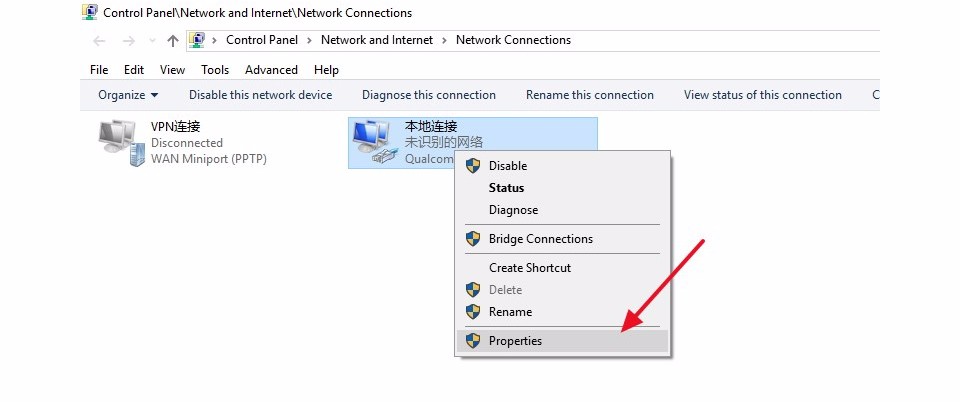

Step 2: Allocate an IP address for controller

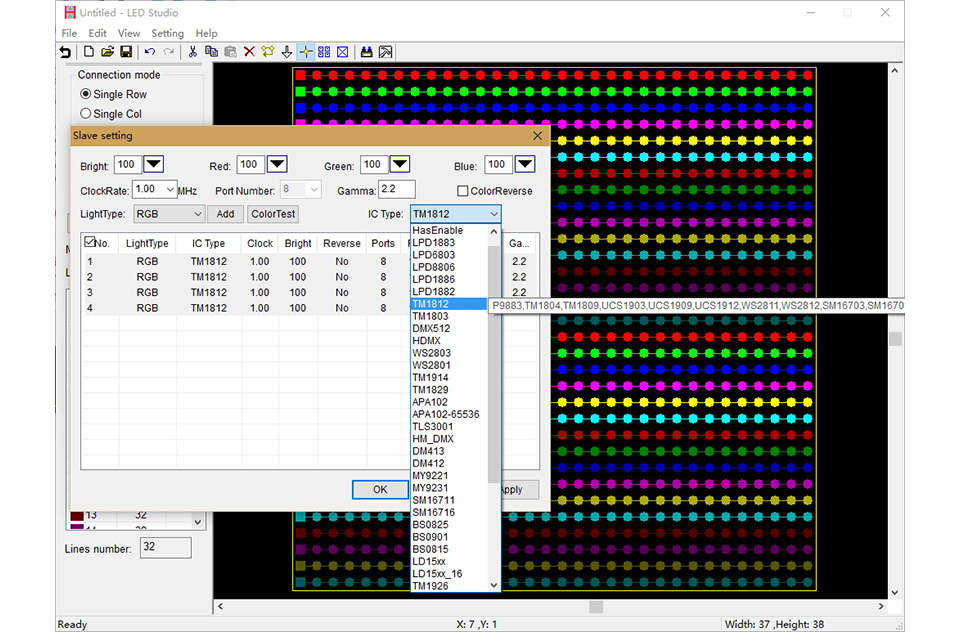

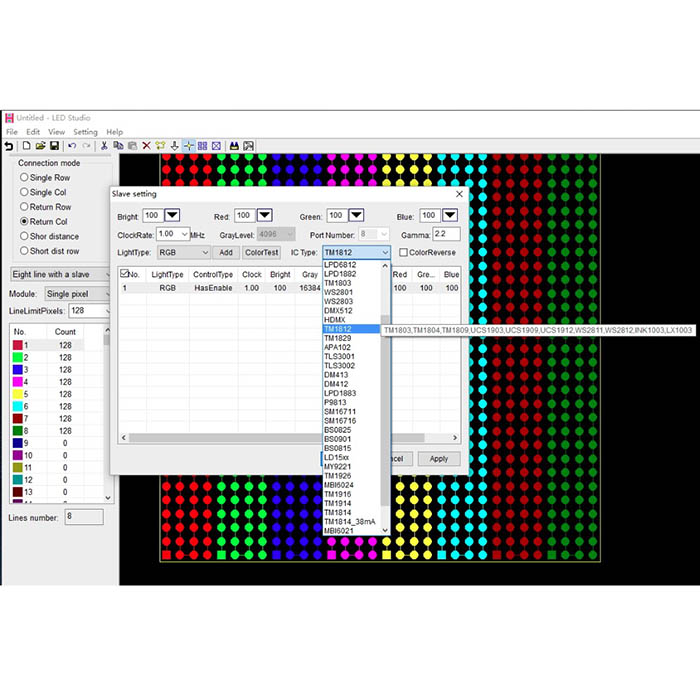

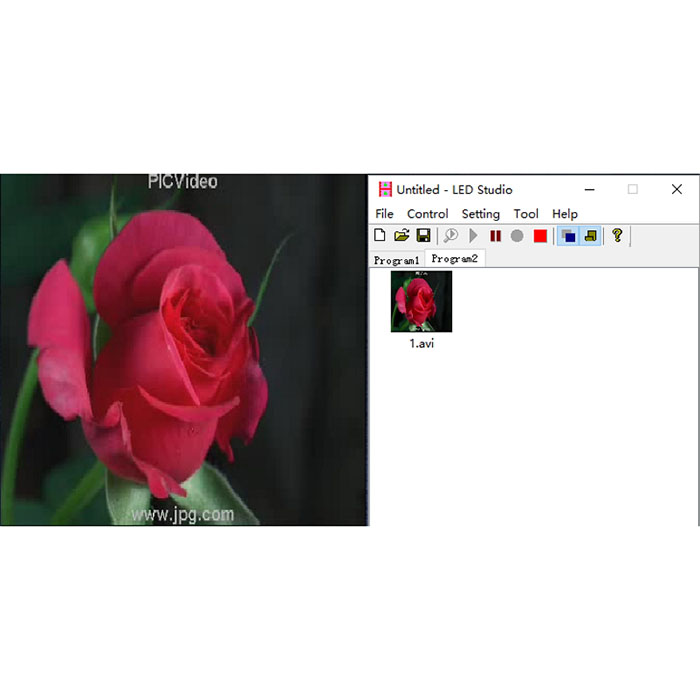

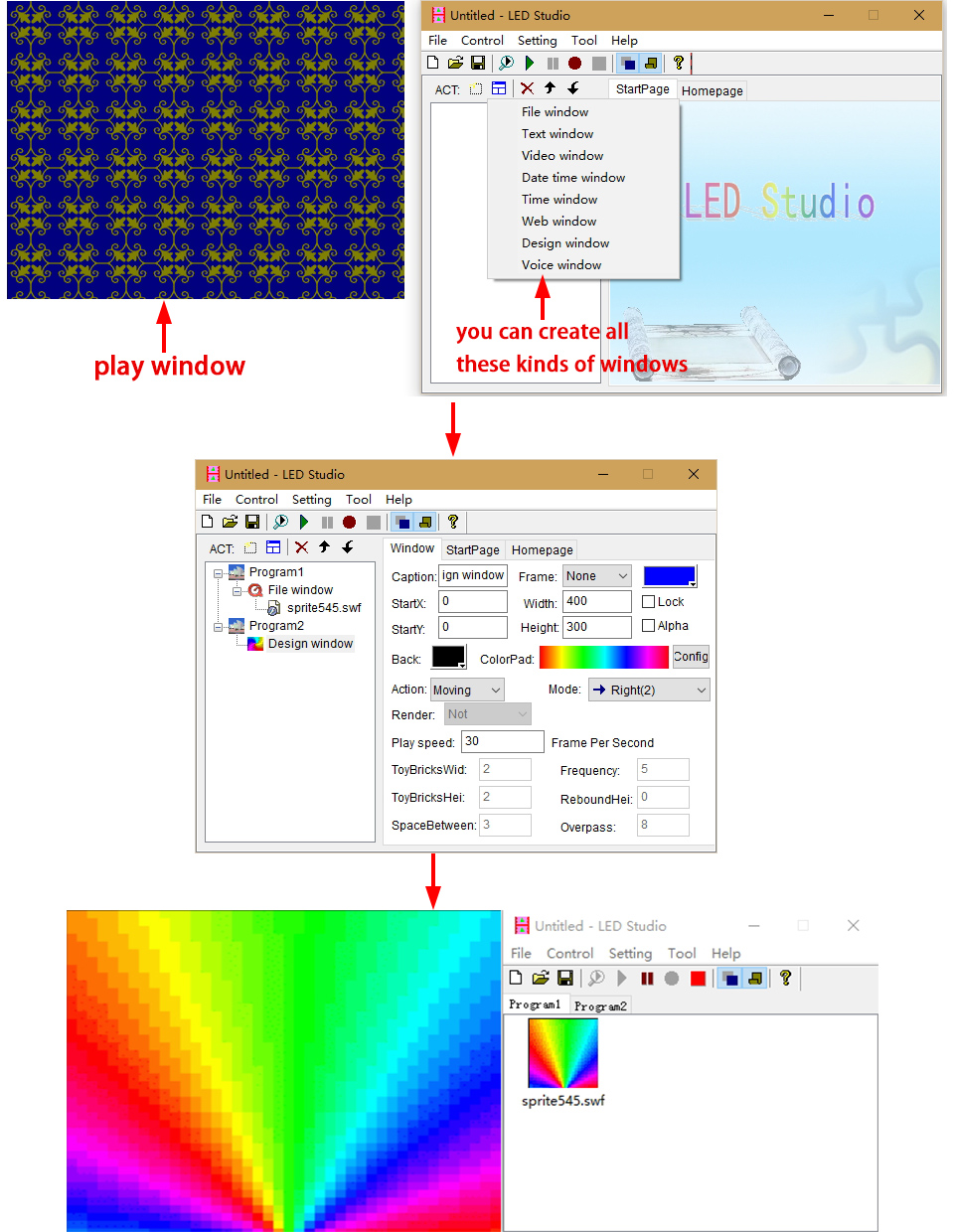

Step 3: Program in LED Studio Software
Basic software workflow

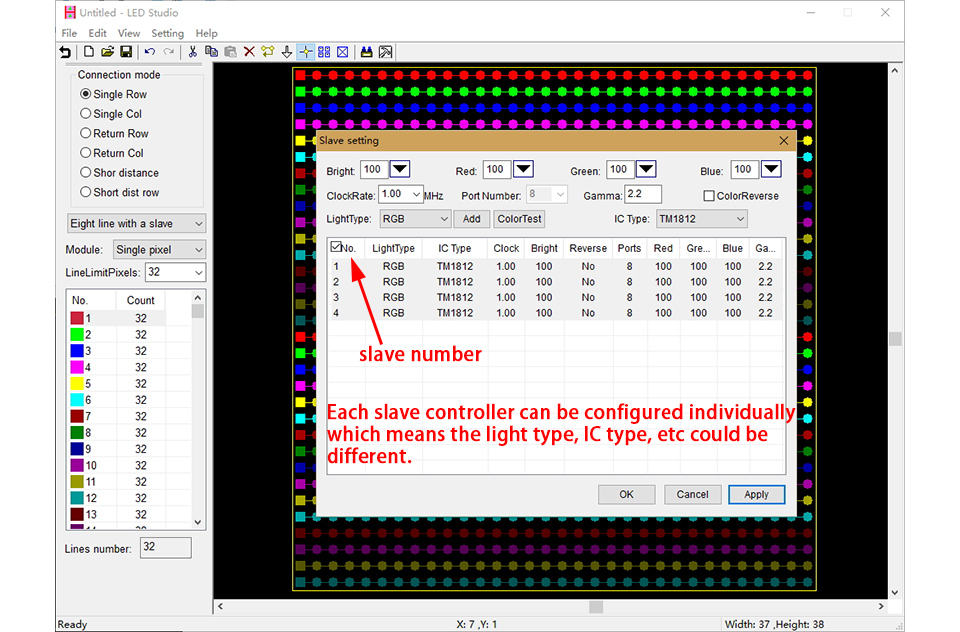

1. Place Pixels

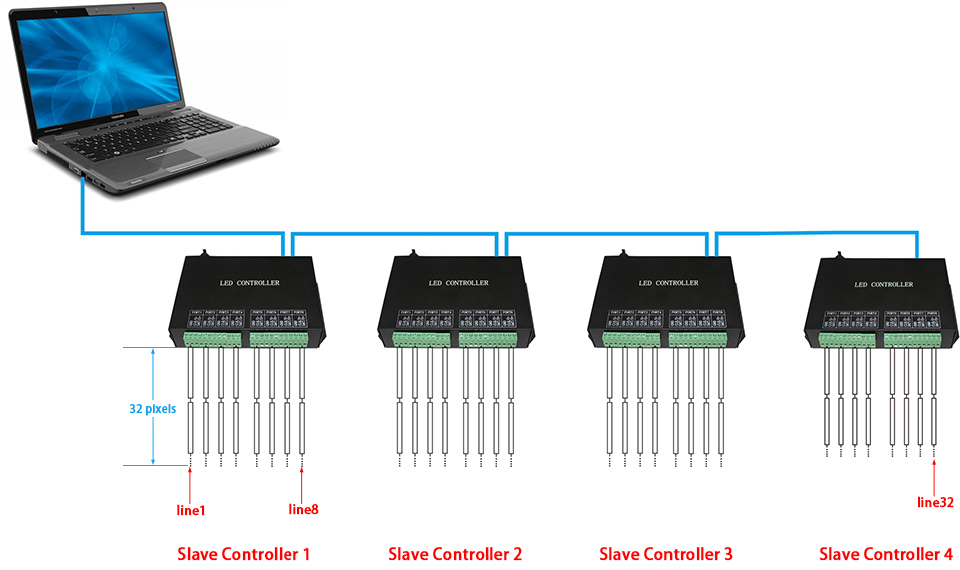

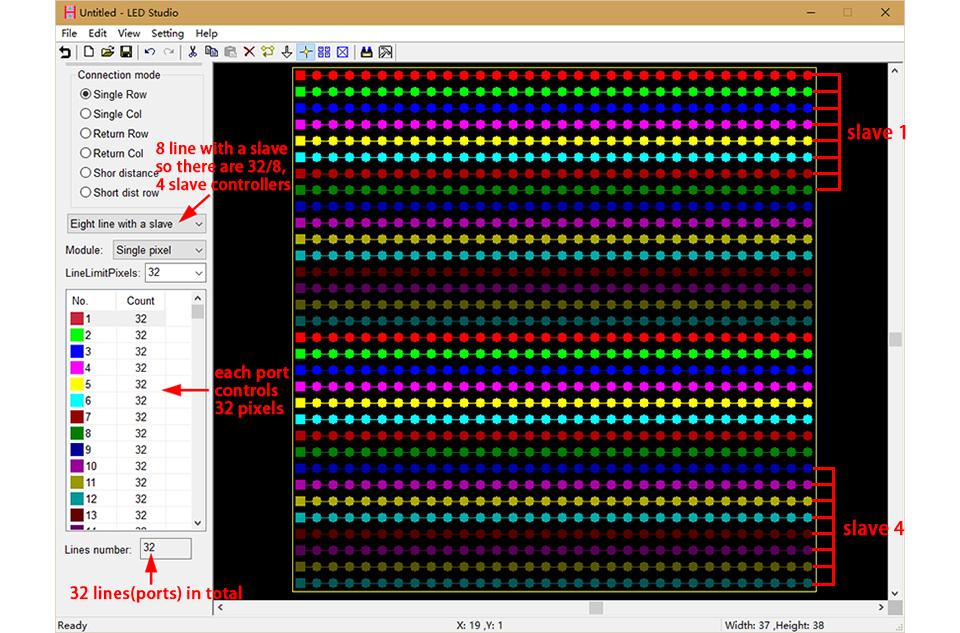

For example there are 4 H801RC connected to PC, 8 ports of H801RC are all connected to leds.
In LED Studio
For more details, please refer to the manual post above.
Input Voltage: Customized
Power Consumption: 1 W
Drive Pixels Number: 8192
Dimension: L189 x W123 x H40
Carton Size: L205 x W168 x H69
