AC220V LED RGB Controler full color timing master controller play effects by schedule,support WS2811,UCS6909,etc.2 ports drive max 122880 pixels, For digital led pixel panel
Item Type: RGB Controler
Power Source: AC
Controled Method: SD card
Applicable Lights: with full color pixels
Remote Distance: none
Features: play effects by schedule
Model Number: H805TC
Warranty: 1 year
Max. Load Power: 10W
Connection Mode: GND-GND,CLK(D-)-CLK(D-),DAT(D+)-DAT(D+)
drive pixels number : 122880
control slave number : 96
Button Number: 3
Input Voltage: Customized
Power Consumption: 1W
Control Pixels Number: 122880
Control Slave Controllers Number: 96
Dimension: L187 x W117 x H40
Carton Size: L205 x W168 x H69
(1). H805TC is a LED timing master controller, two ports connect up to 96 slave controllers, drive maximum 122880 pixels.
(2). H805TC has five playing modes: Single (play single file in circle), Week (play by week), Date (play by Gregorian calendar date), Lunar (play by lunar calendar date) and Table (play by schedule).
(3). Software is "LED Build Software".
(4). Auxiliary slave controllers are H801RA, H801RC and H802RA.
2.Supported Driver Chips
DMX512, HDMX, LPD6803, LPD8806, LPD1882, LPD1889, LPD1883, LPD1886, TM1812, TM1809, TM1804, TM1803, TM512, TM1926, TM1913, TM1914, TM1814, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, UCS512, UCS8904, APA102, APA104, P9813, WS2801, WS2803, WS2811, WS2812, WS2821, SM16716, SM16711, INK1003, LX1003, MY9221, MBI6021, MBI6024, LD1510, LD1512, LD1530, LD1532,etc.
Note: H805TC can support more than the chips listed above(some chips have the same sequence diagram, for example: UCS512, WS2821 and DMX512 have the same protocol. UCS2903 has the same sequence diagram with UCS1903, so H805TC supports them all).

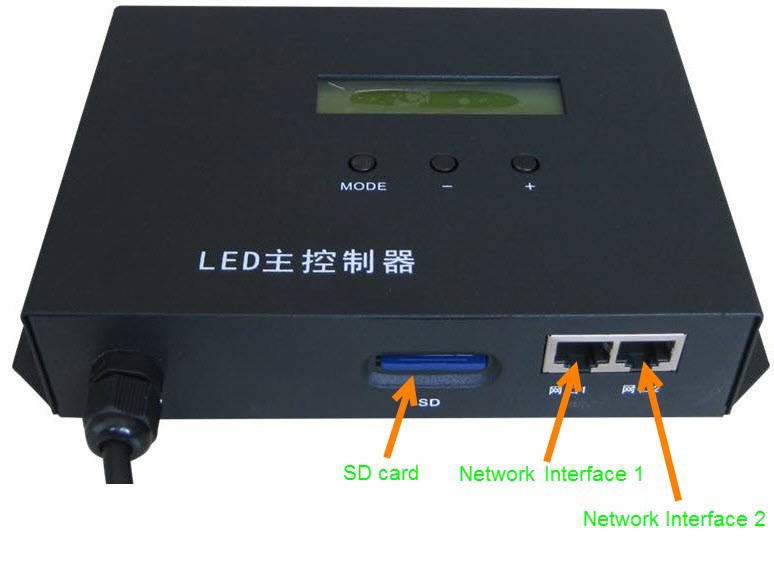

(1). H805TC has two ports, connects up to 96 slave controllers, drives maximum 122880 pixels.
(2). SD card supports FAT32, FAT16 format, maximum capacity is 64G bytes, stores up to 64 DAT files.
(3). H805TC support playing effects by Week, Date, Lunar and Table(schedule).
(4). Playing speed adjustable range is 2—50 frames per second, brightness adjustable range is 0—15.
(5). Signal transmitted based on standard Ethernet protocol, nominal transmission distance is 100 meters. The photoelectric converter can make the transmission distance reach to more than 25 kilometers.
4.Software and Manual Download
H805TC Manual download link: https://drive.google.com/open?id=0B1gzqyV6hfOgZXhLY1paQzZGTFk
LED Build download link: https://drive.google.com/open?id=0B1gzqyV6hfOgN2pkMV8yMFozYzQ
LED Build Tutorial Video: https://drive.google.com/open?id=0B1gzqyV6hfOgUnFjeG9EM3VRZjA

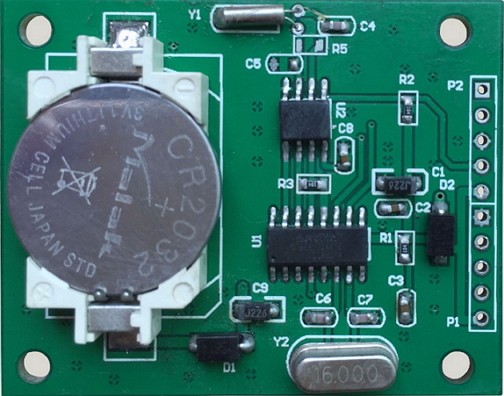

Built-in timetable module

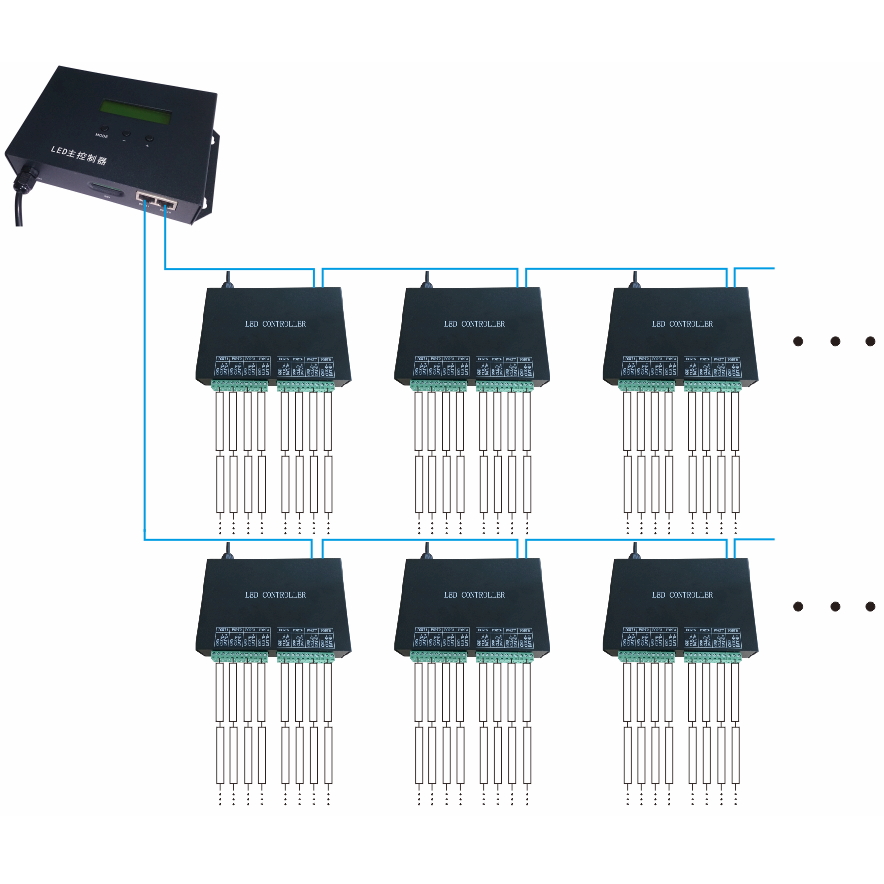

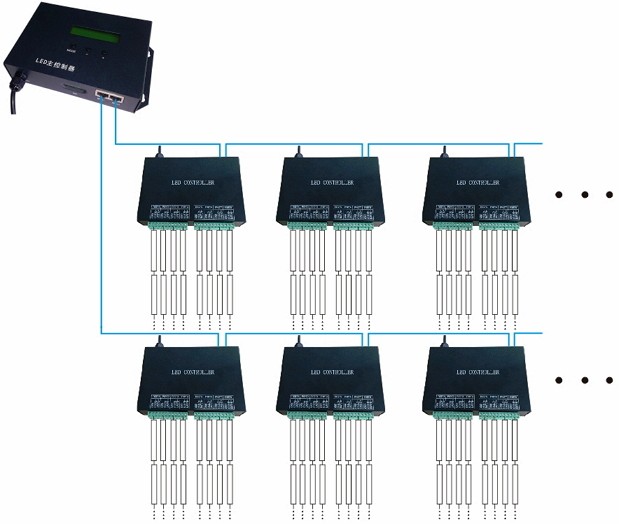

(1). Two ports of H805TC can all be connected to slave controllers, however, you can choose to connect one or two.
(2). Blue line is crossover network cable, it is recommended in real project.
(3). Lights are connected to slave controller.

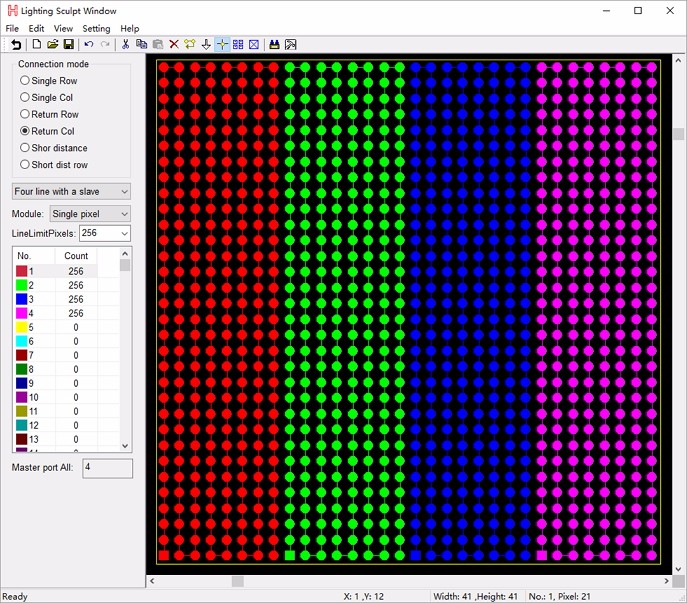

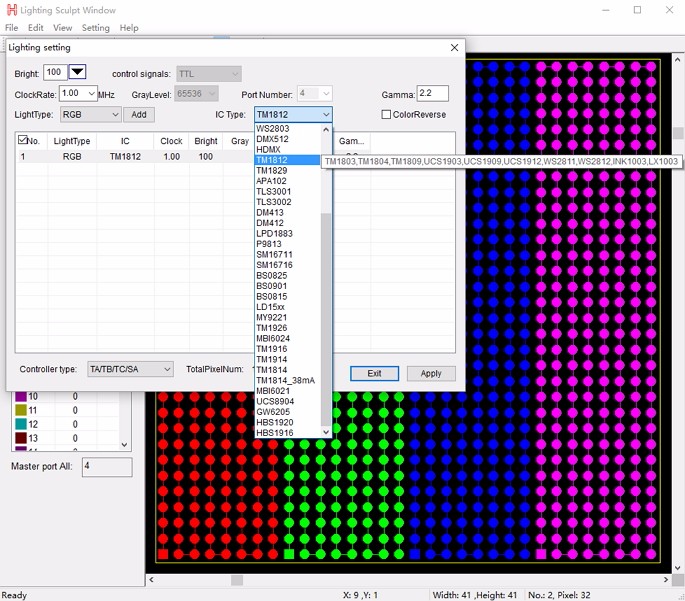

(2). Light Setting

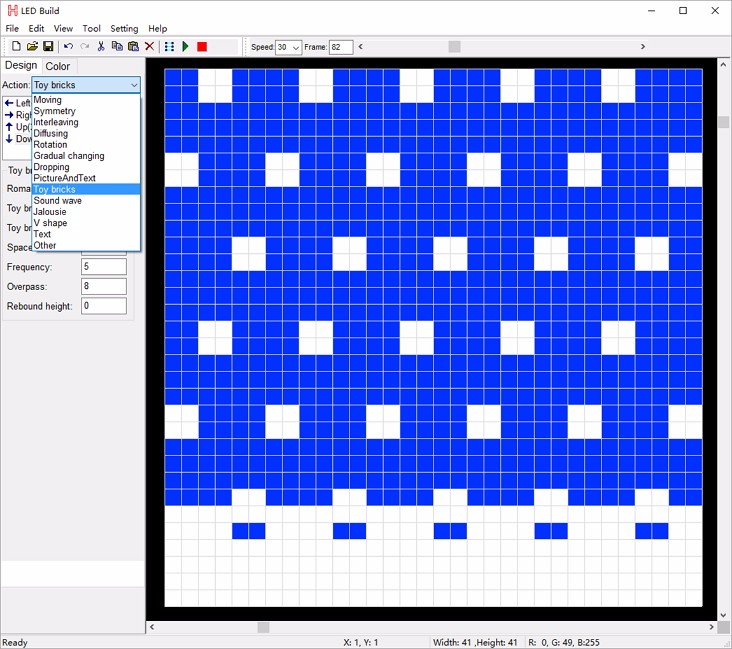

(3). Effect Making
After making effects with LED Build, copy files to SD card.
Next, you can choose to play these files by Week, by Date, by Lunar, by Table or just play single file in circle.

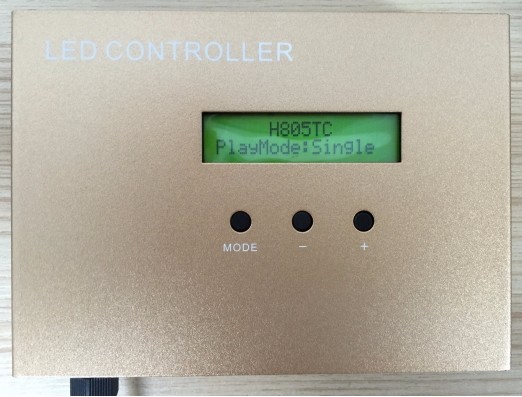

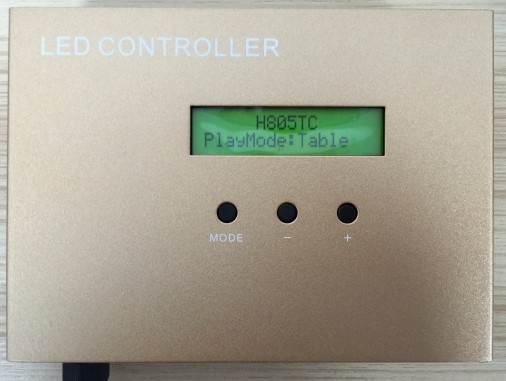

Play Single effect in circle(we have black and gold housing )

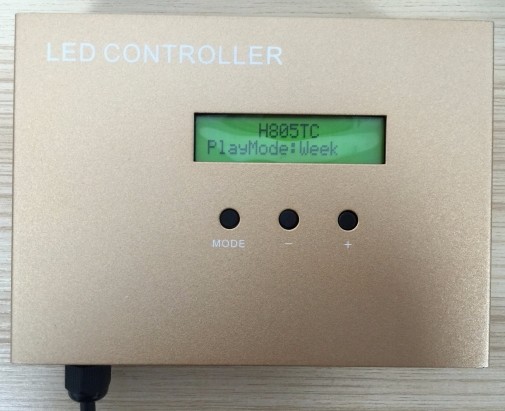

Play Effects by Week

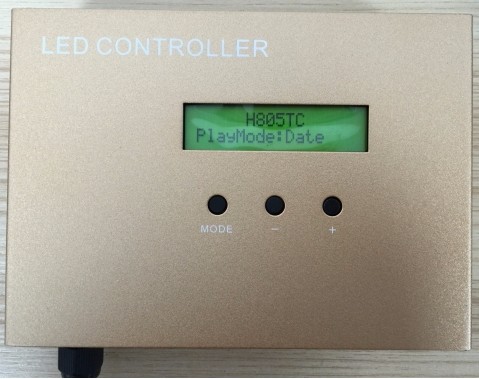

Play Effects by Date

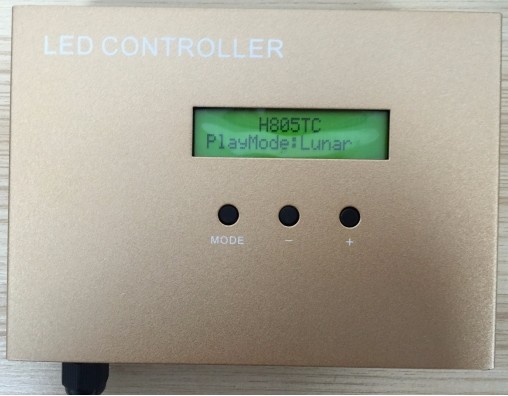

Play Effects by Lunar

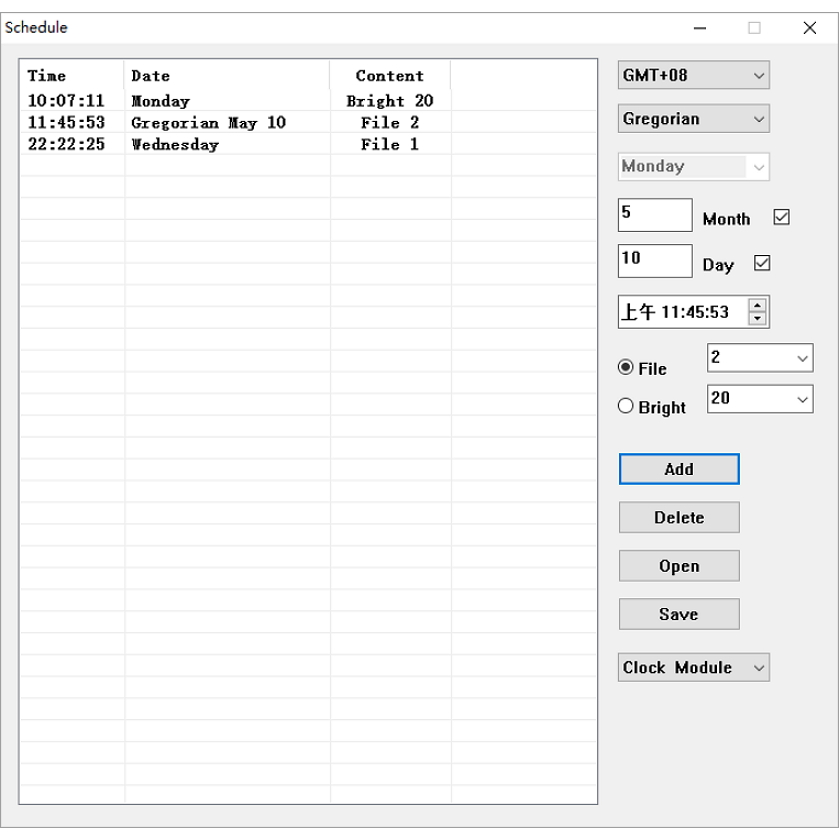

Play Effects by Table
Note: please refer to H805TC Manual(I have listed the download link above), it illustrates how to make timetable with LED Build in detail and some other settings.
