AC 220V LED controller work with DMX512 console occupy 3 channels support dozens of chips WS2812 WS2811 controller strip controller For addressable led strip
  • AC 220V LED controller work with DMX512 console occupy 3 channels support dozens of chips WS2812 WS2811 controller strip controller For addressable led strip
  • AC 220V LED controller work with DMX512 console occupy 3 channels support dozens of chips WS2812 WS2811 controller strip controller For addressable led strip
  • AC 220V LED controller work with DMX512 console occupy 3 channels support dozens of chips WS2812 WS2811 controller strip controller For addressable led strip

AC 220V LED controller work with DMX512 console occupy 3 channels support dozens of chips WS2812 WS2811 controller strip controller For addressable led strip

Model: CONFULL-H807SC

$109.98

Free Shipping Worldwide On Order Over $199

Please Choose:

Operating Voltage :



Applied to:



Qty Discounts Off Price
1-4
$109.98
5-9
$104.48
10-19
$98.98
20+
$87.98
* Discounts may vary based on options above
Qty: -+
ContactUs
  • Product Information
  • Reviews
  • Accessories
  • Product Photos
  • Shop By Project

    Item Type:RGB Controler

    Voltage:220V

    Certification:CE,PSE,RoHS,CCC

    Model Number:H807SC

    Power Source:AC

    Controled Method:DMX console

    Remote Distance:none

    Applicable Lights: full color pixels

    Warranty:1 year

    Max. Load Power:10W

    Connection Mode:GND-GND,CLK(D-)-CLK(D-),DAT(D+)-DAT(D+)

    Features:DMX console controller

    Material:metal

    Wattage:1

    drive pixels number:4096

    ports number :2




    1. Features

     (1). Two output ports control maximum 4096 pixels.

     (2). Adjust speed and brightness, replace files by DMX console.

     (3). SD card supports FAT32 and FAT16 format.

     2. Supported Chips
     LPD6803, LPD8806, LPD6813, LPD1882, LPD1889, LPD6812, LPD1883, LPD1886; UCS6909, UCS6912, UCS1903, UCS1909, UCS1912; WS2801, WS2803, WS2811, WS2812; TM1812, TM1809, TM1804, TM1803, TM1829, TM1913, TM1914, TM1926;LX1003, LX2003, LX2006, DMX512, HDMX, APA102, P9813, DZ2809, INK1003, TLS3001, TLS3002, SM16711, SM16716, SM16726, LD1510, LD1512, LD1530, LD1532, MBI6021, MBI6023, MBI6024, etc.

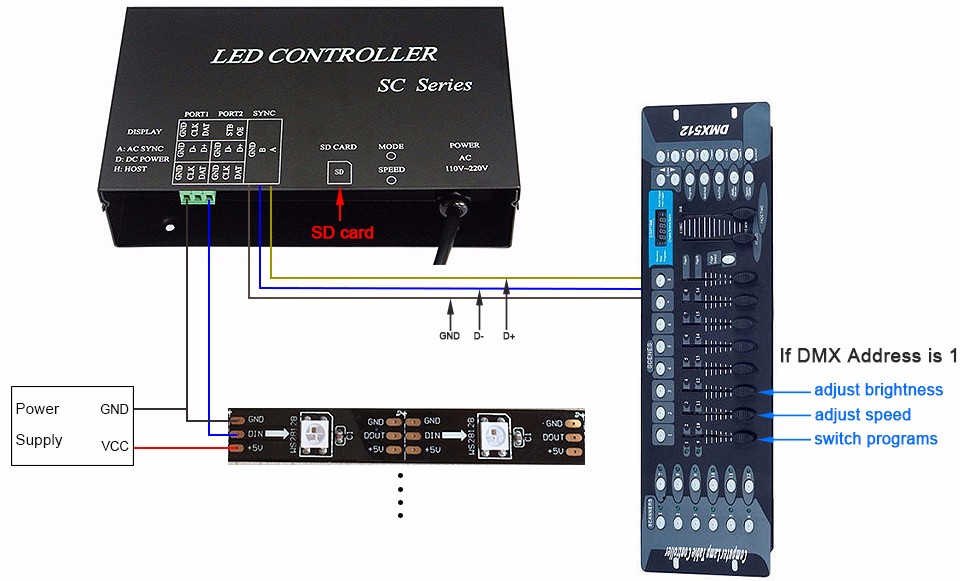

    4. Product Display

    For example

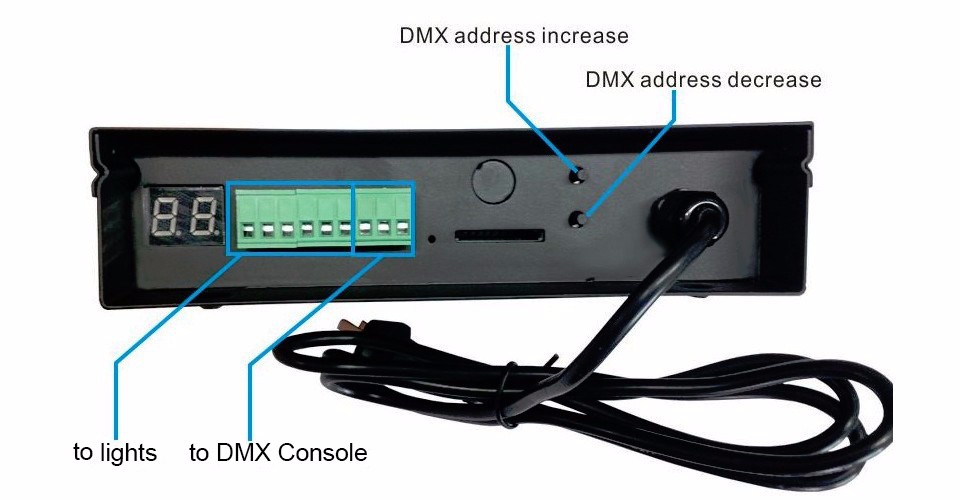

     if DMX address is 1, channel 1,2,3 on DMX console are available.

     if address is 2, channel 4,5,6 on DMX console are available.




    5. Package Include

    1 pcs controller, 1 pcs 256MB SD card.

     6. Basic Workflow

    Step 1. Program with LED Build

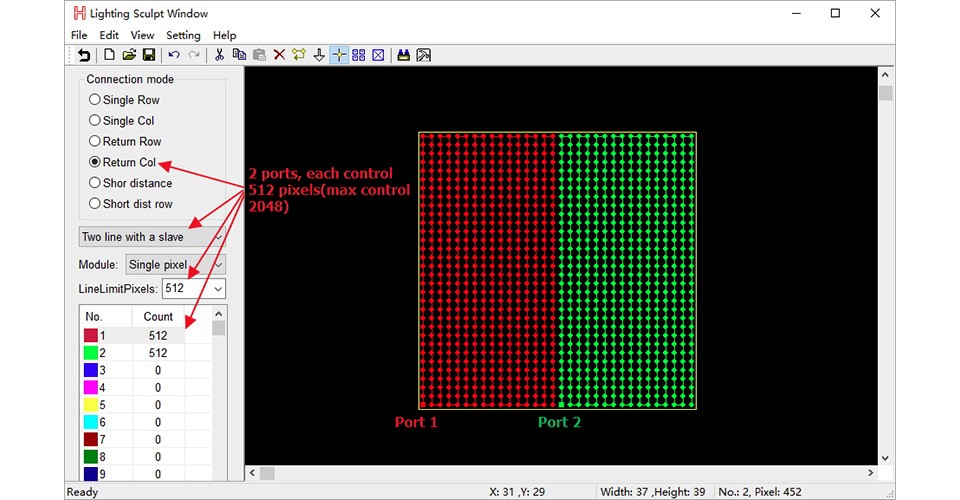

    Place Pixels



    Light Setting

    Note:  many chips use one option

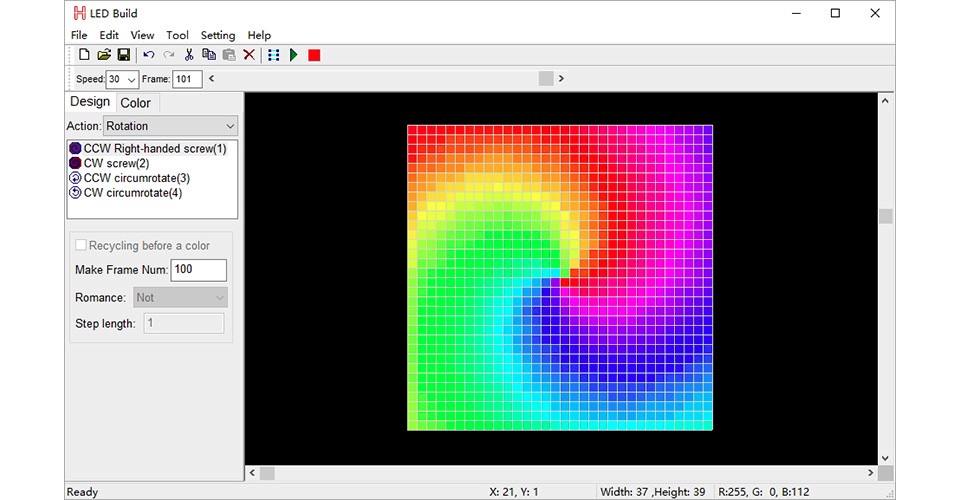

    Animation Make

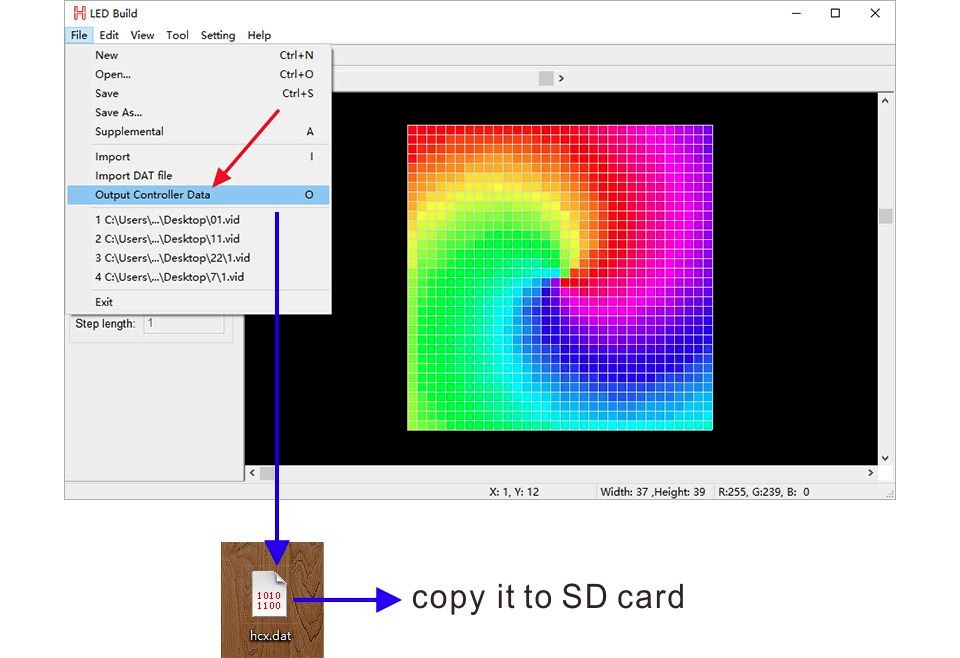

    Output  Controller Data
    For more details of software, please refer to the video link i post above.

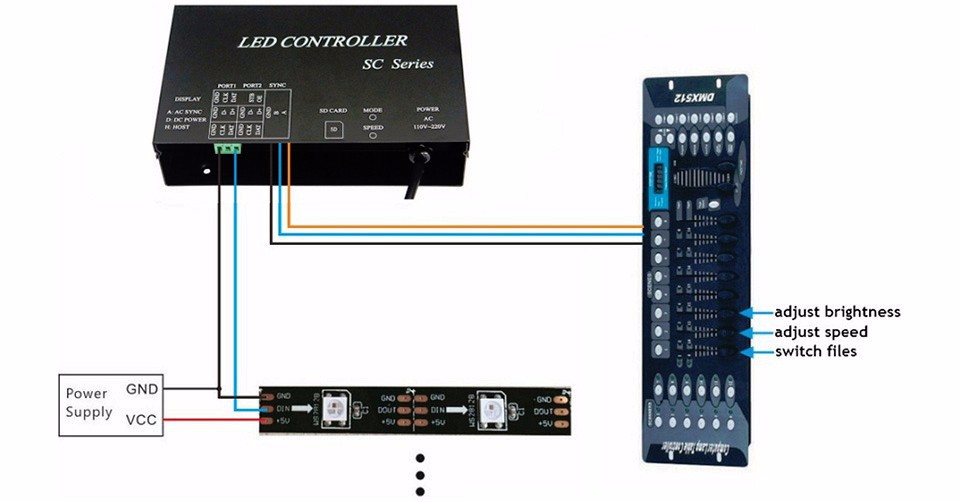

     Step 2. Insert SD card and connect controller to DMX console


    7. Specifications

    Input Voltage:   Customized

    Power Consumption:   1W

    Drive Pixels Number:   4096

    Weight:   0.8KG

    Dimension:   L180 x W126 x H46
