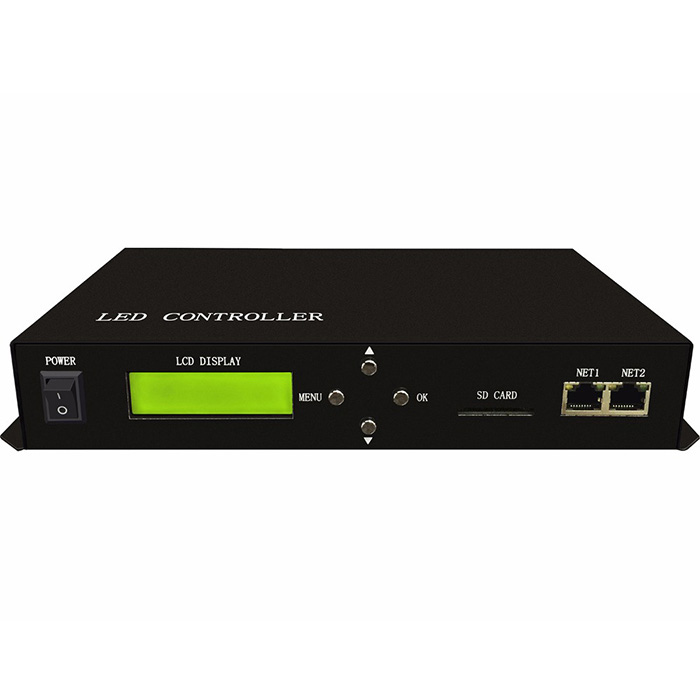

AC 220V RGB LED controller,full color programmable,work online or offline,drive 170000 pixels,controlled by PC or SD card For addressable led strip
Item Type: RGB Controler
Model Number: H803TC
Applicable Lights: lamps with driver chips
Power Source: AC
Controled Method: SD card or computer
Remote Distance: none
Warranty: 1 year
Max. Load Power: 10W
Features: connect computer
Connection Mode: Ethernet Protocol
drive pixels number: 170000
control slaves number: 255
Input Voltage: Customized
Power Consumption: 1W
Drive Pixels Number: 170000

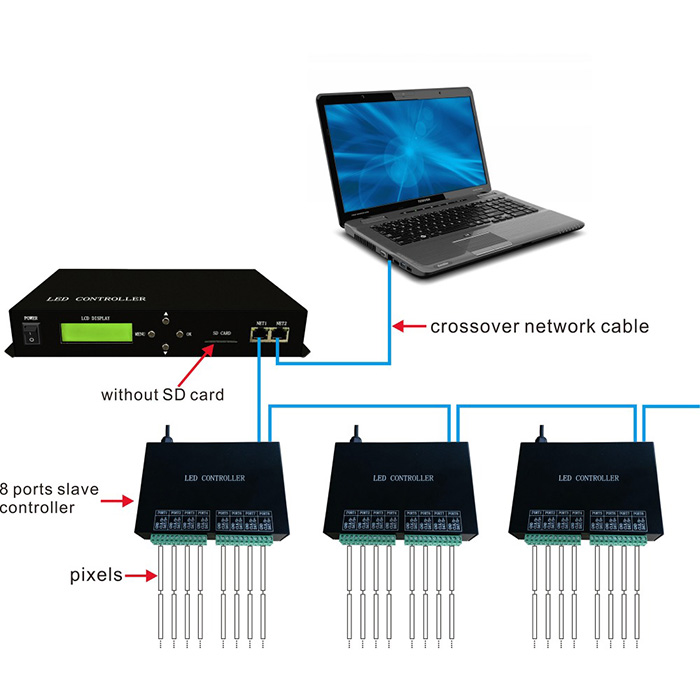

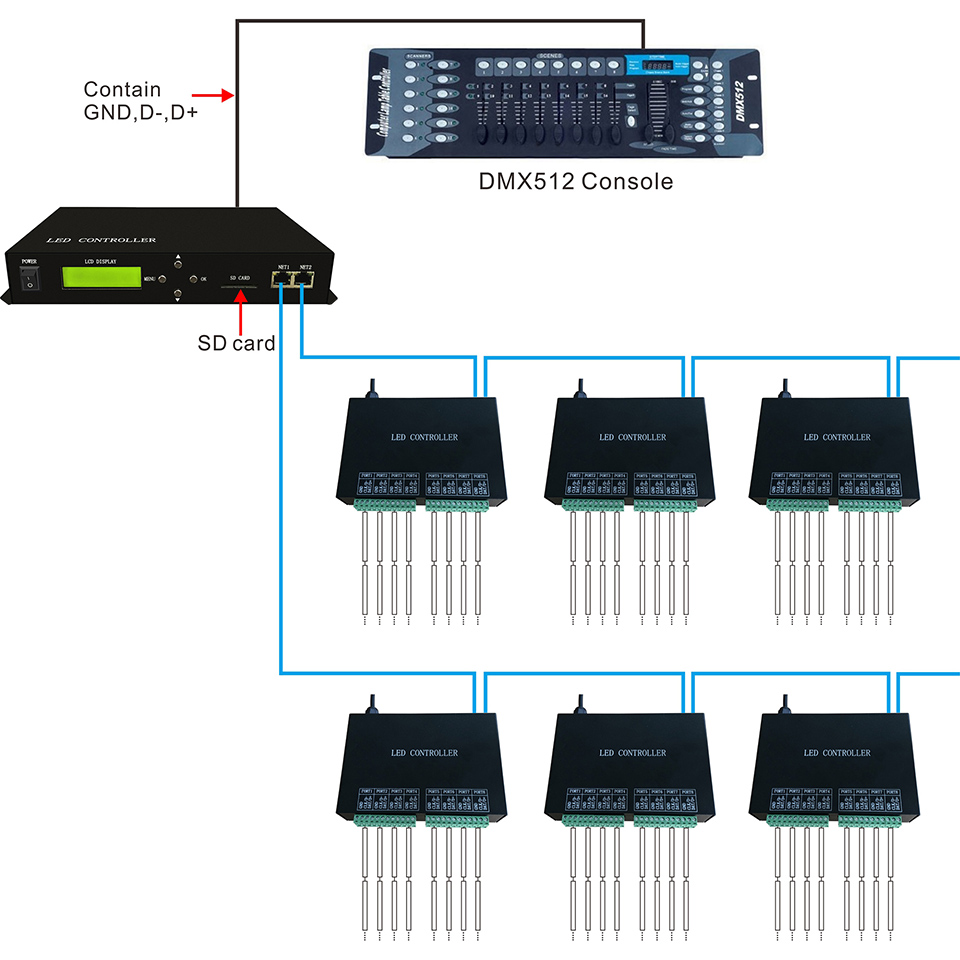

(1). H803TC can work with PC(online), SD card(offline) or DMX console.

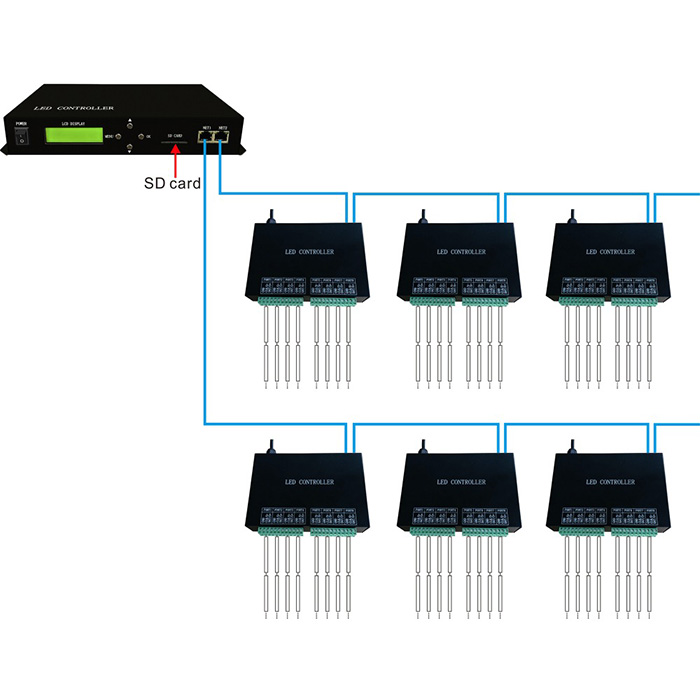

(2). H803TC drives maximum 170000 pixels, 2 ports control maximum 255 slave controllers.
(3). Slave controllers include H802RA and H801RC.
(4). By combining H803TC with H802RA, you can set address for DMX512 chips.
(5). H803TC transmits signal based on Ethernet Protocol.

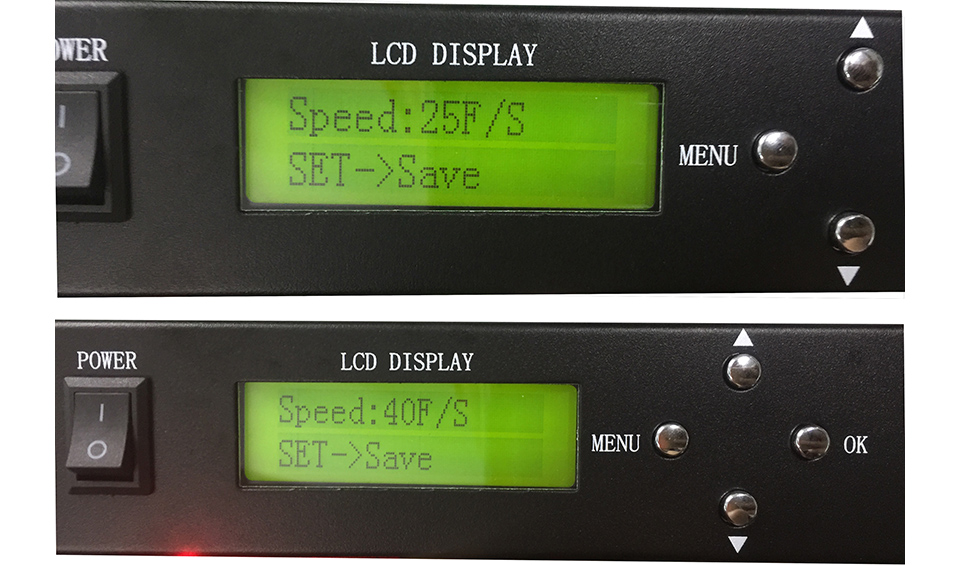

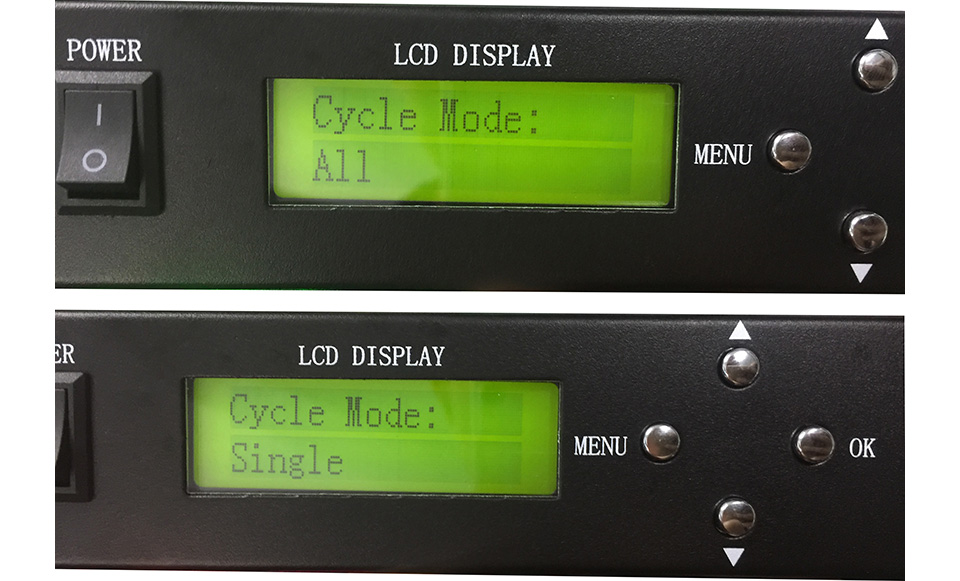

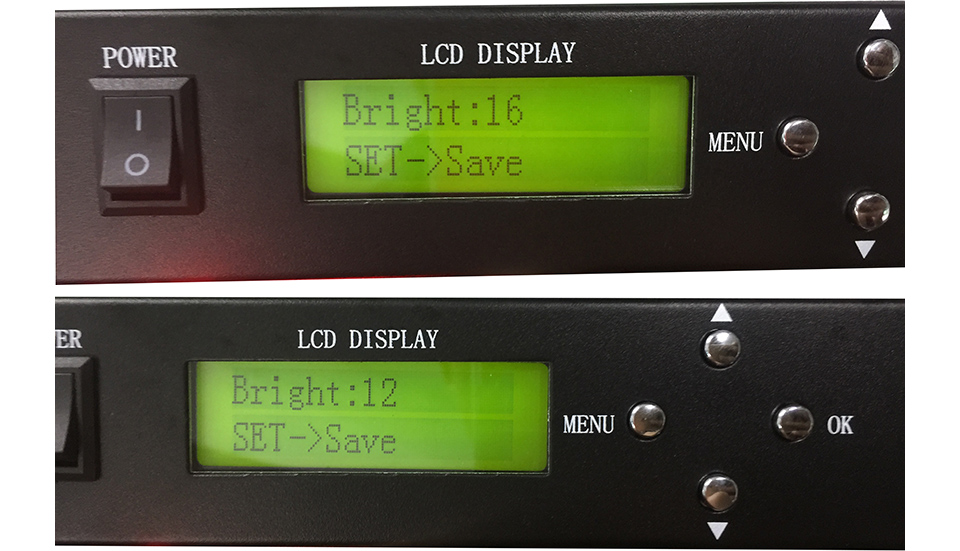

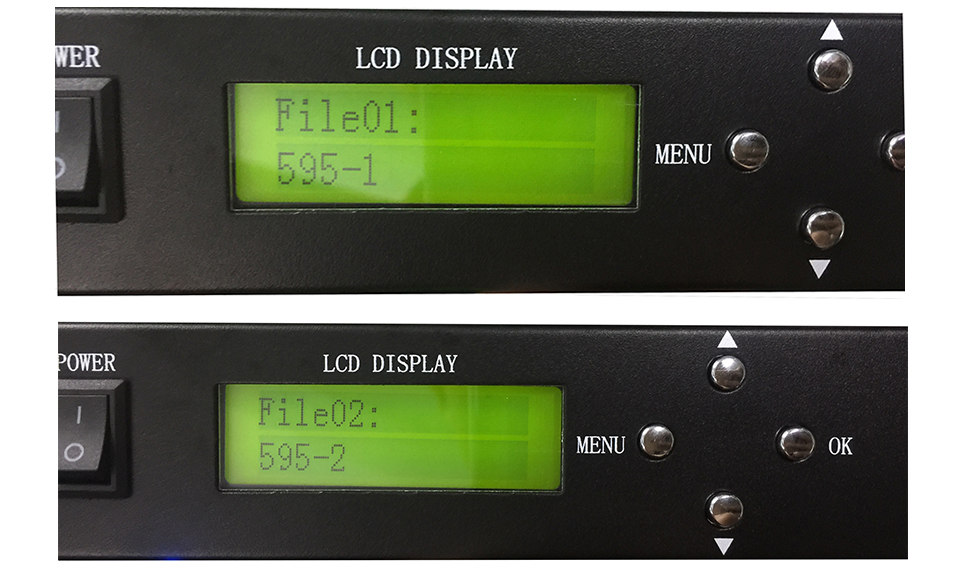

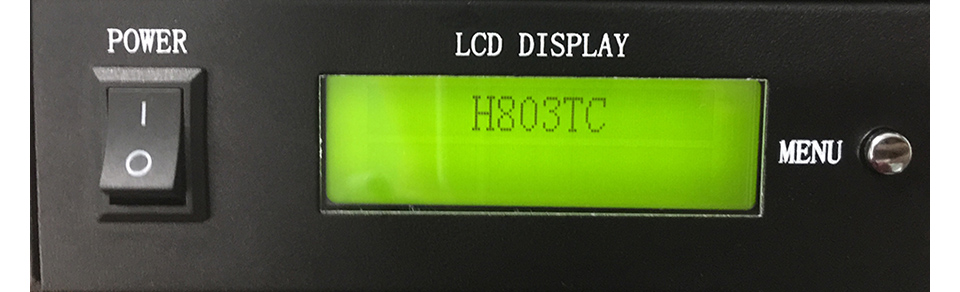

(6). Use four buttons or PC to switch files, set play mode, speed and brightness.
(7). SD card supports FAT32, FAT16 format, maximum capacity is 64G bytes, stores up to 64 DAT files.

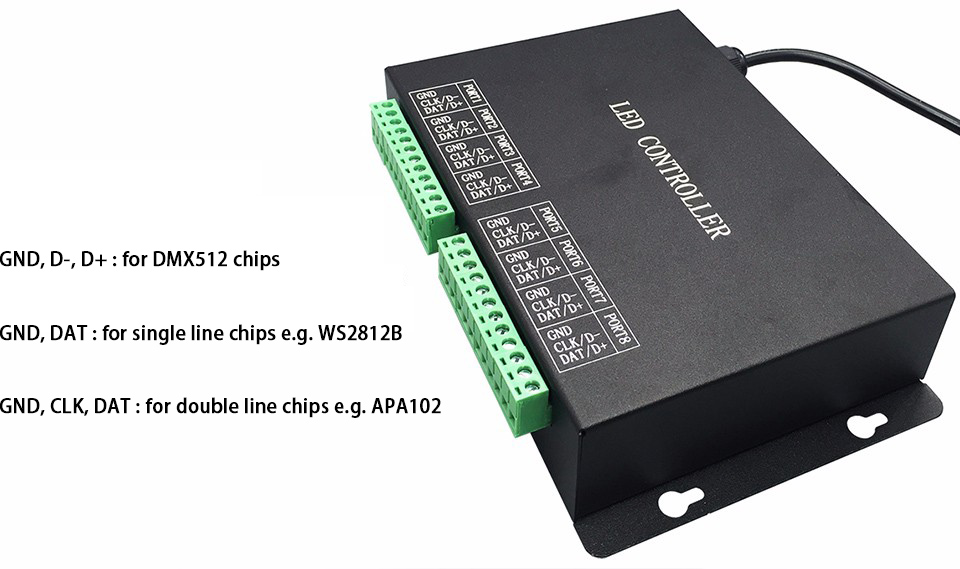

2. Supported Driver Chips
Step2. Download and Install LED Build Software
In this mode, you will need LED Build Software.
LED Build Software Download: https://drive.google.com/open?id=0B1gzqyV6hfOgUDZBVl84SmRDV28
LED Build Software Tutorial Video: https://drive.google.com/open?id=0B1gzqyV6hfOgUnFjeG9EM3VRZjA

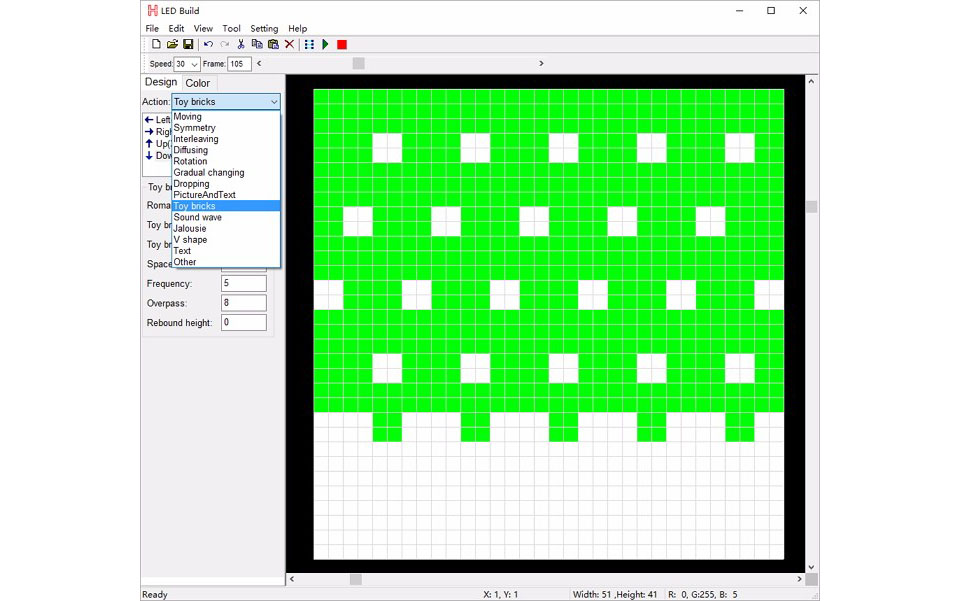

Step3. Program in LED Build Software
Basic software workflow

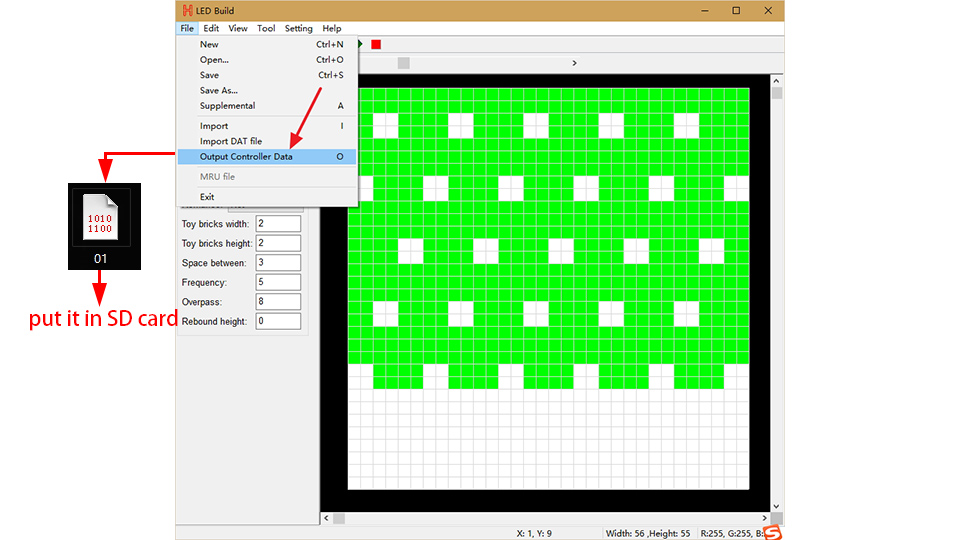

1. Place Pixels

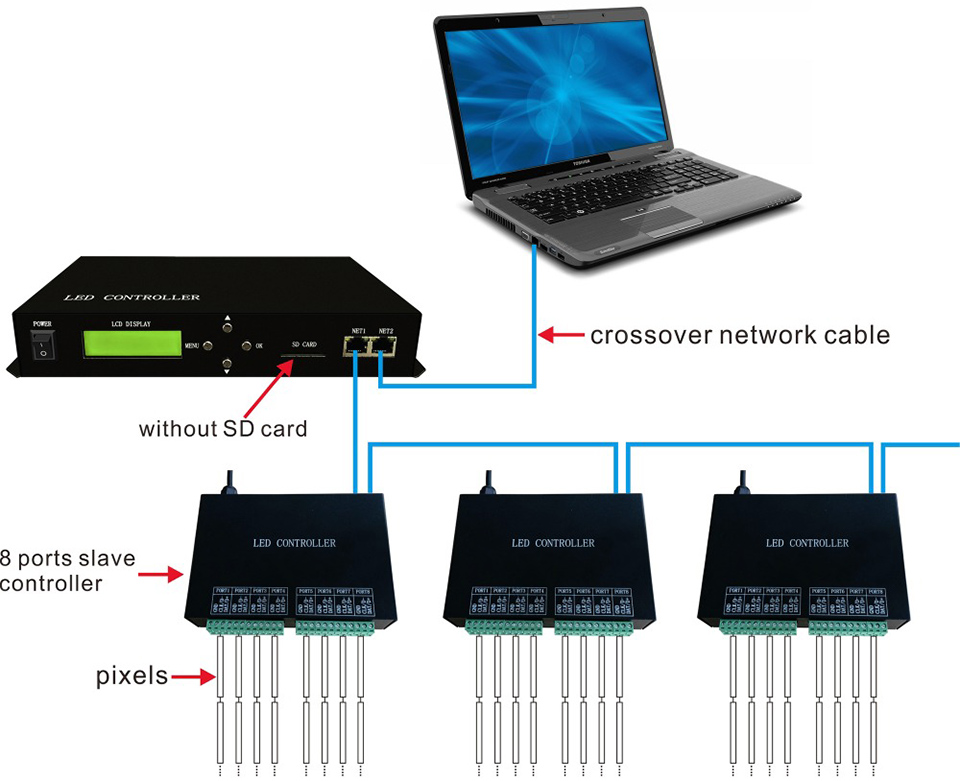

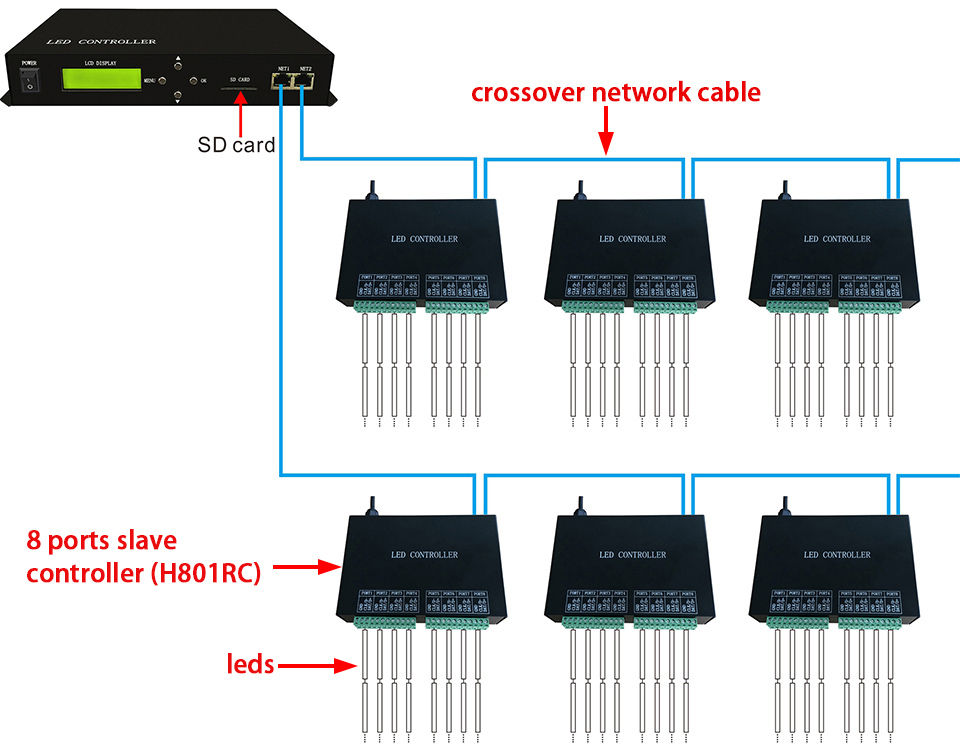

For example there are 1 slave controller(H801RC) connected to H803TC

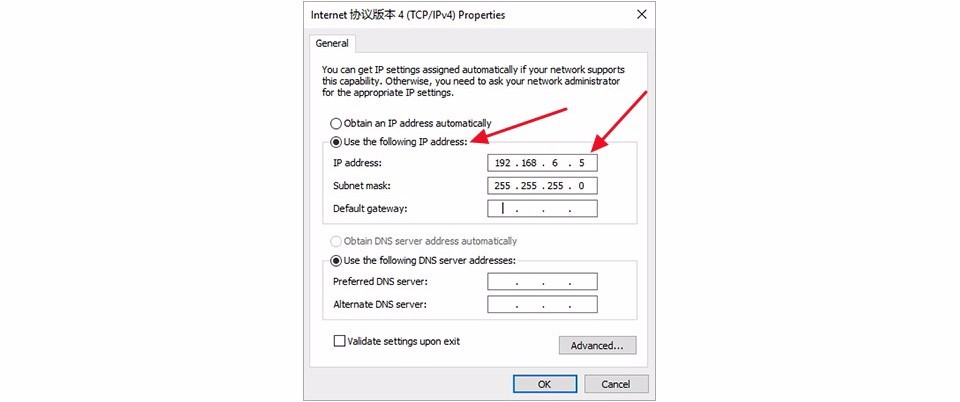

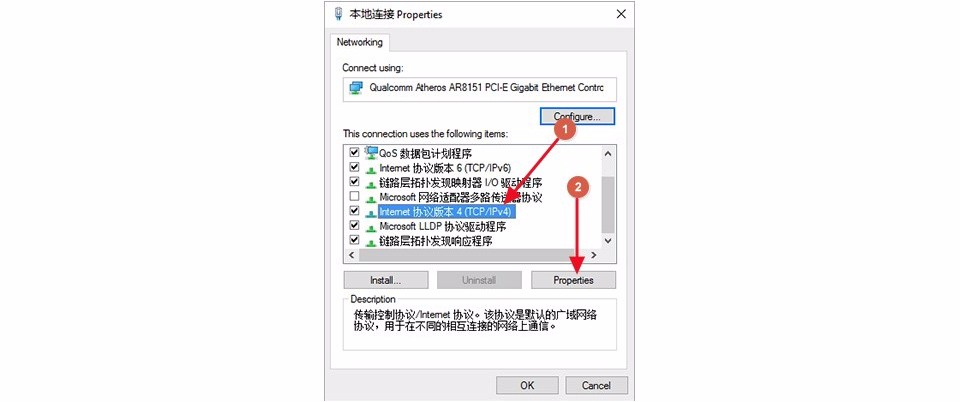

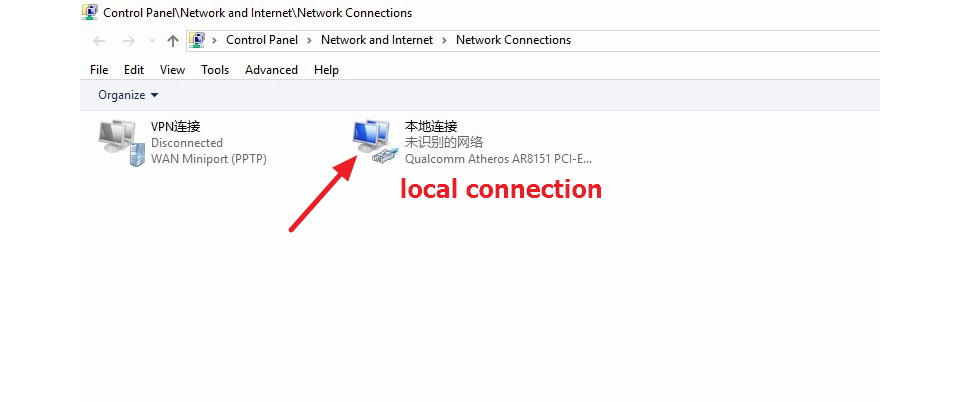

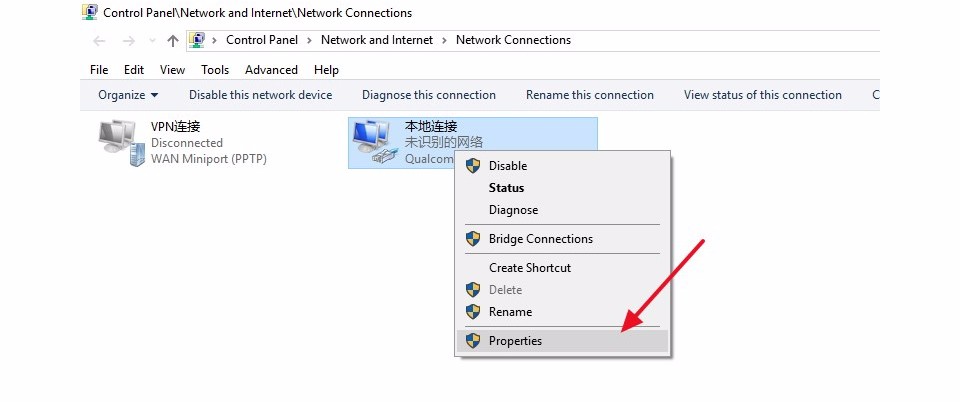

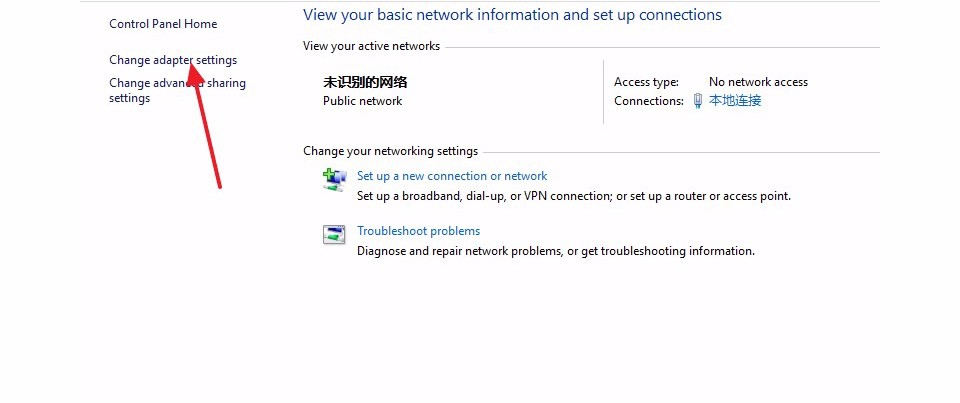

Step5. Program in LED Studio Software
Basic software workflow
1. Place Pixels

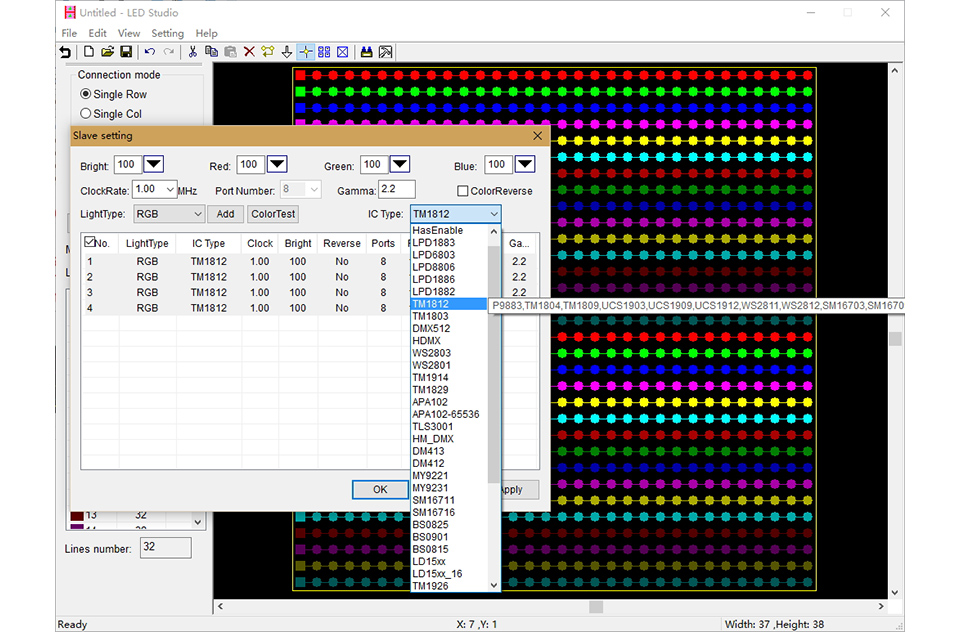

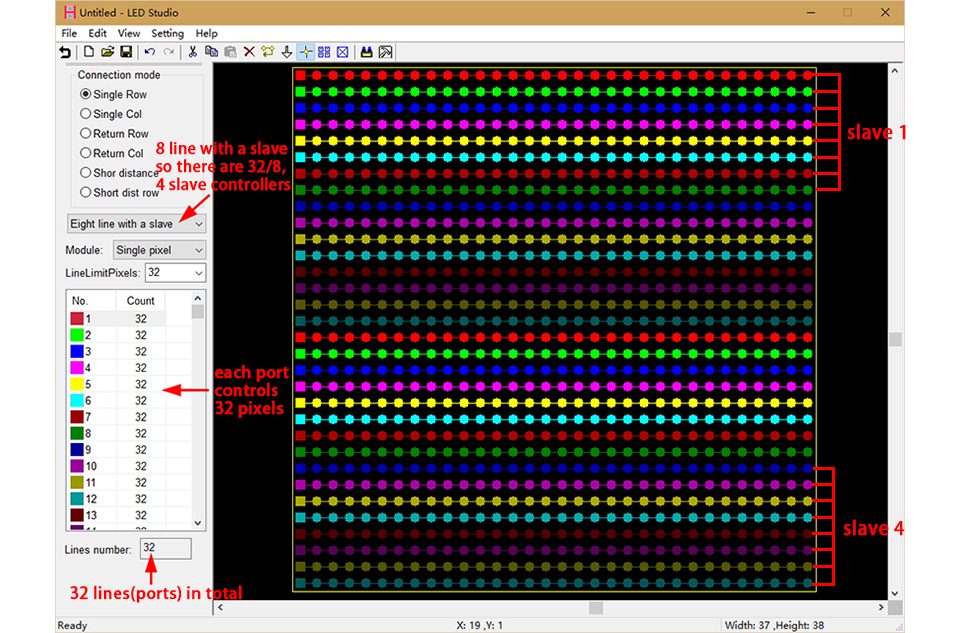

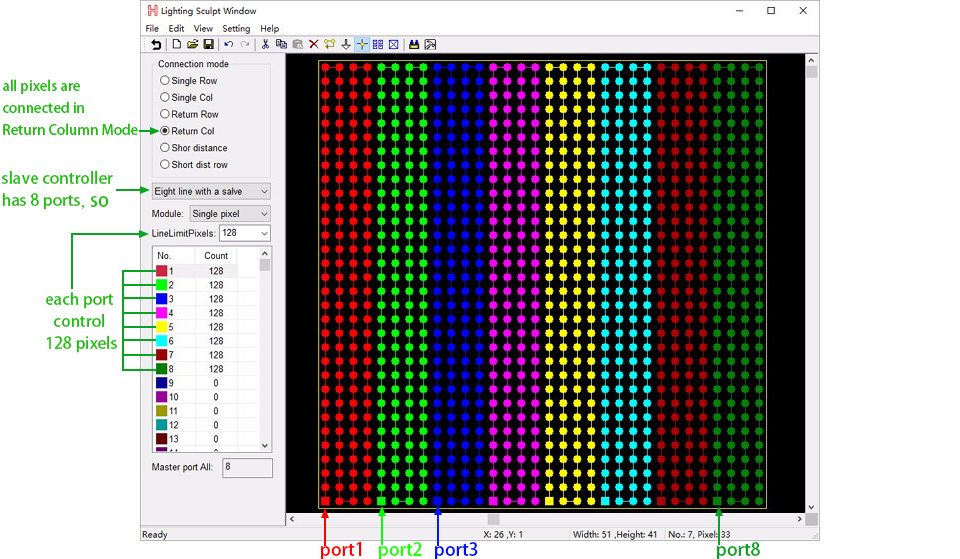

For example there are 4 slave controllers(H801RC) connected to H803TC, 8 ports of H801RC are all connected to leds.

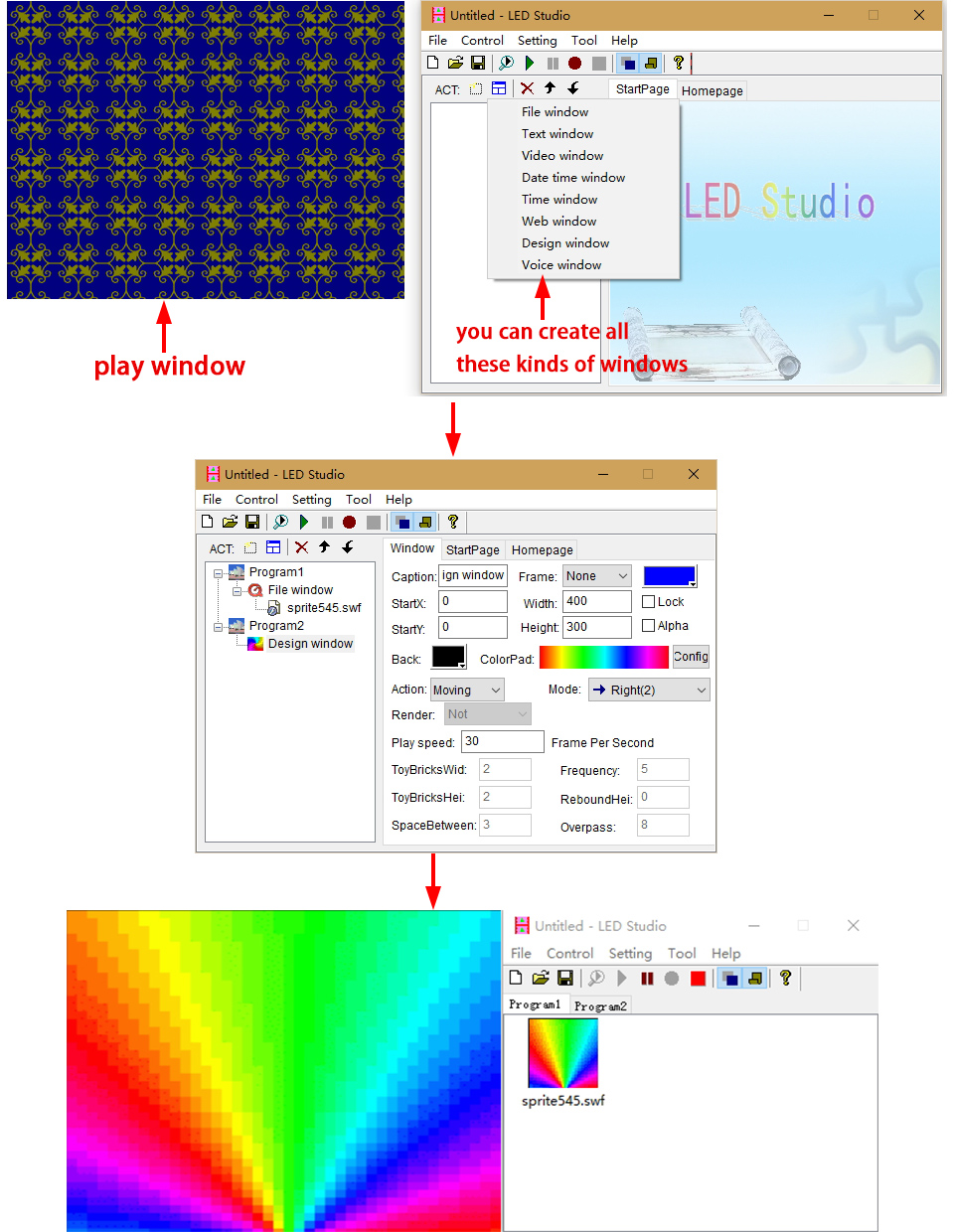

In LED Studio

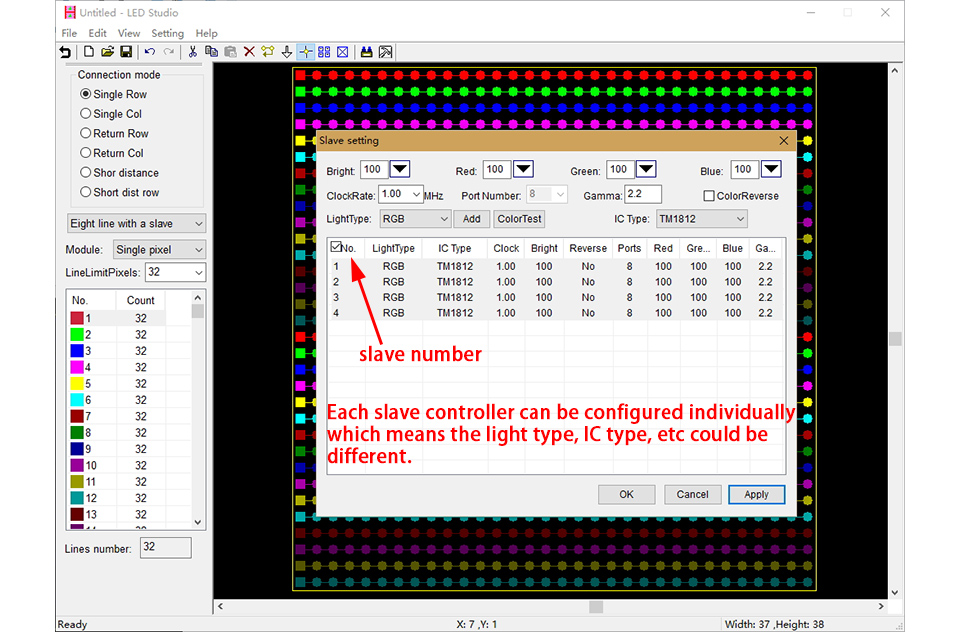

2. Slave Setting

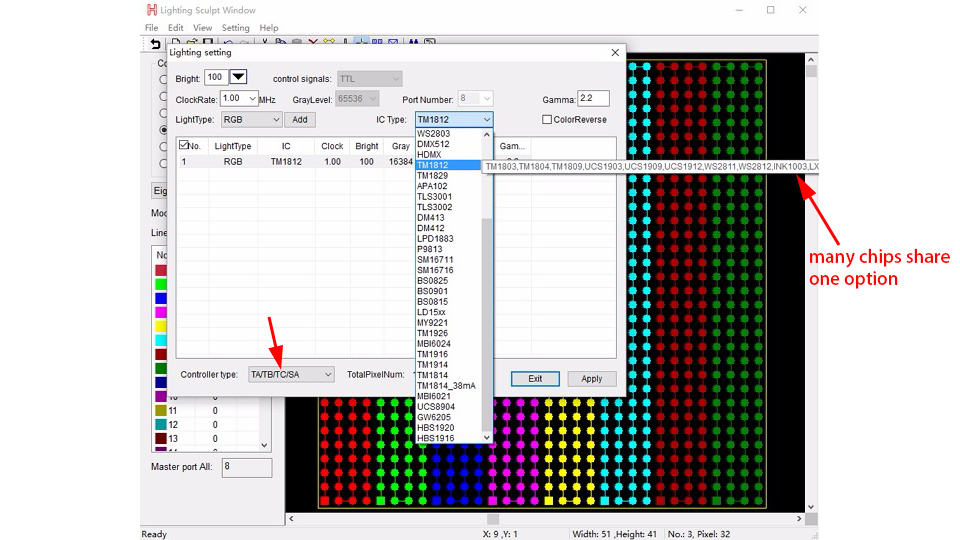

Note: many chips share one option, for example:

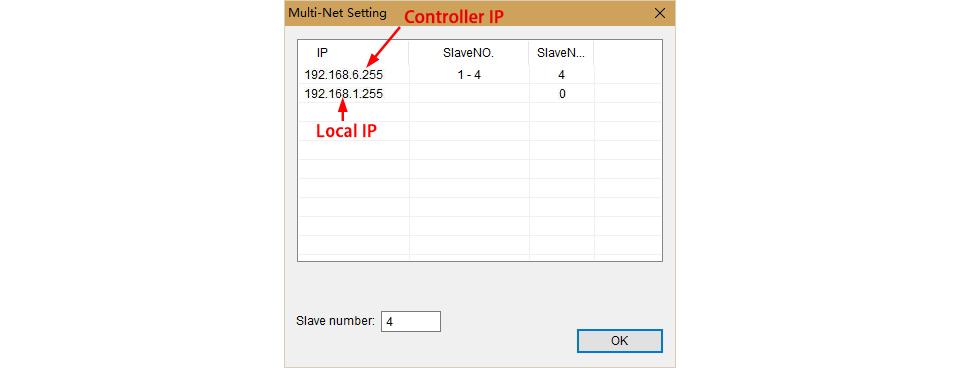

3. Multi-Net Setting
4. Make Effects
4. Control DMX512 chip lights

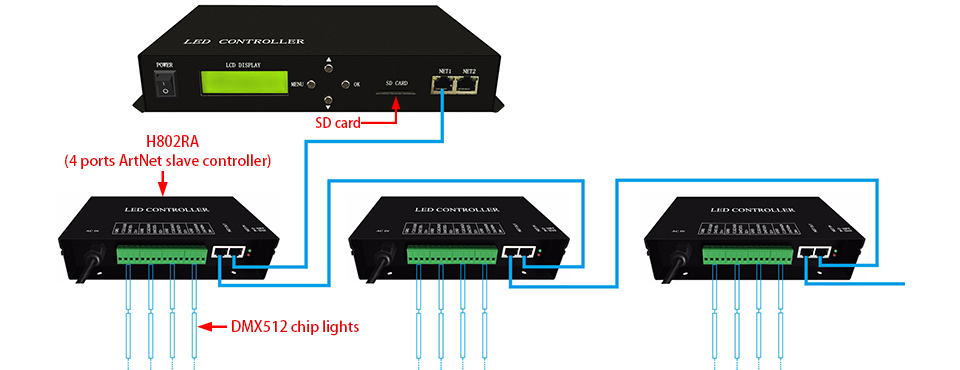

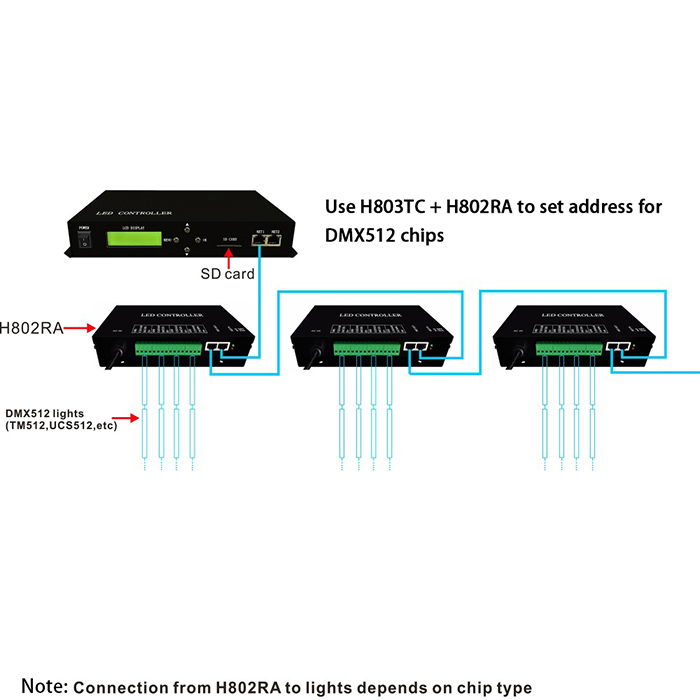

H803TC can control H801RC, H802RA and H801RA three kinds of slave controllers(they all support DMX512 protocol),
but by using H803TC + H802RA, you can set DMX address for DMX512 chips.
Take TM512 strip for example:
Step1. Set them up

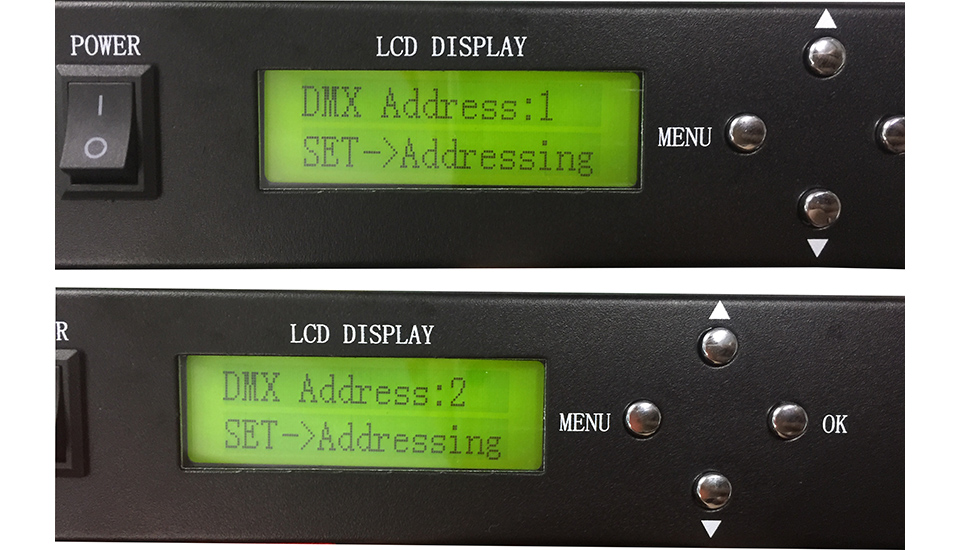

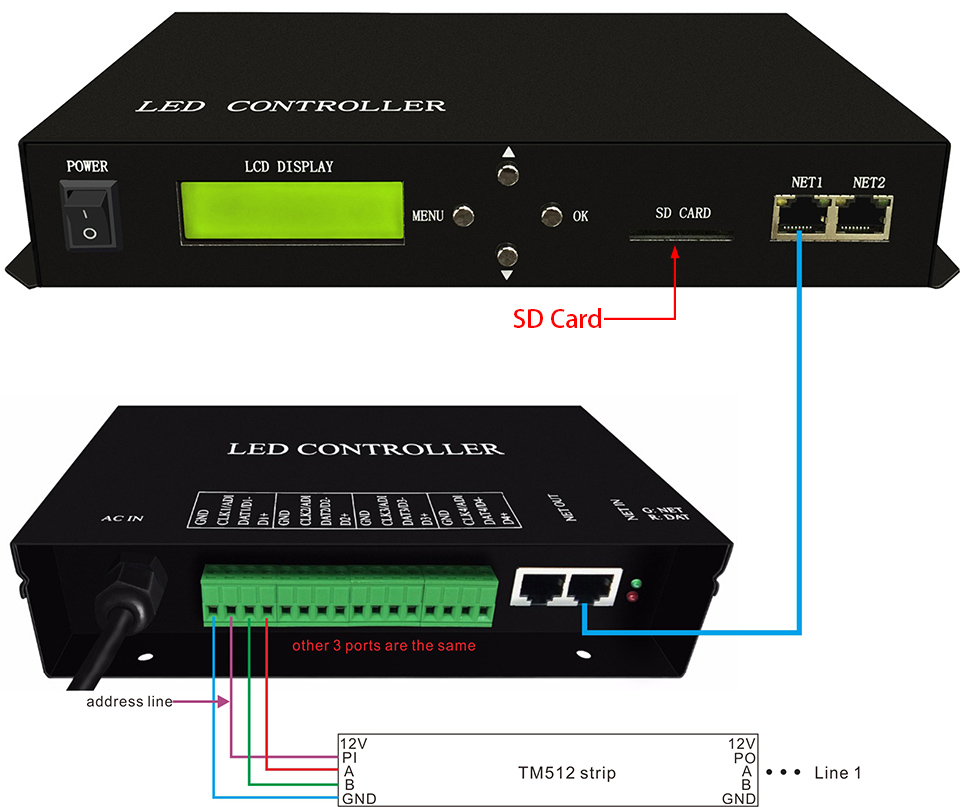

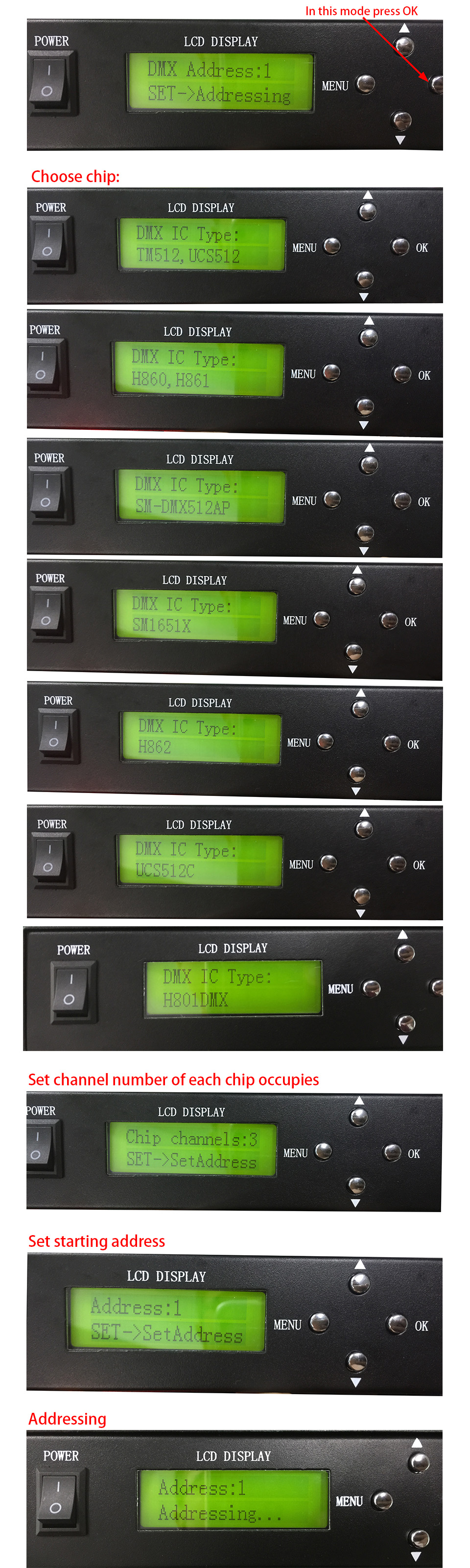

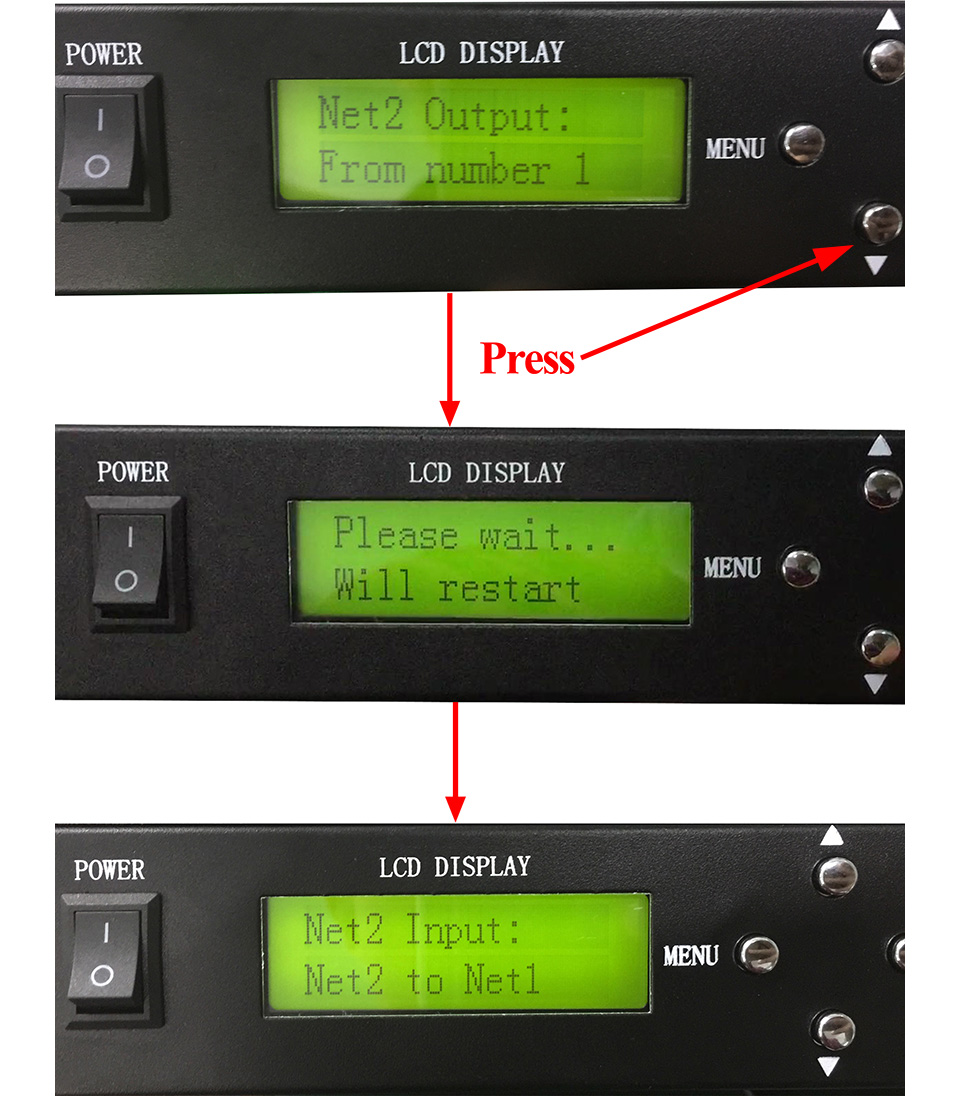

Step2. Set address with four buttons
