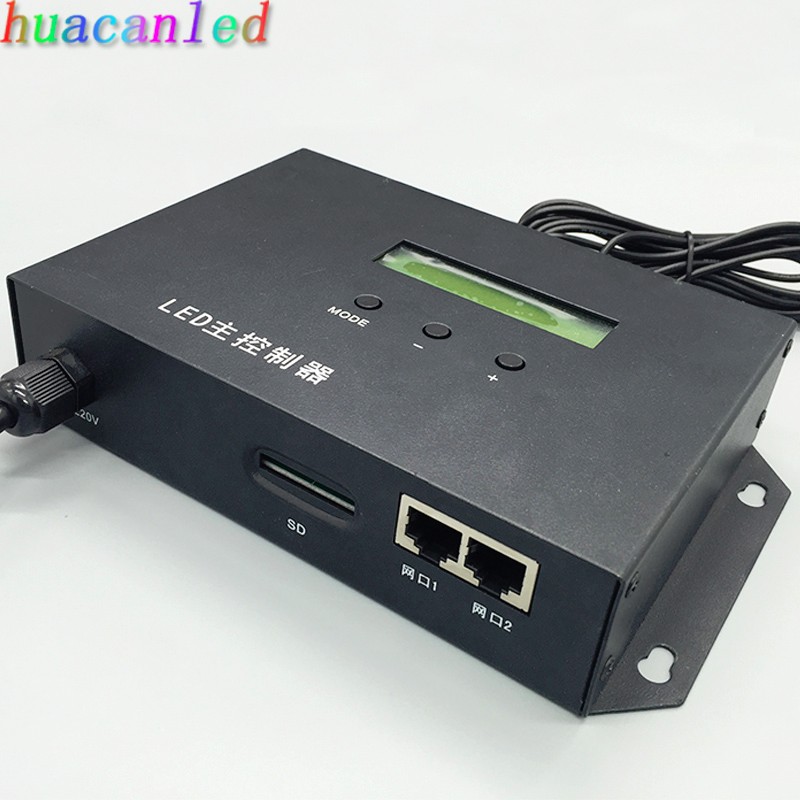

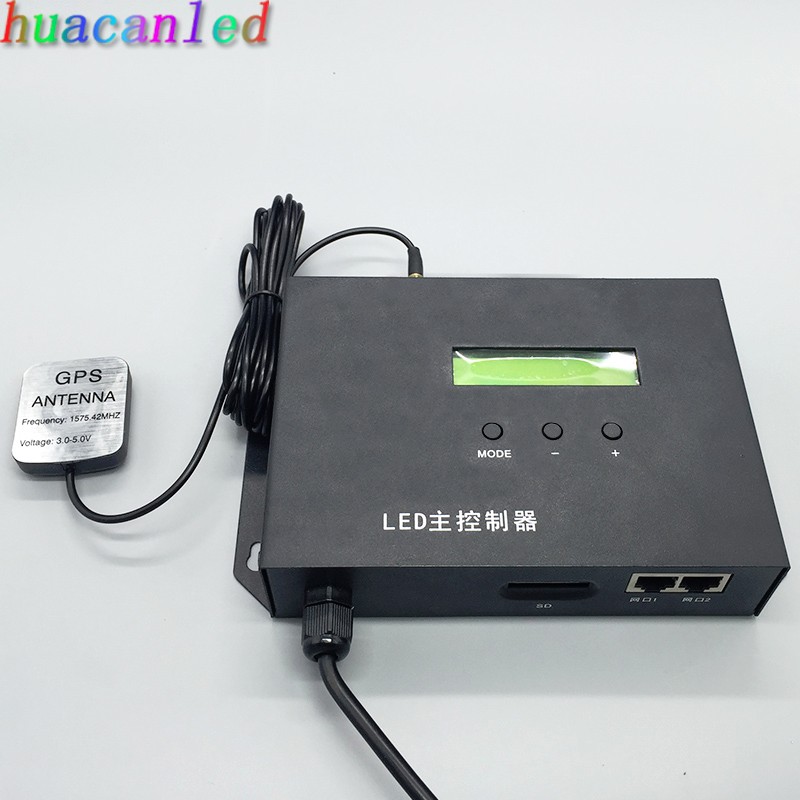

AC220V GPS wireless full color master controller,SD card RGB Controler,drive max 122880 pixels.wireless synchrony,RJ45 output.For digital pixel led strip
Item Type: RGB Controler
Power Source: AC
Controled Method: SD card
Remote Distance: worldwide synchrony
Applicable Lights: lamp with driver chips
Warranty: 1 year
Max. Load Power: 10W
Features: GPS synchrony
Connection Mode: GND-GND,CLK(D-)-CLK(D-),DAT(D+)-DAT(D+)
Model Number: H802TC
drive pixels number : 122880
control slaves number : 96

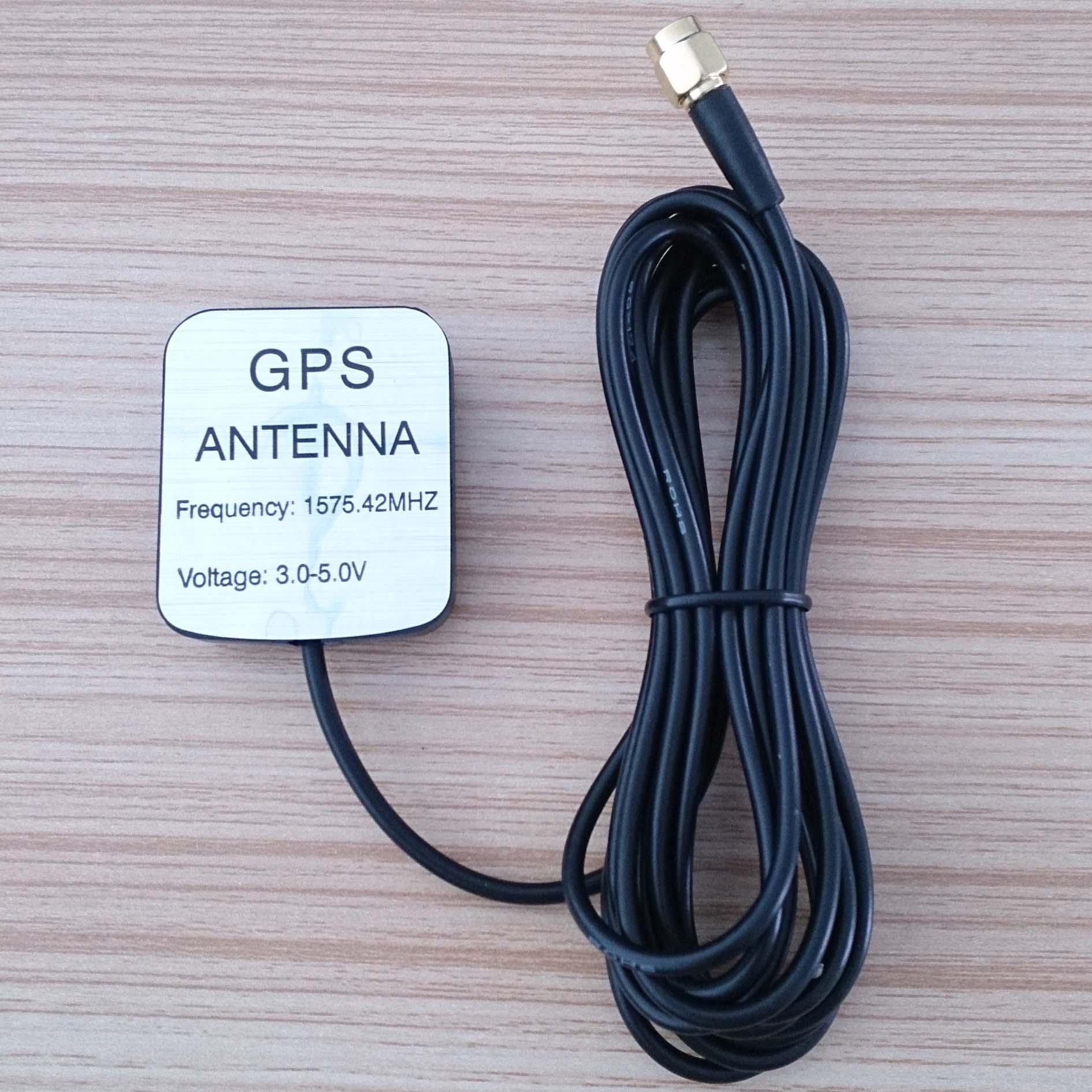

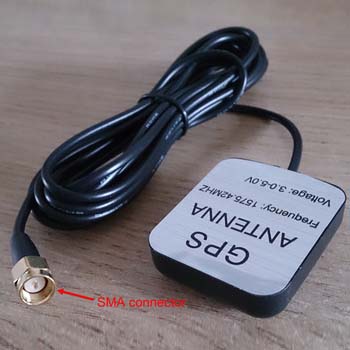

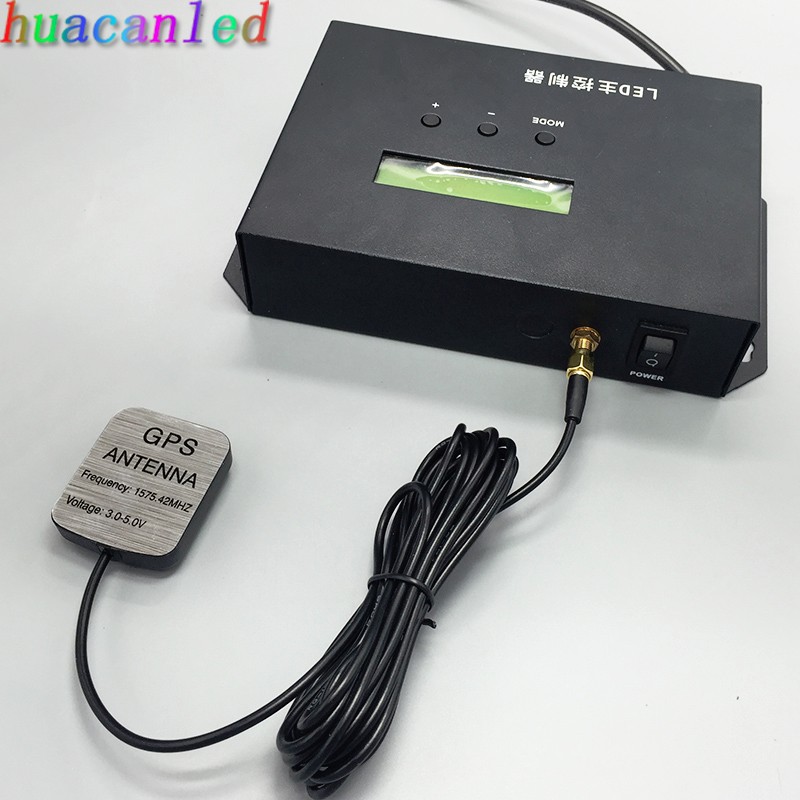

H802TC is a global synchronization LED master controller, synchronized with the geostationary satellites. A plurality of master controllers can be distributed in the same city or different countries; can be electrified separately in two hours or several months. The area where the satellite signal covers can be synchronized.

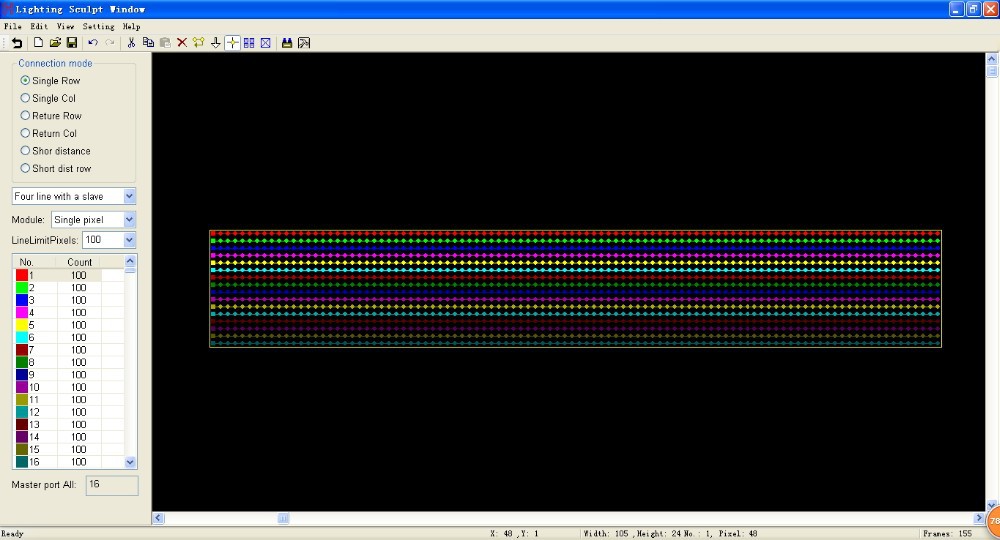

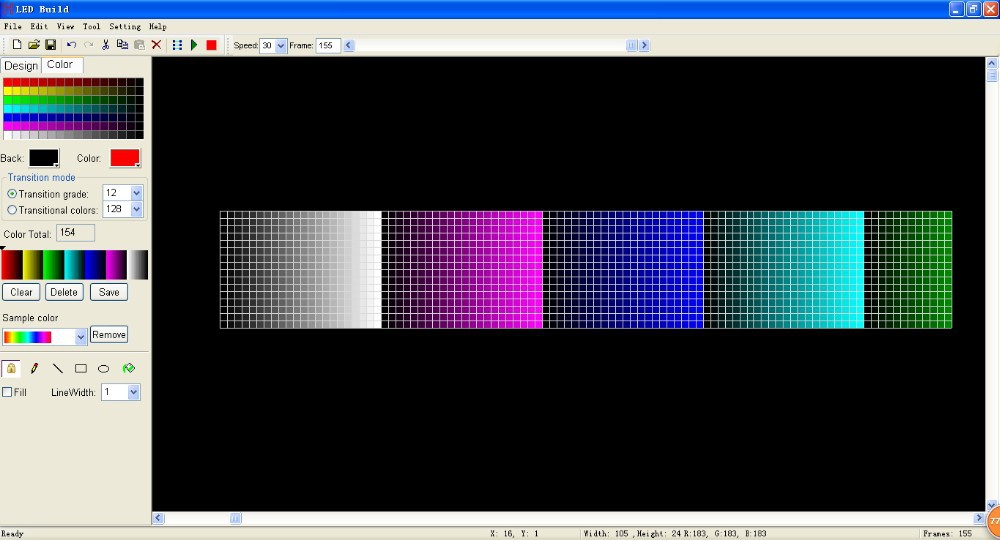

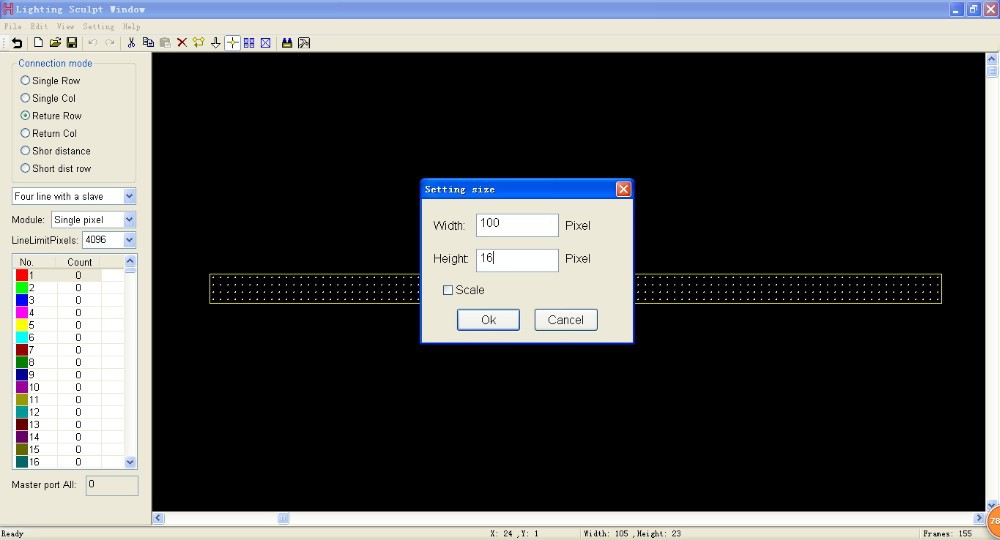

Auxiliary slave controllers are H801RA and H801RC. Auxiliary software is "LED Build Software".

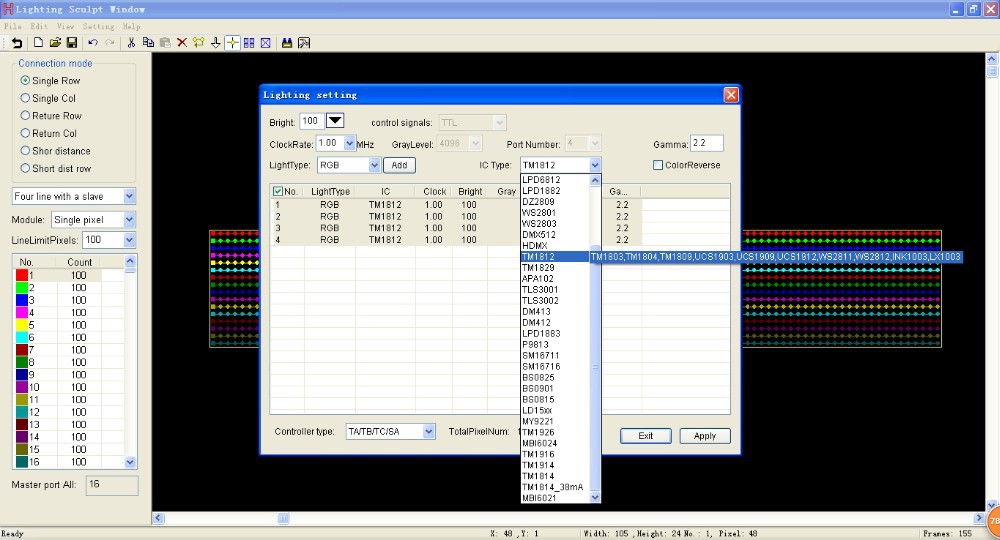

2.Supported driver chips
LPD6803, LPD8806, LPD6813, LPD1882, LPD1889, LPD6812, LPD1886; DMX512, HDMX, APA102, P9813, DZ2809, SM16716; UCS6909, UCS6912, UCS1903, UCS1909, UCS1912; WS2801, WS2803, WS2811, INK1003; TM1812, TM1809, TM1804, TM1803; BS0901, BS0902, BS0815, LY6620, BS0825; LD1510, LD1512; TLS3001, TLS3002; DM413, DM114, DM115, DM13C, DM134, DM135, DM136; MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, 74HC595, 6B595, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, HEF4094, A8012 etc.
(1).Global synchronization. Not limited by distance and power-on time.
(2).Drive 122880 pixels and it can reach to hundreds of thousands pixels to millions of pixels when multiple master controllers control synchronously.
(3).Connects maximum 96 slave controllers. H801RA drive maximum 3412 pixels, output four ports. H801RC drive 8192 pixels, output eight port.
(4).The playing speed adjustable range is 2—50 frames per second, the brightness adjustable range is 0 — 15 .
(5).Support playing single file by week, by date and schedule synchronously.
(6).Transmit signal based on standard Ethernet protocol, the nominal transmission distance is 100 meters. Photoelectric converter can make the transmission distance reach to more than 25 kilometers.
(7).Support encryption on number of power-on time.
