DC24V 16.4Ft 2560 Chips Plastic Pink Flexible COB LED Strip Lights
Product Description: What is COB LED strip light?
COB is called Chip On Board. Board is PCB. Different from ordinary 5050SMD LED (LED bare chip is built-in plastic reflector), COB LED combined with COB chip and phosphor film LED die are directly packaged on the PCB.
Free up enough space, the COB LED is small, and the LED quantity is very dense. At present, among our products, the densest COB can be 864Chips/m.
LEDs are small and evenly arranged on the PCB, so the COB LED strip light is more flexible, suitable for ultra-narrow environments, the narrowest width can be 3mm, and can be bent to a greater extent.
Onboard chip technology can realize ultra-density LED. With 180 degrees beam angle, COB LEDs can almost achieve no spot. The denser LED, the smaller the spot. With 512Chips/m and above LEDs, almost no light spots can be seen.
High efficiency, the low working power of LEDs but high output lumens, outpur power at 14.4W/m, but can output 100 lumens per watt
Product Feature and Application:
►Plastic Pink Color high CRI
►10mm good heat dissipation effect
►DC24V low voltage, safe and stable
►512Chips/m super density, no spot
►180 degrees uniform lighting
►Customized waterproof rating IP67 outdoor rainproof
►LED Task Lighting
►Art Gallery Lighting
►Studio Office Lighting
►Retail Shop Lighting
Standards and Certifications
|LED Strip Type||COB LED (COB Flexible led strip light specification )|
|LED Chip||Epistar Chip|
|Dimensions||L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.12cm(0.05 in )|
|Light Color||Plastic Pink|
|LED Quantity||512 chips per 1meter (3.28 ft)|
|COB Dimension||L500cm(196.8 in ) x W0.6cm(0.24 in )|
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
How to choose LED strip lights kit?
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
|5m/16.4Ft LED Strip|
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Plastic Pink Description:
Refers to the high-frequency part of the visible light of electromagnetic waves, which has a higher frequency than blue light.
Frequency of the electromagnetic wave is 700~790THz (corresponding to the wavelength of 430~380nm in the air).
Human eye can see a higher frequency in the visible spectrum, but the light with a shorter wavelength is called Plastic Pink.
Plastic pink color is eye-catching and adds a stylish touch. Color is between red and blue, with many transitional colors in between.
Plastic pink is an elegant color, associated with luck and wealth, gorgeousness, and romance.
Plastic pink is consistent with the color of plants, spanning warm and cold colors, and has an atmosphere that combines earth and nature.
Installation Instruction: How to Install LED Strip Lights?

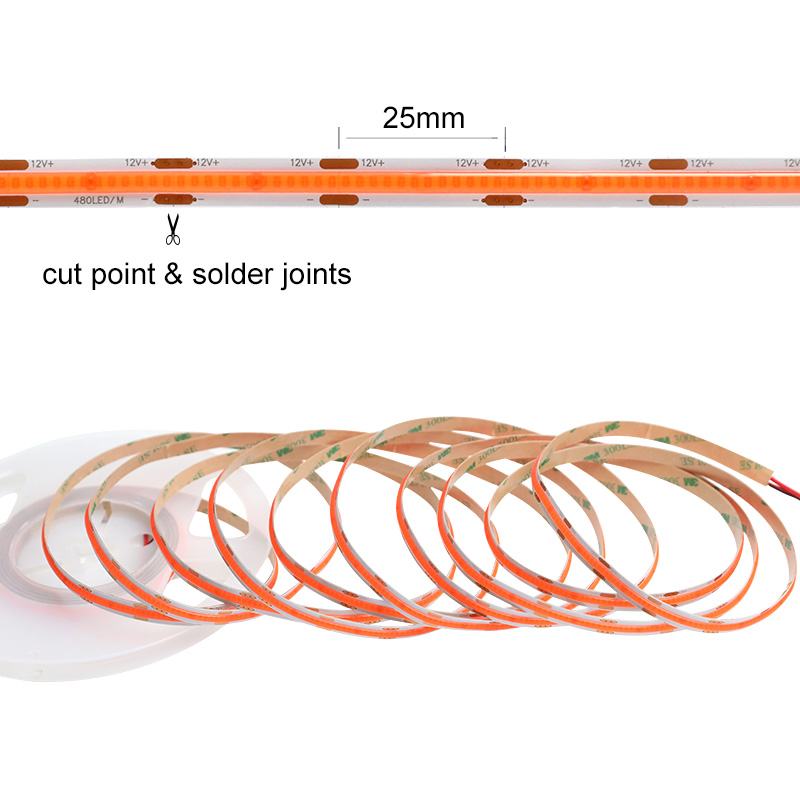

You can cut the strip every few inches, allowing you to freely design your project, without worrying about space requirements to many different surfaces.
The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights
IP67/IP68 waterproof type which will needs LED mounting brackets
COB Light Strip Advantages :
COB LED Strip Light Series Feature:
