Original DC 5~24V Single Color LED Mini Dimmer Controller with Dynamic Modes
Original DC 5~24V Single... $3.98
Mean Well LRS-200-12... $45.00 $37.9816% off
DC12/24V 3014SMD 600LEDs... $24.98
Side Emitting Series... $58.98
Original DC 5~24V Single...
Mean Well LRS-200-12...
DC12/24V 3014SMD 600LEDs...
Side Emitting Series...

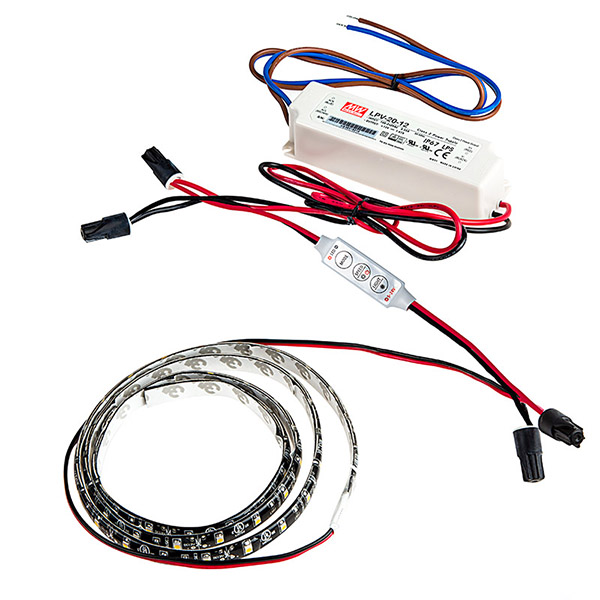

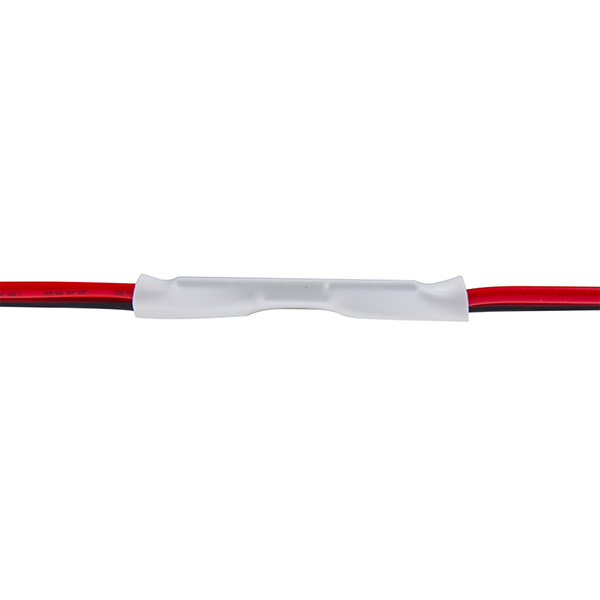

Original single color mini LED dimmer can dim any 5~24V DC LED product from 10%-100% using Pulse Width Modulation (PWM) circuit push button control from stepped intensity adjustment. 5 dynamic flashing modes with adjustable speeds. Maximum load is 5 Amps - holding Speed/Bright button turns LEDs ON/OFF. Retains last setting when power is cycled. Attached 4" power input and controller output wire leads. Suitable for vehicles

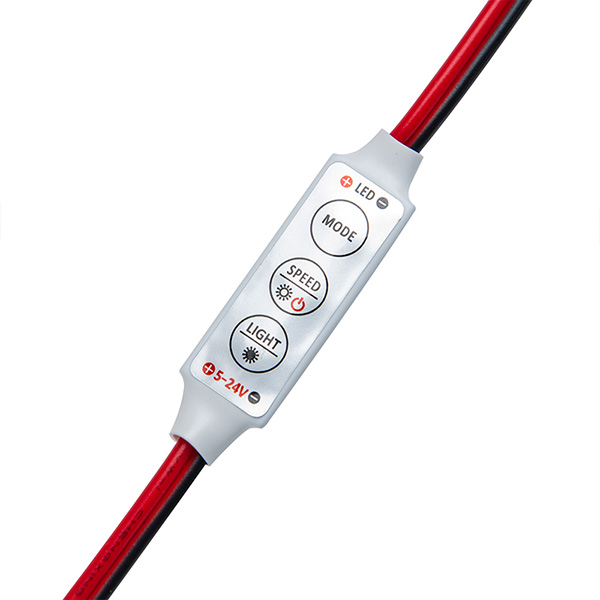

Press “Light” button to activate static mode. Press “Speed/ Bright” button to incrementally dim 10 steps and return to full brightness. “Mode” button enters dynamic fl ashing patterns. Press “Mode” to cycle through the 9 diff erent patterns. Pressing “Speed/Bright” button will incrementally decrease speed 10 steps and return to fastest speed. Hold “Speed/ Bright” button to turn LEDs ON/OFF.
Amps: 5.00 Amps
Amps Per Channel: 5 Amps/CH
Channels: 1 Channel
Connection Type: Pigtail
Dim Control: Touch Control
Remote Control: In-line
Special Features: Strobe and Fade
Standards And Certifications: RoHS Compliant
Type: Dimmers/In-line Dimmer/Single Color Dimmer
Package Dimensions: 5" (13cm) x 3.5" (9cm) x 0.25" (1cm)
Package Weight: 0.40oz (0.01kg)
Supply Voltage: DC 5~24V
Max Load Current: 5 Amps
Output: 1 Channel
Static Power Consumption: < 1 Watt
Output Power: 25~120 Watts
Function: Dim LED product from 10~100% using PWM with CPS series Power Supplies
Product Size: (L)40 x (W)13 x (H)5 mm
Net Weight: 35g
Operating Temperature: -30~70°C
Dynamic Modes: Fast Strobe/Slow Blink/Fast Blink/Slow & Fast Blinks/Short Blink/Random Fade/Slow Fade/Quick Fade
1×mini inline dimmer
