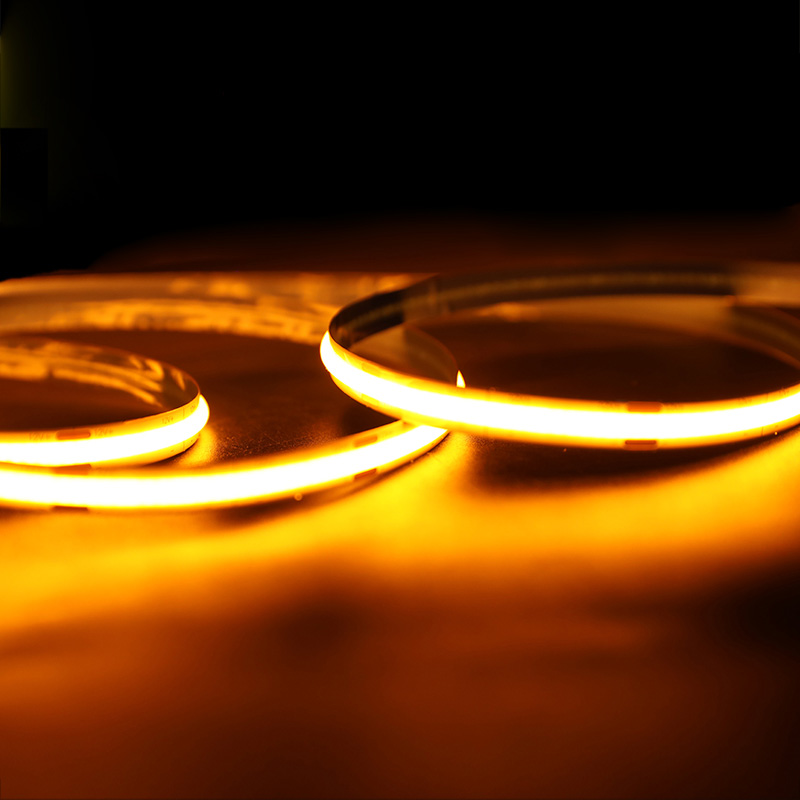

DC24V 16.4Ft 2560 Chips Orange Flexible COB LED Strip Lights
Product Description: What is COB LED strip light?
COB is called Chip On Board. Board is PCB. Different from ordinary 5050SMD LED (LED bare chip is built-in plastic reflector), COB LED combined with COB chip and phosphor film LED die are directly packaged on the PCB.
Free up enough space, the COB LED is small, and the LED quantity is very dense and the PCB width is narrow.
LEDs are small and evenly arranged on the PCB, so the COB LED strip light is more flexible, suitable for ultra-narrow environments, and can be bent to a greater extent.
Onboard chip technology can realize ultra-density LED. With 180 degrees beam angle, COB LEDs can almost achieve no spot. The denser LED, the smaller the spot. With 512Chips/m and above LEDs, almost no light spots can be seen.
High efficiency, the low working power of LEDs but high output lumens, outpur power at 14.4W/m, but can output 100 lumens per watt.
Product Feature and Application:
►Orange Color high CRI
►10mm good heat dissipation effect
►DC24V low voltage, safe and stable
►512Chips/m super density, no spot
►180 degrees uniform lighting
►Customized waterproof rating IP67 outdoor rainproof
►LED Task Lighting
►Art Gallery Lighting
►Studio Office Lighting
►Retail Shop Lighting
Standards and Certifications
|LED Strip Type||COB LED (COB Flexible led strip light specification )|
|LED Chip||Epistar Chip|
|Dimensions||L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.12cm(0.05 in )|
|LED Quantity||512 chips per 1meter (3.28 ft)|
|COB Dimension||L500cm(196.8 in ) x W0.6cm(0.24 in )|
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
How to choose LED strip lights kit?
You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.
In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.
|5m/16.4Ft LED Strip|
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Orange Color Description:
Orange is the middle and low-frequency part of the visible light in electromagnetic waves, the frequency is 480~510THz, and the corresponding wavelength in the air is 595-605nm.
Orange is an intermediate color between red and yellow, which can be blended with red pigment and yellow pigment.
Orange is a cheerful, lively, and passionate color, and it is the warmest color in the warm color system.
Because of its cheerfulness, liveliness, health, excitement, warmth, joy, and enthusiasm, it is often used as a decorative color.
Orange has good visibility. In industrial safety colors, orange is a warning color, such as locomotives, mountaineering clothing, backpacks, life jackets, etc.
Orange can be used for restaurant decoration, and more orange color can increase appetite.
Orange as the color of citrus fruits can convey the concept of summer, sun, and health.
Red-orange is a highly energetic, passionate, and passionate color, while the milder yellow-orange is more gentle.
Installation Instruction: How to Install LED Strip Lights?

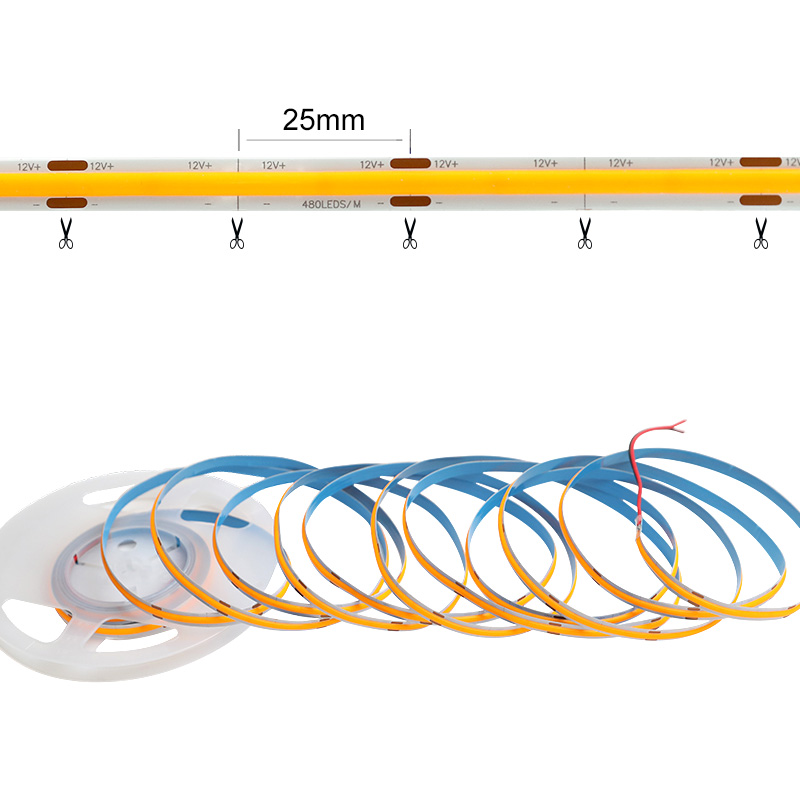

You can cut the strip every few inches, allowing you to freely design your project, without worrying about space requirements to many different surfaces.
The back of the strip is fitted with a strong 3M tape, allowing you to peel and stick lights
IP67/IP68 waterproof type which will needs LED mounting brackets
COB Light Strip Advantages :
PCB back with 3M tape, for an easy installation.
COB LED Strip Light Feature:
