DC24V Quad Row Super Bright Blue LED Light Strips- High CRI95 147LEDs/Ft 3528SMD Flexible LED Tape Light
DC24V Quad Row Super... $19.98
DM110 DC12V-24V 1 Channel... $8.98
200W8.33A DC24V Constant... $49.98
Mean Well LRS-200-24 ... $39.00 $36.985% off
DC12-24V 20A 1CH*20A... $24.98
DC24V Quad Row Super...
DM110 DC12V-24V 1 Channel...
200W8.33A DC24V Constant...
Mean Well LRS-200-24 ...
DC12-24V 20A 1CH*20A...
Universal Quad Row Nanometer Waterproof Single Color Super Bright High Density 3528 SMD(SMD:Surface Mounted Devices) Flexible LED light strips, Epistar chip, 2400LEDs/16.4ft, 16.4ft(5 meters) Per Reel.
Our brightest Flexible LED Solid Color light Strips soft and easy bended for installation. High Quality PCB with a nano film layer, IP20 nanometer , More conducive to Cooling，can be used under water. Super Bright 3528 SMD LED, low power, brilliant light output. All the light spread and completely smooth,luminous very even. Available in 5 meter (197 in) IP30 nanometer waterproof flexible light strips with adhesive backing and can be stuck just about anywhere. can be cut into 24-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 24VDC operation. Dimmable - Connect LED Smart Dimmers.
Standards and Certifications

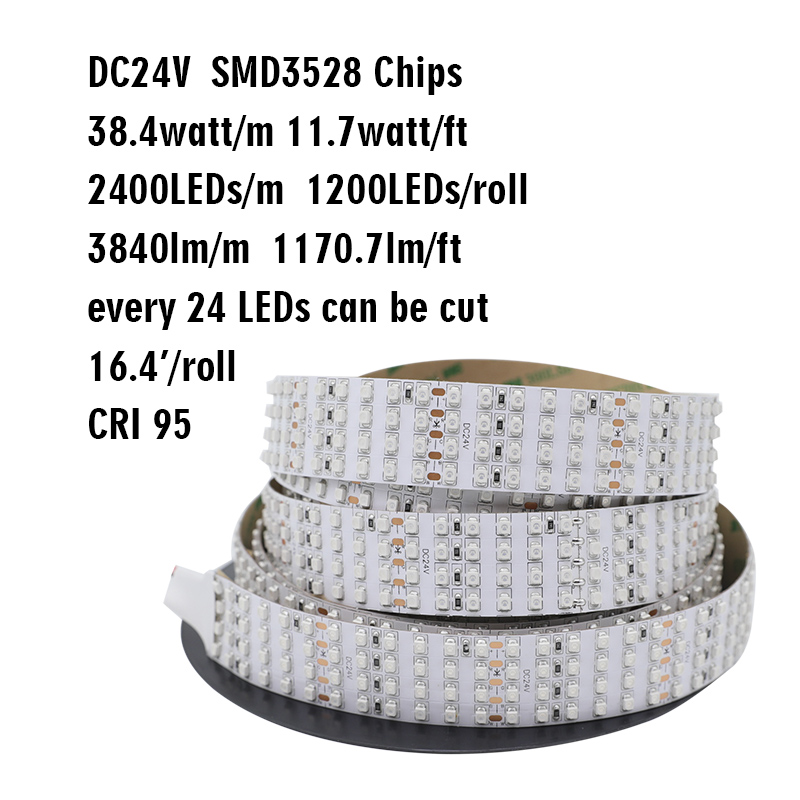

LED Strip Type: SMD 3528 2400PCS/16.4ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Blue

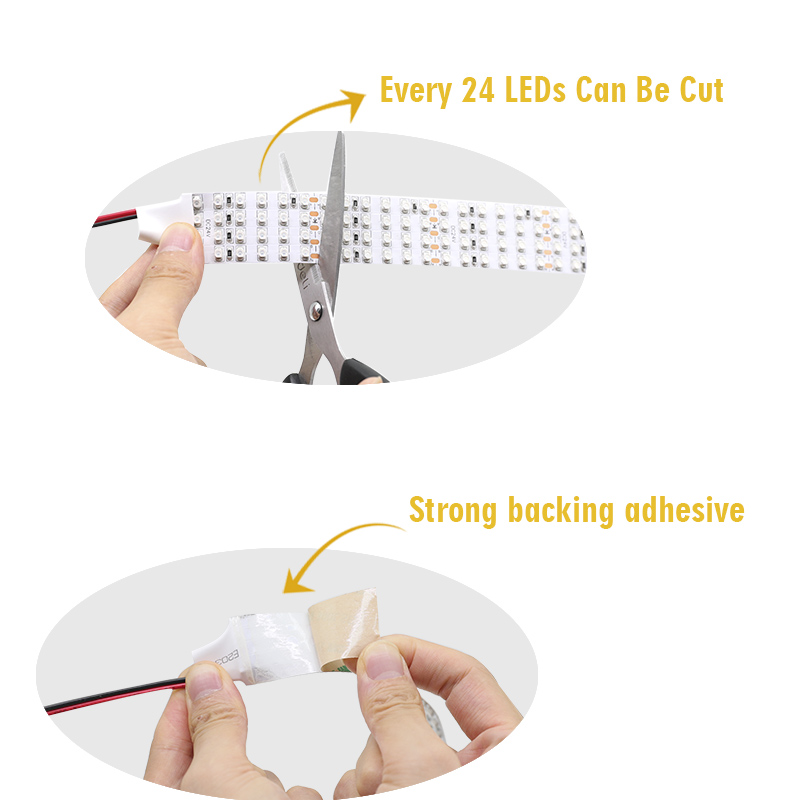

Dimension: 16.4ft/roll, every 24 PCS LED can be cut
LED Quantity: 480 LEDs per meter (3.28ft)
Warantty: 3 years

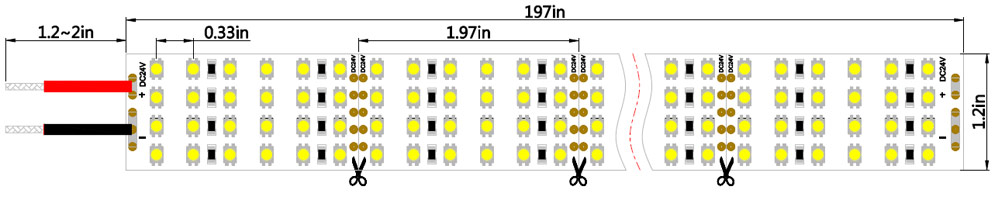

Dimensions: L500cm(196.8 in ) x W2.8cm(1.10 in ) x H0.20cm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 8A 192W /16.4ft Max
Lamp Luminous Flux(lm): 7~8lm/LEDs 19200lm/16.4ft
Color Temperature CCT(White): Warm White(2700-3200k), Daylight White(4500-7000k), Cool White(8500-12000k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20/ Waterproof IP67
CRI (Ra>): 95
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Cove LED lighting
Accent decor lighting
Display case lighting
Under cabinet LED lighting
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare , with self-adhesive back, For Indoor);
