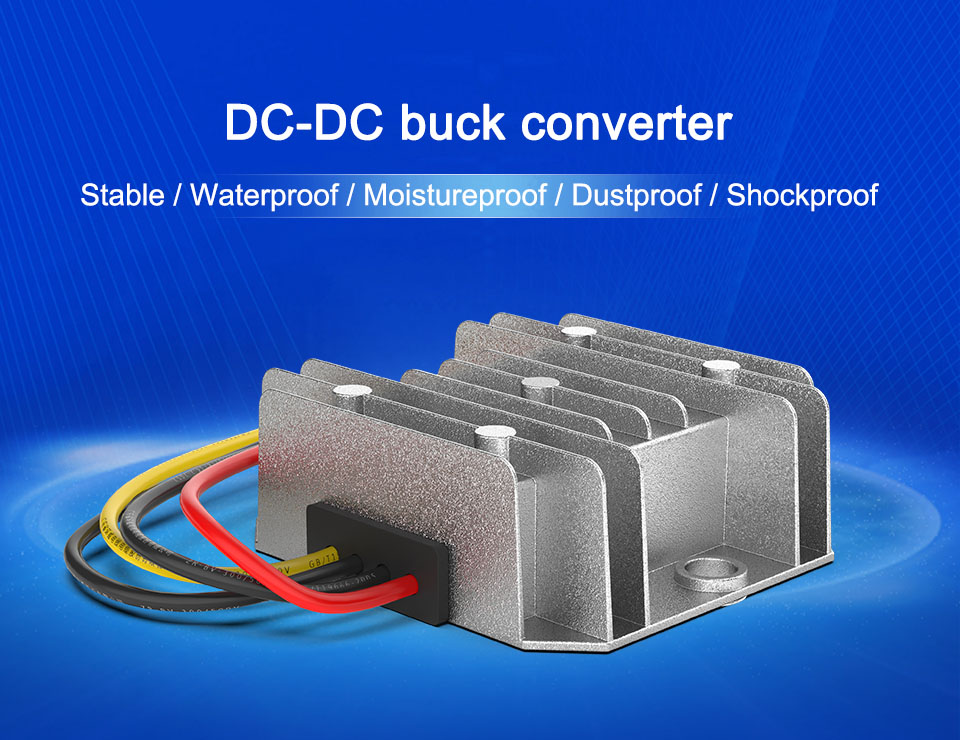

DC to DC Converter - 12V/24V to 5V Power Converter
What is a dc to dc converter? This dc to dc converter transforms DC12V/24V to DC5V, lets a 12V/24V power supply run 5V led strip lights.
Module Type: Non-isolated module
Input Votage: DC12-24V
Output Voltage: DC5V
Output Current: 5-40A
Conversion Efficiency: 95%
Voltage Regulation Rate: 1%
Load Regulation Rate: 2%
Operating temperature: -40°C~+80°℃
No-load current: 20mA
Ripple voltage: 50mV
Cooling method: Natural air convection
Protection: Over-load,Over-current,Over-temperature,Short-circuit,Over-voltage optional
Installation cable length: 13CM
Packing: Electrostatic bag-carton

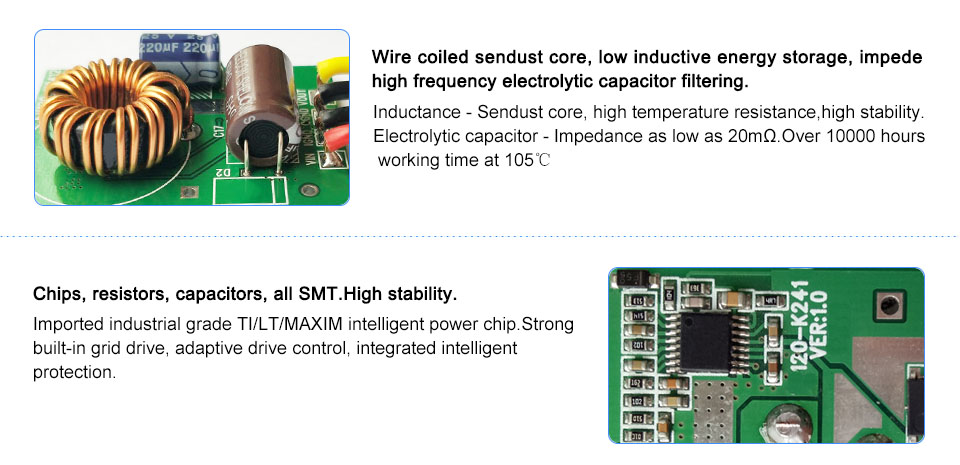

Wire coiled sendust core, low inductive energy storage, impedehigh frequency electrolytic capacitor filtering.
Inductance - Sendust core, high temperature resistance,high stability.Electrolytic capacitor - lmpedance as low as 20mQ.Over 10000 hoursworking time at 105℃
Chips, resistors,capacitors, all SMT.High stability.
lmported industrial grade TI/LT/MAXIM intelligent power chip.Strongbuilt-in grid drive, adaptive drive control, integrated intelligent protection.

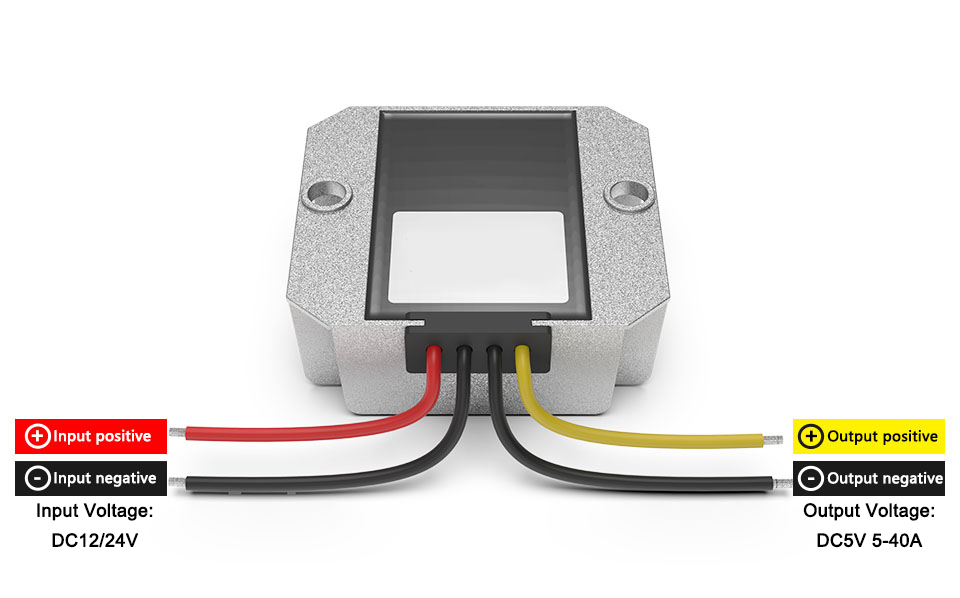

Input power supply (battery or switching power supply) lnput positive and negative poles cannot bereversed
1.The voltage fluctuation range of the power supply should not exceed the voltage range of theconverter.
2.The power of the power supply must be greater than the power required by the output electricalappliances.
Output appliances (power less than or equal to the power of the converter)Output positive andnegative poles cannot be short-circuited in reverse.
1.You can equip the equipment with as many V converters as the voltage required by the electricalappliances.
2.The power should not be greater than that of the converter.
Widely used: vehicle equipment, communication equipment, power equipment, medical equipment,electric vehicles,LED displayAutomobiles, ships, aerospace, audio, refrigerators, air conditioners,navigators, routers, surveillance camerasPrinters, mobile phones, walkie-talkies, robots, transportationsystems, and various industrial equipment that meet voltage
