Single Row Series DC12/24V 3528SMD 300LEDs Flexible LED Strip Lights, Home Lighting, Waterproof IP65, 16.4ft Per Reel By Sale
Universal Single row single color super bright 3528 SMD(SMD:Surface Mounted Devices) Waterproof IP65 Flexible LED Tape strips, Epistar chip, 300LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale.
Our brightest Flexible LED Solid Color light Strips soft and easy bended for installation. Available in 5 meter (197 in) Waterproof IP65 flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 3/6-LED segments, so you could cut a different length for your project and request. The LED strips Suitable for the average home lighting as well as lighting professionals. 12/24VDC operation. Dimmable - Connect LED Smart Dimmers.
Please note: For Copper PCB background, we only have DC12V.
Standards and Certifications
LED Strip Type: SMD 3528 300PCS/16.4ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Amber (optional)
Dimension: 16.4ft/roll, every 3/6 PCS LED can be cut
LED Quantity: 60 LEDs per 1meter (3.28 ft)
Warantty: 3 years

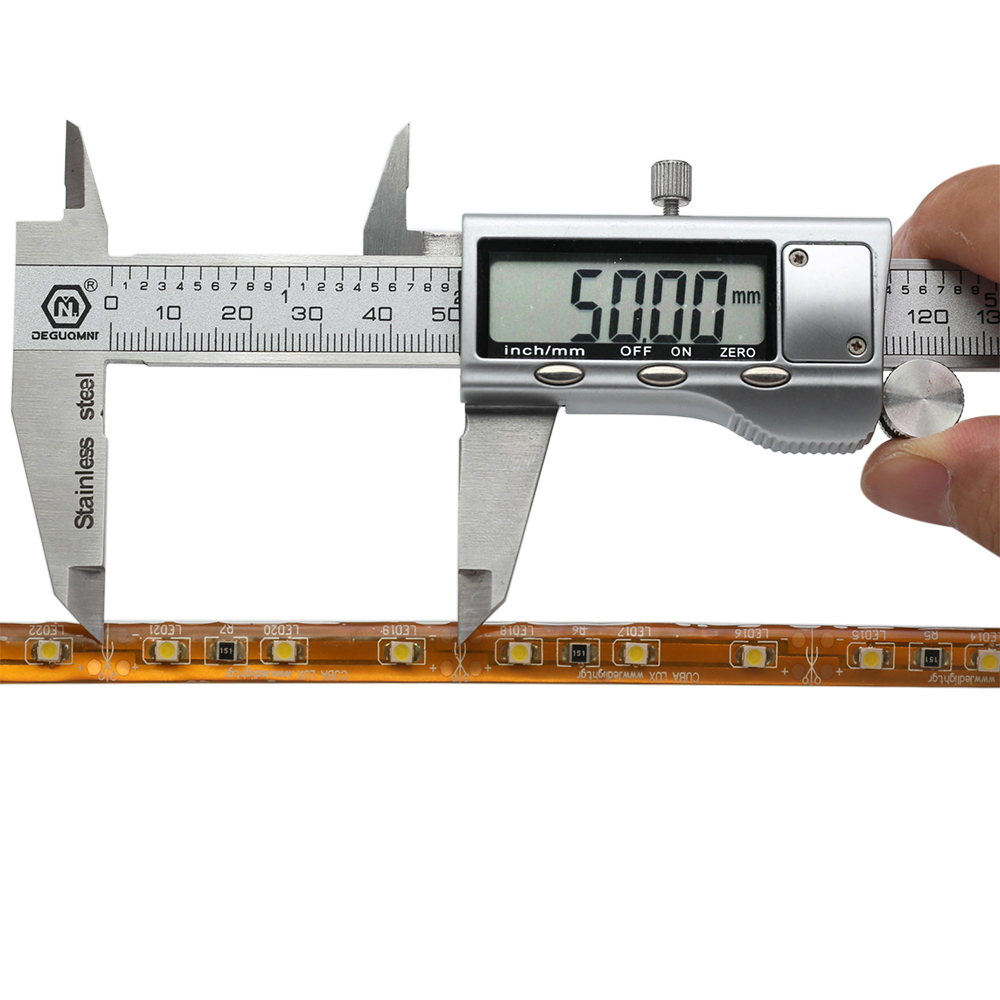

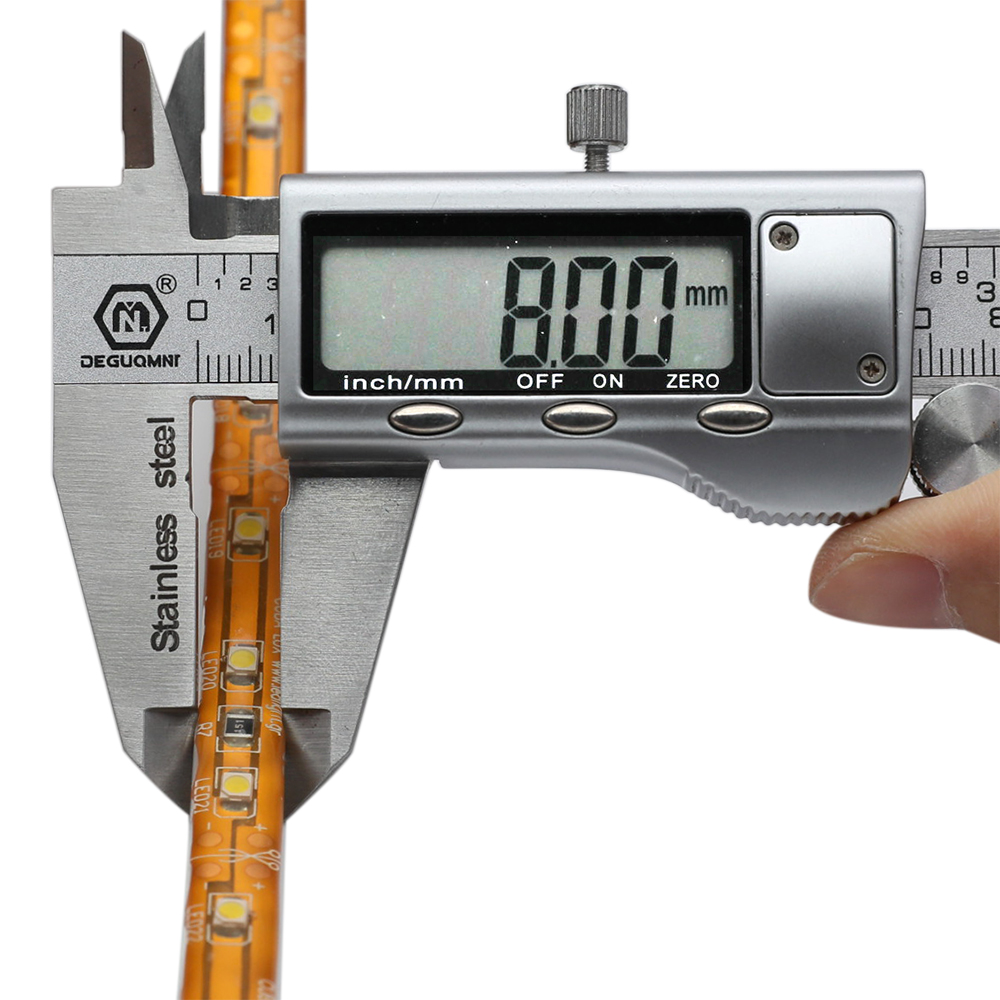

Dimensions: L500cm(196.8 in ) x W0.8cm(0.31 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12/24VDC
Working Power: 2A 24W /16.4ft Max
Lamp Luminous Flux(lm): 7~8lm/LEDs 2400lm/16.4ft
Color Temperature CCT(White): Warm White(2800-3200k), Daylight White(5500-6500k), Cool White(7500-8000k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Waterproof IP65 (Epoxy cover waterproof, Epoxy Resin,PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor)
CRI (Ra>): 95
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

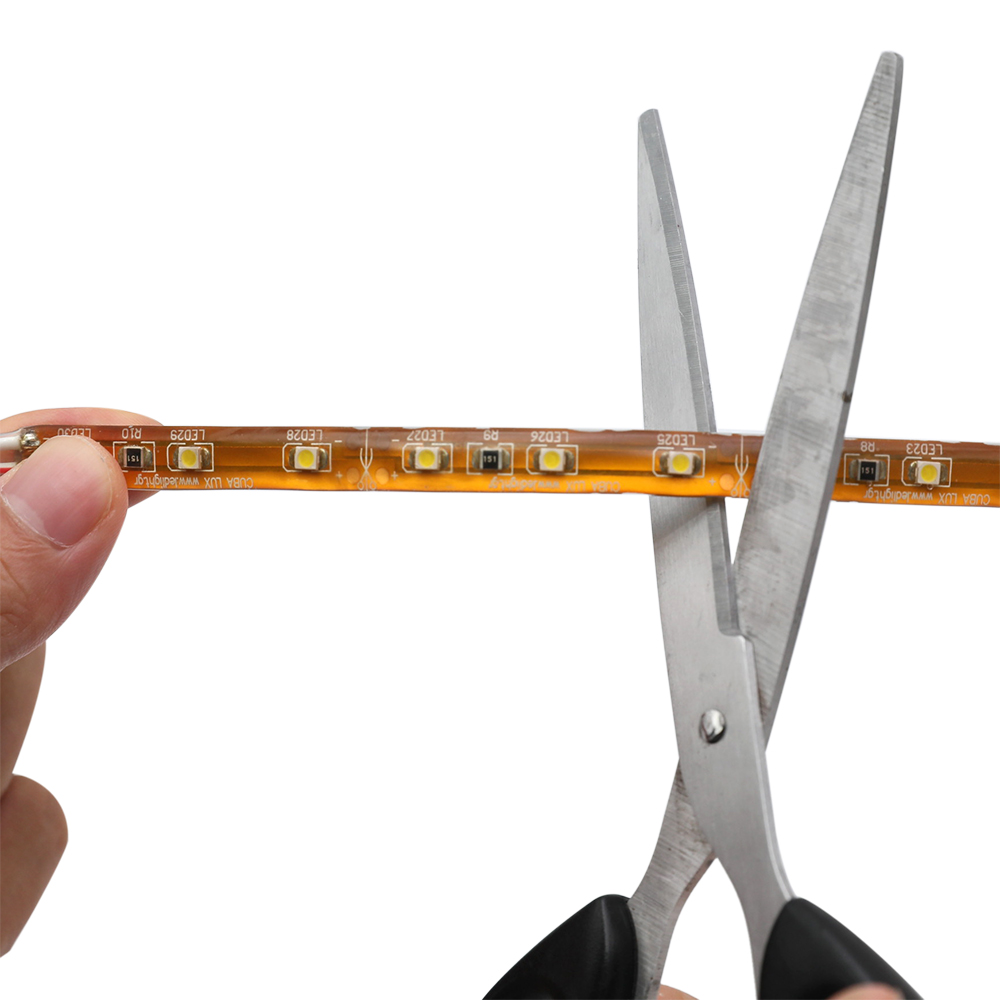

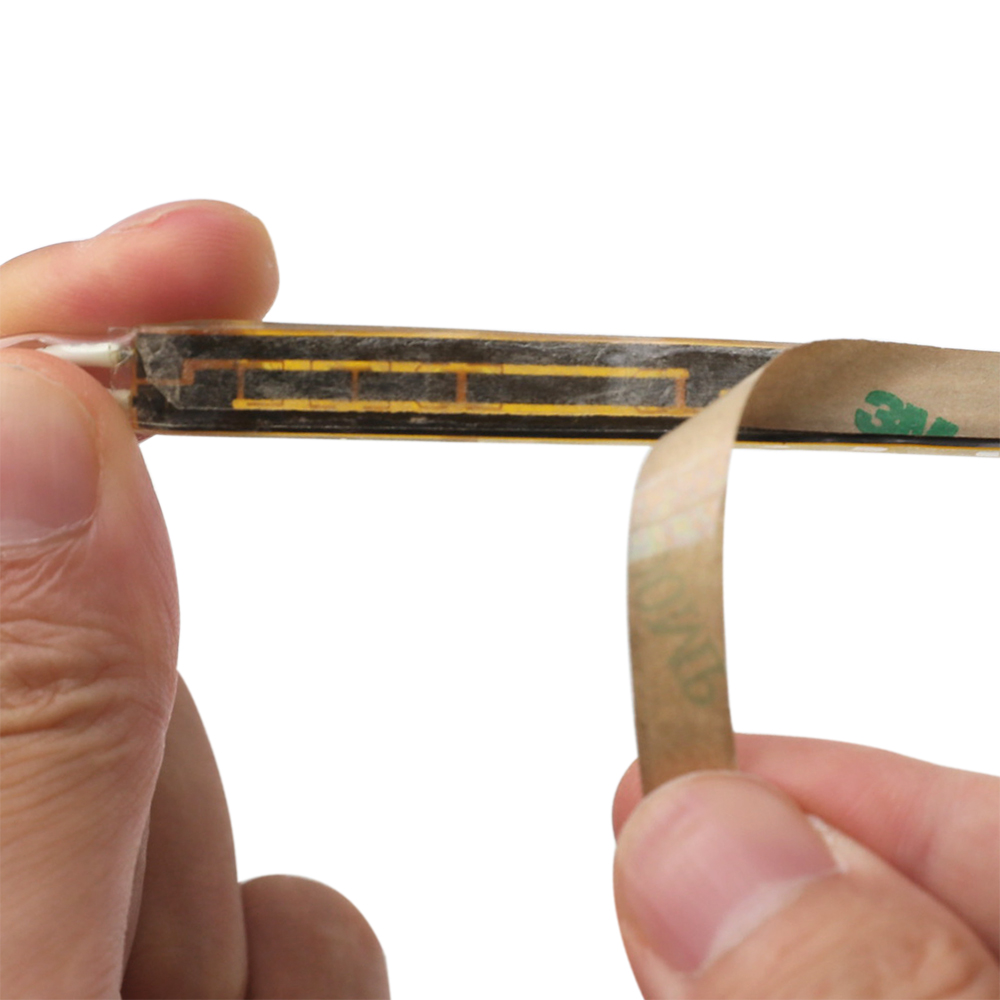

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements to many different surfaces.
