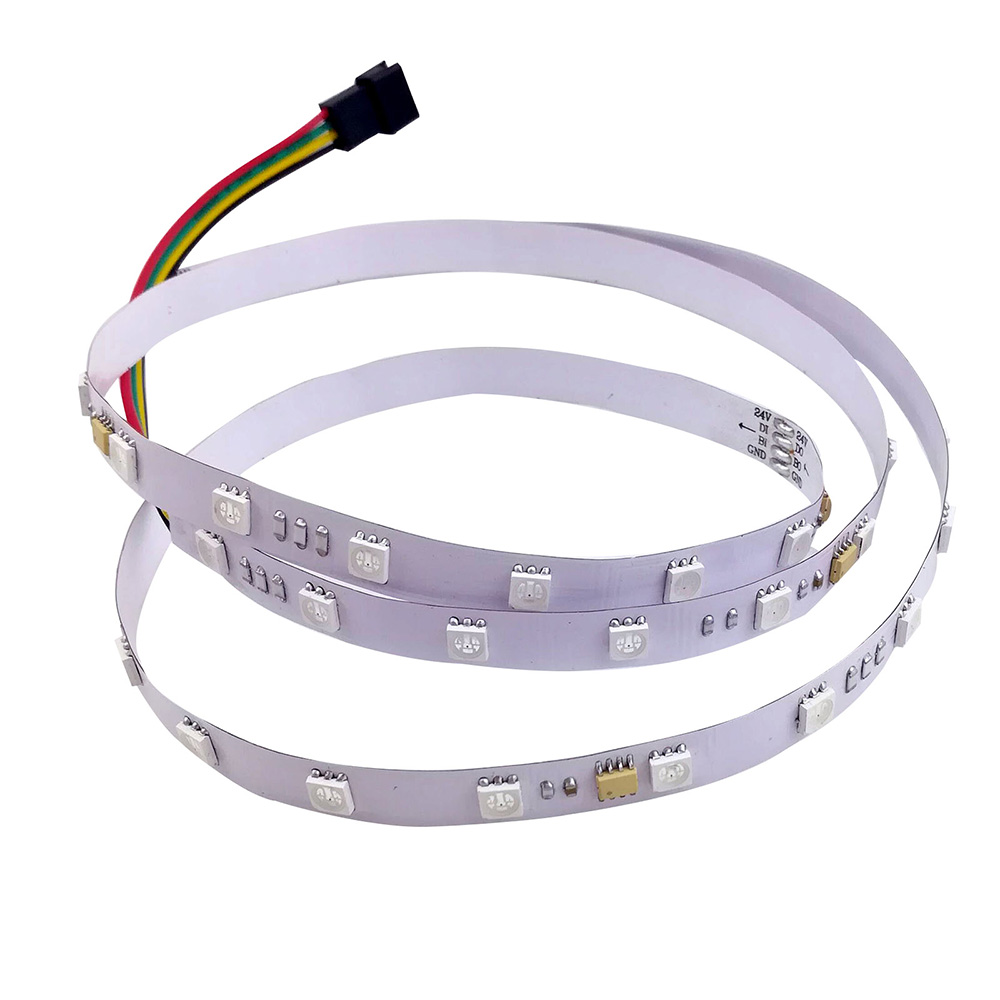

DC24V WST2906 5050SMD RGB Breakpoint-continue 16.4Ft 240LEDs White PCB Dream Color LED Strip Lights
Both sides adopt flexible PCB as the base material. Each PCB board has good conductivity and good heat dissipation. Addressable LED strip integrated SMD5050 and external IC are evenly arranged, with high brightness and uniform lighting effect.
Addressable LED strip adopts external WST2906 driver chip, supports DC24V low voltage input, one IC control 6 LEDs, can easily light up and control any loop LED, suitable for indoor & outdoor atmosphere lighting.
The whole LED strip light adopts white LEDs, PCB, and LED resistors. The appearance of the LED strip is more tidy and beautiful. By connecting to the dream color addressable LED controller, it can output 16 million lighting colors and 265 gray levels adjustment.
Every 6LEDs can be cut, you can customize the length of the LED strip light, and you can choose IP65/67/68 waterproof options. 3M adhesive backing enables fast, easy mounting.
Breakpoint resume programmable LED strip, a single pixel failure will not affect the signal transmission unless two consecutive adjacent pixels fail.
SMD5050 high brightness LED
Support DC24V low voltage input
External WST2906 LED chip
6LEDs cuttable, customize length
IP65/67/68 waterproof available
3M adhesive backing, easy to install
Dual channel breakpoint resume
15LEDs/Ft dream color LED
256 gray levels available

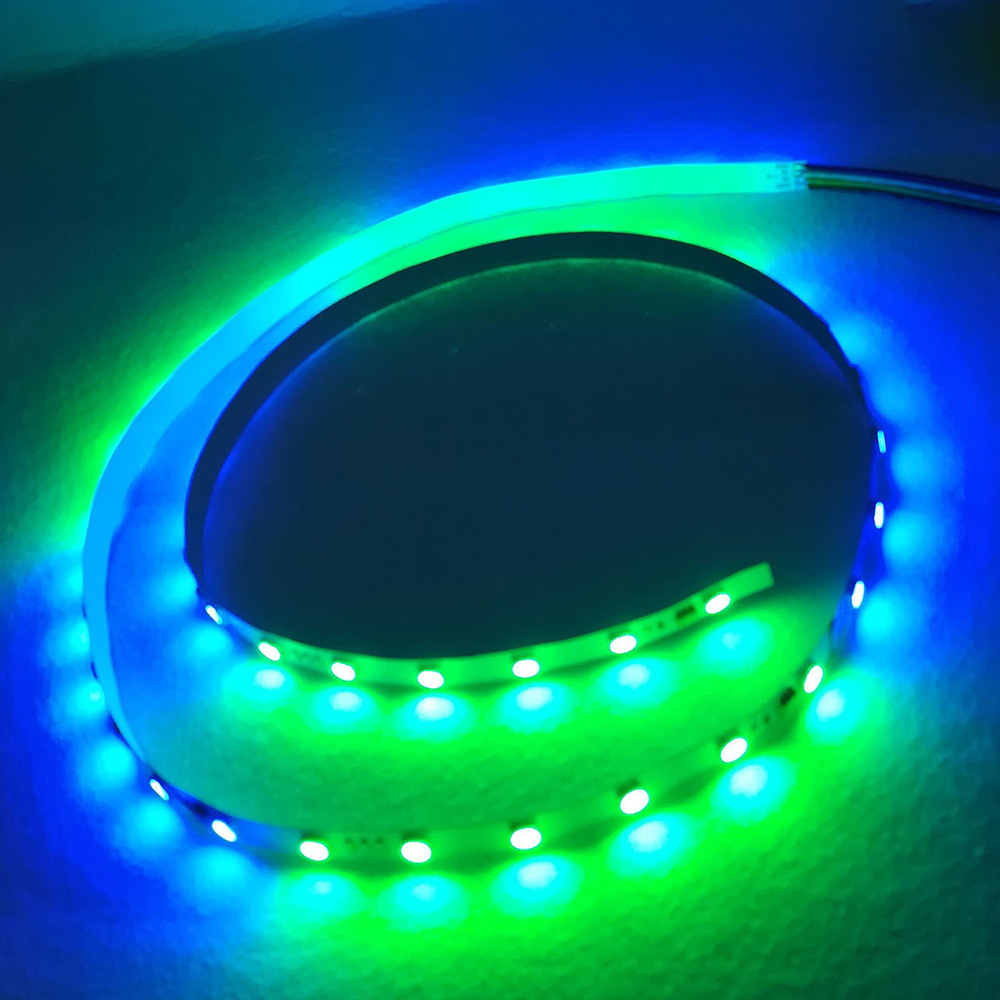

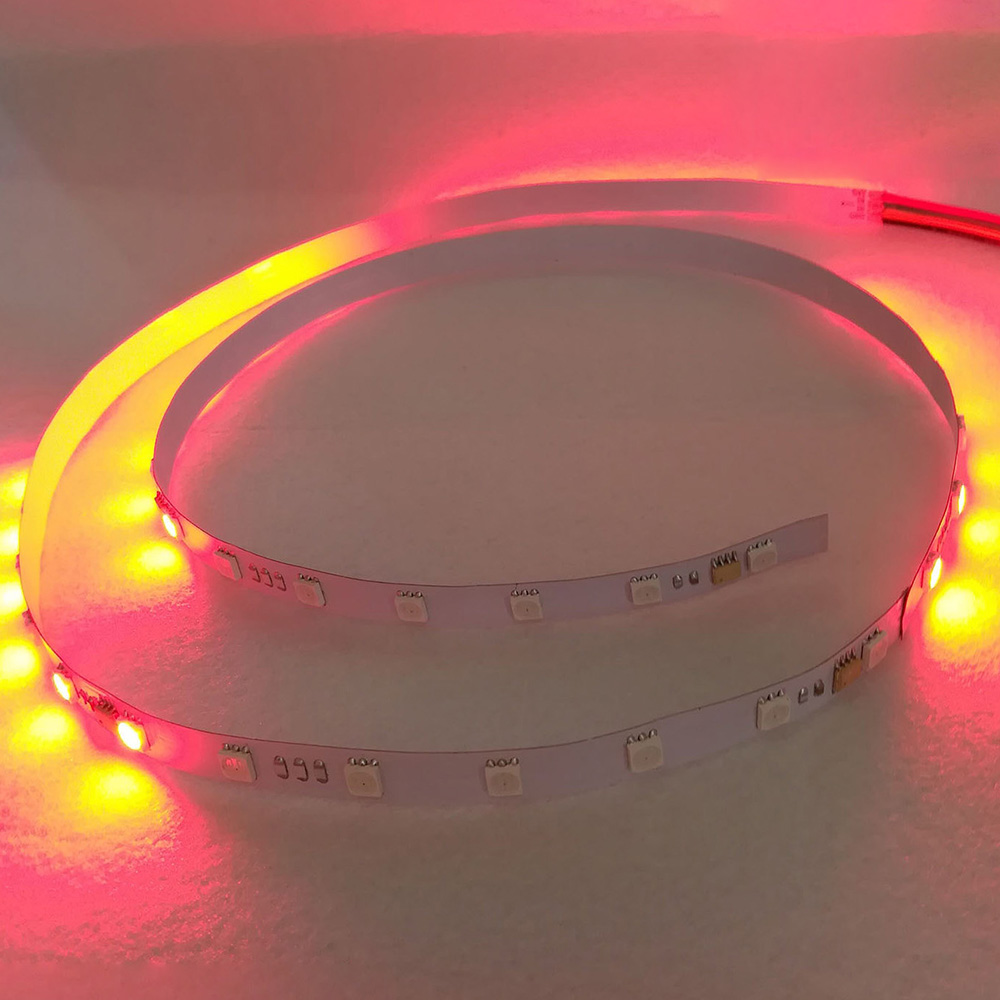

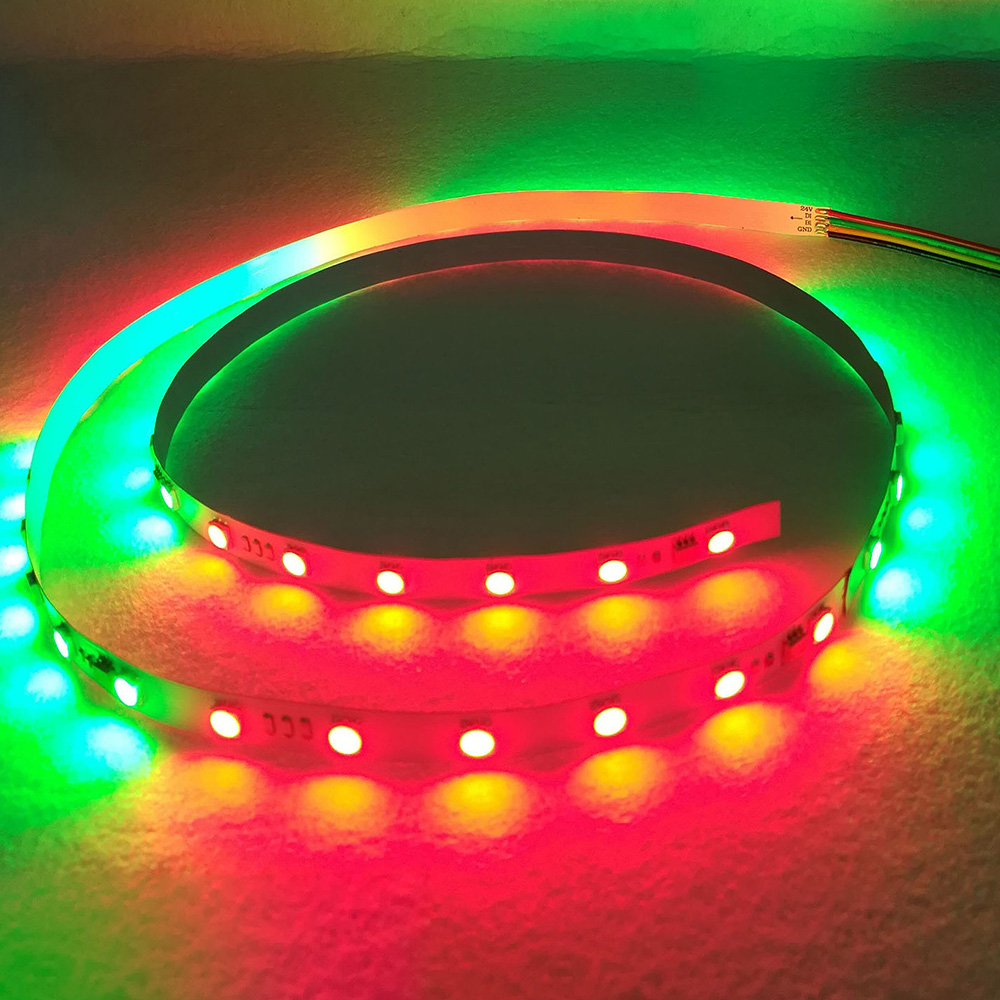

16 million dynamic color chasing effects
Standards and Certifications
IC Type: Epistar
PCB Width: 10mm/0.39in
Input Voltage: DC24V
LED Chip Model: WST2906 IC
LED Resource: SMD 5050 RGB
PCB Color: White
Colors: Full-color RGB, dream color changing;
Greyscale: 256 levels
Average Life (hrs): 50000Hours+
Beam Angle: 120 degrees
Circuit Board: Double-sided FPC electrolytic copper circuit board
Luminous Colors: 672LM/m
LED Quantities: 15LEDs/Ft, 48LEDs/m
Rated Power: 3.51W/Ft; 11.52W/m; 57.6W/Roll
Waterproof Rating: IP20(non-waterproof) IP65/67/68(waterproof)
IC Quantities: 8ICs/m

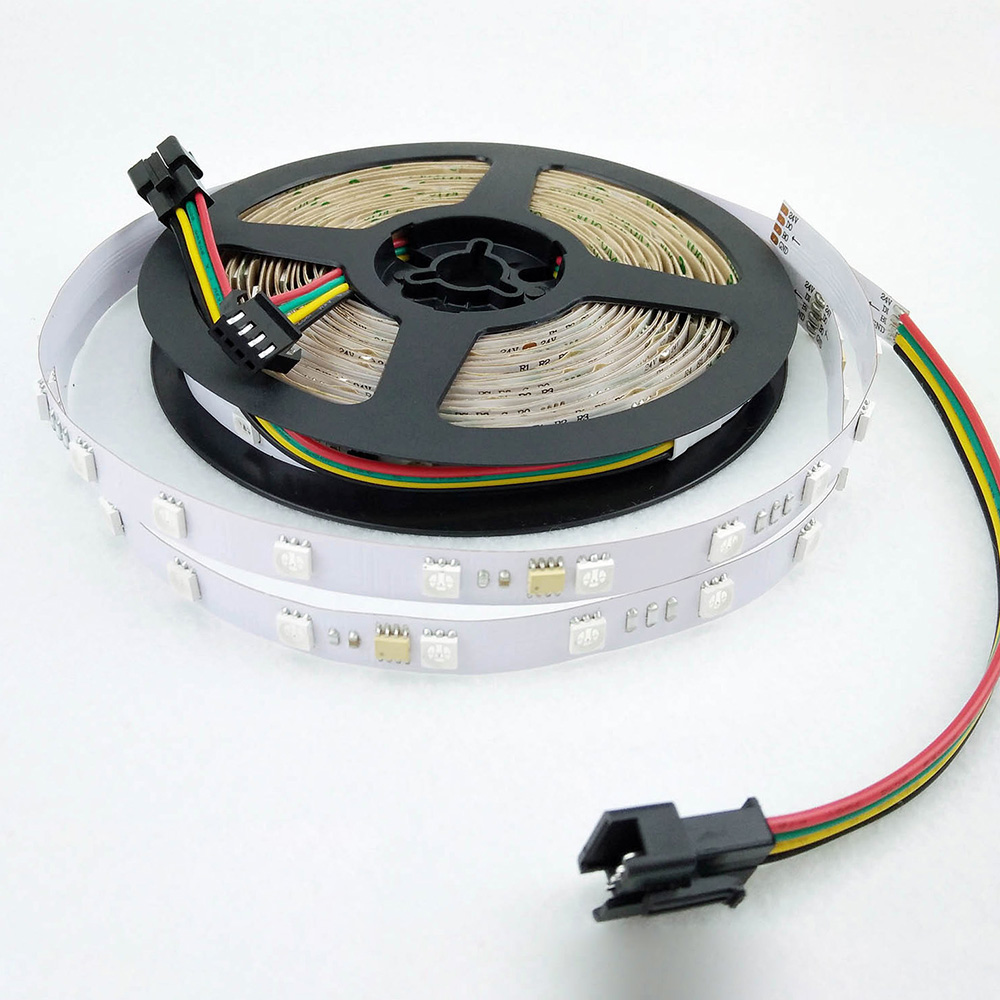

1*5m WST2906 48leds/m led strip light
For indoor environment, If you choose the LED controller in the kit, we will send you CONFULL-SP108E(Support smartphone APP control to DIY modes)
How to choose LED power supply?
For the LED power supply, the power of the LED strip light is 57.6W/roll, to avoid the power load, the power of the LED power supply must be 57.6*1.2=69.12W.
For indoor environment, we will send you PSPS-24V-72W MW UL-Listed LED power supply.
For outdoor environment, we will send you PSWP-24V-80W waterproof LED power supply, we will also send you an AC plug.
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
Less than 32.8ft(<10 meter) led strip lights connection diagram
50ft ~ 164ft(15~50 meter) led strip lights connection diagram
T-1000S programmable controller connection diagram
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
