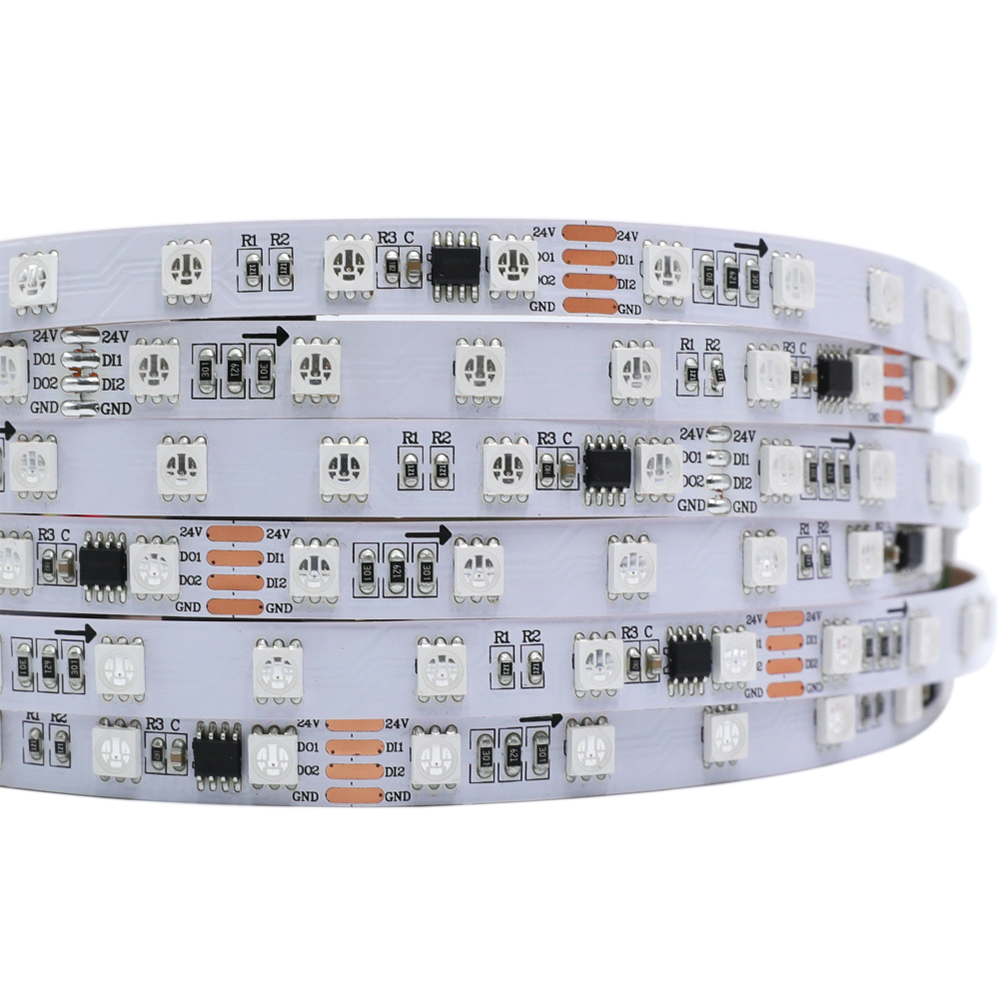

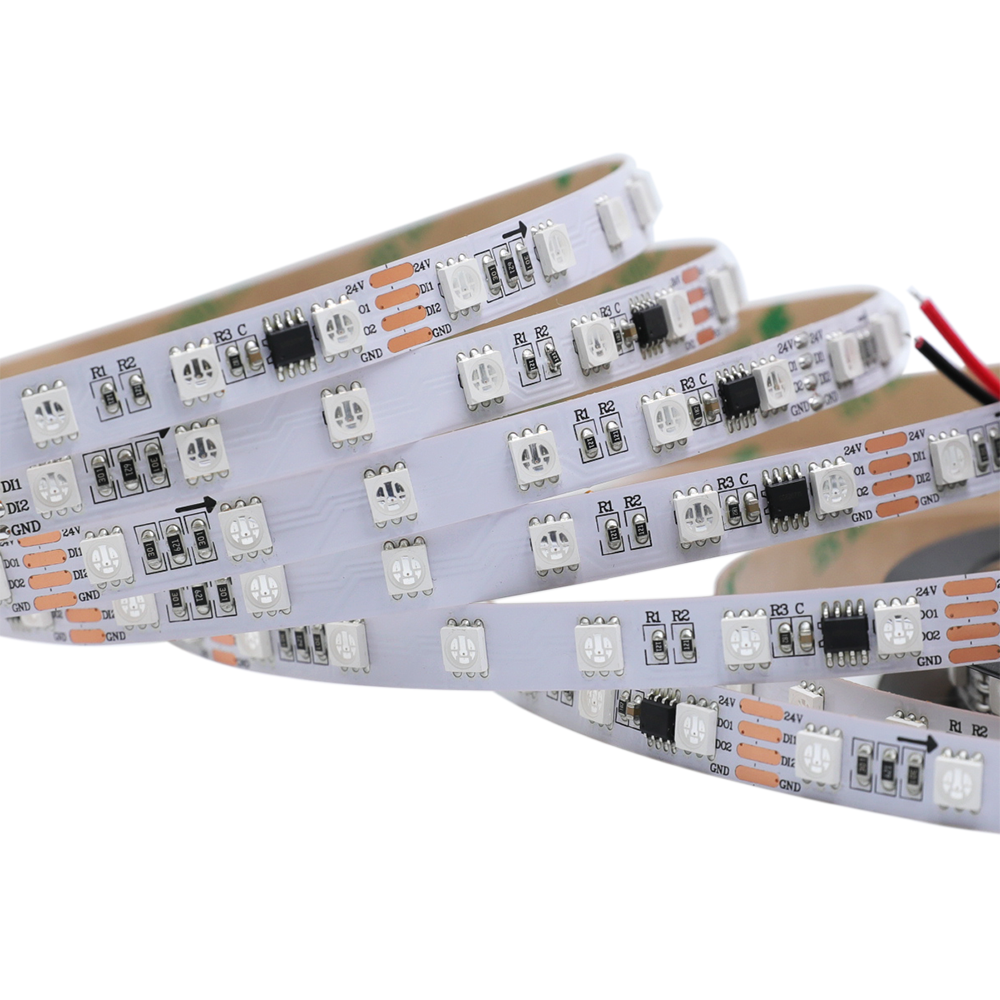

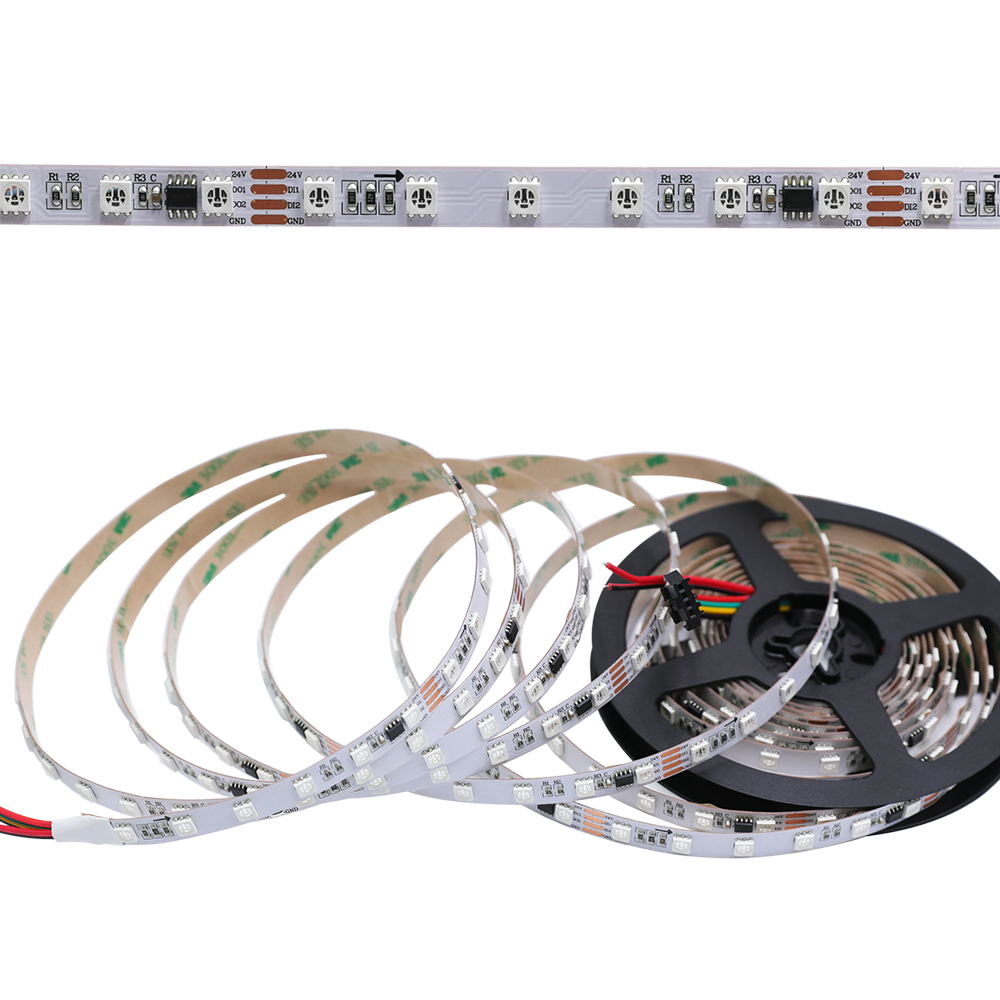

DC24V GS8206 5050SMD RGB, Breakpoint-continue,300LEDs Addressable Digital Strip Lights, Waterproof Dream Color Programmable Flexible LED Ribbon Light, 16.4ft/65.6ft/164ft/328ft per Roll
1. The GS8206 LED strip is addressable light, breakpoint- continue, and can be programmed and controlled by the help of controller.
2. Dual signal line version and signal breakpoint continuous transmission. If a LED damage, the work of other LEDs will not be affected.

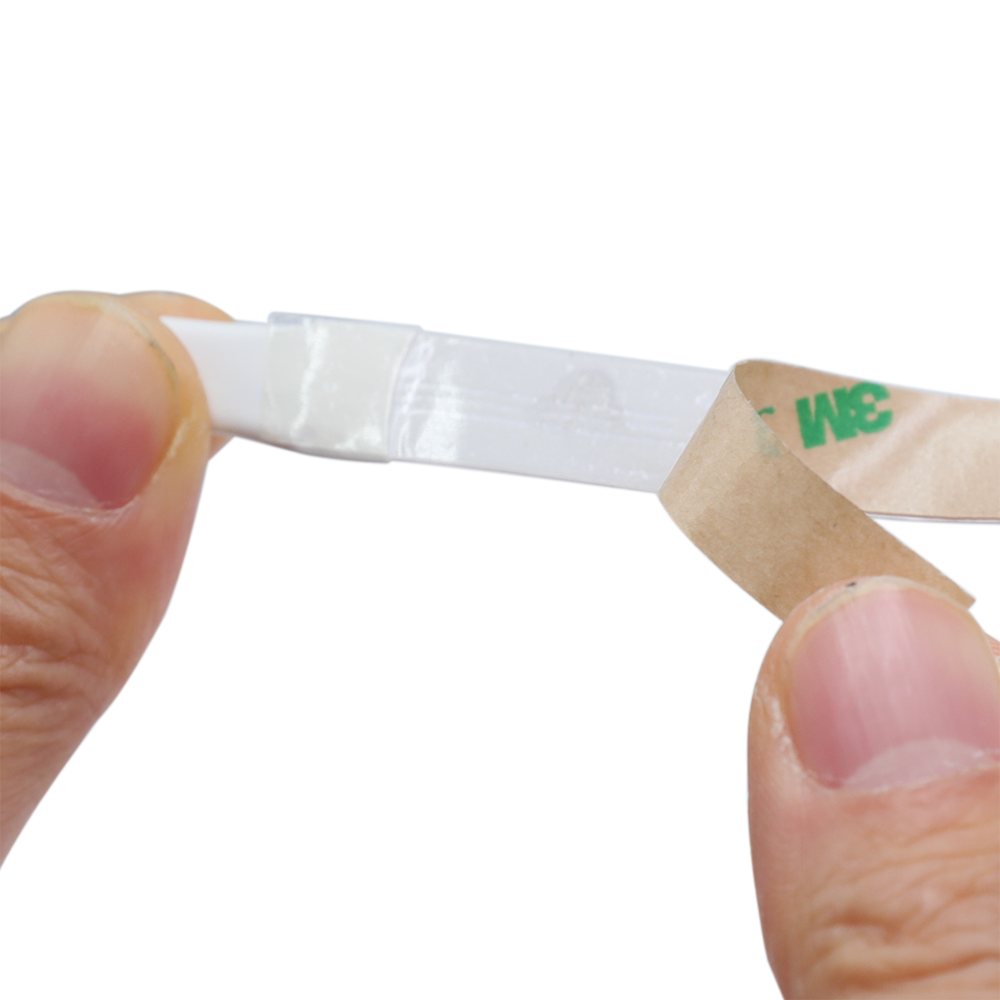

3. There is a strong 3M tape backing on the strips, which can be ripped off and stuck to most surfaces.
4. Each lamp bead forms a ring, which can be arbitrarily cut according to the length of the ring without damaging other convenient fixed and stall parts. The flexible cutting operation makes the structure simple, ultra-thin design, low-temperature light source, and the selection of the auxiliary material more flexible, installation energy-saving installation, lower heat, higher brightness, cleaner, lower energy consumption and more beautiful.
5. GS8206 is a three-channel LED driver control circuit, which includes intelligent digital port data latching and signals to shape the amplification drive circuit. It also includes a precision internal oscillator and a 24Vprogrammable constant-current control section for highly consistent color effects and stable performance.
Please note: If you choose 65.6/164/328ft, the LED strips are waterproof IP67.
Standards and Certifications
Input voltage: DC12/24V
Power: 14.4watt/meter, 72watt/5M
LED Chip Model: SMD 5050 RGB
LED resource: GS8206 LED
IC Type: GS8206 IC (1 IC drives 6 led chip)
Q'ty of LED: 60 leds/meter Available
Q'ty of IC: 10 pixel/meter

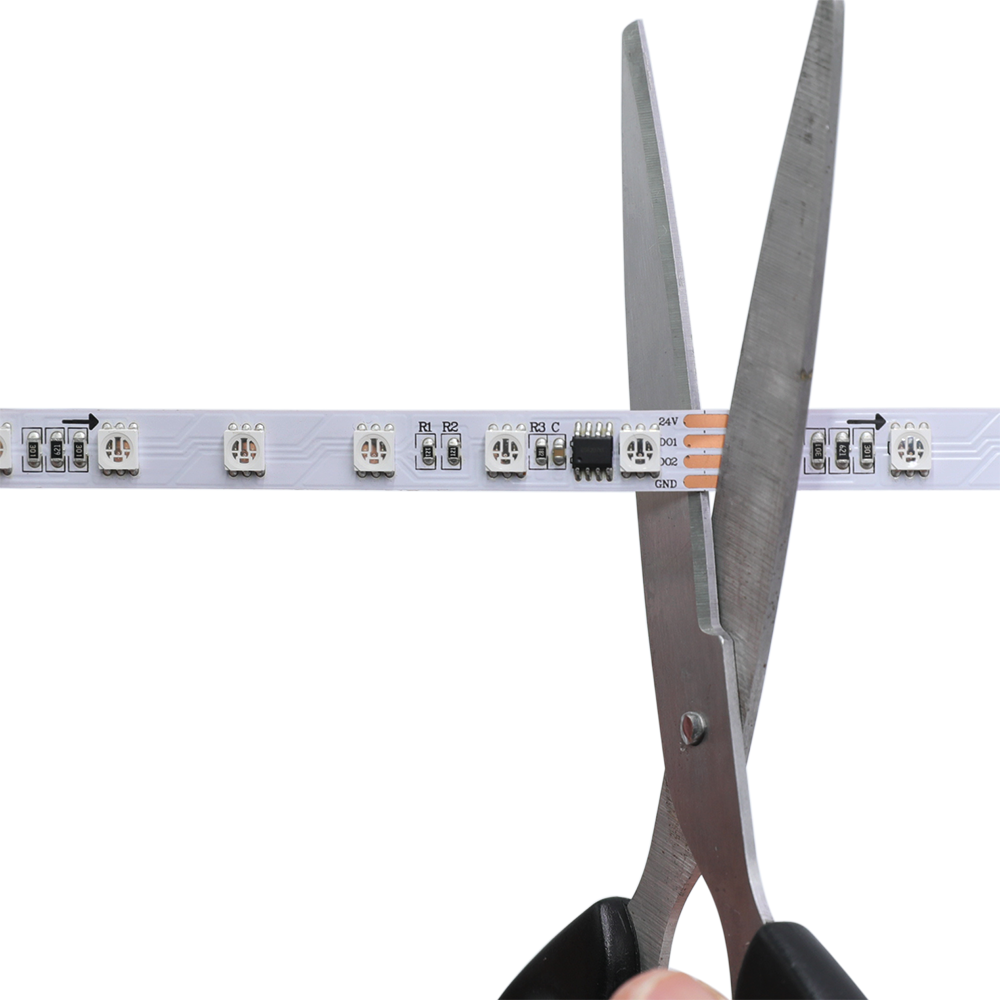

Cuttable: every 6 LED is cuttable

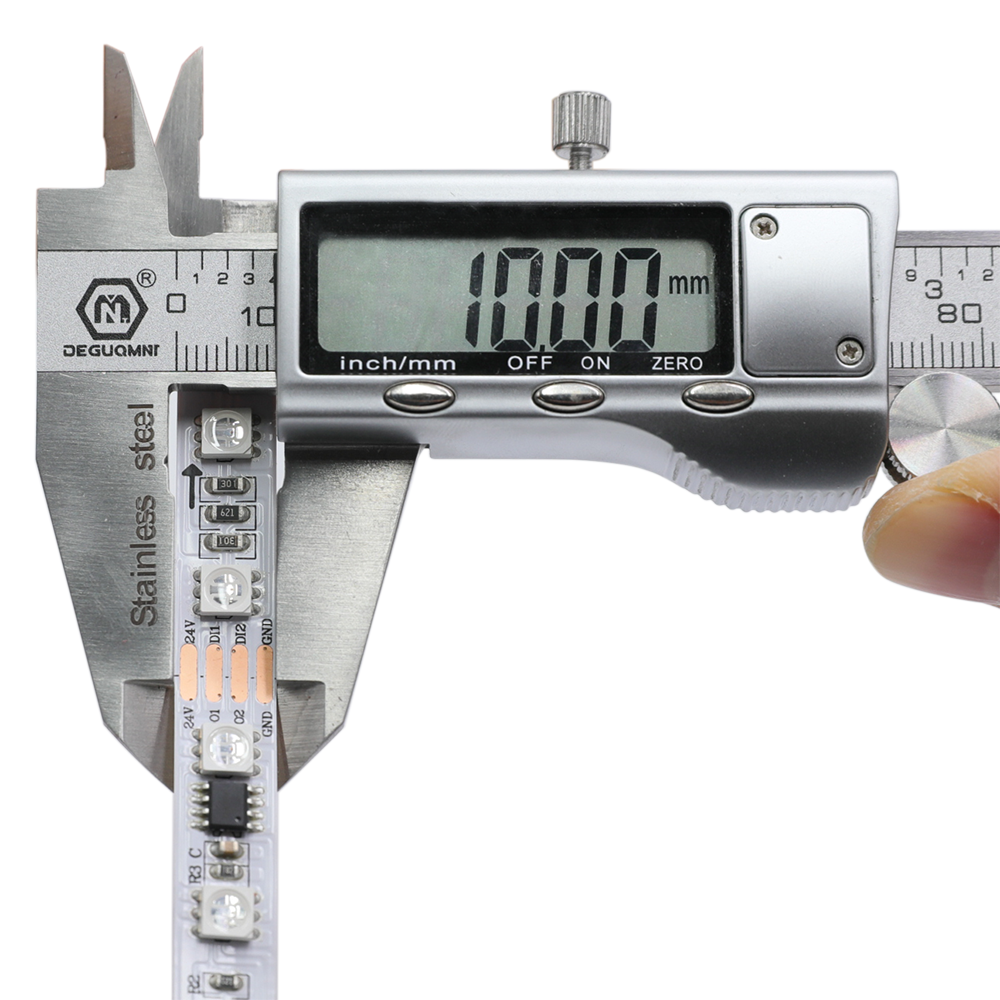

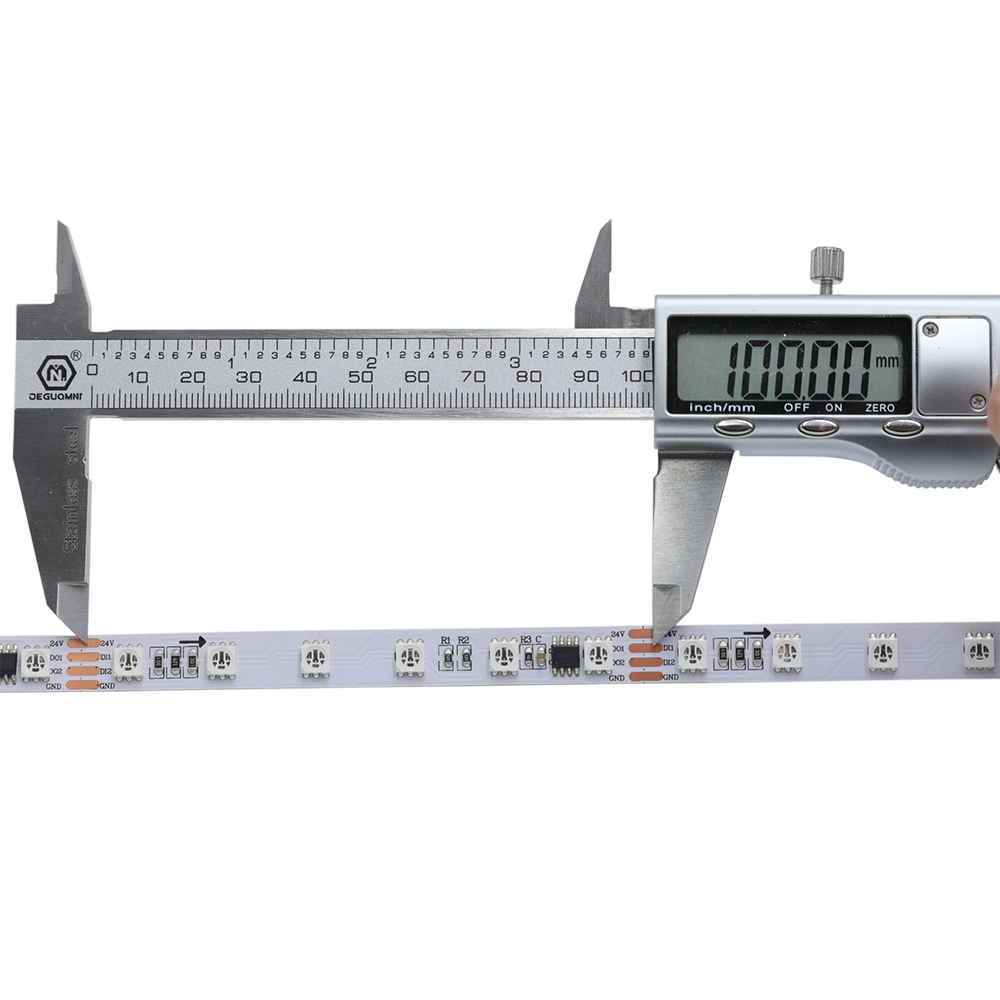

Dimensions: L500cm(196.85 in ) x W1.0cm(0.39 in ) x H0.25cm(0.1 in )
PCB color: WHITE
Protection rate: Non-waterproof or IP 65( gel coating) IP67 waterproof (sealed in silicone tube)

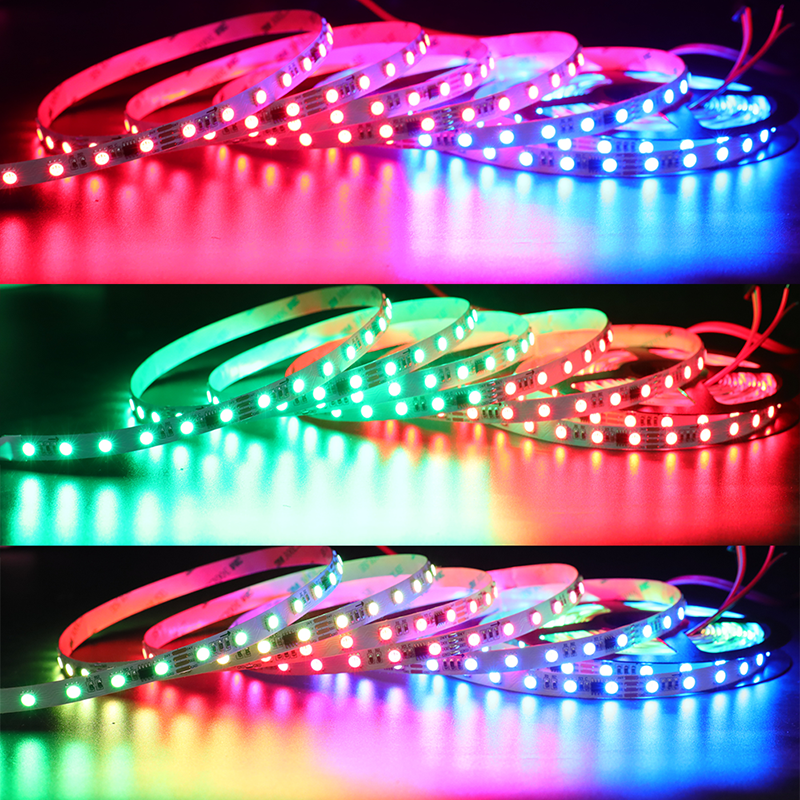

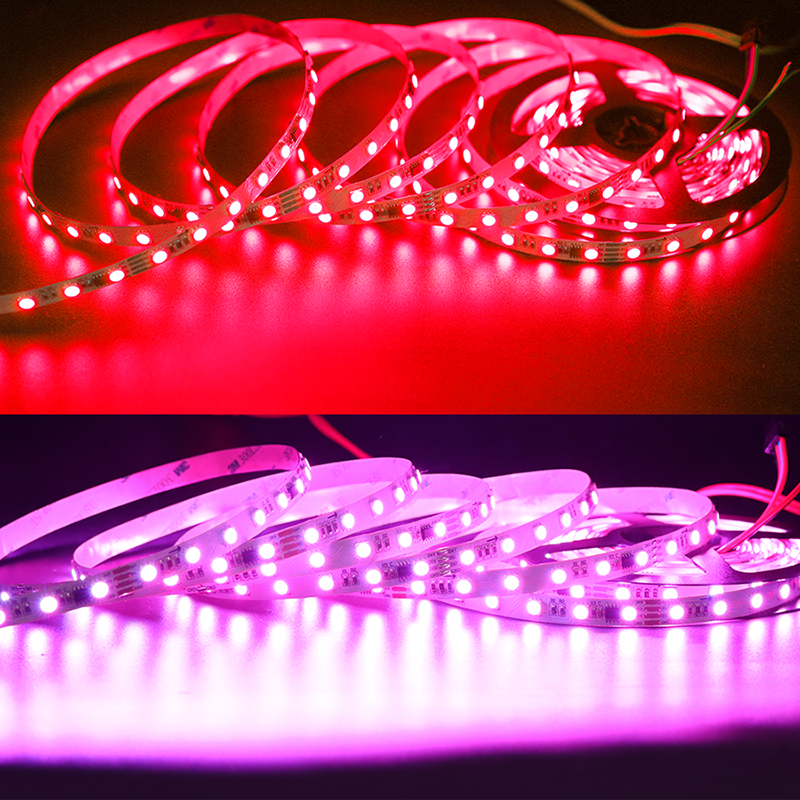

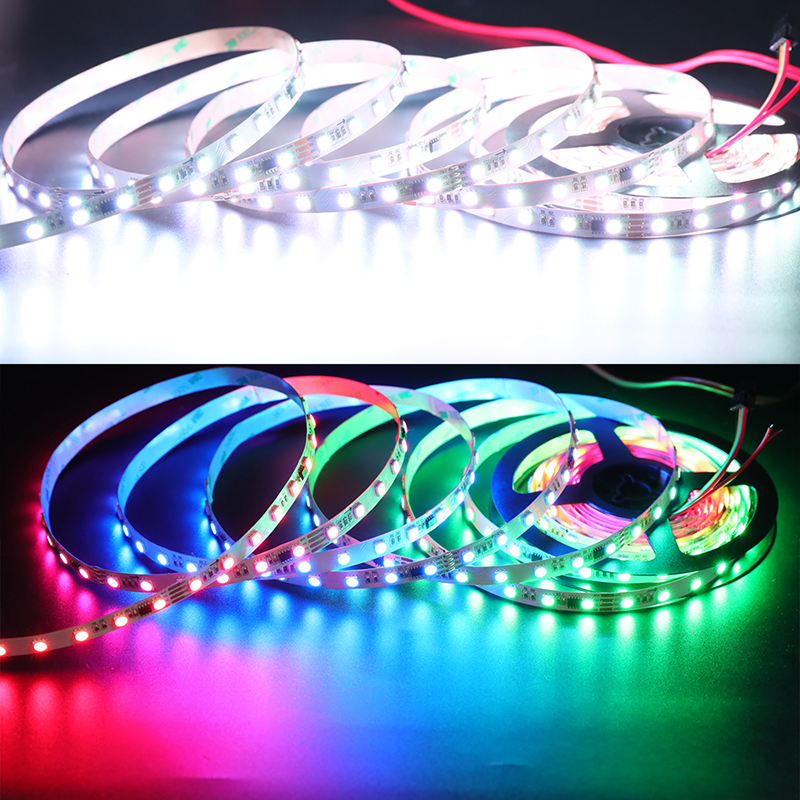

Colors: Full color RGB, dream color changing;
Grey scale: 256
Bits/color: 8-bits/color;total 24bit for RGB color
Average Life (hrs): 50000Hours+
Beam Angle: 120 degrees
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
Strip cut schematic
LED strip wiring diagram
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
