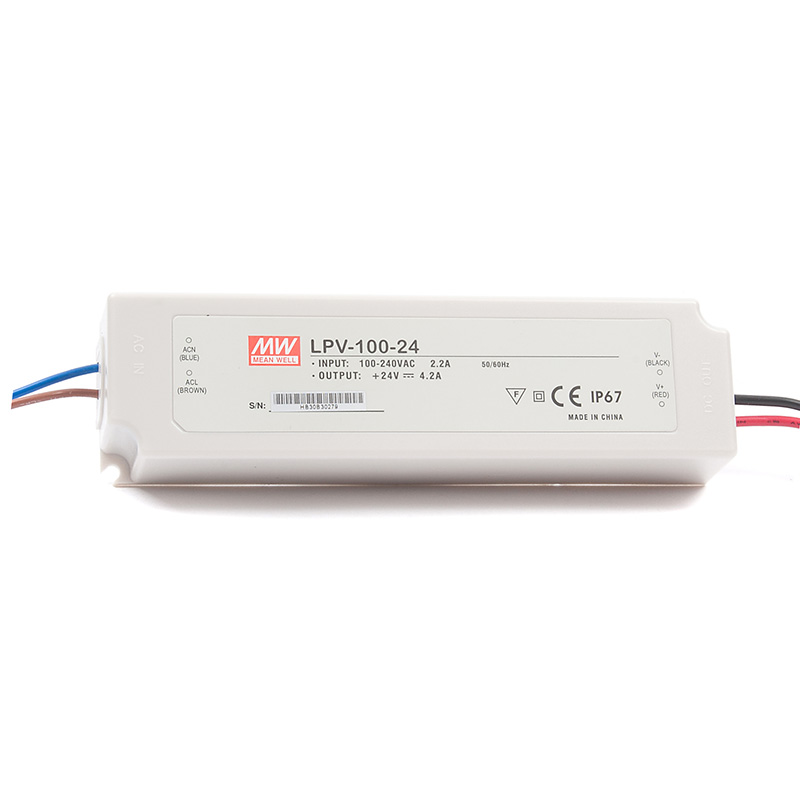

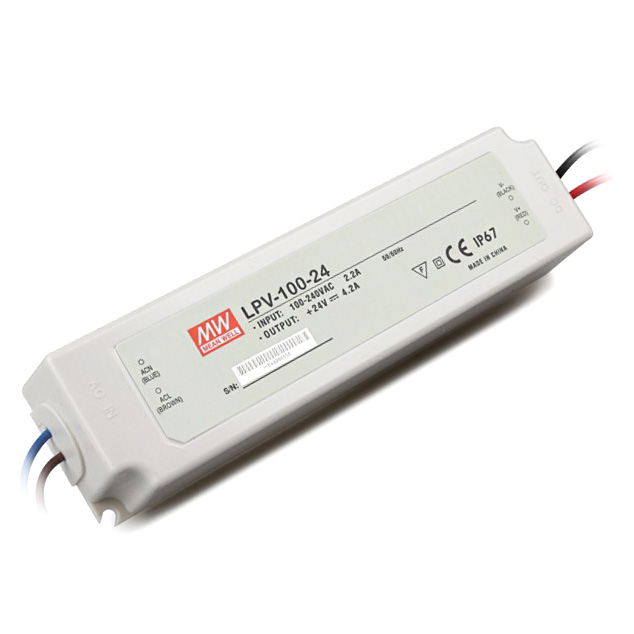

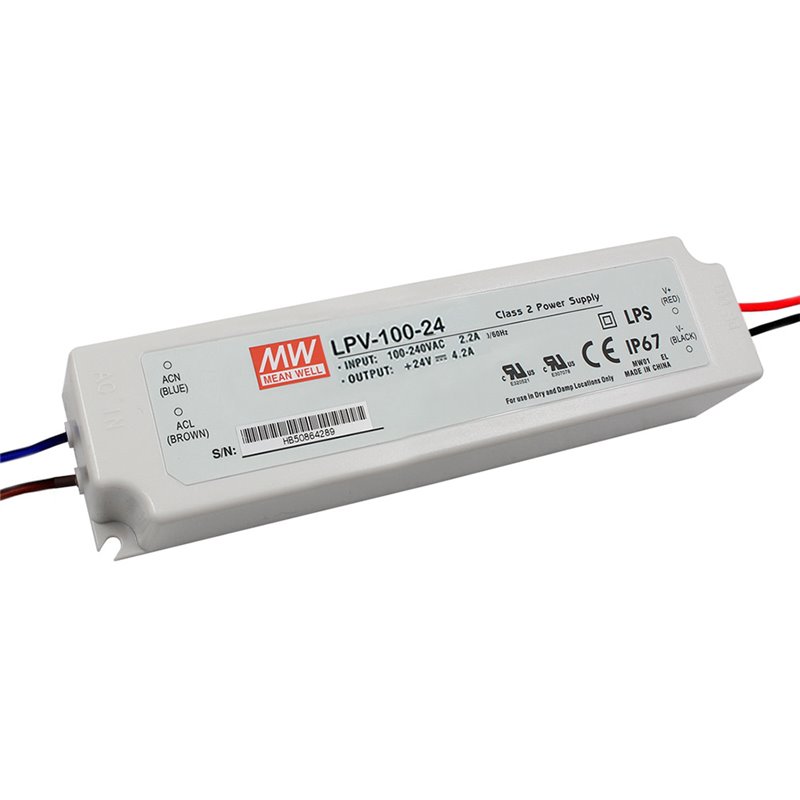

LPV-100-24 100Watt AC90～264V Input Mean Well High-efficacy Waterproof DC24V UL-Listed LED Display Lighting Power Supply
The output voltage is DC24V, and the low voltage is characterized by safety and stability, energy-saving and environmental protection, and high efficiency. This power supply can withstand 300VAC surge input for 5 seconds, so you must pay attention when connecting high-voltage power. At the same time, this power supply has short-circuit/overload/overvoltage protection.
IP67 waterproof can be applied to outdoor environment waterproof and rainproof, the power supply shell is an insulated plastic shell, the heat dissipation effect is worse than that of the aluminum shell, to avoid the power supply for a long time, it is recommended that you use the light strip power 88% of the power supply, suitable for led related devices and electrical products are also provided with a two-year warranty.
This led driver combined with connectors provides a pleasing and imposing aesthetic with a unique and functional design that combines modern aesthetics with the power of a high-grade product. Suitable for DC24V led strip light. The total power of the led power supply is 100W, suitable for DC24V led strip light.
Universal AC input / Full range
Withstand 300V AC surge input for 5 seconds
Protections: Short circuit / Over load / Over voltage
Cooling by free air convection
Fully encapsulated with IP67 level (Note.8)
Fully isolated plastic case
Suitable for LED lighting and moving sign application(Note.7)
100% full load burn-in test
Low cost, high reliability
2 years warranty
DC voltage: DC24V
Rated current: 4.2A
Current range: 0-4.2A
Rated power: 100.8W
Output voltage accuracy ±5%
Input voltage: 90～264VAC/127～370VDC
Input surge current Cold start, 2.2A/115V, 1.2A/230V
Leakage current <0.25mA / 240VAC
Overload protection The over current point is 110%～150%, automatic detection, automatic recovery
More product specification, pls see MeanWell website: https://www.meanwell.com/productSeries.aspx
