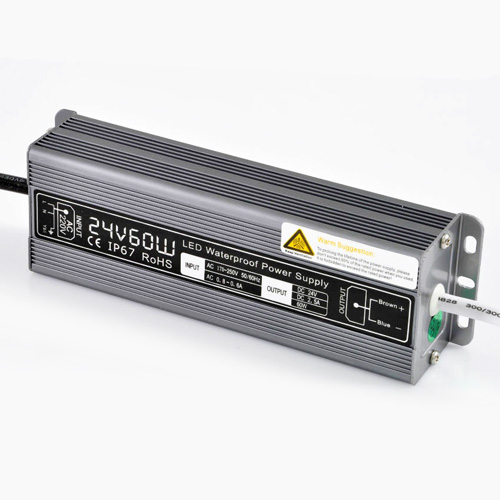

60W2.5A DC24V Constant Voltage Outdoor Waterproof IP67 Switching LED Driver Transformer Power Supply For LED Light Strips
This is DC24V 60W2.5A Constant Voltage High quality waterproof IP67 protection grade power supply for LED lights. guarantee for LED lights for long time span indoor or outdoors use, Open circuit /short circuit /over voltage /overload /over temperature protection. 100% full load burn-in test, cooling by free air convection, Super long time life span and the product give three years warranty. Average working no trouble ＞50, 000 hours. Products through CE and RoHS Certification.
Standards and Certifications
Product Type: LED Constant Voltage Waterproof Power Supply
Protect Level： Waterproof IP67
Working Temperature: -30°C~50°C / 20% ~ 90% RH (no frost)
Store Temperature: -40°C~80°C / 10% ~ 95% RH (no frost)
Input Voltage：90-130V / 170-250V
Output Voltage： 24V
Output Current： 2.5A
DC Output Power: 60W
Output Channels: 1 channel
Net Weight: 900g/pc
Certificates: CE&RHOS UL 60950-1
Average working no trouble: ＞50, 000 hours
Soft Switch Technology: Efficiency>85%.
Protect Function: Short circuit, Surges, Lightning, Overload, Over-temperature,
Input Frequency: 50-60Hz
Overload protection: 105% - 150% rated power, automatic recovery
Cooling method: Aluminum shell heat
How to use
1 x 100V-240V to24V Constant Voltage waterproof IP67 power supply

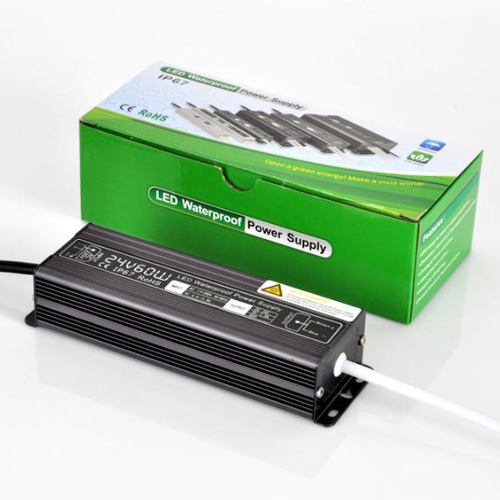

1 x Product package box
