Dense SMD2016 5V 12V 4mm Width LED Strip White Temperature Light

Model: FSLSR-4MM-2016X200/198 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: Can.$25.39
Qty Discounts Off Price
1-49
Can.$25.39
50-79
Can.$24.63
80-109
Can.$23.87
110+
Can.$23.36
* Discounts may vary based on options below
Select Specifications:
Select Length:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

This 4mm flexible LED strip light uses SMD2016 light sources with a high-density LED arrangement, offering up to 200 or 198 LEDs per meter, providing uniform and bright lighting. Its 4mm width allows for easy installation in various narrow spaces, such as inside cabinets, behind headboards, or within curtain boxes, ideal for creating ambient lighting that enhances the aesthetic appeal and design of the space.

The 4mm PCB led strip offers multiple color temperature options, including 3000K warm white light, 4000K natural white light, and 6500K daylight white light, catering to different users' needs for lighting ambiance and functionality. The high CRI (color rendering index) ensures that the light strip accurately reproduces the true colors of objects, making the illuminated areas appear more natural and realistic. Whether used for home decoration, commercial displays, or architectural lighting, it delivers high-quality lighting effects.

In terms of power consumption, this 4mm white light strip has a power consumption of only 5 watts per meter, this makes it easy for users to select suitable power supply equipment for operation.

The 5V voltage results in relatively low power consumption, suitable for scenarios with lower power requirements, such as small decorative lights or USB-powered fixtures. The 12V 4mm flexible LED light strip offers higher brightness, ideal for scenarios requiring stronger lighting effects.

Please note: The 5V 200LEDs/m 4mm white LED strip comes with voltage drop over a 5-meter length even when powered from both ends. For home, automotive, or marine lighting applications, we recommend selecting the 12V 198LEDs/m type.

12V 4mm Warm White LED Strip Light12V 4mm Bright White LED Strip Light



Product Package:

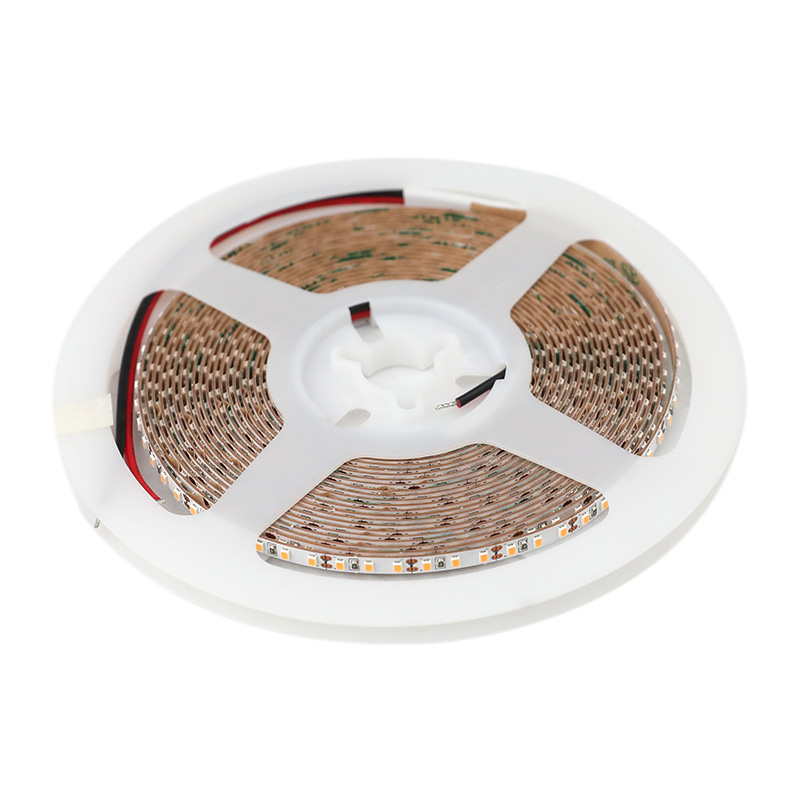

1* 5m reel strip light with power wires at both sides

1* 5V 6A or 12V 3A power adapter (optional)



Product Specification

CE FCC RoHS ISA SGS ISO LIFETIME warranty led factory

LED Strip Type:
4mm LED White Temperature Light Tape
PCB Width:  4mm
Input Voltage:  DC5V, DC12V
CRI: 90
Power:  5W/m 1.52W/ft, 25W/reel
LED Color:  3000K, 4000K, 6500K
LED Quantity:  200/198 LEDs/m, 1000/990 LEDs/reel
LED Chip:  SMD2016

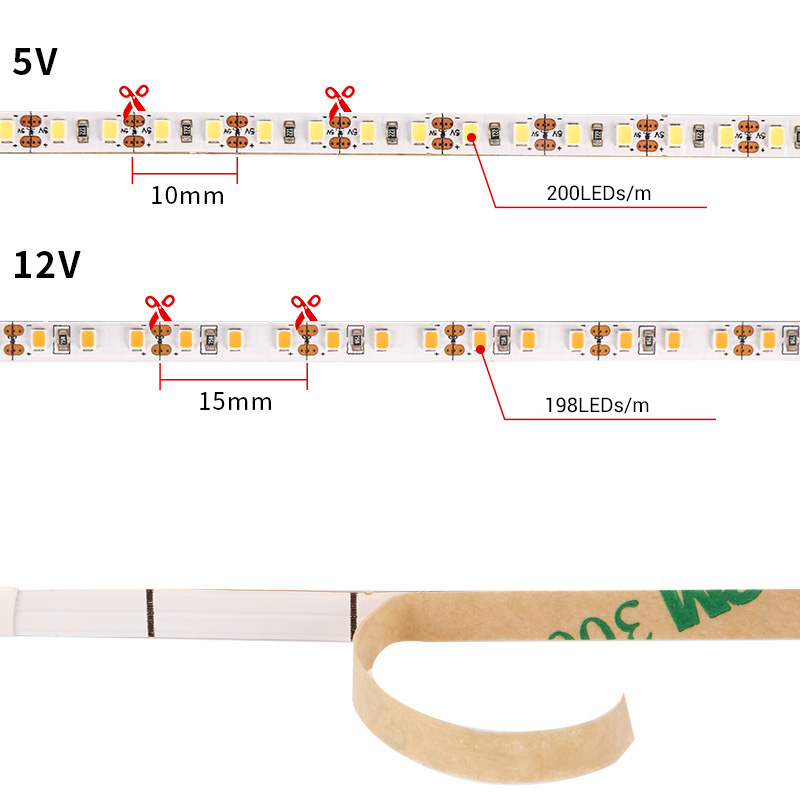

Cut Length:  10mm/0.39in (2 LEDs), 15mm/0.59in (3 LEDs)
Beam Angle:  120°
Waterproof Rating:  IP20 Non-waterproof, IP67 Outdoor Waterproof
Length:  5m/16.4ft



5V 12V 4mm Width LED Strip White Temperature Light

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Downloads

Files for FSLSR-4MM-2016X200/198
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

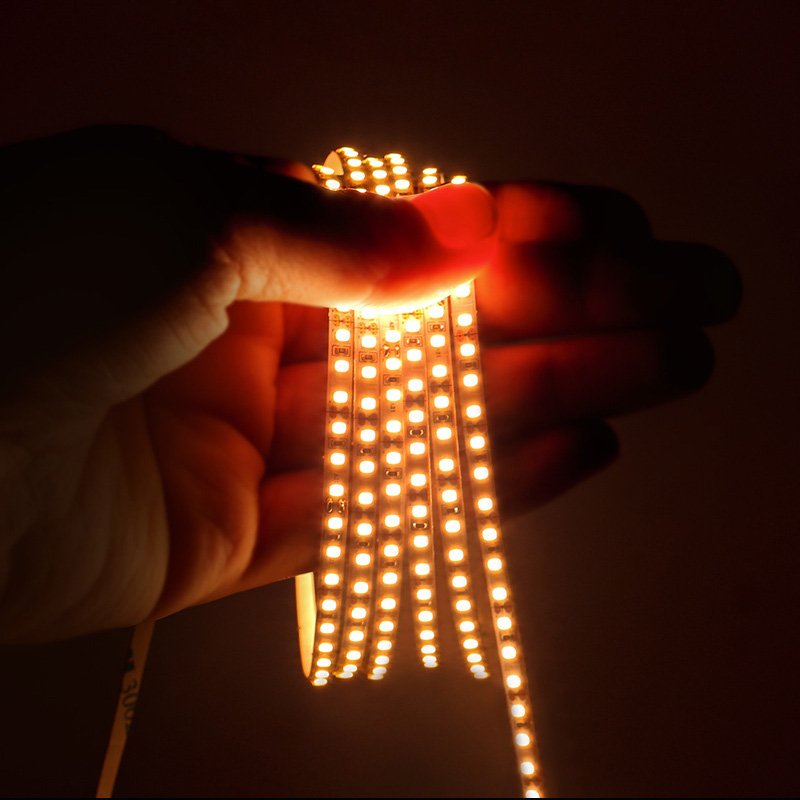

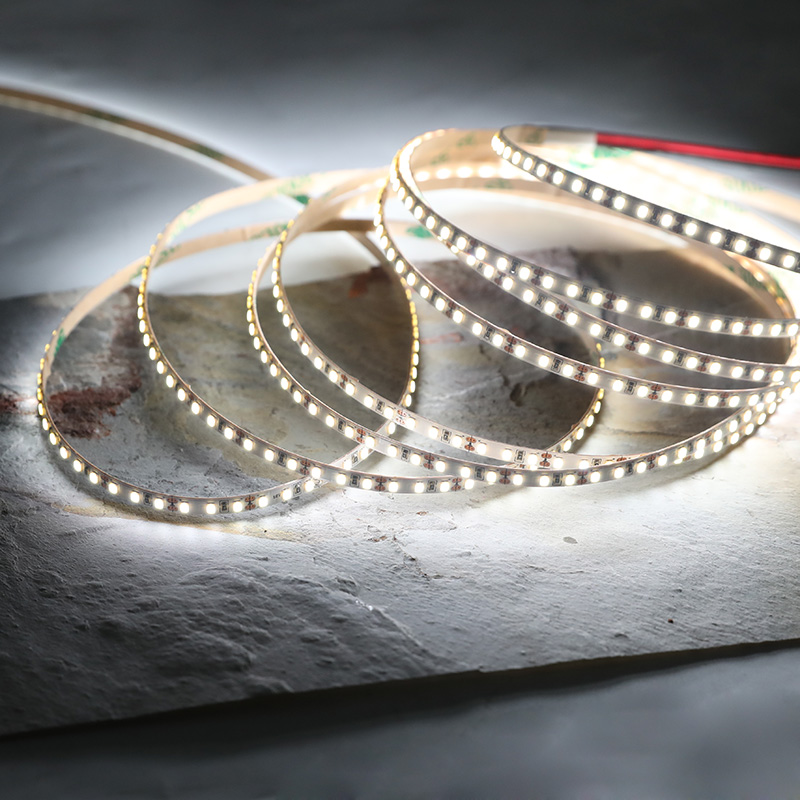

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

Dense SMD2016 5V 12V 4mm Width LED Strip White Temperature LightDense SMD2016 5V 12V 4mm Width LED Strip White Temperature LightDense SMD2016 5V 12V 4mm Width LED Strip White Temperature LightDense SMD2016 5V 12V 4mm Width LED Strip White Temperature LightDense SMD2016 5V 12V 4mm Width LED Strip White Temperature Light

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

What voltage does this LED strip light run on?
This model is offered in DC5V - 200LEDs/m · DC12V - 198LEDs/m. Lower voltage means a shorter run per feed: at 12 V feed power roughly every 5 m, at 24 V roughly every 10 m. Longer runs get power injected at both ends. Connecting to the power supply
Which waterproof rating should I choose?
Available on this model: Transparent Heat Shrink Tube IP67 · Outdoor Silicone Tube IP67 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
