24V White Extra Bright LED Strip Lights 10mm 2100 SMD2025 LEDs 16ft
A white light extra bright led strip with 420 LEDs per meter, compatible with warm white 3000K, natural white 4000K, and daylight white 6000K. What makes this white led strip really stand out is its superior brightness and high density LED configuration.
With 420 2025 SMD LEDs per meter, this ultra high density LED design ensures bright and evenly distributed light. Whether you need a strong lighting effect or a soft ambient light, this ultra bright white led light strip will easily fulfill your needs. You can adjust its light output with a dimmer.

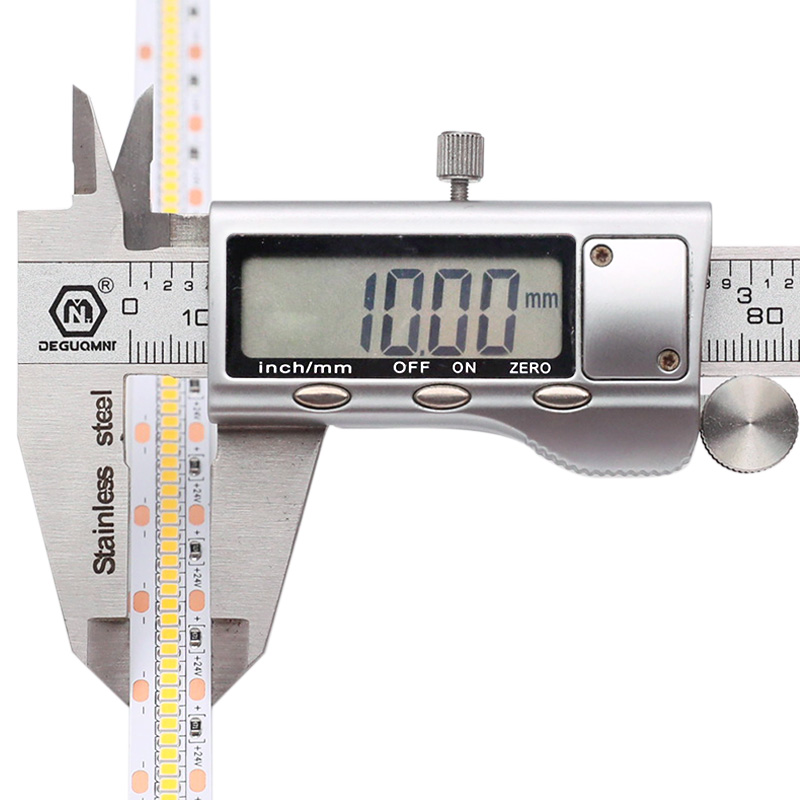

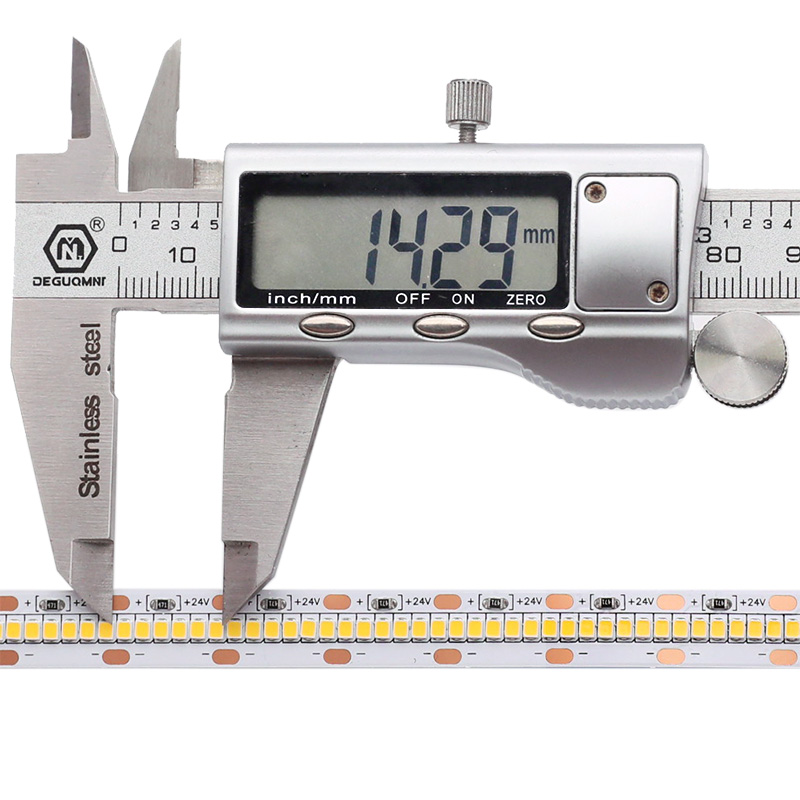

Universal 10mm PCB width. Each 14.28mm (6 LEDs) can be cut to easily fit different lengths of lighting applications. You will need to connect the cut strips by soldering. IP67 waterproof casing version is available.
Kit: DIM-10A wireless led dimmer, LRS-150-24 Meanwell led strip power supply.
|LED Strip Type:||White Extra Bright LED Strip Lights|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|

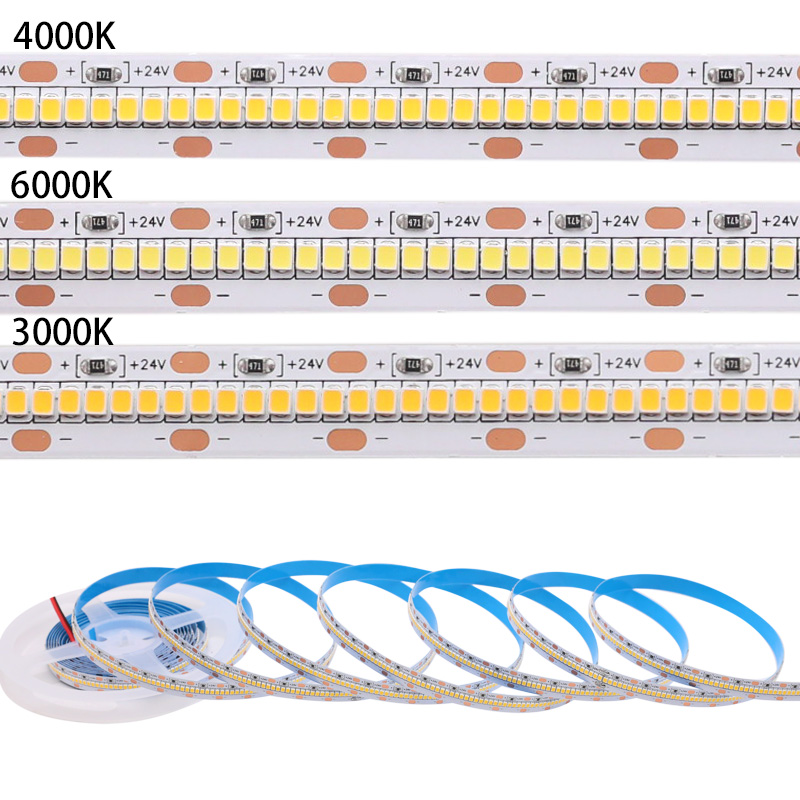

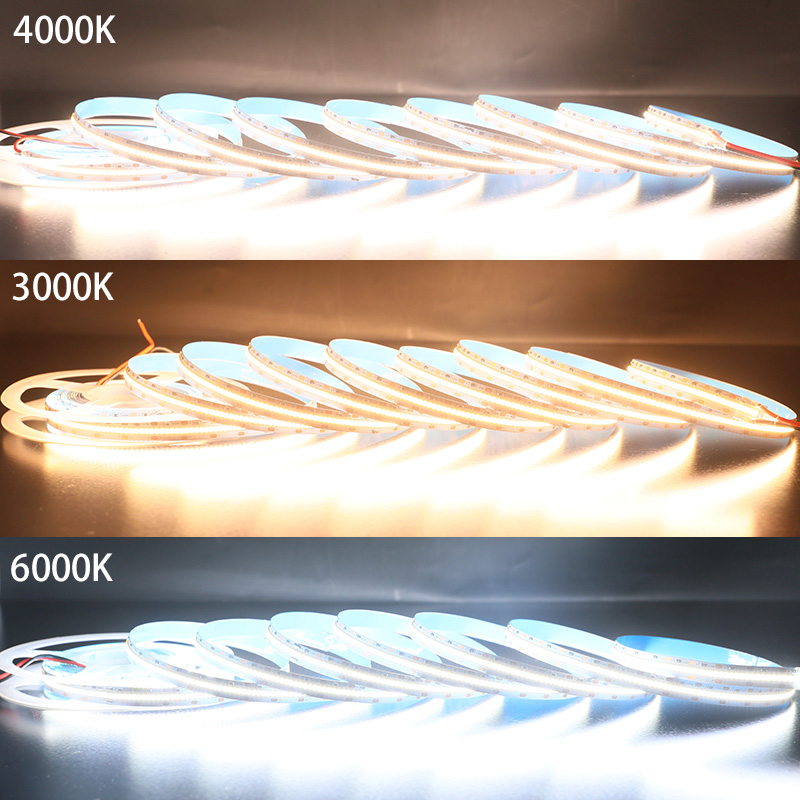

|Light Color:||6000K daylight, 3000K warm white, 4000K natural white|
|Dimension:||16.4ft/roll, every 6 PCS LED can be cut|
|LED Quantity:||420 LEDs per meter, 128/ft|
|Working Power:||22W/m, 110W/16.4Ft|
|Beam Pattern:||120 degrees|
|Waterproof:||Non-waterproof IP20 / Waterproof IP67|
How to Wire White LED Strip Lights?
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
