DC12V 2216SMD 16.4Ft 900LEDs LED Tape Lights - Ultra Narrow 4mm Flexible LED Lighting
DC12V ultra narrow 4mm single color bright 2216 SMD Flexible LED Tape strips, 3000K soft white, 4000K natural white, 6000K daylight white, yellow led light optional, Epistar chip, 900LEDs/16.4ft, 16.4ft(5 meters) Per Reel By Sale.
12V DC operation. 12V thin led strip can be cut into 3-LED segments, so you could cut a different length for your lighting project and request.
Our brightest Flexible LED Solid Color light Strips are soft and easy bended for installation. Available in 5 meter (197 in) Waterproof IP67 flexible narrow led light strips works with heat shrink tube and can be stuck just about anywhere. The ultra thin LED strips are suitable for the average home lighting as well as lighting professionals. Dimmable - See compatible LED dimmers.
►Everything you need to know before buying led strip lights:
Standards and Certifications
LED Strip Type: SMD 2216 900PCS/16.4ft
LED Chip: Super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White(3000K), Natural White(4000K); Daylight White(6000K); Yellow(585-595nm)
Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 180 LEDs per 1meter (3.28 ft)
Warantty: 3 years

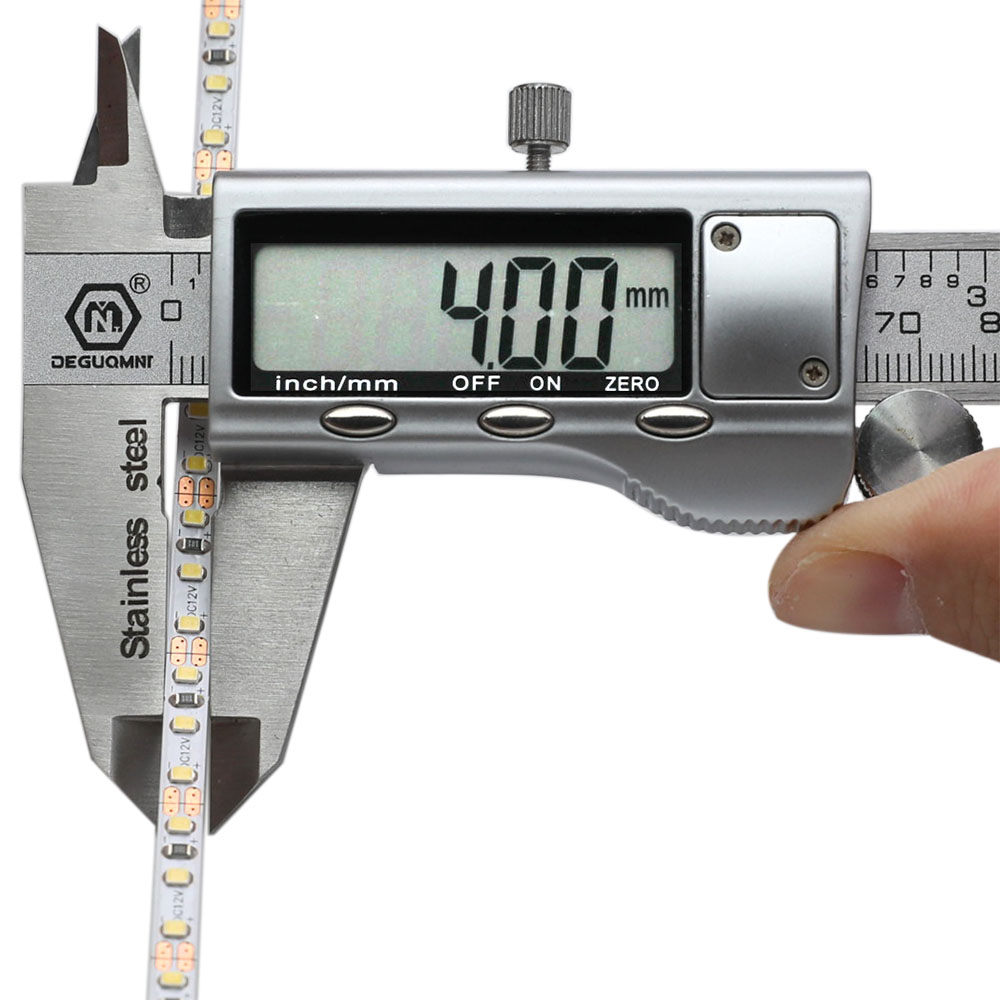

Dimensions: L500cm(196.8 in ) x W0.4cm(0.15 in ) x H0.20cm(0.08 in )
Input Voltage(V): 12VDC
Working Power: 6.6A 79.2W /16.4ft Max
Lamp Luminous Flux(lm): 9~10lm/LEDs 9900lm/16.4ft max 603.6lm/feet
Beam Pattern: 120 degree
Water Proof: Non-Waterproof
CRI (Ra>): 95
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.
Consider the look and feel you want your project to have.
What other color lights will be present? What material and color are the materials you wish to light?
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
The waterproof grade of IP67 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
You will need a led strip light, a power supply(Please use a DC12V 100Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection.
►Detail knowledge about choosing a suitable LED strip light power supply:
►White led strip wiring diagram:
