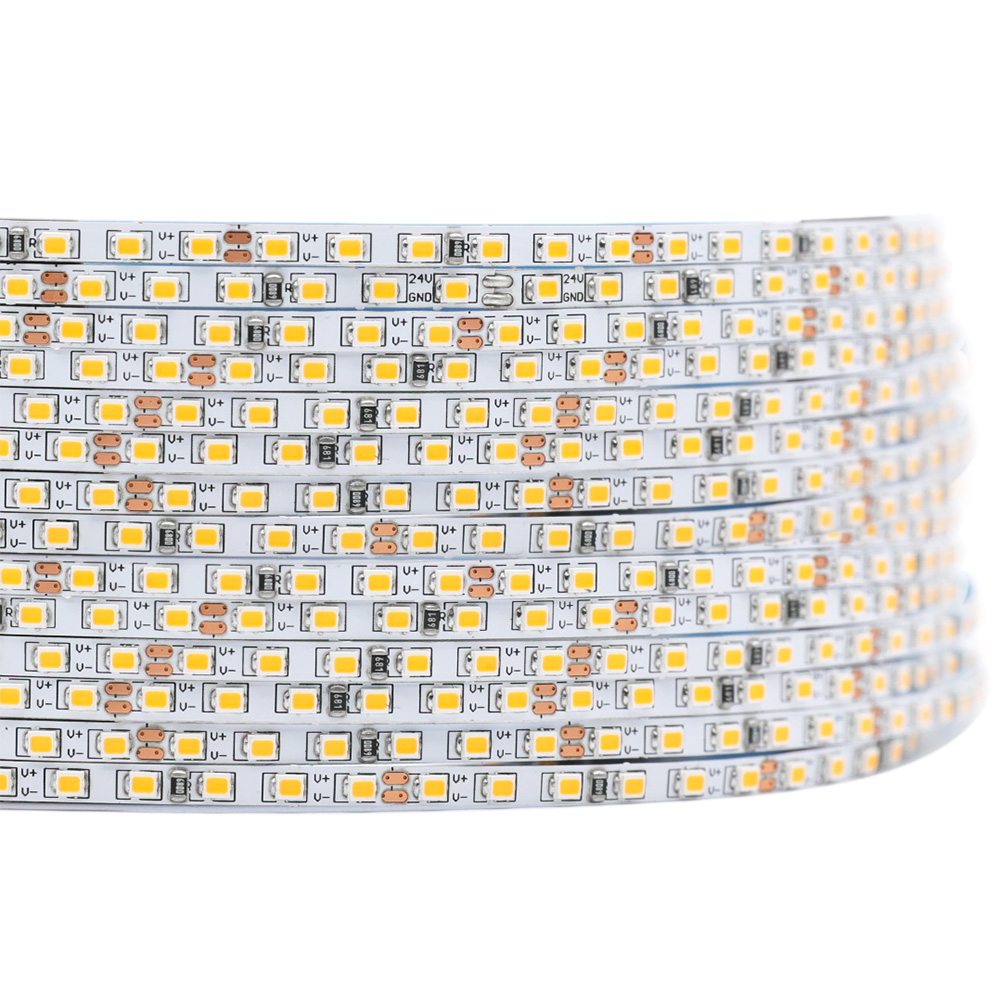

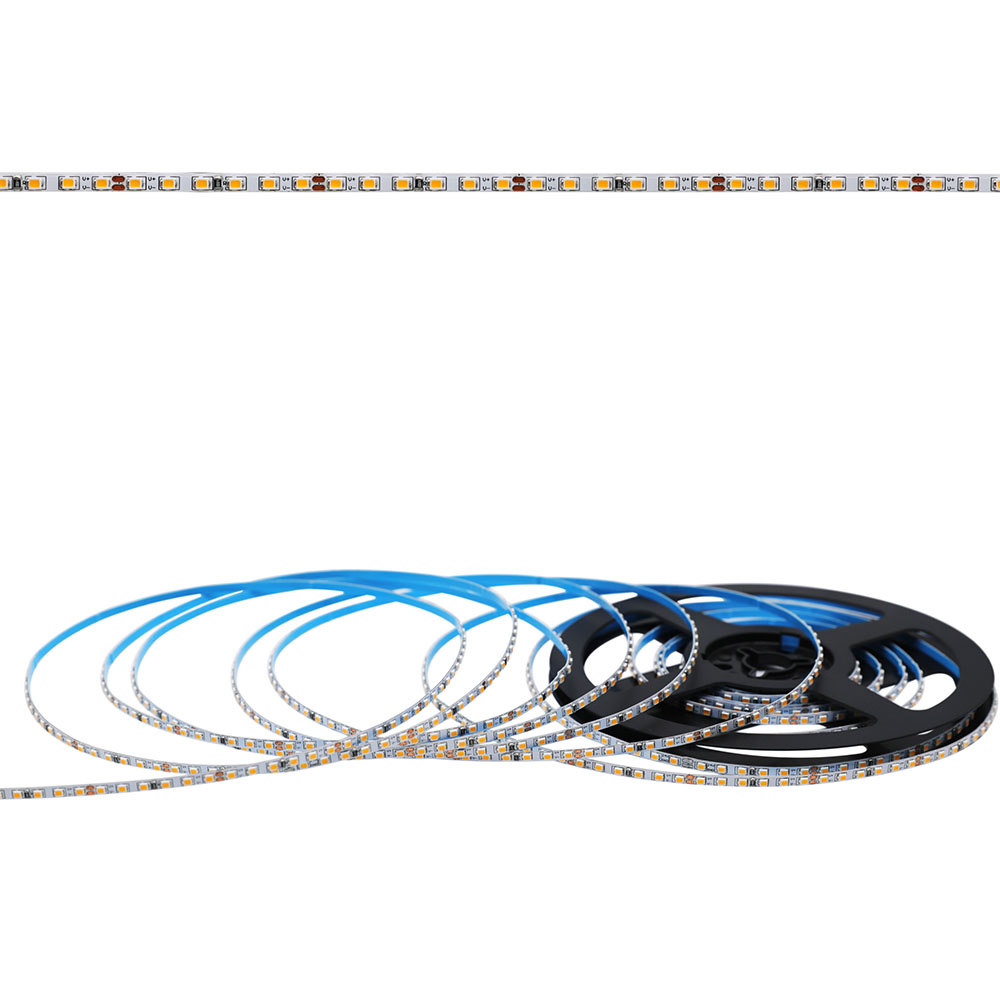

DC24V 3MM Super Narrow 180LEDs/M 90 High CRI SMD2216 Single Color LED Flexible Strip Light 16.4ft/5m per Roll
Related Products
DC24V 3MM Super Narrow...
$26.98
Single Color LED...
$19.98
72W3A DC24V Plastic Shell...
$17.99
FUT021 2.4GHz LED Strip...
$14.99
Mean Well LRS-75-24 ...
$23.98-
Special Price: $26.98

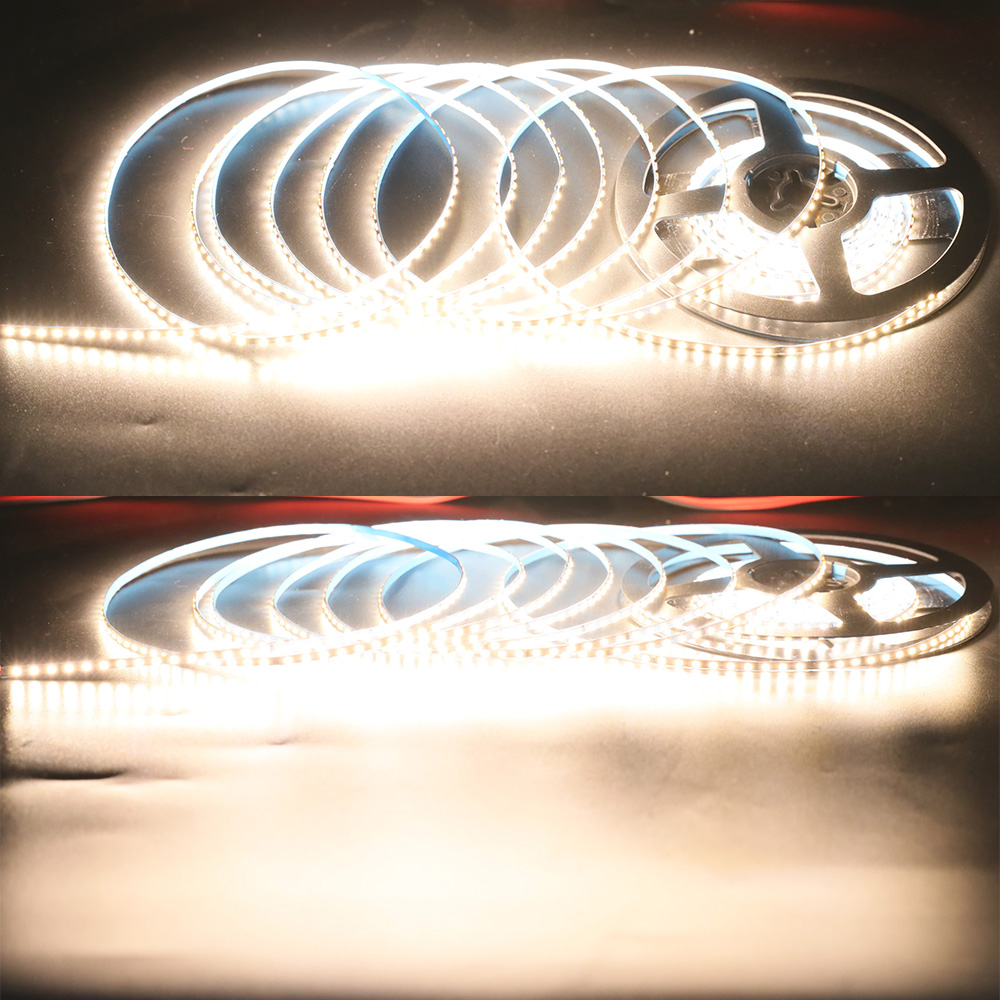

DC24V 2216SMD Ultra Narrow Flexible White LED Strip Lights is the newest production in 2019. Available in different white led colors: 3000K soft white, 4000K natural white, and 7000K cool white - 3000K warm white vs 4000K natural white vs 7000K cool white.

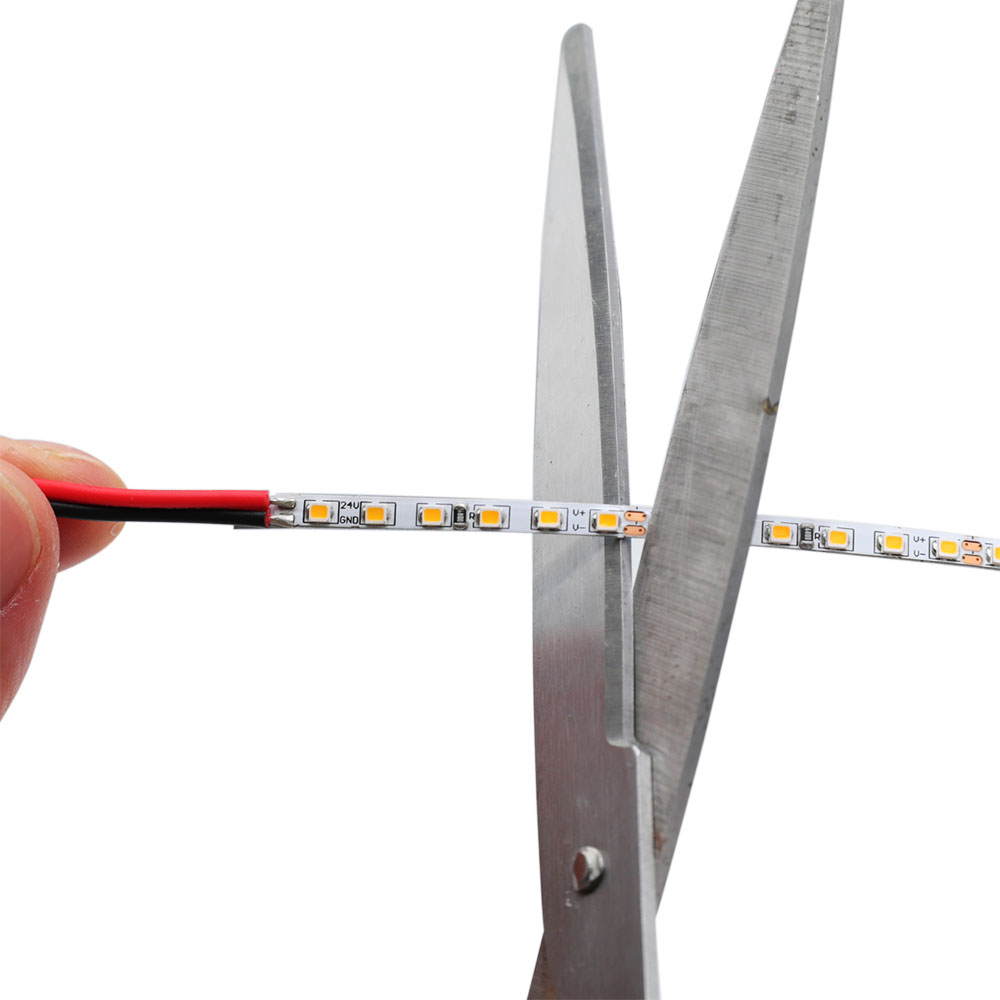

This thin versatile white light LED strip is in 8W/M (40Watts' Roll), has very High-Density lighting with 180 lamp beads per meter or (55/ft). The super thin led strip is cuttable every 6 white LEDs for 24VDC.

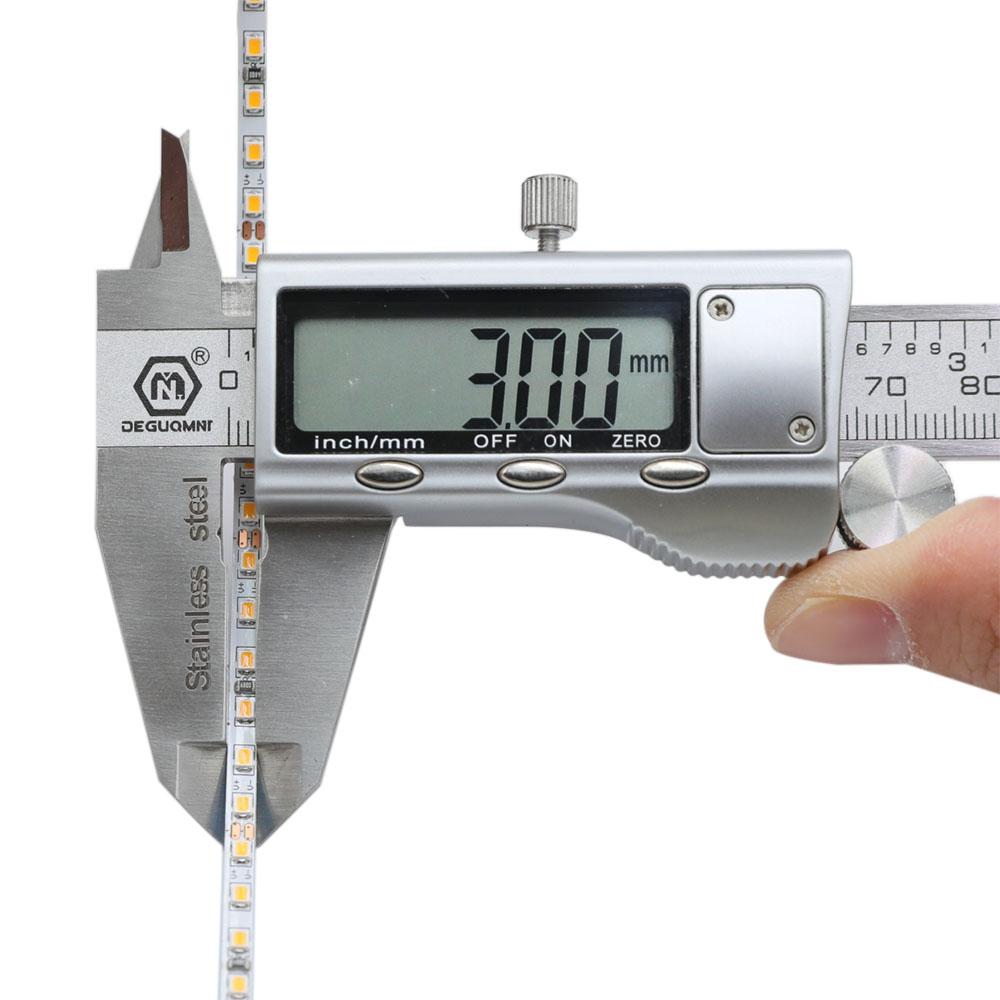

The PCB width of this white led strip is 3mm super narrow, you can install it in a narrow space. Suitable for Under Cabinet, Children's room, Hallway Staircase, Corridor, Collectable Bookshelf, etc.
For outdoor waterproof lighting projects, we provide IP67 waterproof rating of this ultra narrow led light strip.
►Everything you need to know before buying led strip lights:
What are the types of led strip lights? Flexible led strip lights VS rigid led strip lights
Standards and Certifications
Product Specification
LED Strip Type: SMD 2216 900PCS/16.4ft
LED Chip: Epistar Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White, Natural white
Dimension: 16.4ft/roll, 6 PCS LED can be cut
LED Quantity: 180 LEDs per 1meter (3.28 ft)
Lifespan: 50,000+hours
Warantty: 3 years

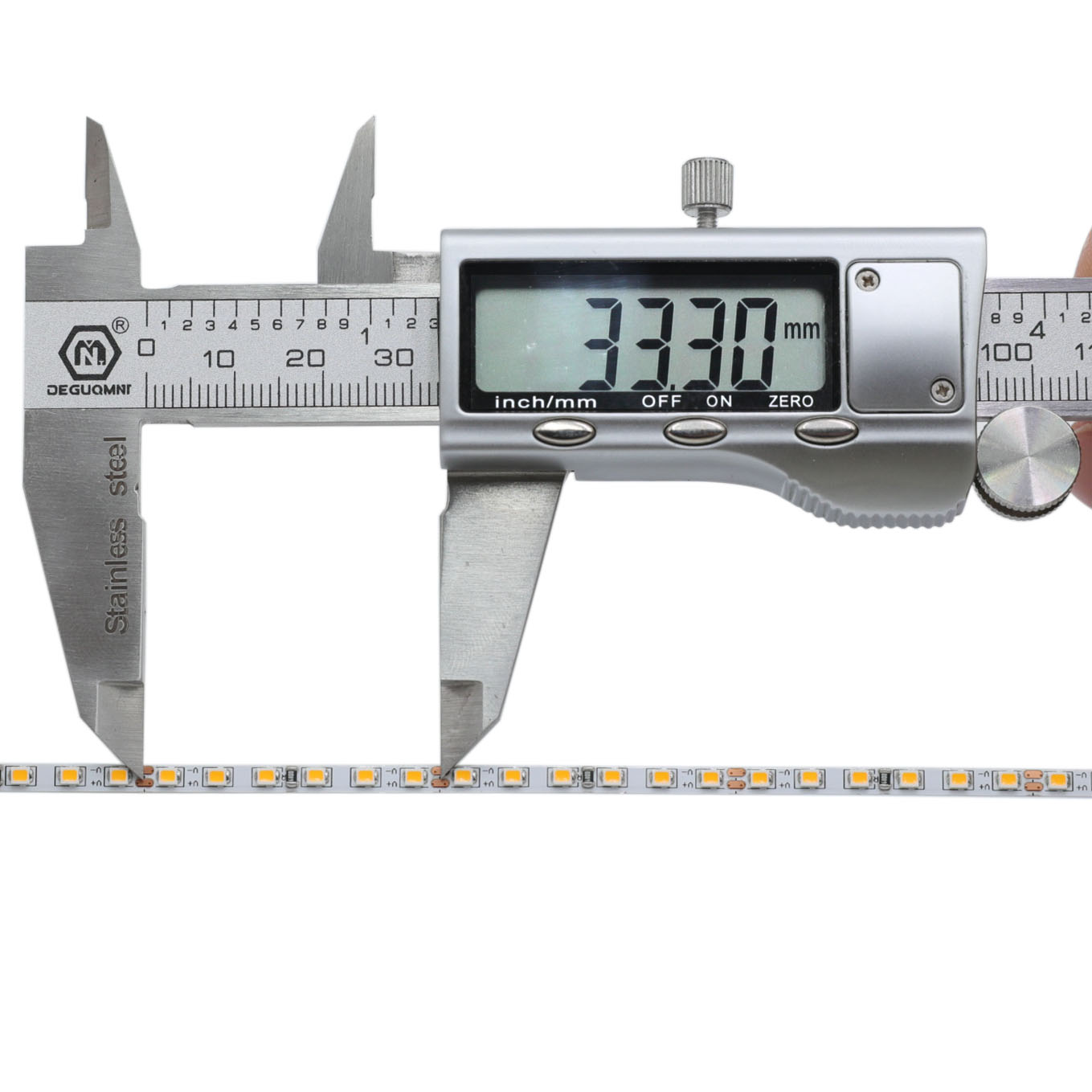

Dimensions: L500cm(196.8 in ) x W3mm(0.12in) x H0.20cm(0.08 in )
Input Voltage(V): 24VDC
Working Power: 8W/M, 40W /16.4ft Max
Lamp Luminous Flux(lm): 7-10lm/LED 7200Lumens/16.4ft
Color Temperature CCT(White): Warm White(3000k), Daylight White(4000k), Daylight White(6000k)
Beam Pattern: 120 degree
Water Proof: Non-Waterproof, Waterproof IP67(Heat shrink tube)
CRI (Ra>): 90
FCB Borad: 3mm/0.12in
Certification: CE, UL, ROHS
Color Temperature And CRI
Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
How to Install White LED Strip Lights?
|
|
 |
 |
|
|
|
|
How to wire white led strip lights?
 |
 |
 |
 |
►Detail knowledge about choosing a suitable LED strip light power supply:
How to calculate power for led strip lights?
How to choose led strip light power supply?
►White led strip wiring diagram:
*Click the wiring diagram picture to know more detail.
Application
Trademark lighting Logo lighting
Channel letters lighting Lightboxes lighting
Landscape layout lighting Stage decoration lighting
Sign cabinets Channel lights
Cove LED lighting Edge lit signs
Canopy illumination Off-grid lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
