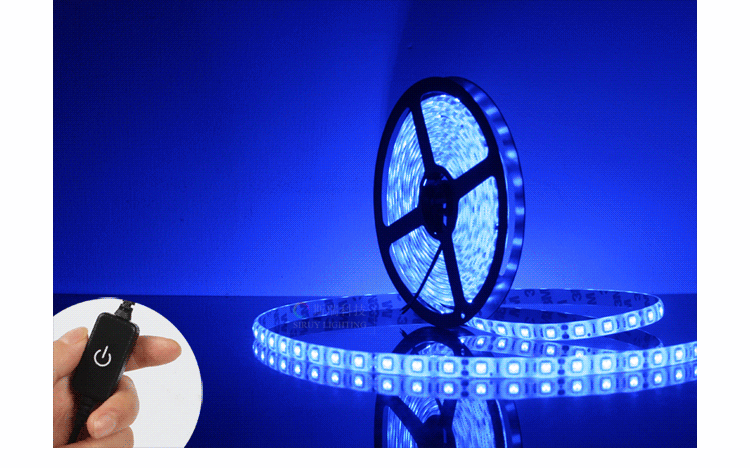

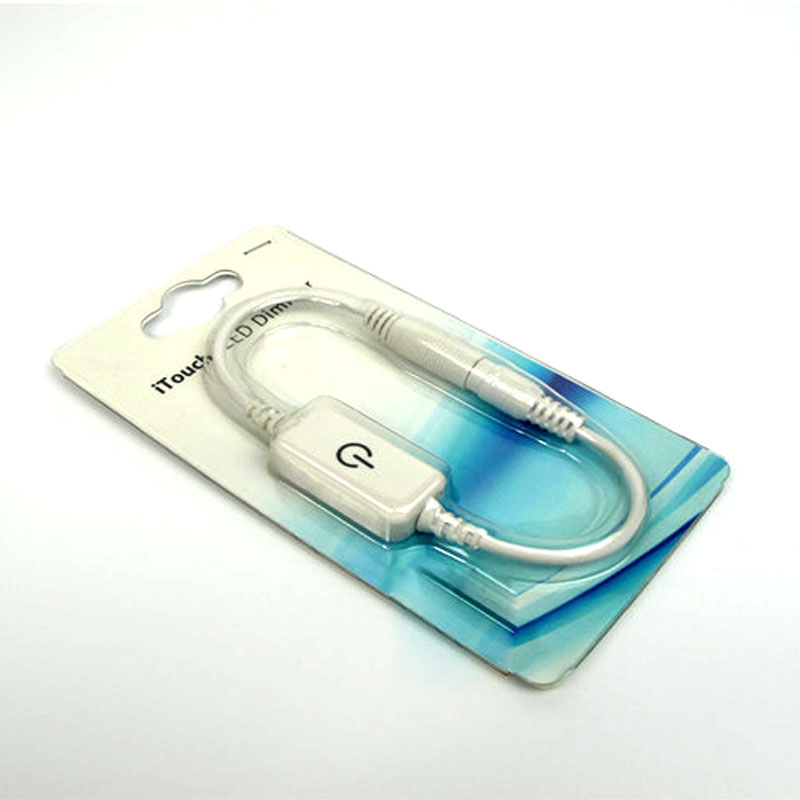

DC12/24V Max 6A, Universal Hot sale Mini iTouch Smart Touch LED Dimmer, ABS Shell, For Single Color LED Lighting

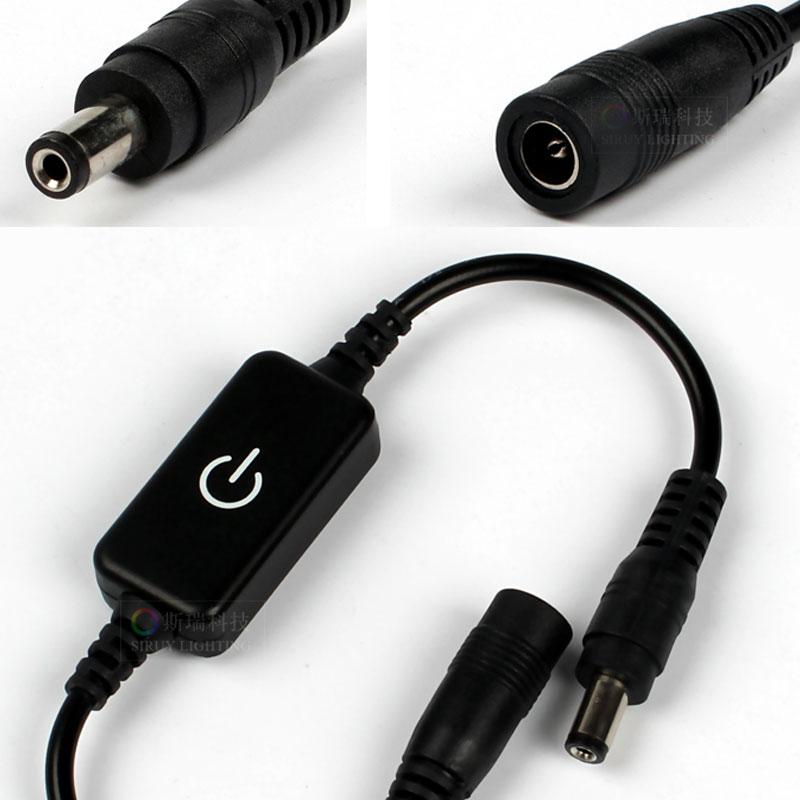

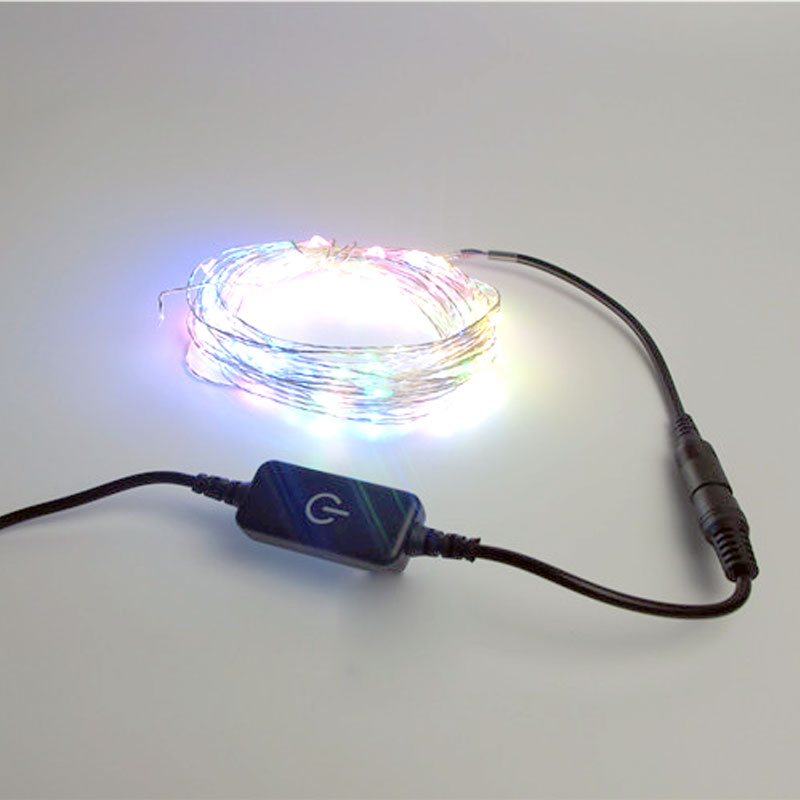

Universal single color LED dimmer can turn ON/OFF and dim any 12VDC or 24VDC LED light strips products from 10 to 100 percent using Pulse Width Modulation (PWM) circuit. Touch sensitive control for full intensity adjustment range and ON/OFF controls. Maximum Load is 3 Amps, has Male and Female 5.5mm barrel power connector for connecting in-line with our DC12/24V LED series Power Supplies.
Directions: touch finger pad for less than 5 seconds for ON/OFF function - hold for more than 5 seconds for dimming function.
Working Voltage: DC 12/24V
Product size: (L)30.8x(W)8.7x(H)38mm
Max load current: 3 Amps
Net Weight: 23g
Output: 1 channel
Working temperature: -10°C ~ +50°C
Static power consumption: < 1 Watt
Output Power: 36W @ 12V / 72W @ 24V
Function: Dim LED product from 0~100% using PWM with CPS series Power Supplies
Supply voltage of this product is 12~24 Volts DC, do not exceed 24VDC.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only ? this product is not waterproof or weatherproof.
