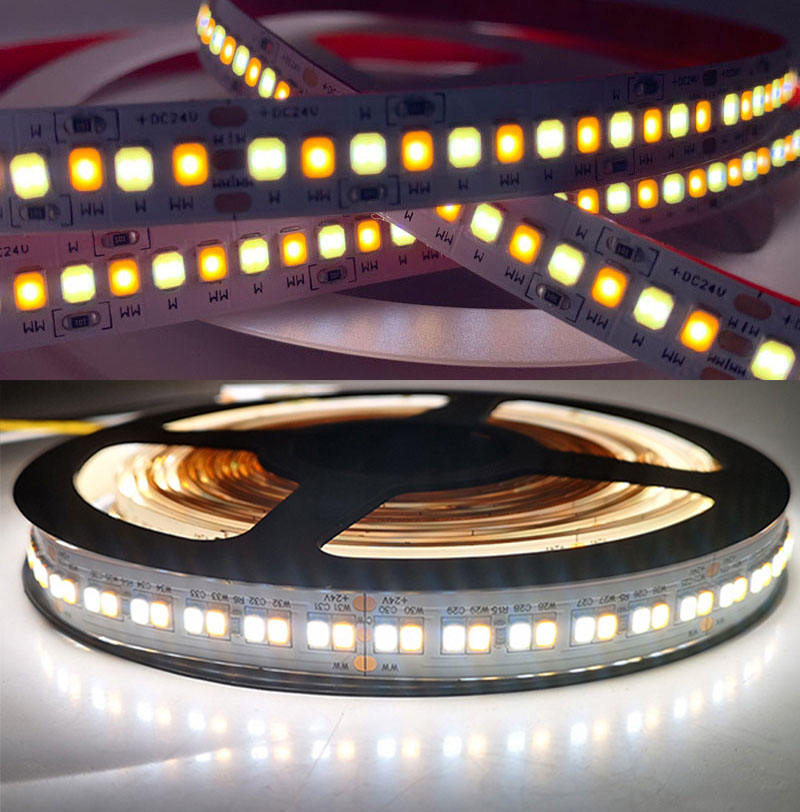

DC48V 224LEDs/m Ultra Long Lighting Tunable White LED Strip Light - 49.2Ft~98.4Ft Optional

Model: FSLCCT-DC48V-2835X224
DC48V 224LEDs/m Ultra Long Lighting Tunable White LED Strip Light - 49.2Ft~98.4Ft Optional
  • DC48V 224LEDs/m Ultra Long Lighting Tunable White LED Strip Light - 49.2Ft~98.4Ft Optional
  • DC48V 224LEDs/m Ultra Long Lighting Tunable White LED Strip Light - 49.2Ft~98.4Ft Optional
  • DC48V 224LEDs/m Ultra Long Lighting Tunable White LED Strip Light - 49.2Ft~98.4Ft Optional
  • DC48V 224LEDs/m Ultra Long Lighting Tunable White LED Strip Light - 49.2Ft~98.4Ft Optional
  • DC48V 224LEDs/m Ultra Long Lighting Tunable White LED Strip Light - 49.2Ft~98.4Ft Optional
  • DC48V 224LEDs/m Ultra Long Lighting Tunable White LED Strip Light - 49.2Ft~98.4Ft Optional
  • DC48V 224LEDs/m Ultra Long Lighting Tunable White LED Strip Light - 49.2Ft~98.4Ft Optional
  • DC48V 224LEDs/m Ultra Long Lighting Tunable White LED Strip Light - 49.2Ft~98.4Ft Optional
  • DC48V 224LEDs/m Ultra Long Lighting Tunable White LED Strip Light - 49.2Ft~98.4Ft Optional

Select Specifications:

Starting at: $89.99

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$89.99
5-9
$85.49
10-19
$82.79
20+
$80.99
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Product Description

    DC48V input voltage allows the maximum running length in series to be 30m/98.4Ft, which is one of the maximum running lengths of the low-voltage LED strips we can offer.

    High lumen 2835SMD, 120 degrees beam angle, supplement brightness for dim spaces, suitable for indoor & outdoor accent lighting

    Ultra-high density of 224LEDs/m satisfies the customer's pursuit of density and ultra-high brightness and matches the LED neon tube to achieve a perfect no-spot lighting effect.

    Double-sided PCB, uniform arrangement of LEDs and resistors, constant voltage drive setting, 95+CRI, good color rendering and color temperature consistency.

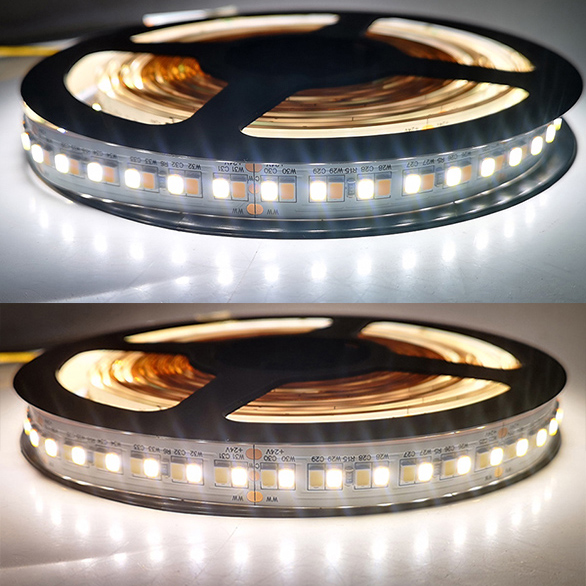

    2800-6500K adjustment, from warm to bright, to meet any needs of indoor lighting, matching CCT LED controller, lighting to display any color temperature, 0-100% dimmable.

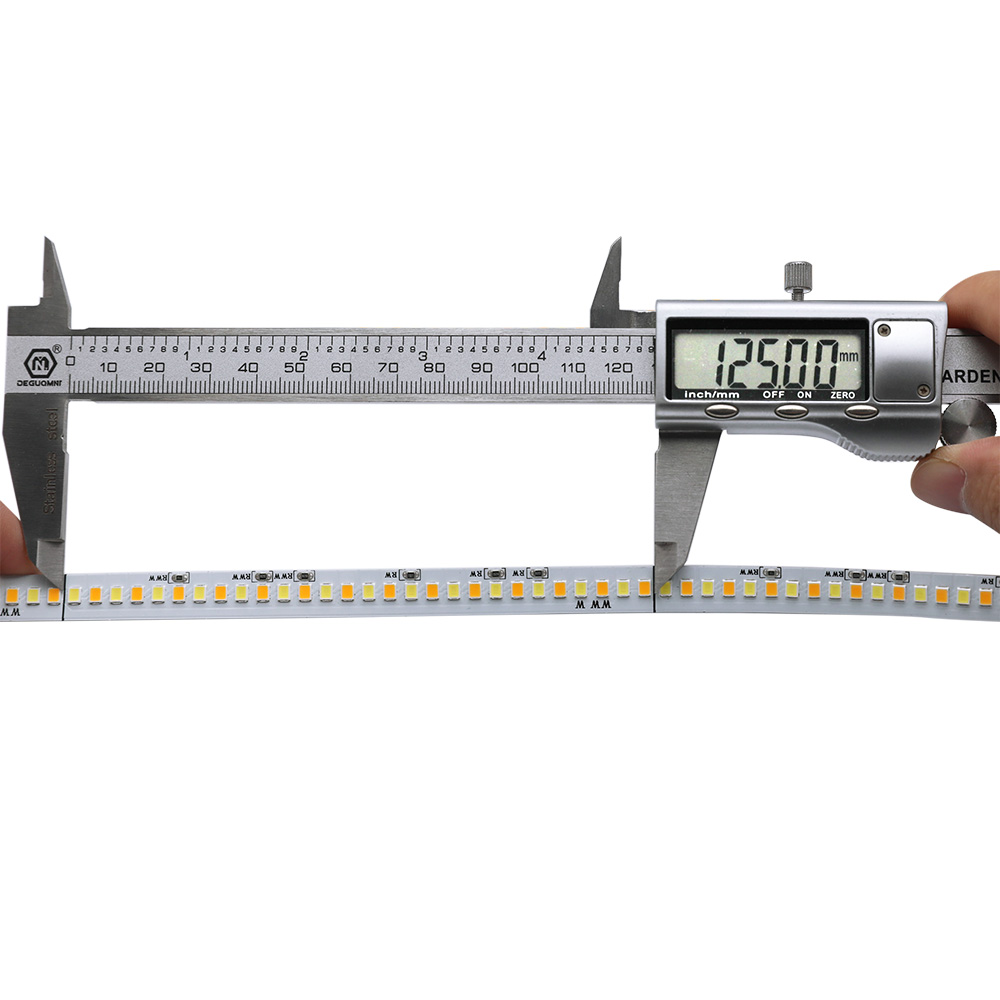

    Every 28 LED lights can form a loop, which can be cut off along the tangent without damaging other parts. You can customize the length of a LED light strip.

    IP20 and waterproof IP65/67/68 LED strips are available to meet customers' indoor and outdoor lighting demands.



    Product Feature

    • DC48V low input voltage

    • 30m without voltage drop

    • High brightness SMD2835

    • 224LEDs/m high density

    • High CRI of 95+

    • 2800-6500K adjustment

    • 0-100% dimmable

    • 28LEDs cuttable

    • Cutomize length

    • IP20/65/67/68 available




    Standards and Certifications




    Product Specification

    LED Chip:   Epistar Chip

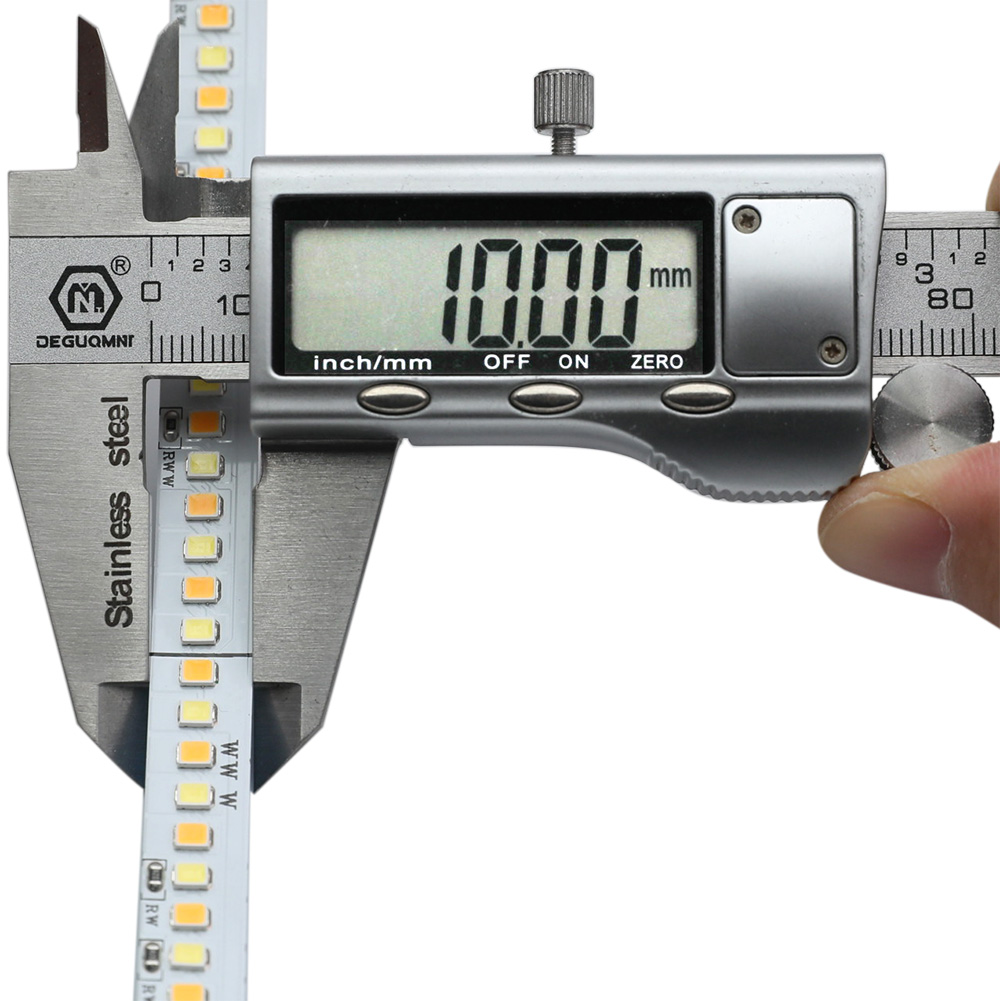

    Product Size:  10*2.0mm/0.39*0.08in

    LED Type:  SMD2835

    Number of LEDs:  224LEDs/m

    IP Rating:  IP20

    Material:  White circuit board

    Working Temperature:  -20℃~50℃

    Storage Temperature:  -30℃~60℃

    Color Temperature:  Tunable white

    Input Voltage:  DC48V

    Power:  14W/m

    Luminous Flux:   >1400LM

    Light Efficiency:   >80LM/W

    Color Temperature:   2800-6500K

    Drive Mode:   Constant voltage drive

    Beam Angle:   120 degrees

    Color Temperature CCT(White):    Warm white(2800-3500k),Daylight white(6000-6500k)

    Beam Pattern:   120 degree

    Water Proof:   Non-Waterproof IP20, Waterproof IP65/IP67/IP68

    CRI (Ra>):   95



    Product List

    1* 49.2Ft DC48V SMD2835 LED stirp light

    If you choose the LED controller in the kit, we will send you V4-X LED controller.

    If you choose the LED power supply, we will send you DC48V 350W MW UL-Listed LED power supply(you can choose the DC48V option) and we will also send you an AC plug.

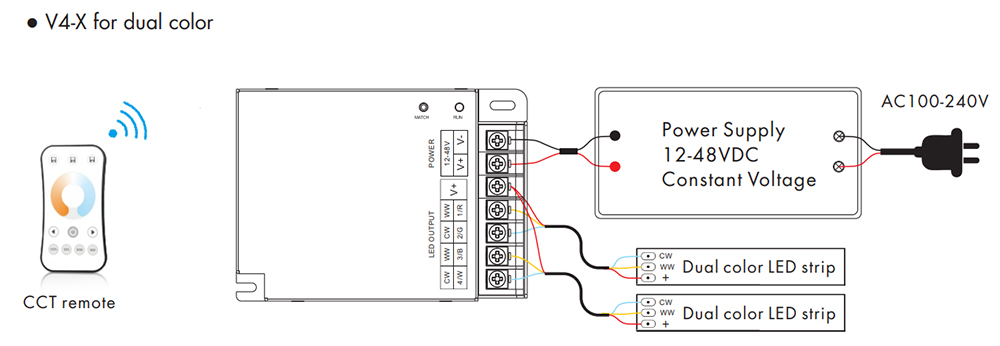

    Wiring Diagram

    Color Temperature And CRI

    Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose.

    Consider the look and feel you want your project to have.

    What other color lights will be present? What material and color are the materials you wish to light?



    CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.



    Waterproof Level Description

     IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

     IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;

     IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

     IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

    The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.



    Installation Instruction

    create_a_Large_flexible_led_strip_light_Installation.jpg                       create_a_Large_flexible_led_strip_light_Installation.jpg                       create_a_Large_flexible_led_strip_light_Installation.jpg

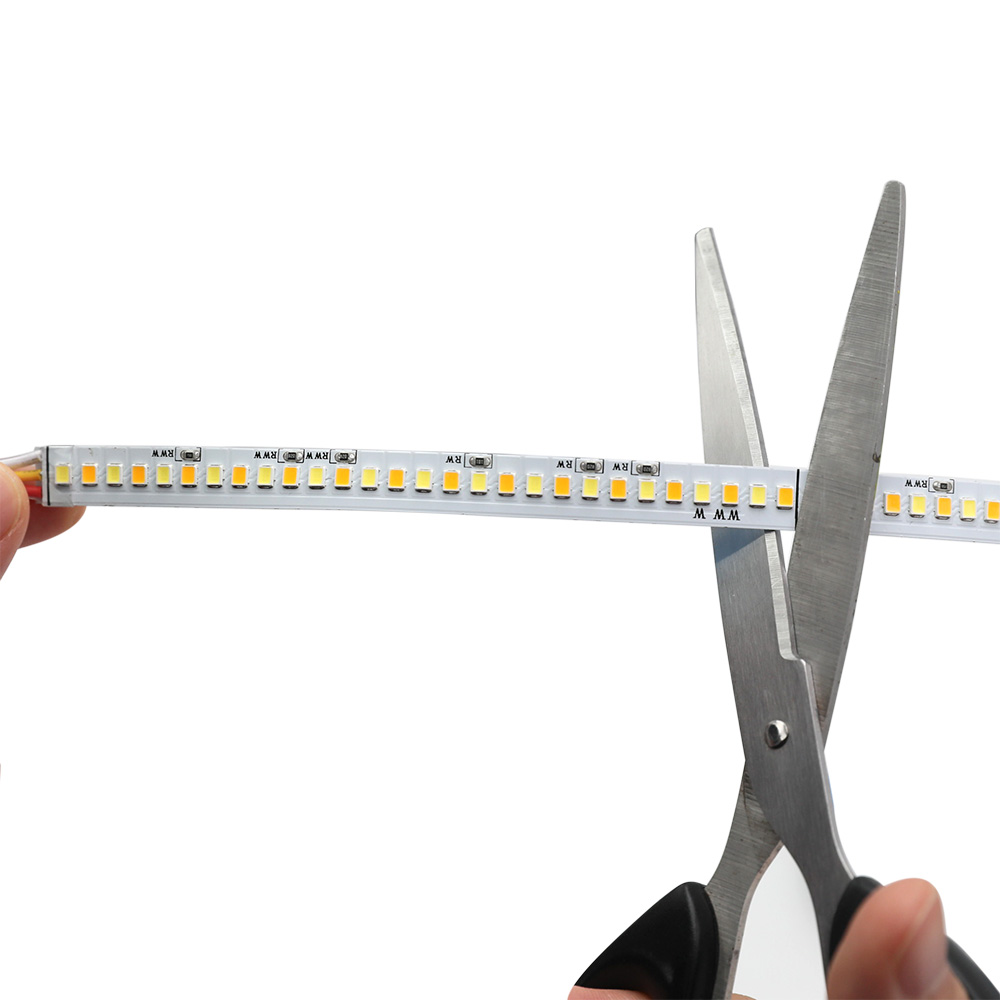

     You can cut the strip every few inches,                      The back of the strip is fitted with a strong                    IP67/IP68 type which will come with

    allowing you to freely design your project                    3M tape, allowing you to peel and stick lights                 mounting brackets

    without worrying about space requirements to many different surfaces.
