Product Information

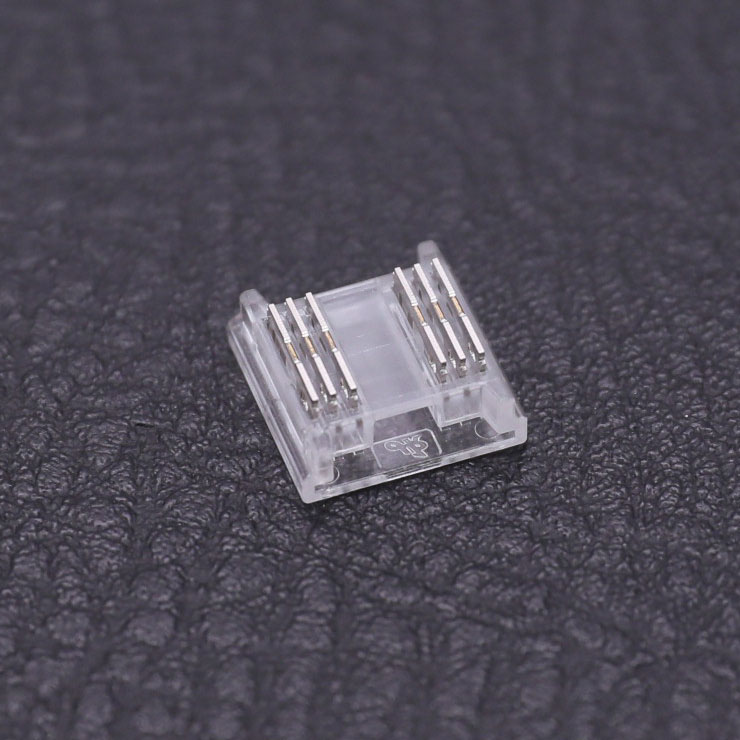

Achieve clean, secure, and solder-free connections for your lighting projects with the 6-Pin 12mm Board-to-Board Connector, engineered specifically for COB RGBCCT LED strips. This connector utilizes a unique clamp-down piercing method to create a robust electrical and mechanical bond. Simply insert the strip and use pliers to press the contacts, which pierce the PCB for a lasting connection.
Available in two convenient styles: a compact board-to-board joiner for creating perfectly seamless long runs, or a version with a flexible 15cm extension wire to easily navigate corners, bridge gaps over appliances, or create custom-length jumpers. This design eliminates the need for soldering, making it ideal for both professional installers and DIY enthusiasts looking to customize their COB LED strip lights installations quickly and reliably.
Key Features
Solderless Piercing Connection
Features sharp metal pins that pierce the strip's PCB using pliers, ensuring a highly reliable connection without any soldering.
Engineered for COB Strips
Specifically designed to match the unique circuit layout of 12mm wide, 6-pin COB RGBCCT LED strip lights for perfect alignment.
Two Connection Styles
Choose between a direct board-to-board connector for seamless extensions or a 15cm flexible wire version for navigating corners and gaps.
Durable & Secure
Constructed from high-quality plastic and metal components to provide a stable, long-lasting connection for your lighting system.
Technical Highlights
- Transparent housing allows for visual confirmation of proper strip alignment before closing.
- Designed to maintain the full functionality of RGBCCT lighting, transmitting all 6 channels accurately.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | RGBCCT-COB-6Pin |
| Product Type | COB LED Strip Connector |
| Pin Count | 6-Pin |
| Compatible PCB Width | 12mm (0.47") |
| Compatible Strip Type | COB RGBCCT LED Strip Lights |
| Connection Method | Solderless, Insulation Piercing (Pliers required) |
| Available Options | Strip to Strip (Direct), Strip to Strip (15cm Extension) |
| Material | Plastic + Metal |
| IP Rating | IP20 (Non-waterproof) |
| Application | Indoor, dry locations only |
Application Scenarios
How to Use This COB Strip Connector
- Ensure all power to the LED strip is disconnected before installation.
- Carefully slide the end of your 12mm COB RGBCCT LED strip into the connector. Ensure the strip is fully seated and the 6 copper pads on the strip align with the 6 metal pins inside.
- Using a pair of pliers, apply firm and even pressure across the metal contacts on the connector. The pins will pierce through the strip's PCB, securing the connection.
- Repeat the process for the second strip end.
- Once both sides are secured, you can reconnect power and test your lighting connection.
- This connector is designed exclusively for 12mm wide, 6-pin COB RGBCCT LED strips. It is not compatible with SMD strips or other widths/pin counts.
- A firm press with pliers is essential. An incomplete connection may result in flickering or non-functioning color channels.
- Verify the polarity and channel alignment of the strips before clamping the connector to ensure correct color output.
- This is an IP20 rated connector intended for use in dry, indoor environments only.
What's in the Box
- ✓1x Selected 6-Pin 12mm COB RGBCCT LED Strip Connector (Direct or 15cm Extension)
