Product Information

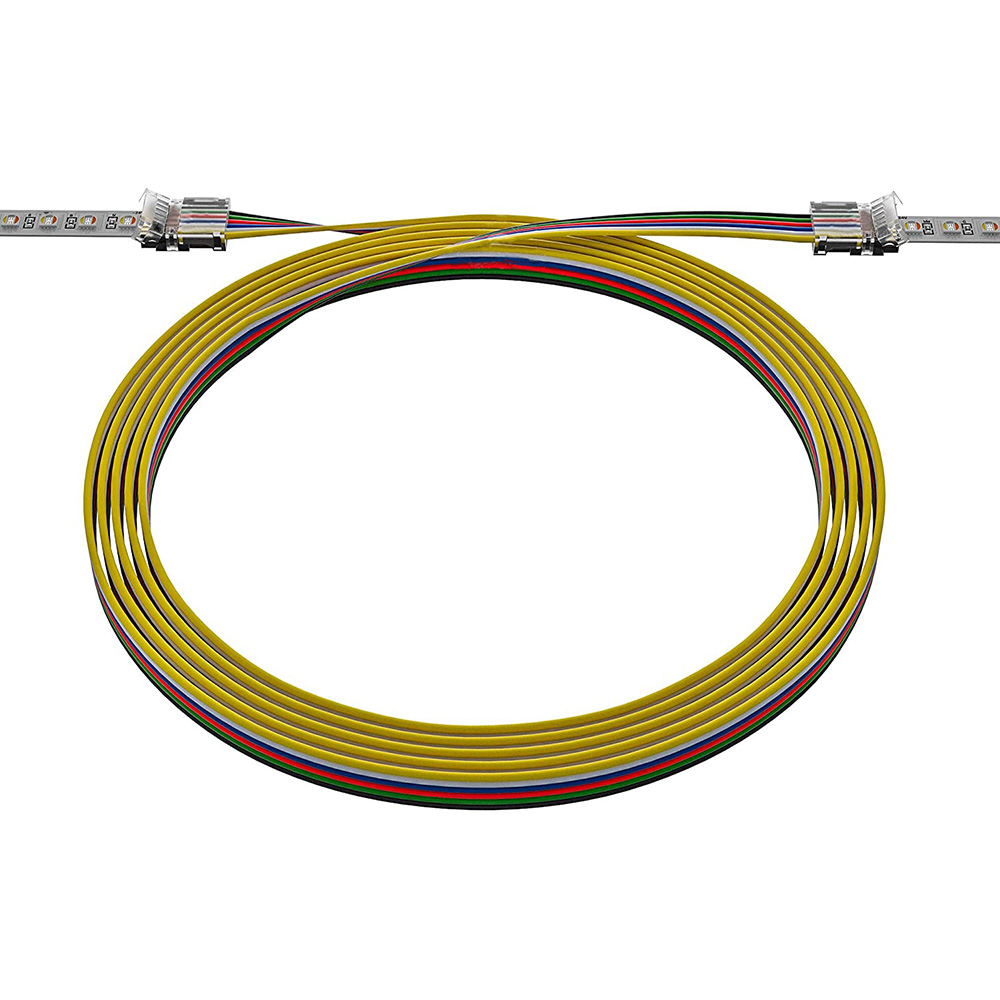

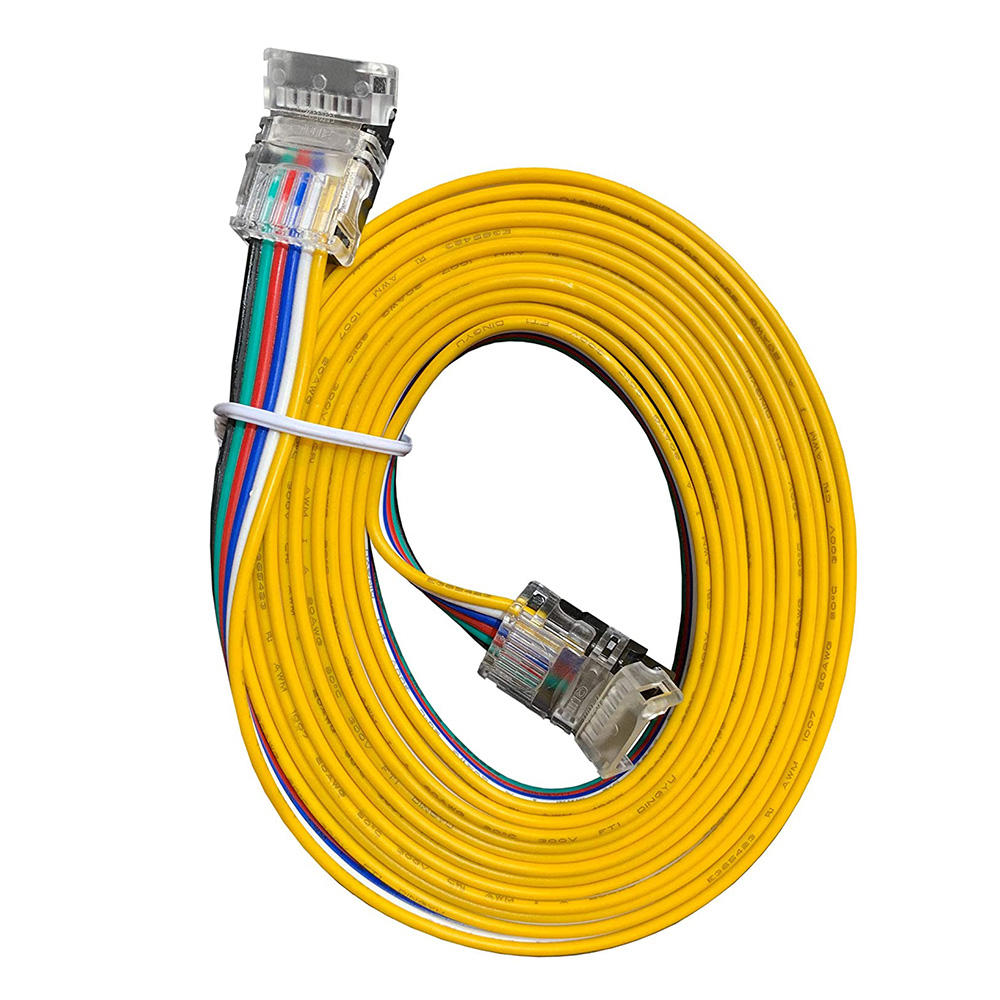

Bridge long gaps in your lighting project with ease using the SuperLightingLED 6-Pin Hippo Connector, equipped with a generous 3-meter (9.84ft) wire. This is one of the most convenient led light strip connectors for installations where your power source or controller is located far from the start of your light strip. The solderless hippo-clamp design creates a secure, reliable connection to any 12mm wide 6-pin RGBCCT LED strip lights without any special tools. Available in versions compatible with both non-waterproof (IP20) and silicone-coated waterproof (IP65) strips, this connector provides a versatile solution for complex layouts, ensuring a clean and professional result. Explore our full range of 6-Pin RGB+CCT LED Strips Parts for more installation solutions.
Key Features
Extended 3-Meter Wire
The pre-attached 9.84ft cable provides ample length to connect strips to distant power supplies or controllers, eliminating extra splicing.
Solderless Hippo-Clamp Design
Features a secure, piercing clamp mechanism that creates a strong connection without the need for soldering, saving time and effort.
Dual IP Rating Compatibility
Choose the appropriate version for your project, with options available for both non-waterproof IP20 and silicone-coated IP65 LED strips.
Full RGBCCT Functionality
The 6-pin design ensures a stable connection for all channels, preserving the full color-changing and tunable white capabilities of your strips.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | RGB/CCT-ACCESSORIE-17 |
| Product Type | Strip-to-Wire Connector |
| Pin Count | 6 Pins |
| Compatible Strip Width | 12mm |
| Compatible Strip Type | RGBCCT (RGB + Tunable White) |
| Wire Length | 3 meters / 9.84 feet |
| Connection Method | Solderless (Hippo Clamp Style) |
| Available Versions | For Non-waterproof (IP20), For Silicone-Coated Waterproof (IP65) |
| Voltage | Low Voltage DC |
Application Scenarios
How to Use This 6-Pin Hippo Connector
- Select the correct connector version for your strip: IP20 for bare strips or IP65 for strips with a silicone coating.
- If using a waterproof IP65 strip, carefully remove a small section of the top silicone coating to expose the six copper contact pads.
- Open the transparent hinged clasp on the hippo connector.
- Carefully slide the end of the 12mm RGBCCT LED strip into the connector's slot. Ensure the six copper pads on the strip align perfectly with the six metal pins inside the connector.
- Press the clasp down firmly until it snaps securely shut. This action pierces the strip's PCB, creating a solid electrical connection.
- Use the attached 3-meter wire to connect to your RGBCCT controller, power supply, or another wire run.
- Always double-check that the polarity markings on the LED strip align with the wire colors to avoid damage.
- This connector is designed exclusively for 12mm wide, 6-pin RGBCCT LED strips. It is not compatible with other widths, pin counts, or strip types.
- Ensure the connector clasp is fully and securely closed before applying power to the system.
- This is a low-voltage DC accessory. Do not connect it directly to high-voltage AC power.
What's in the Box
- ✓1 x 6-Pin Hippo Connector with 3m Wire for 12mm RGBCCT LED Strips
Frequently Asked Questions
Q: What is the main advantage of this connector's 3-meter wire?
A:The integrated 3-meter (9.84ft) wire is a key feature, eliminating the need for additional wire splicing when your power source is located far from the LED strip's starting point.
Q: Do I need to solder anything to use this connector?
A:No, this is one of our solderless led strip connectors. It uses a secure hippo-style clamp mechanism to create a reliable connection without any soldering.
Q: Will this work with my waterproof RGBCCT strips?
A:Yes, it will. Be sure to select the "Waterproof IP65" version from the options. You will need to carefully peel back the silicone coating over the copper contacts on the strip before inserting it.
Q: Is this connector compatible with 4-pin RGB or 5-pin RGBW strips?
A:No, this connector is specifically designed for the pin layout and 12mm width of 6-pin RGBCCT LED strips and will not work with other types.
Q: What are the rgb led pins for on an RGBCCT strip?
A:An RGBCCT strip has 6 pins: one for power (V+), one for each color (Red, Green, Blue), one for Warm White, and one for Cool White, allowing for full color and white temperature control.
Q: Can I cut the 3-meter wire if it's too long for my project?
A:Absolutely. You can cut the wire to your required length and strip the ends to make your connection to a controller or power supply.
