DC5/12V Bluetooth SPI Addressable RGB Waterproof LED Christmas Pixel Moudles String Lights Kit
Integrate WS2811 IC LED pixel string light and 24-key smart Bluetooth voice controller and DC5V or 12V led power supply in one kit.
WS2811 chip realizes full 24-bit color, constant-current-driven light spot, low light attenuation, and good consistency. 160 degree wide viewing separable flexible strip to be bent into any shape.
4-channel addressable, green cable receives data signal, yellow cable receives a clock signal, increases the signal transmission speed, and cooperates with the controller to control consistently
Addressable light string shell adopts exquisite craftsmanship, special PCB, uniform heat dissipation, suitable for commercial lighting and indoor environmental lighting.

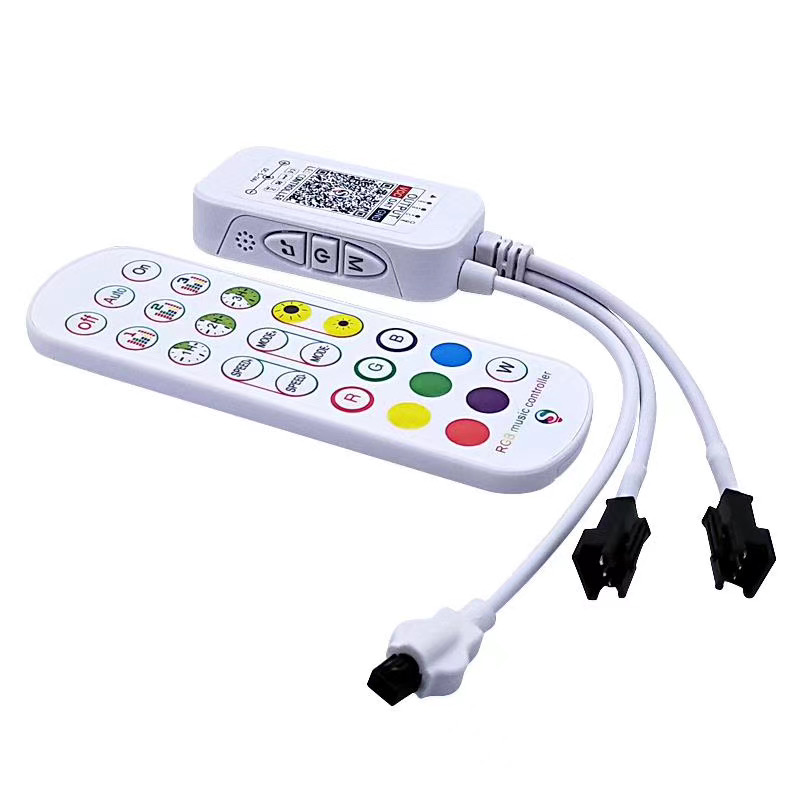

The SPI Dream Color Controller has a variety of dynamic effects and can achieve dynamic environmental lighting in music mode
Controller information is storable. After setting custom brightness and DIY light color, the controller will automatically remember the last setting.
DC5/12V low voltage, safe and stable.
WS2811 addressable chip 24-bit full color, constant current drive, low attenuation
Double-sided adhesive foam tape, easy to install
IP65 splash-proof and dust-proof
LED string light can be customized
Maximum output 2048 pixels
Available in 1600 colors, DIY colors available
28 dynamic modes
DIY brightness available
Controller with a storage function
Always using in Christmas day

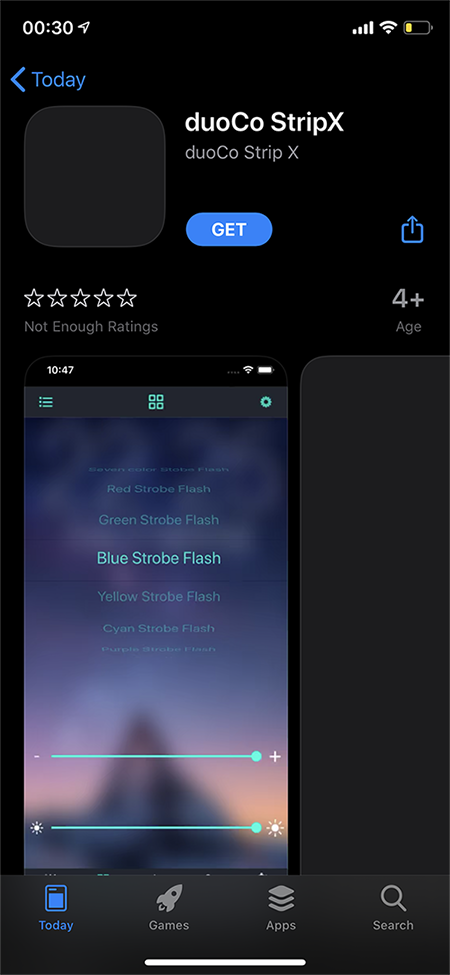

The name of the APP is "duoCo Strip", please search and install the application on Google Play or Apple Store or through the QR code on the manual/controller.
Step 1: Please download the APP "duoCo Strip".
Step 2: Make sure that Bluetooth is enabled on your phone.
Step 3: Then, the bar light is automatically connected to the APP.
Work Temperature: -20-60℃
Control Distance: Visual distance 30M
Maximum Load Current: ＜6A
Operation Platform: Android 4.3 or IOS 6.0 or higher
APP: duoCo StripX APP
Control Principle: Bluetooth
LED Pixel Moudles String Lights parameters:
LED Module Type: Full Color 5050 LED Pixel Module
IC type: WS2811(high mode)
Working Temperature: -4°F (-20°C) ~ 149°F (65°C)
Package: 50pcs/string, one string
Standards And Certifications: CE/FCC/ISA Approved/ROHS
Red Wiring Colors: 5V/12V DC Positive / +
Green Wiring Colors: Data Signal
Yellow Wiring Colors: Clk Signal
Black Wiring Colors: 5V/12V DCNegative /-Wire Length: 75mm(2.95in)
Dimensions: L35mm(1.38") x W35mm(1.38") x H5mm(0.20")
Input Voltage(V): DC5V/12V
Length: 10cm/pcs, 5m/16.4ft/50pcs
Working Current: 80mA / piece
Output Power: 0.3W / piece, 15w/string
Waterproof Rating: IP65
Grey Scale: 256 levels
Wavelength: R 470 nm/G 520 nm/B 620 nm
Lumen: 7 Lumen
Warantty: 3 years
How to control:
App control: duoCo Stripx
If you choose DC5V LED addressable LED pixel moudles string light, we will send you DC5V 3A LED plastic shell LED power supply
If you choose DC12V LED addressable LED pixel moudles string light, we will send you DC12V 3A LED plastic shell LED power supply
three-dimensional light-emitting word
Channel letters lighting
Landscape layout lighting
Stage decoration lighting
Cove LED lighting
