Product Information

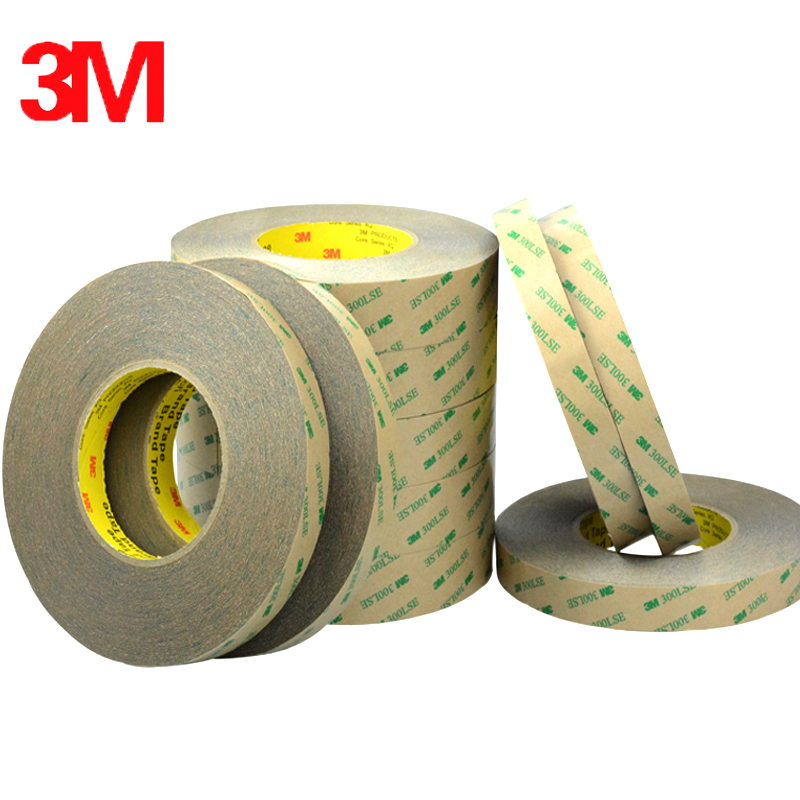

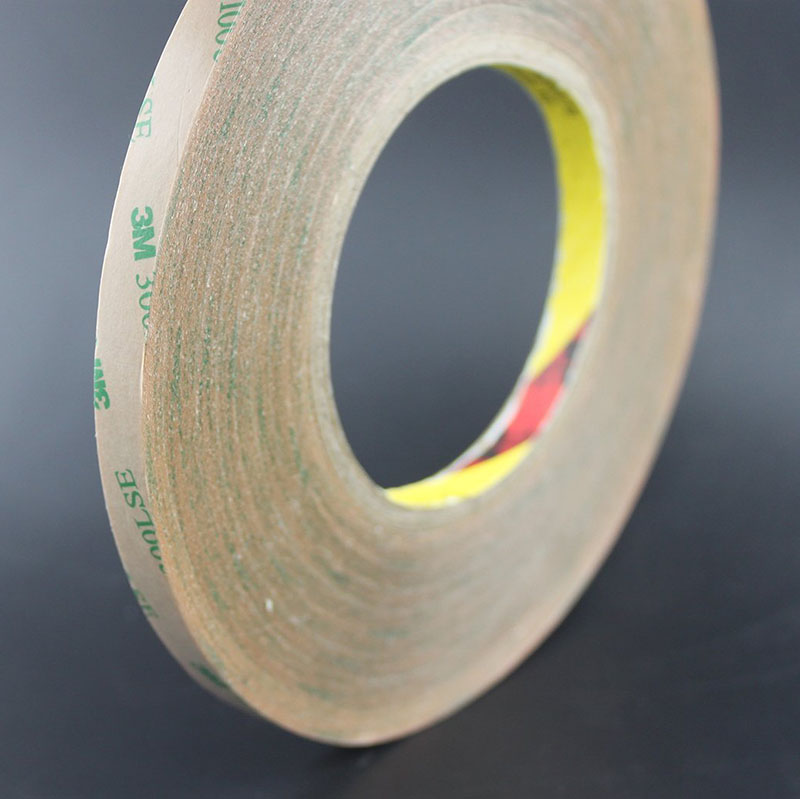

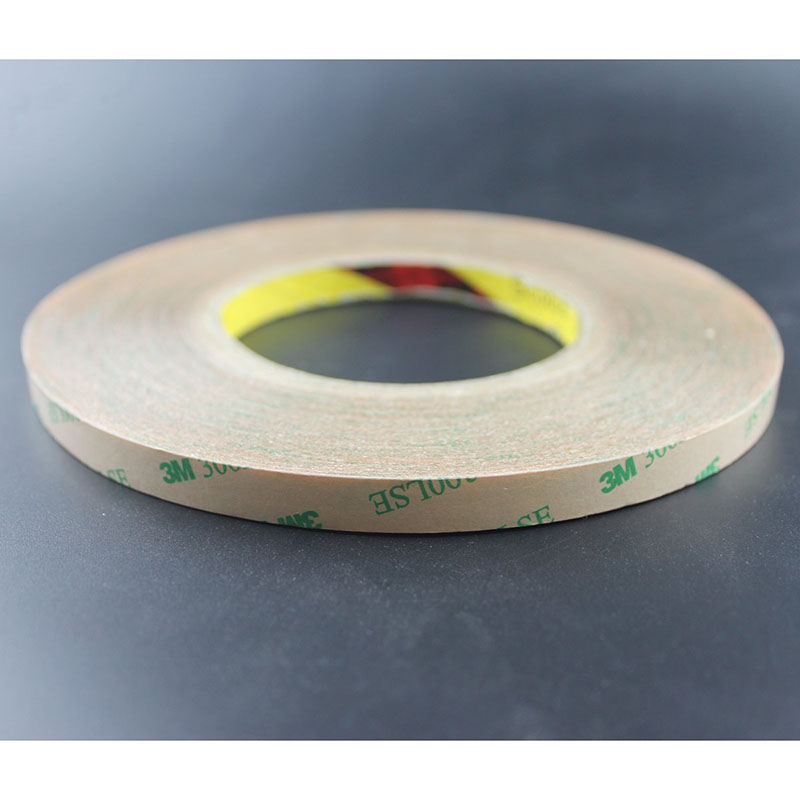

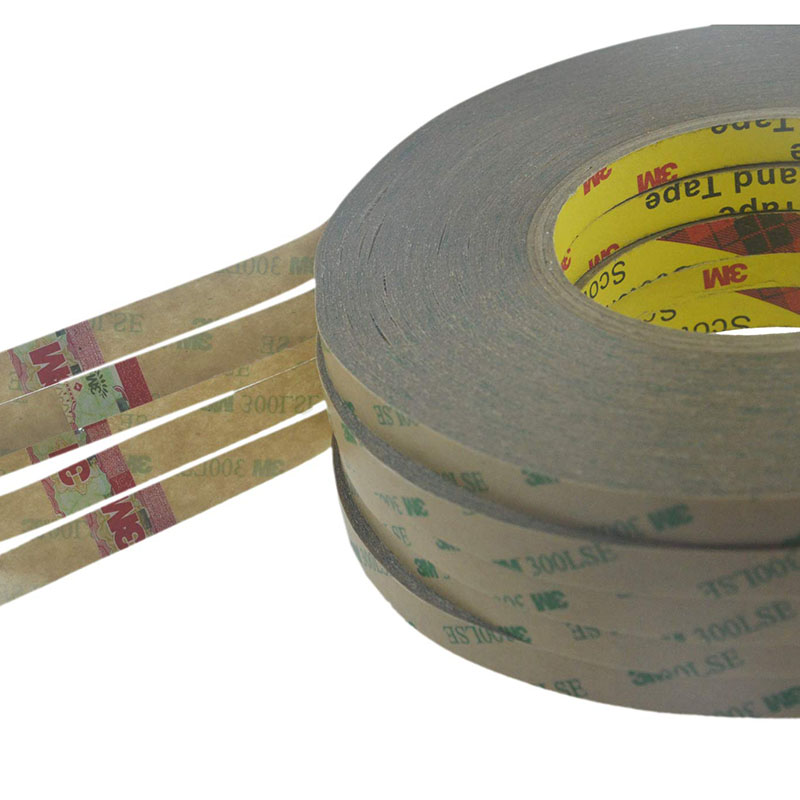

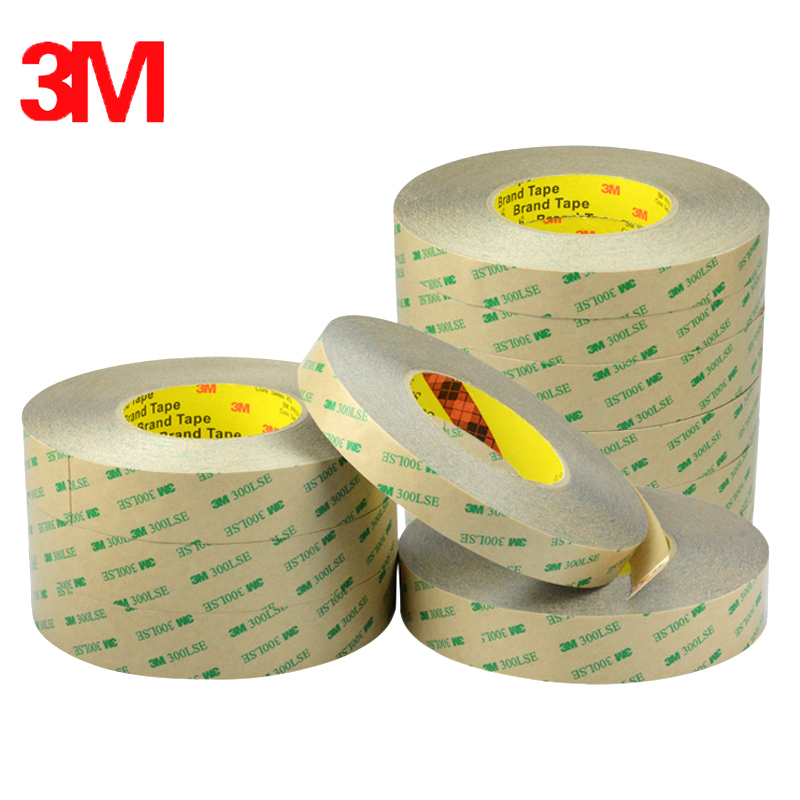

This genuine 50-meter roll of 3M 300LSE double sided tape provides industrial-strength bonding for mounting SMD LED strip lights on demanding surfaces. Engineered with a specialized non-woven tissue core laminated with solvent acrylic adhesive on both sides, it delivers strong double adhesive tape holding power on low surface energy (LSE) substrates including polypropylene, polyethylene, powder-coated metals, anodized aluminum channels, and smooth wood. Unlike common consumer adhesives that degrade under sustained heat, 3M 300LSE double sided adhesive tape withstands continuous LED operating temperatures up to 93 C and brief thermal spikes up to 148 C without peeling or oozing. Available in 9 distinct widths from 3mm to 30mm, this heavy duty double sided adhesive tape matches standard single-color, tunable white, and RGBW LED strip backing dimensions exactly, preventing exposed adhesive edges from collecting dust.
Key Performance Attributes
High-Tack 300LSE Acrylic Formulation
Bonds firmly to tricky low surface energy materials such as polypropylene, untreated plastics, and textured powder coats where standard adhesives detach.
Full 50-Meter Continuous Spool
Supplies 164 continuous feet of mounting tape on a single reel to complete large architectural runs and repetitive workshop builds without mid-run splices.
Nine Precision Width Choices
Available in 3mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 20mm, and 30mm to match any LED strip PCB or aluminum profile track width exactly.
Thermal and Moisture Stability
Withstands continuous heat up to 93 C generated by high-power LED strips and resists ambient moisture, humidity, and UV aging indoors and outdoors.
Non-Woven Tissue Carrier Core
Features an ultra-thin non-woven reinforcement layer that simplifies hand trimming and clean peeling while stopping adhesive stretching during placement.
Bonding Science & Material Compatibility
- Specifically engineered for Low Surface Energy (LSE) materials including PE, PP, ABS, varnished hardwoods, and fluoropolymer coatings.
- Delivers up to 90 oz/inch peel adhesion to stainless steel and bare aluminum channels after 72 hours of room-temperature curing.
- Solvent-free acrylic chemistry prevents chemical degradation of silicone encapsulants, copper traces, and flexible printed circuit boards.
- Operating temperature resilience spans -40 C to 93 C continuously, tolerating peak intermittent excursions up to 148 C.
- Non-woven carrier substrate maintains dimensional accuracy without curling during high-tension tape dispenser application.

Product Specifications
| Parameter | Details |
|---|---|
| Product Model | LED-ACCESSORIES-004 |
| Adhesive Brand & Series | 3M 300LSE Laminating Adhesive |
| Adhesive Composition | High-strength acrylic on both sides |
| Carrier Matrix | Ultrathin non-woven tissue cloth |
| Release Liner | Polycoated kraft paper with 3M 300LSE branding |
| Tape Color | Semi-transparent / translucent |
| Total Roll Length | 50 meters (164 ft) |
| Available Width Options | 3mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 20mm, 30mm |
| Nominal Thickness | 0.15 mm (excluding liner) |
| Long-Term Temperature Resistance | 93 C (200 F) |
| Short-Term Temperature Resistance | 148 C (300 F) |
| Initial Tack | High instant grab |
| Full Cure Time | 72 hours at 21 C (70 F) |
| Moisture Resistance | Resistant to ambient humidity, steam, and water splash |
| Recommended Storage Temperature | 15 C to 27 C (60 F to 80 F) at 40-60% RH |
Practical Application Scenarios
Step-by-Step Installation Guide
- Thoroughly clean both the substrate surface and the LED strip back using a 50:50 mixture of isopropyl alcohol and water to remove all oil, dust, and wax residue.
- Allow the cleaned surface to dry completely for at least 2 minutes at room temperature (ideal application window is 21 C to 38 C).
- Unroll the required length of 3M 300LSE tape, aligning it flat against the back of your LED strip or aluminum channel without stretching.
- Apply firm, even thumb or roller pressure along the paper backing to ensure 100% surface contact and eliminate trapped micro-bubbles.
- Carefully peel away the printed kraft paper release liner from one end to expose the second adhesive face.
- Position the LED strip on your target mounting surface and press firmly along the entire length with at least 15 psi (100 kPa) of direct contact pressure.
- Allow the bond to cure undisturbed; the adhesive reaches 50% ultimate strength in 20 minutes, 90% after 24 hours, and 100% full strength after 72 hours.
- Do not apply to dusty, flaking, or chalky drywall surfaces without prior priming, as the tape bond can pull loose paint off the wall.
- Avoid application at temperatures below 10 C (50 F); if installing in cold conditions, warm the mounting surface gently with a heat gun to activate tackiness.
- Do not touch the exposed acrylic adhesive with bare fingertips, as skin oils will reduce ultimate bonding force.
- Match the tape width to your strip PCB: use 8mm tape for 8mm single-color strips, 10mm tape for standard RGB strips, and 12mm tape for wider RGBW strips.
What's in the Box
- ✓1 roll of 50-meter 3M 300LSE double sided adhesive tape (in ordered width: 3mm to 30mm)

Frequently Asked Questions
Q: how to stick led lights on ceiling
A:Clean the ceiling surface thoroughly with isopropyl alcohol, cut the 3M 300LSE double sided tape to match your run length, apply it along the LED strip backing, press it against the ceiling with firm finger pressure, and support corner turns to let the bond set.
Q: can you stick led lights on wall
A:Yes, you can stick LED strip lights on painted drywall, tile, wood, and concrete walls using 3M 300LSE tape, provided the surface is clean, dry, and sealed.
Q: Which tape width should I order for my LED strip lights?
A:Measure your LED strip PCB width: select 8mm for standard single-color SMD 2835 and 3528 strips, 10mm for 5050 RGB strips, 12mm for 5-pin RGBW strips, and 15mm or wider for dual-row or high-output commercial LED strips.
Q: How long does 3M 300LSE double sided tape take to reach maximum stickiness?
A:The adhesive reaches roughly 50% strength after 20 minutes, 90% strength after 24 hours, and full 100% bonded cure strength after 72 hours at room temperature.
Q: Can this adhesive tape withstand heat from high-wattage LED strips?
A:Yes, 3M 300LSE handles continuous operational temperatures up to 93 C (200 F) and short-term thermal spikes up to 148 C (300 F) without softening or losing shear adhesion.
