Product Information

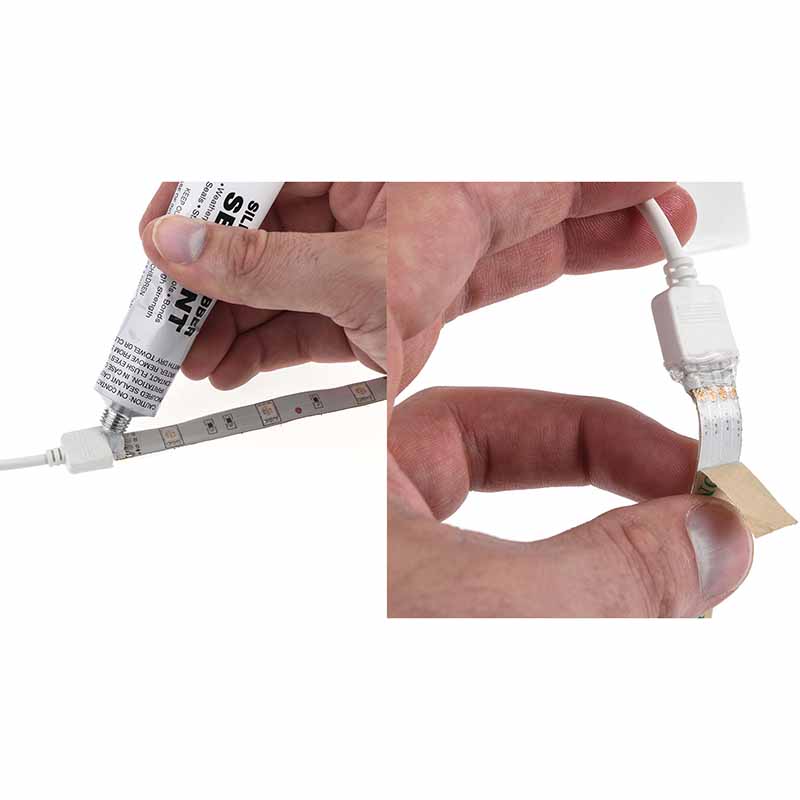

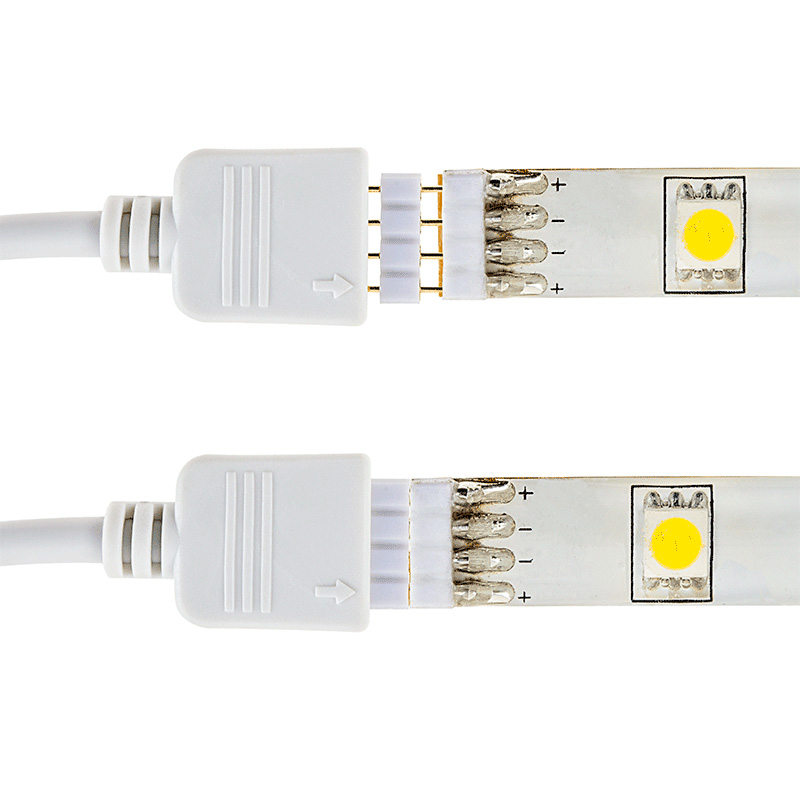

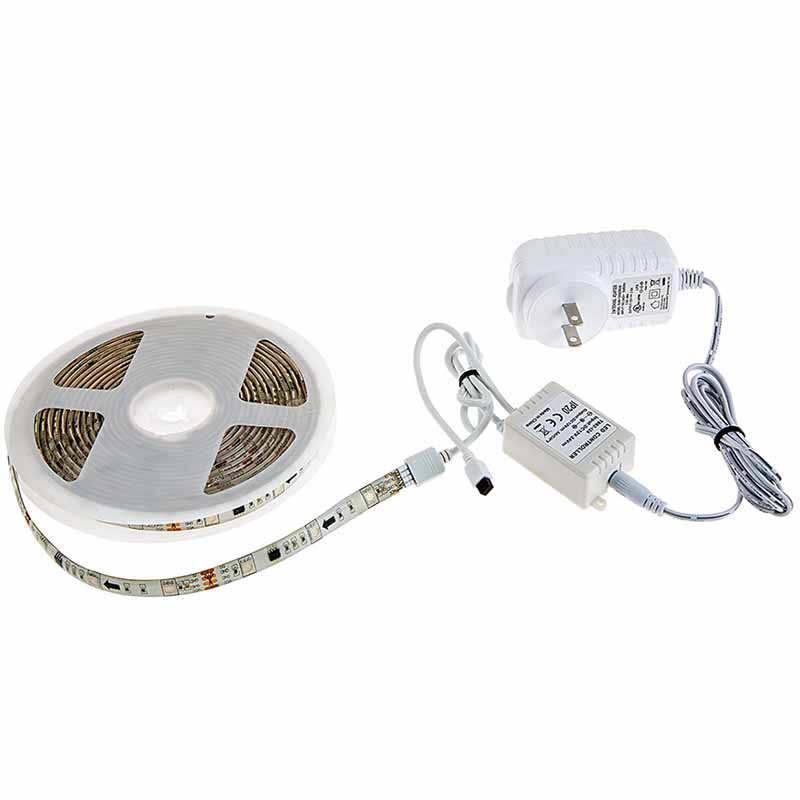

This complete Universal Weatherproof Color-Chasing RGB LED Light Strip Kit provides years of outdoor illumination on decks, patios, gazebos, walkways, driveways, and railings but can also be used indoors. The flexible 16-1/2' strip has 150 Epistar RGB LEDs (5050 SMD) with an output of 264 lumens. Colors and color modes (color chase, flash, jump, meteor and static) are adjustable with the hand-held IR remote. The plug-and-play strip light uses a standard two-prong outlet and installs easily with a peel-and-stick adhesive backing. The silicone-encased strip is weatherproof for year-round outdoor use and is designed to last 50,000 hours. It operates within a 12-14.5V DC range and can be cut into 3-LED addressable segments. The kit includes 1 color-chasing RGB LED light strip, Dream-Color Dynamic controller (non-weatherproof) with 4 connectors and IR remote, 12V DC power supply (non-weatherproof) and mounting clips.
Current Draw @ Operating Voltage: 1280mA
Dimmable: Yes
IP Rating: Weatherproof IP65
LED Color: RGB
LED Density: 9 LEDs/ft.
Minimum Cut Length: 100mm (3.9in)
Operating Temperature: -20~+50 °C (-4~+122 °F)
Remote Control: Infrared (IR)
Special Features Complete Kit, Plug and Play, Remote Control, Sequencing Effect
Standards And Certifications: CE, RoHS Compliant, UL Listed
Strip Width: 10mm (0.39in)
UL File Number: E357850
Controller Specifications
Input Voltage: 12VDC
Rated Current: 5A Max
Wattage: 36W Max
Water Resistance: Non-weatherproof IP20

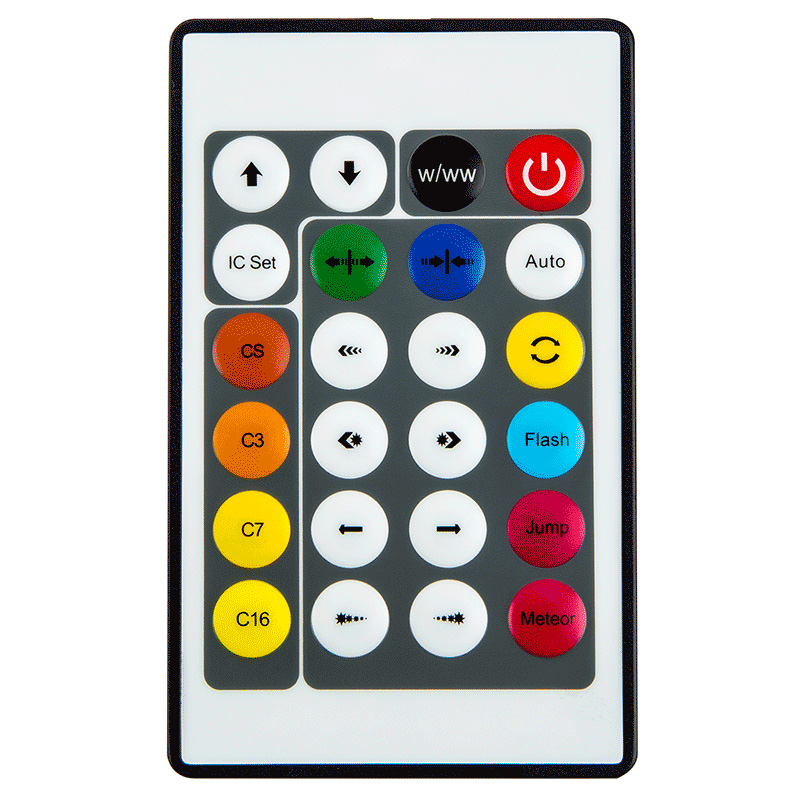

Remote Specifications
Type: Infrared (IR)
Maximum Range: Up to 9m (30'), line-of-sight
Battery Type: 1 x CR2025
Power Supply Specifications
Input Voltage: 100~240VAC
Input Frequency: 50~60Hz
Output Voltage: 12VDC
Output Current: 0.9A Max
Total Power Consumption: 15.4 Watts Max
Wire Length :151cm(59.5in)
Current Draw @ Operating Voltage: 1280mA
Strip Specifications
Full Length: 196.9in (16.40ft)
Section Length: 10cm (3.94in)
Strip Width: 10mm (0.39in)
Input Voltage: 12VDC
Number of LEDs: 150
LEDs per Segment: 3
LED Color: Color Chasing RGB
LED Type: 5050 RGB SMD
LED Brand: Epistar
LED Lifetime: 50000 Hours
Signal Type: SPI
IC Type: TM1829
Water Resistance: Weatherproof IP65
Beam Angle: 120 degree
Intensity :264 Lumen (16 lm/ft)
Wavelength: 470 nm/525 nm/626 nm
Strip Finish: White
Polarity Sensitive: Yes
Interconnect Length: 12cm (4.7in)
Applications
Gazebo Lights
LED Landscape Lighting
LED Cabinet Lighting
Walkway Lights
Retail Lighting
Patio Lighting
LED Display Case Lighting
LED Kitchen Lighting
Trade Show Lighting
Garden Lighting
