LED Lights For TV WS2811 Dream Color LED Strip Light Kit Tuya Smart APP Control
Related Products
LED Lights For TV WS2811...
$109.98 $93.9815% off
TV LED Lights Addressable...
$99.98
DC5V WS2812B Dream Color...
$45.98-
Special Price: $109.98 $93.9815% off
The HDMI sync box and Ambient Light Kits renders you a thoroughly immersive experience in watching movies or playing games, bringing you into a fabulous vision and sound feast. A must for movie, music and games enthusiasm people.
Normally, as the TV backside led strip is RGB or RGBIC, control by the mini controller with remote OR the WIFI/Bluetooth controller via phone, but it is only running the effects inside the controller, but our product can sync the TV/Screen color to change.
Immersive Viewing Experience: The HDMI sync control box can sync your TV color to your led strip and automatically applies to your TV back lights.
Smart Voice and phone Control: Manage your smart lights with simple voice commands, via Alexa and Google Assistant, or with the Tuya app. Enjoy access to more colors and features like Timer, and Music mode, helping you create the ambience you need.
Dynamic Light Effects: Sync screen mode and music mode, the full color changeable and 12kinds of interesting modes: like Rainbow, breathe effects.
Enhanced Music Mode: The control box of the smart TV LED Lights strip is equipped with a built-in mic, helping you sync them to music. Choose from 3 modes (Rhythm, Spectrum, Electronic music) and jazz up your parties with vibrantly dancing colors.
Install Easily and suitable for all size HDMI devices: Tear off the adhesive and follow the specification to install, and it is suitable for big size devices,like 120inches TV screen.
CCSLKITS-HDMI-TV-L
Specification
Working Voltage: DC12V WS2811 LED strip light
Driver Color Sequence: SPI GRB
Maximum Light Points per Channel: 150 pixels
Pickup: Built-in microphone
Color Range: 16 million kinds
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Connect Type: USB
Control Type: Support Tuya APP control
USB Extension Wire Length: 1m/3.28Ft
PCB Color: Black
PCB Wide: 10mm/0.39in
Color Temperature: Full Color
Beam Angle: 120 degree
Waterproof Rating: IP65
Maximum Current: 4A
Maximum Resolution: 4096*2160(4K)
Support Color Depth: 10/12/16Bit
Length and Density of LED strips:
Below 65 inches: 2.35m/roll, 60LEDs/m
Density of LED strips below 65-90 inches: 3.0625m/roll, 48LEDs/m
LED strip density below 90-120 inches: 4m/roll, 30LEDs/m
Product List
|
TV Size |
LED Strip |
|
Below 65in |
2*3.35m |
|
65-90in |
2*3.0625m |
|
90-120in |
2*4m |
|
Item List |
Quantity |
|
Synchronous lighting control box |
1pcs |
|
HDMI Cable |
1pcs |
|
AC Power Adapter |
1pcs |
|
Fixing Brackets for led strip corner |
4pcs |
|

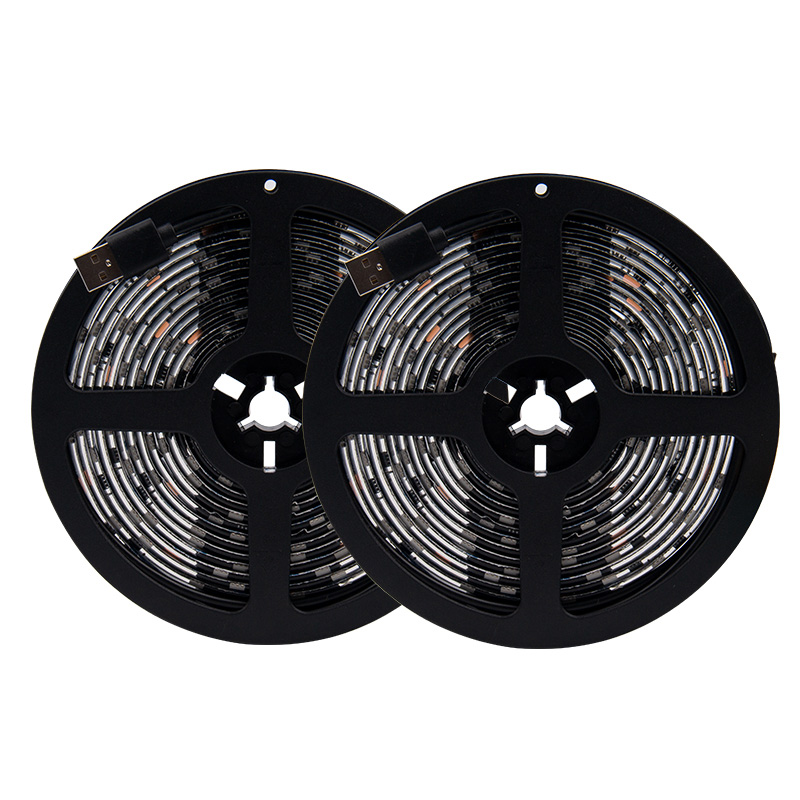

Full color RGB led strip |
2rolls |
|
Manual Instruction |
1pcs |
How to install
1.Install the brackets

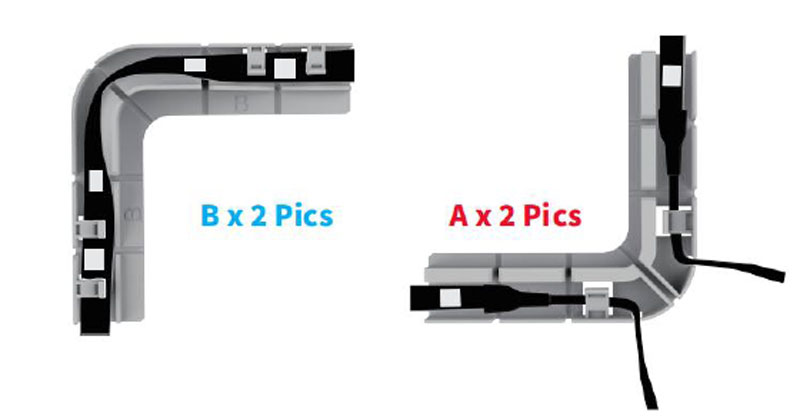

There are 2 bracket A and 2 bracket B,Bracket A should be fixed at two terminal of led strips while bracket B at the turning corner between two terminals. See picture below, you can chose one from (L) or (R).
2.Led strip Installation

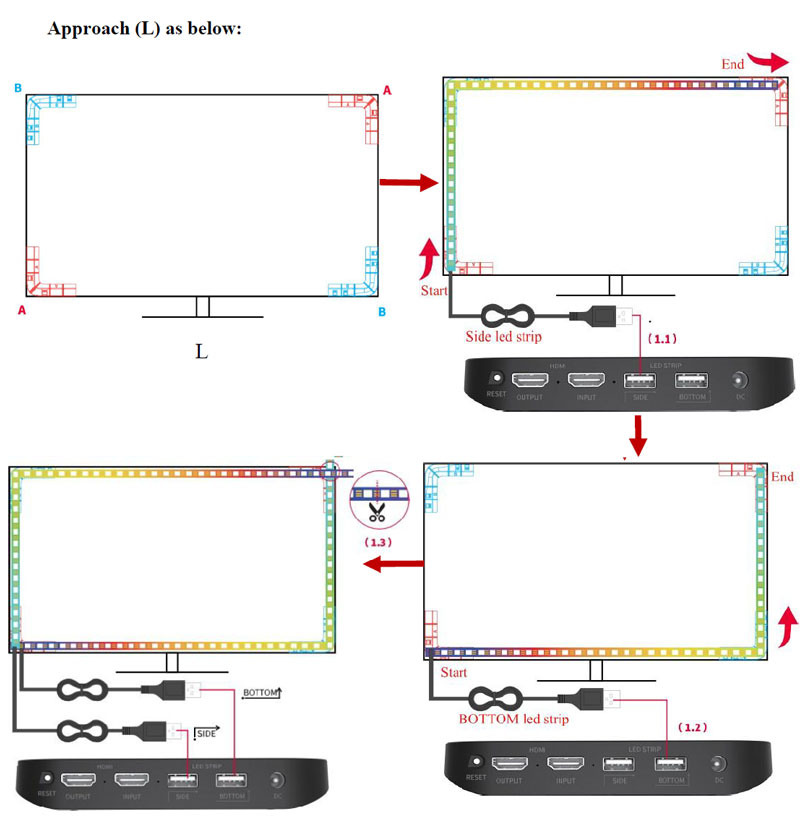

There are 2 approaches installing led strips based on brackets installation. Approach (L) and (R) both can work. You can select one based on your TV port design and cable length for convenience.
Merely approach (L) and (R) is feasible, not a third approach.
1. Facing the back of TV, start from the start ( left bottom corner ), finishing the strips adhesion along from the top to the end (right top corner), then we call this light strip as SIDE strip; (pic 1.1)
2. Start from the start (left bottom corner), finishing the strips adhesion along from the bottom to the end (right top corner), then we call this light strip as BOTTOM strip; (Pic 1.2)
3. Cutting off extra extended strips.

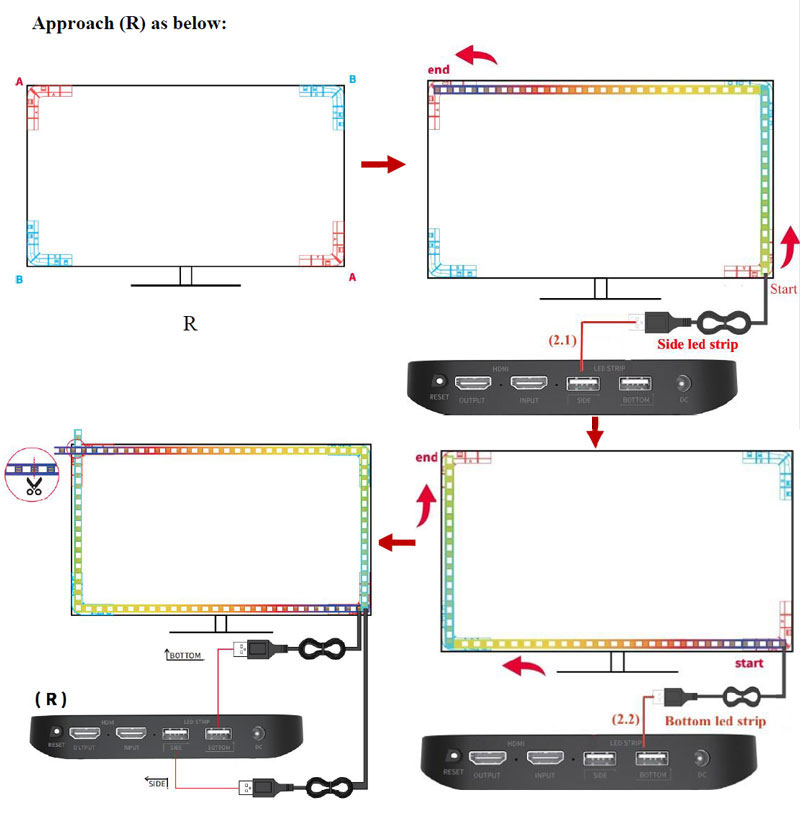

1. Facing the back of TV, start from the start (right bottom corner), finishing the strips adhesion along from the top to the end ( left top corner), then we call it the SIDE strip; (Pic 2.1)
2. Start from the start (right bottom corner), finishing the strips adhesion along from the bottom to the end (left top corner) , then we call this light strip as BOTTOM strip; (Pic 2.2)
3. Cutting off extra extended strips.
After installing the fixing bracket, led strips and connection of the devices via input and output port,finally sequentially power on the HDMI sync box.

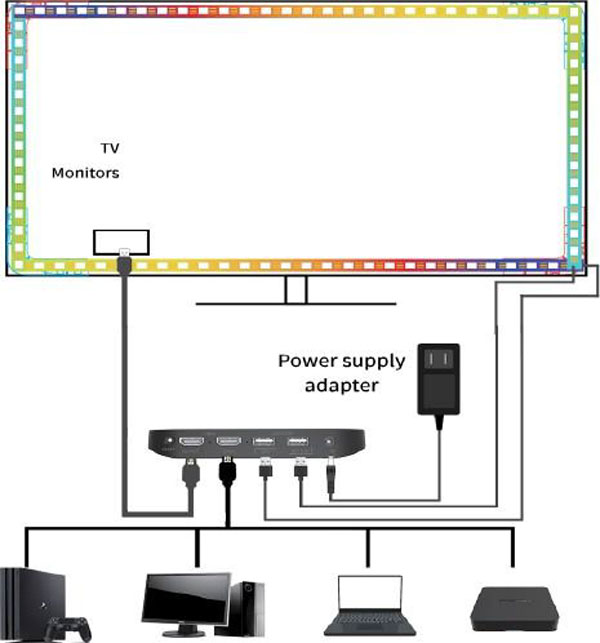

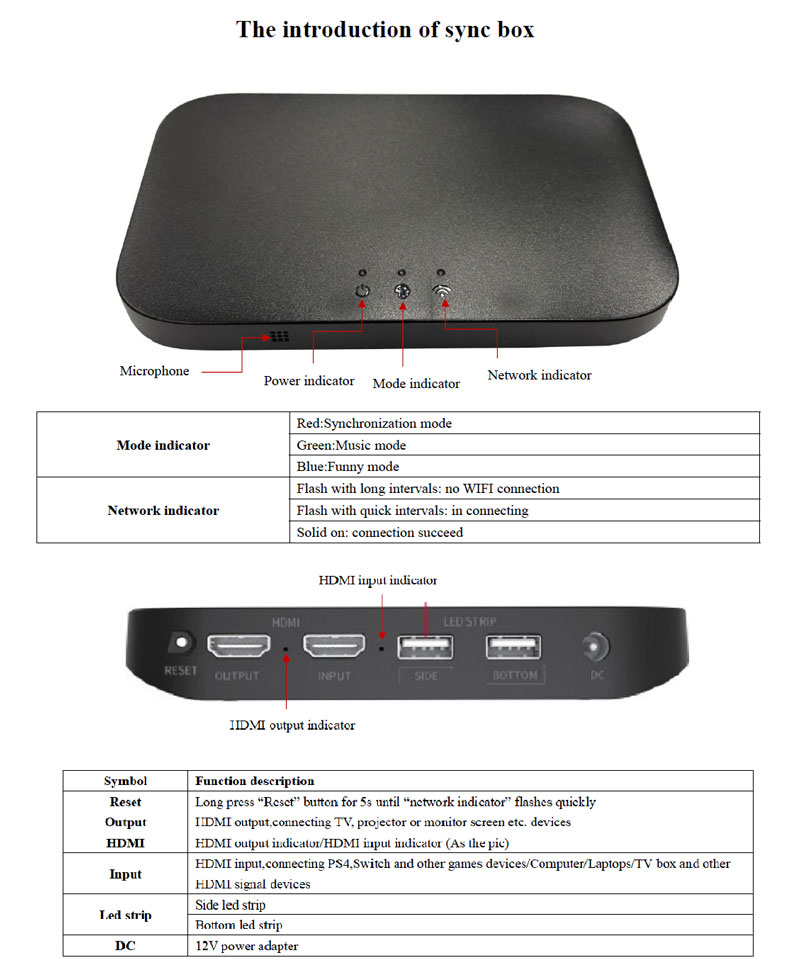

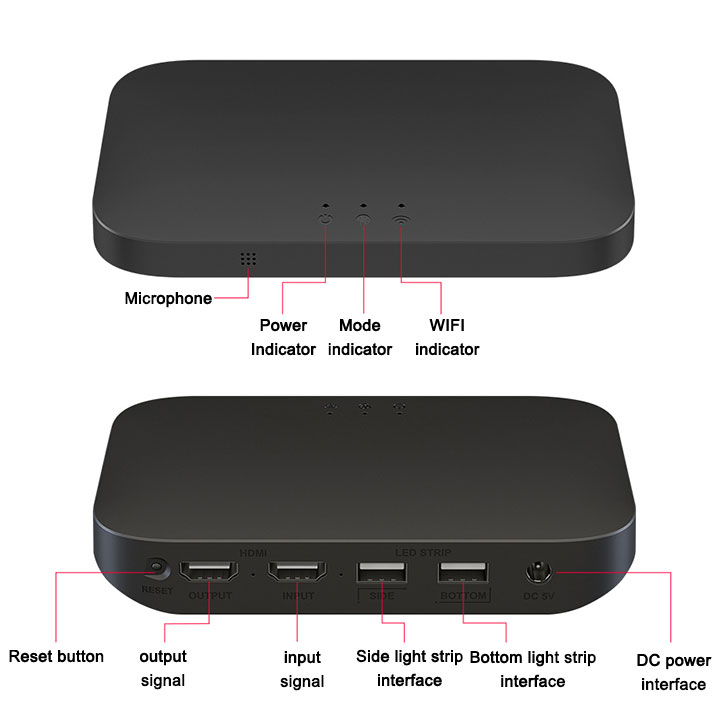

How to connect the TV LED strip light kit?
1. Output port--HDMI cable--TV, projector or monitor screen
2. Input port--HDMI cable--PS4,Switch and other games devices/Computer/Laptops/TV box and other HDMI signal devices
3. DC port--12V power adapter
4. USB port 1(SIDE)--Side led strip
5. USB port 2(BOTTOM):Bottom led strip
How to control the sync box
There are two methods to control the sync box:1.Control by smart phone 2.Control by voice.
1. Control by smart phone:
1.1 Download and install “Tuya APP” on your Android phone or iPhone from Google play or Apple store or Application store;(OR scan below QR code to download directly)
1.2 Open the Application and register to log in.

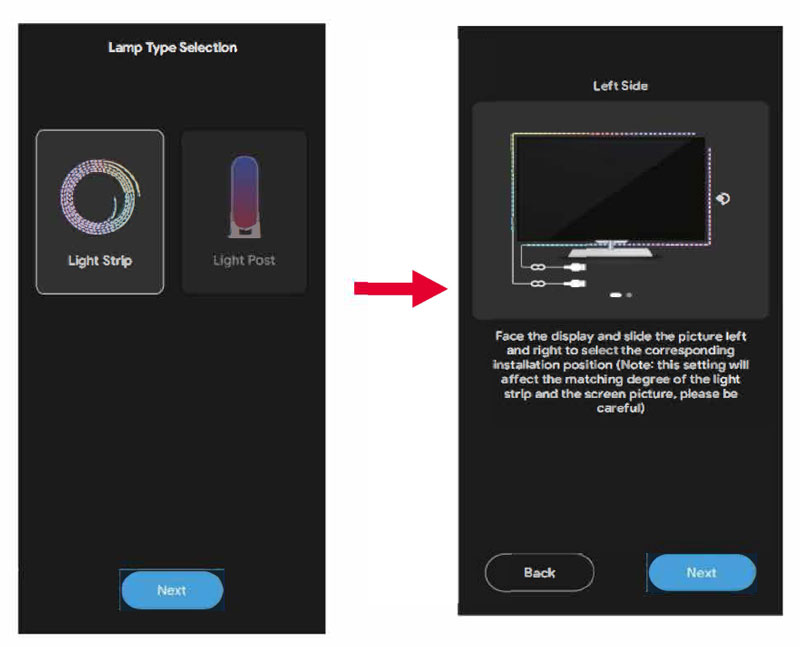

1.3 Select the “light strip" under Lamp type Selection,OR automatic search. 1.4 Based on below choices and you can into the APP and control it.
Please note:

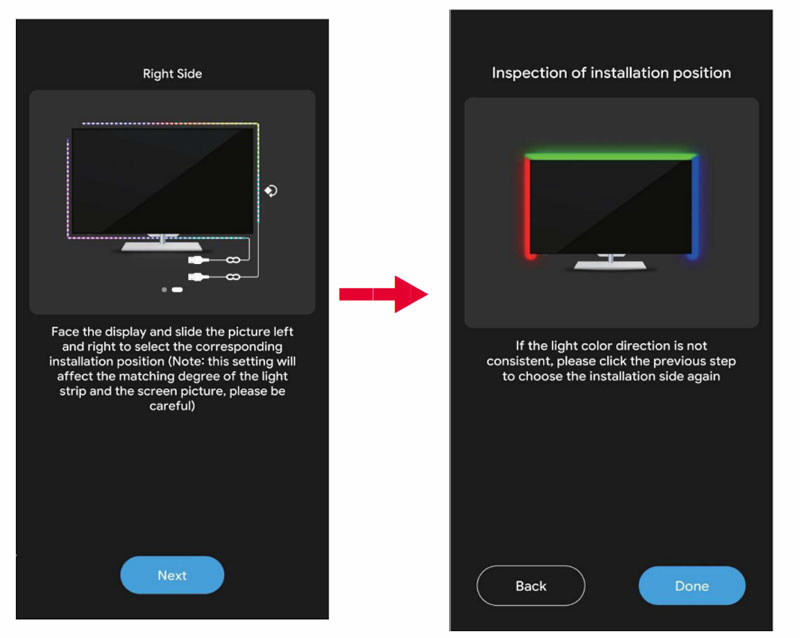

If you select approach (1) in previous bracket & light strips connection, here below please choose the “Left Side” Picture; If you select (2), please choose the “Right Side" Page.
After the light setting is finished, then just start your games, music or movies and enjoy yourself, you can select the mode and intense on your phone.
2. Control by voice:
2.1 In the APP of your phones, you can select one voice support software. Voice APP Supported:
2.2 Register or log in if you have had an account
After the light setting is finished, you can control the mode and intense via voices.
Note
-
The sync box only supports 4K/30P sources. If you need to use it to display higher-level sources, you can use a Selector Switch Boxes to convert it.
-
The sync box doesn’t support two or more phones’ connections meanwhile.
-
You can reset to restore to the factory setting to start again if there is any problem or failure in connection.
-
The box can be controlled via voice control after logging in to the account of the voice assistant.
-
We recommend keeping the item in a dry and ventilated place and get away from wet or humid situations.
-
It’s a normal case the box gets heated after plugging and working for several hours.
-
Please plug it out in time if not using for a period.
Simple QA
Q: There is no connection or any response after plugging in.
A: Please check the resolution of your source is within or equal to 4K/30P, if not, it won’t support. Check the HDMI cable and connection with the input port.
Try resetting the item, there is a reset mark on the Sync box.
Please contact us immediately, we’d address it for you.
Q: How to attach the light strip when going to the two corners?
A: Just let it go along the edge, it won’t matter much though it gets inclined or unstraight.
Q: The light strips fail to light on or the light won’t pace up with the screen.
A: Please check the led strips connection to SIDE and BOTTOM USP port in the L and R type. Meanwhile, just contact us, we’d address this and offer you solutions.
Q: No indicator on for the sync box when plugging with the power supply.
A: Go check the power supply cable and plug in with different plugs. Meanwhile, just contact us, we’d address this and offer you solutions.
