2.4GHz wireless 3 channel RGB LED Controller Set V3+R8-1 For led strip light bar
Mini style controller with 3 channel constant voltage output.
RGB controller, need match RGB remote, create colorful static or dynamic effect.
Full compatibility with a variety of RGB remote.
Smooth dimming and switch without any flickering.
When control RGB light, built in 10 mode, include jump or gradual change style.
Adopt 2.4GHz wireless technology, can accept up to 10 remote control.
Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within 15m, so the remote control distance can be beyond 100m.
Auto-synchronization function, different receivers can work synchronously when they are controlled by the same remote, under same dynamic mode and same speed.
Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
User can customize own RGB change mode list by APP for advanced function.
Work with power repeater to expand output unlimitedly.
Standards and Certifications
Input voltage: 12-24VDC
Output power: 12V, Max 144W 24V, Max 288W
Output current: 3CH, 4A/CH

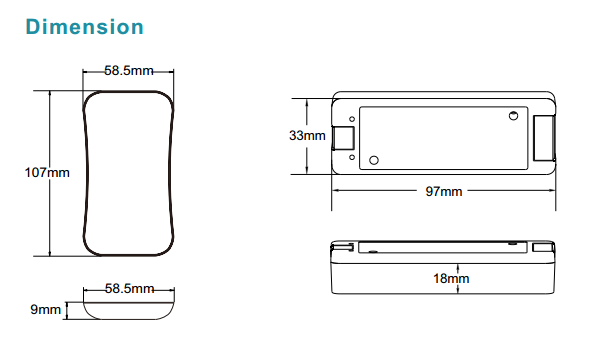

Size: L97×W33×H18mm LED Receiver
Output signal: RF(2.4GHz)
Working voltage : 3VDC(CR2032)
Standby time: 12 months
Remote distance: 30m
