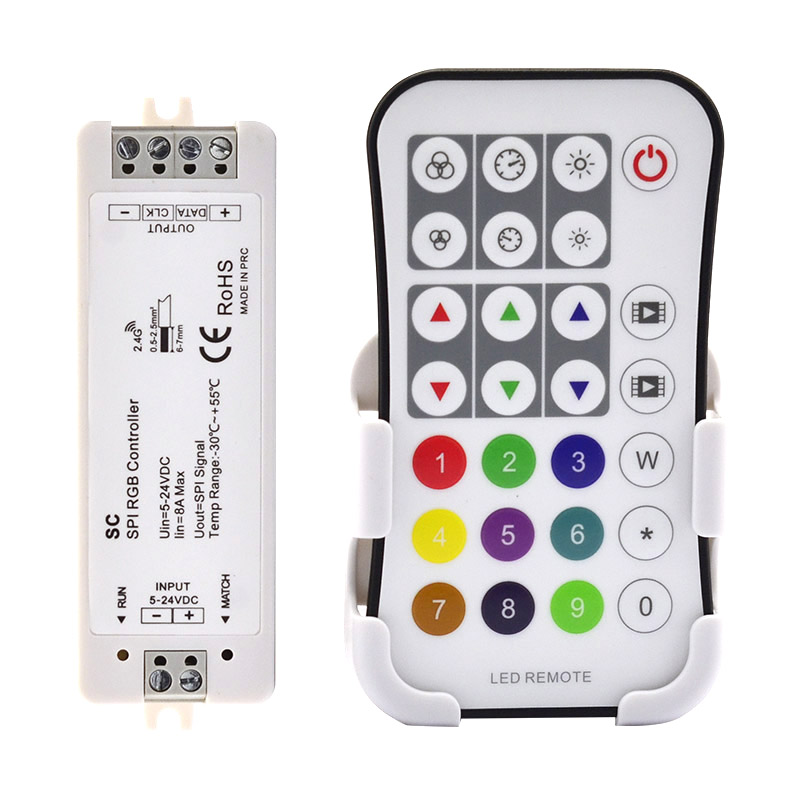

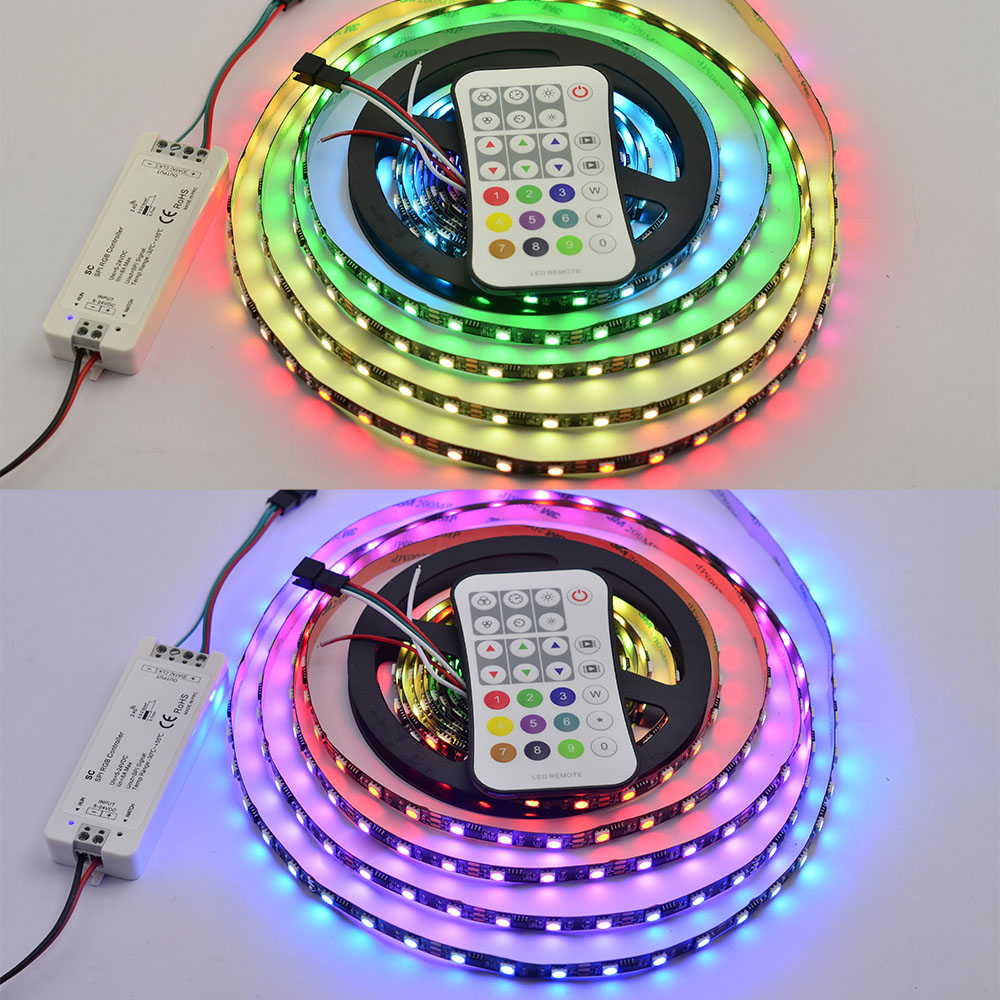

DC5-24V SC+R9 RF 2.4G Wireless Receiver SPI LED Controller For Addressable LED Strip Lights
Input voltage: 5-24VDC
Output signal: SPI
Control dots: 1024
IC type: many, customizable
Working temperature: -30℃~55℃

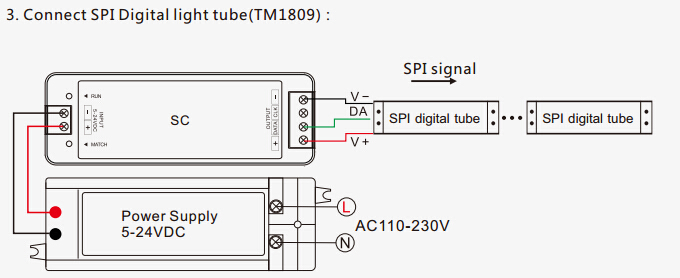

A SPI LED controller which receive RF signal and ouput SPI signal to control a variety of digital IC LED lights.
IC type and R/G/B order can be set through remoter,compatible with multiple LED srtips.
Built in 32 change mode optional, adjustable speed and brightness.
Adopt 2.4GHz wireless technology, can accept up to10 remoters control.
Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
Standards and Certifications

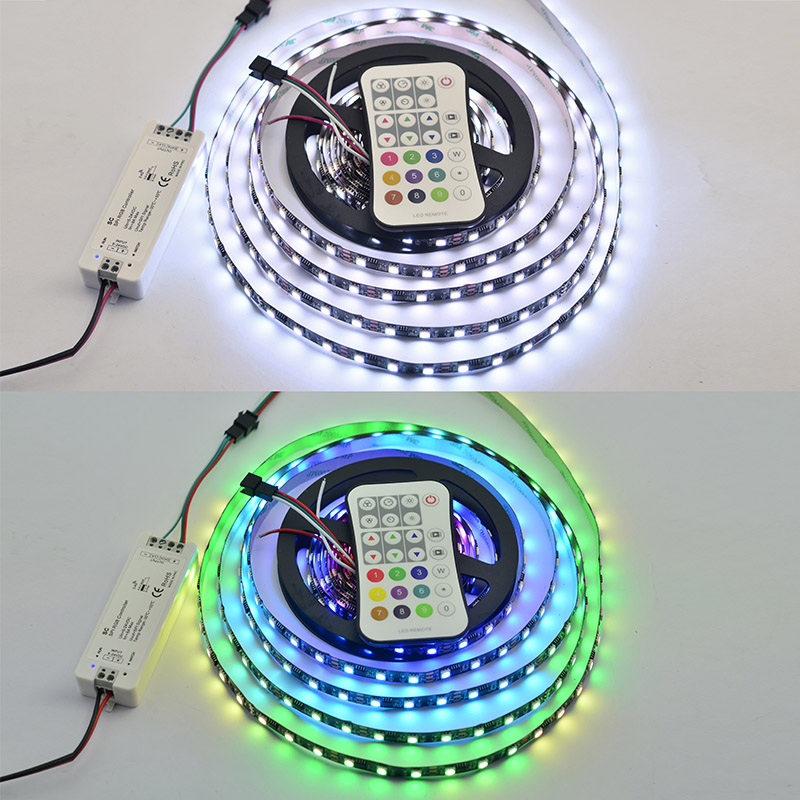

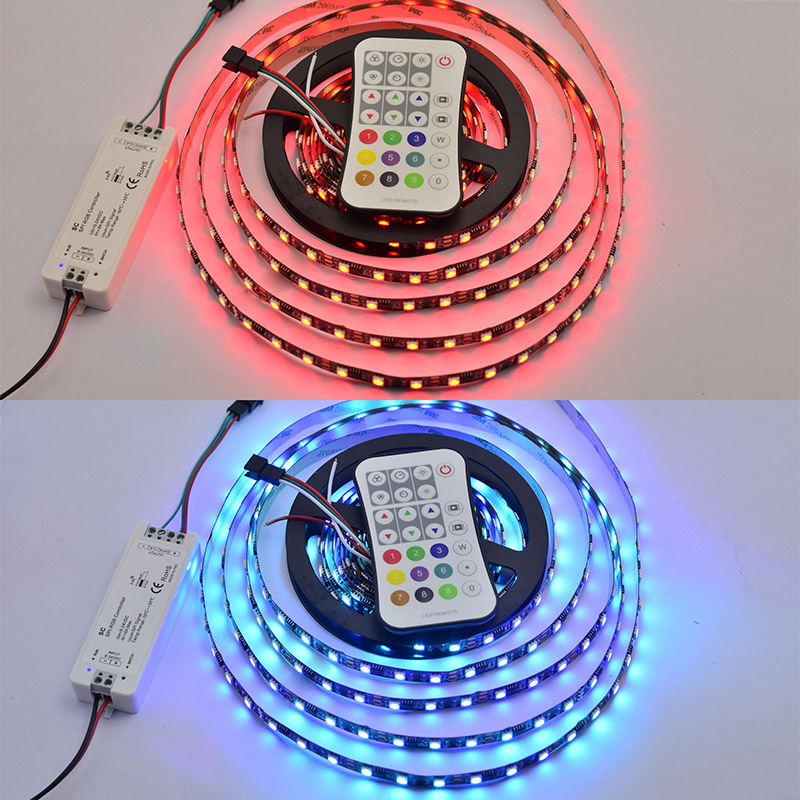

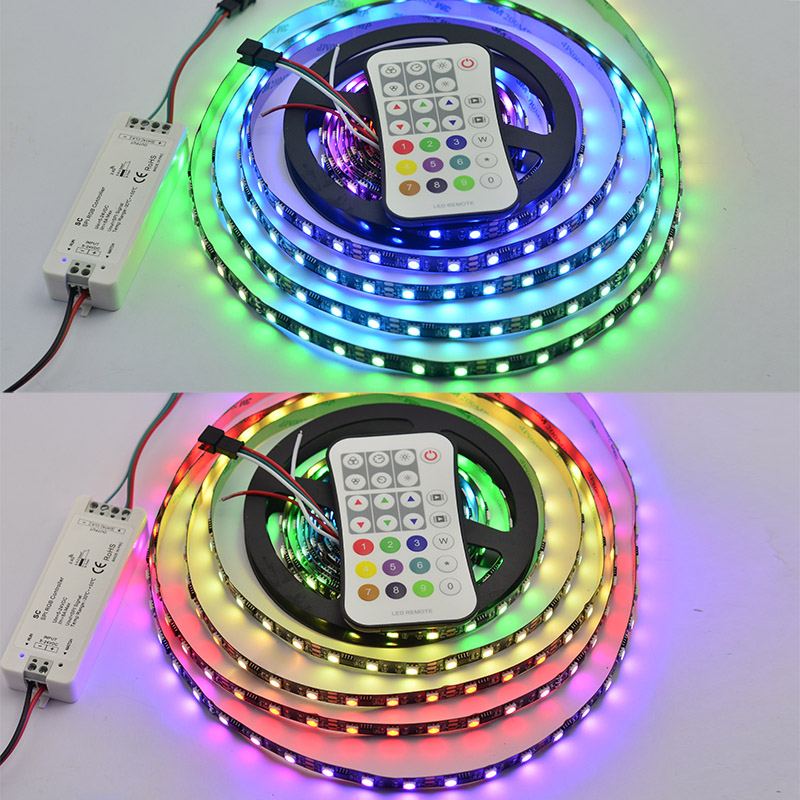

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
