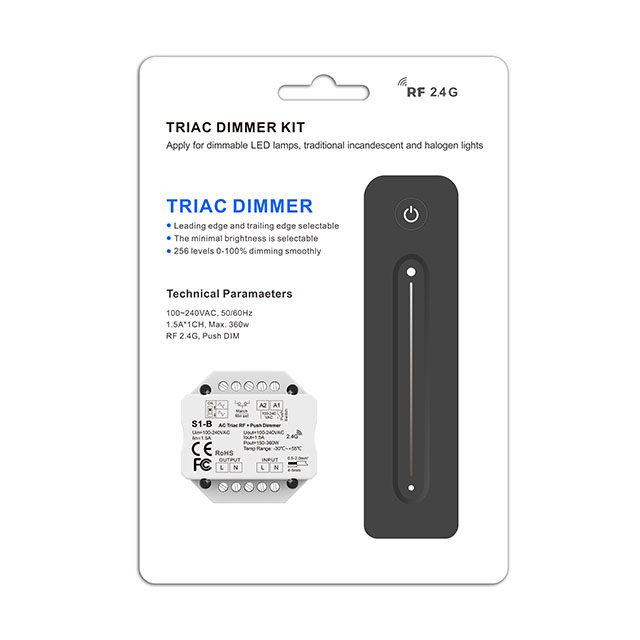

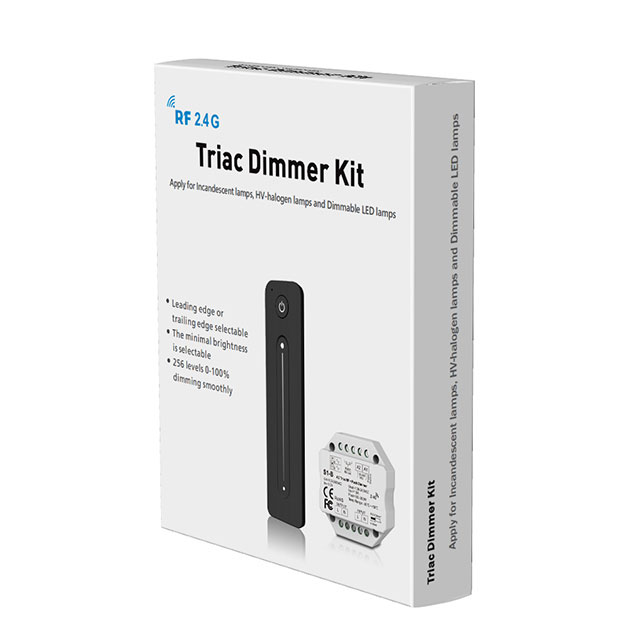

RF AC Triac Dimming Set S1-B+R11, Wall Mounted Dimmer + RF Remote
Check this Wall Mounting RF controller + remote control set for your 1CH dimmable LED lights, incandescent lights, and halogen lights. You can set Leading edge dimming or trailing edge dimming by the dip switch, with settable Min light brightness. Support push switch.
● RF + Push AC phase-cut dimmer, 1 channel output.
● To dim and switch single-color dimmable LED lights, traditional incandescent lights and halogen lights.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Min brightness can be set by key.
● Light on/off fade time 3s selectable.

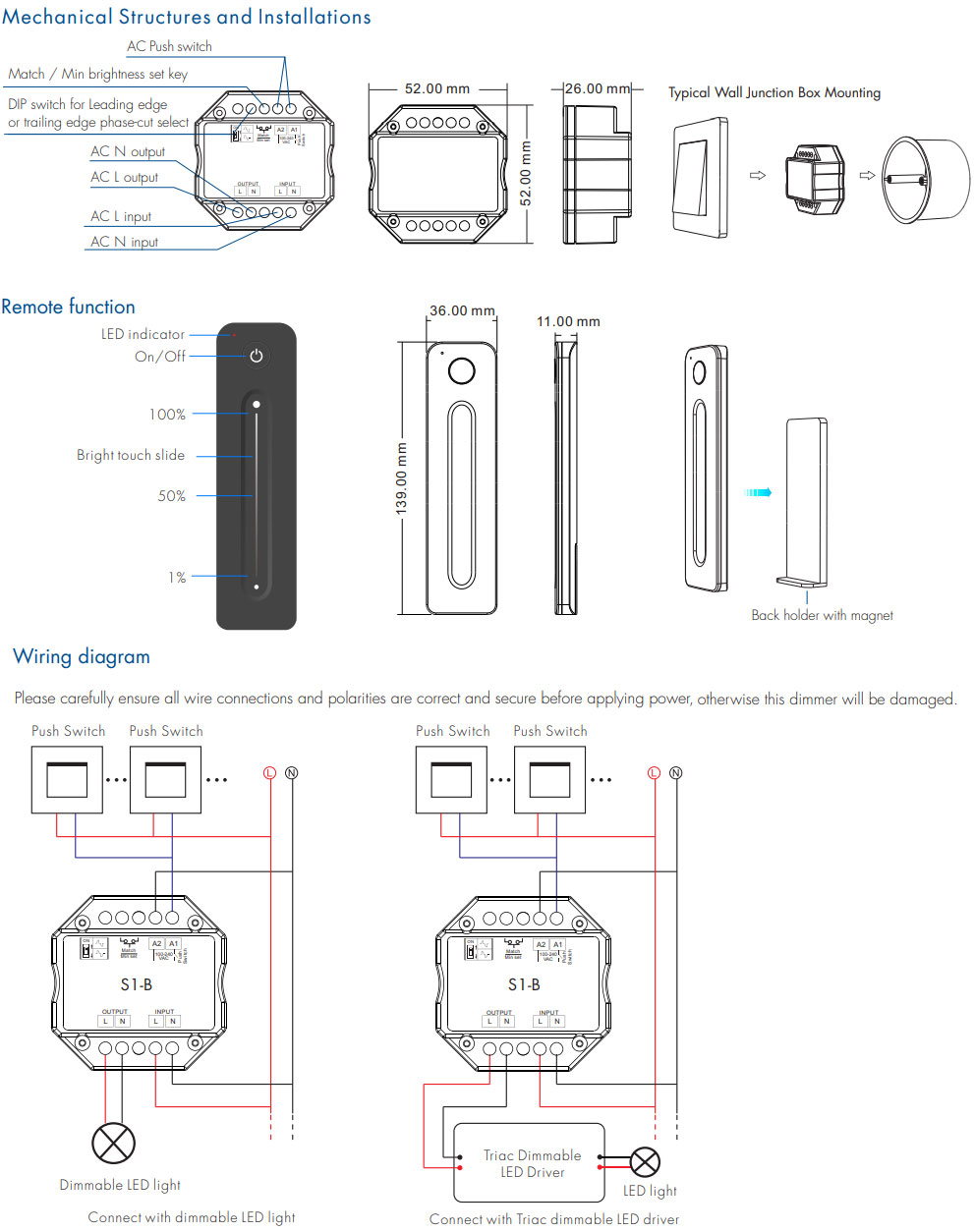

● Connect with external push switch to achieve on/off and dimming function.
● Easy to be inserted into standard 86*86mm wall box.
|Load Type||Maximum Load||Remarks|
|Dimmable LED Lamps||
|Due to variety of LED lamp designs, maximum number of LED lamps is further dependent on power factor result when connected to dimmer.|
|Triac Dimmable LED Drivers||
|Maximum permitted number of drivers is 200W divided by driver nameplate power rating, and make sure the surge current is no more than 2 times 65A.|
|Incandescent Lighting, HV Halogen Lamps||
Standards and Certifications
|Output current:||Max 1.5A|
|Dimming signal:||RF(2.4GHz) + Push Dim|
