Product Information

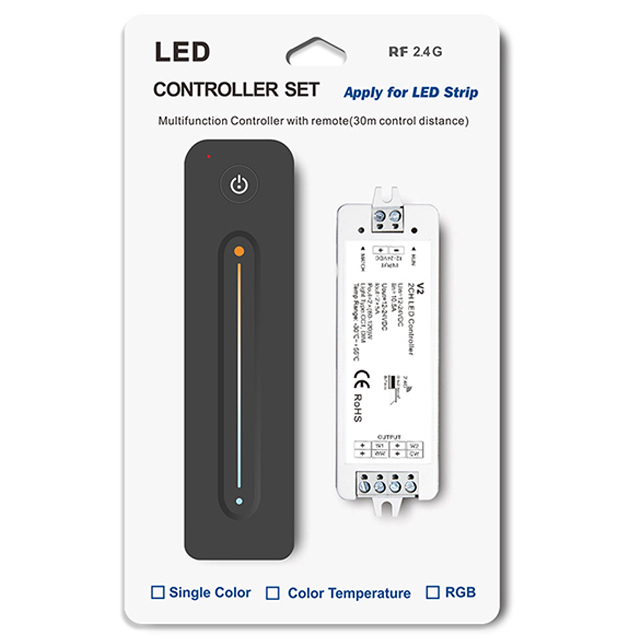

Unlock precise and intuitive control over your tunable white LED lighting with the SkyDance V2+R12 CCT LED Controller Set. This all-in-one kit bundles the powerful V2 constant voltage receiver with the sleek R12 RF remote, providing a complete, out-of-the-box solution for managing dual-color (CCT) LED strips. Effortlessly adjust color temperature from a cozy warm white to a crisp cool white, and fine-tune brightness with smooth, flicker-free dimming.
The reliable 2.4GHz RF technology ensures a stable connection up to 30 meters, making it perfect for residential, commercial, and architectural lighting projects where creating the perfect ambiance is key. This set simplifies installation and operation, eliminating the need to source and pair separate components.
Key Features
Complete Control Kit
Includes both the V2 receiver and the R12 RF remote, providing a perfectly matched and ready-to-use solution.
Precise CCT Adjustment
Seamlessly blend warm white and cool white channels to achieve the perfect light temperature for any mood or task.
Smooth & Stable Dimming
Features 256 levels of smooth, flicker-free brightness control for ultimate lighting comfort and performance.
Reliable RF 2.4GHz Signal
Offers a stable wireless connection with a control distance of up to 30 meters (100ft) in open areas.
Expandable System
One receiver can be paired with up to 10 remotes, and one remote can control multiple receivers for synchronized lighting zones.
Auto-Transmitting Function
Receivers automatically transmit signals to one another, extending the control range for large-scale installations.
Technical Highlights
- Constant Voltage (CV) design specifically for 2-channel CCT LED strips.
- High capacity output: 5A per channel, with a total maximum output of 10A.
- Wide input voltage range of 12-24V DC, compatible with most standard LED strips.
- PWM frequency of 2000Hz ensures smooth dimming without flicker.
- Built-in protection for reverse polarity and short circuits for safe operation.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | V2+R12 Set |
| Receiver Model | V2 |
| Remote Model | R12 |
| Input Voltage | DC 12-24V |
| Output Current | 2CH, 5A/CH |
| Total Output Current | 10A Max |
| Output Power | 120W (12V) / 240W (24V) |
| Output Type | Constant Voltage (CV) |
| Control Technology | RF 2.4GHz |
| Control Distance | 30m (98.4 ft) |
| Dimming Levels | 256 Levels |
| Dimming Range | 0 - 100% |
| PWM Frequency | 2000Hz |
| Operating Temperature | -30℃ ~ +55℃ |
| Protections | Reverse Polarity, Short Circuit |
Application Scenarios
How to Control & Use This Controller
- Step 1: Wiring Connections - De-energize your power supply. Connect your DC12-24V power source to the V+ (positive) and V- (negative) input terminals on the V2 receiver. Connect your CCT LED strip's common anode wire to the output V+, the cool white wire to the 'CW' terminal, and the warm white wire to the 'WW' terminal.
- Step 2: Pairing the Remote - Power on the receiver. Short press the "Match" key on the V2 receiver once. Immediately press the on/off key on the R12 remote. The connected LED strip will blink once to confirm a successful pairing.
- Step 3: Operation - Use the R12 remote to turn the lights on/off. Adjust brightness up or down using the dedicated buttons. Slide your finger on the color wheel to smoothly transition between warm white and cool white.
- Step 4: Unpairing (If Needed) - To delete a pairing, press and hold the "Match" key on the receiver for 5 seconds. The connected LED light will flash, indicating all paired remotes have been removed.
- Always use a power supply with a voltage (12V or 24V) that matches your LED strip.
- Ensure the total current draw of the connected LED strip does not exceed the controller's maximum rating (5A per channel, 10A total).
- Verify correct polarity (+/-) for all power and LED connections before applying power to prevent damage.
- Do not install the receiver in a sealed metal enclosure, as this will block the RF signal.
What's in the Box
- ✓1 x SkyDance V2 CCT LED Receiver
- ✓1 x SkyDance R12 CCT RF Remote Control
- ✓1 x User Manual
Frequently Asked Questions
Q: Is this a complete kit? What else do I need?
A:Yes, this is a complete set including one V2 receiver and one R12 remote. You will also need a compatible 12V or 24V power supply and a CCT (tunable white) LED strip to create a full lighting system.
Q: Can I control multiple lighting zones with one remote?
A:The R12 is a single-zone remote. To control multiple zones independently, you would need a multi-zone remote from the SkyDance series and a separate V2 receiver for each zone.
Q: Can I pair multiple receivers to one remote for synchronized control?
A:Yes, you can pair multiple V2 receivers to a single R12 remote. All receivers will then respond simultaneously to the remote's commands, creating a perfectly synchronized zone.
Q: What is the maximum length of LED strip I can connect?
A:This depends on the power consumption of your LED strip. The controller supports a maximum of 120W at 12V or 240W at 24V. If your strip uses 10W per meter, you could run up to 12 meters on a 12V system.
Q: What does CCT stand for?
A:CCT stands for Correlated Color Temperature. A CCT or tunable white LED strip has two sets of LEDs (warm white and cool white) that can be blended to produce any shade of white light.
Q: What happens if the power goes out? Will it remember the last setting?
A:Yes, this controller has a power-off memory function. It will return to the last brightness and color temperature setting it was on before the power was cut.
