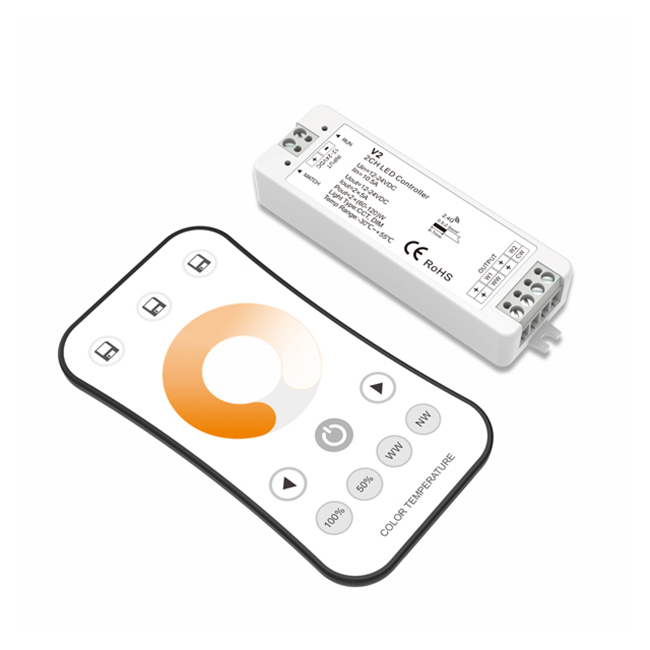

2.4GHz wireless remote Dual color temperature Controller For LED led strip light garage
● Mini-style RF controller with 2 channel constant voltage output.
● Dual color(WW/CW) controller, need match dual color RF remote.
● Smooth dimming and switch without any flickering.
● Full compatibility with a variety of dual color RF remote.
● Adopt 2.4GHz wireless technology, remote distance up to 30m, one receiver can accept up to 10 remote control.
● Auto-transmitting function, one receiver can transmit the signal from the remote to another receiver within 15m, so the remote control distance can be beyond 100m.
● Can be WiFi controlled by APP installed on IOS or Android mobile devices while working with WiFi-Relay controller.
● Work with power repeater to expand output unlimitedly.
Standards and Certifications
LED Remote LED Receiver
● Input voltage: 12-24VDC
● Output power: 12V, Max 120W
24V, Max 240W
● Output current: 2CH, 5A/CH

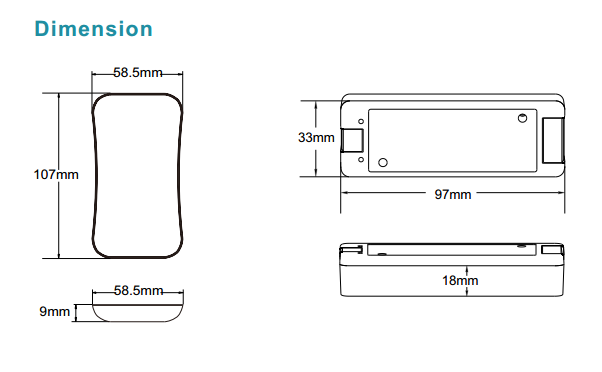

● Size: L97×W33×H18mm
● Output signal: RF(2.4GHz)
● Working voltage : 3VDC(CR2032)
● Standby time: 12 months
● Remote distance: 30m
● Size: L107×W58.5×H9mm
