Achieve seamless and dynamic control over your RGB LED strip lighting with the SkyDance V3+R13 Controller Set. This convenient kit pairs the powerful V3 3-channel constant voltage receiver with the intuitive R13 RF remote, providing a complete, out-of-the-box solution. Designed for 12V and 24V RGB LED strips, the receiver handles a robust 4A per channel, powering up to 144W at 12V or 288W at 24V. The reliable 2.4GHz RF remote offers responsive control over color, brightness, and dynamic modes from up to 30 meters away, even through walls. This set is the perfect choice for both residential and commercial projects requiring simple yet effective multi-color lighting control.
Key Features
Complete Control Kit
Includes a V3 receiver and a matching R13 RF remote, pre-paired for a plug-and-play lighting control solution.
Powerful 3-Channel Output
Delivers a steady 4A per channel (12A total) to effortlessly drive medium to large RGB LED strip installations.
Long-Range RF Remote
Utilizes a stable 2.4GHz RF signal for reliable wireless control up to 30 meters (98 feet) without line-of-sight requirements.
Smooth Dimming & Modes
Features multiple dynamic color-changing modes and precise, flicker-free brightness adjustment from 1-100%.
Wide Voltage Compatibility
Operates on DC 12-24V input, making it compatible with the most common constant voltage RGB LED strip lights.
Auto-Sync Function
Multiple receivers can be controlled by one remote simultaneously for perfectly synchronized color effects across large areas.
Technical Highlights
- Pre-paired V3 receiver and R13 remote for simplified installation.
- Constant voltage PWM output ensures smooth, flicker-free performance.
- Auto-transmitting function: receiver can transmit signals to another receiver within 30m, extending control range.
- One remote can be paired with an infinite number of receivers.
- Compatible with optional WiFi-Relay converter for smartphone app and voice control integration.

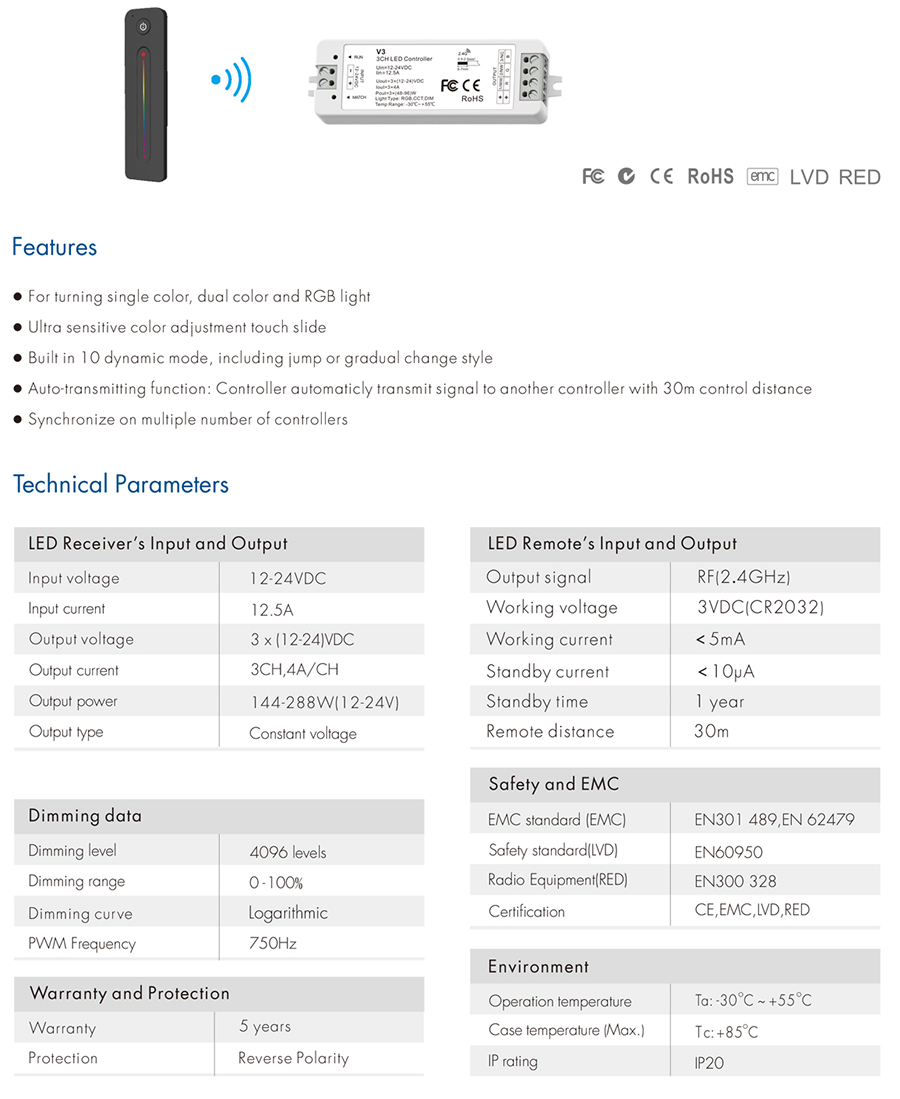

Product Specifications
| Parameter | Details |
|---|---|
| Product Model | V3+R13 Set |
| Receiver Model | V3 |
| Remote Model | R13 |
| Input Voltage | DC 12-24V |
| Output Current | 3 Channels x 4A/Ch |
| Total Output Current | 12A Max |
| Output Power | 144W (12V) / 288W (24V) |
| Output Type | Constant Voltage (CV) |
| Control Method | 2.4GHz RF Wireless |
| Remote Distance | 30m (98ft) |
| Remote Battery | 3V CR2032 (not included) |
| PWM Frequency | 500Hz |
| Dimming Range | 0 - 100% |
| Working Temperature | -30℃ ~ 55℃ |
| Receiver Dimensions | L175 x W45 x H27 mm |
| Certifications | CE, EMC, LVD, RoHS |
Application Scenarios
How to Control & Use This Controller
- 1. Wiring: Connect your DC 12-24V power supply to the controller's 'INPUT' terminals, observing correct polarity (V+ and V-).
- 2. Connect LED Strip: Connect your RGB LED strip to the 'OUTPUT' terminals, ensuring the common anode (V+) and R, G, B wires match the controller markings.
- 3. Pairing Remote: The V3 receiver and R13 remote are pre-paired. To re-pair, short press the 'Match' key on the V3 receiver, then immediately press any key on the R13 remote. The connected LED strip will flash to confirm success.
- 4. Operation: Use the R13 remote to power the lights on/off, select static colors from the color wheel, adjust brightness, and cycle through the built-in dynamic color-changing modes.
- 5. Testing: Power on the system and test all remote functions to ensure proper operation before final installation.
- Always use a power supply with a voltage that matches your LED strip (12V or 24V).
- Ensure the total power consumption of the connected LED strip does not exceed the controller's maximum rating (144W at 12V, 288W at 24V).
- Verify correct polarity for all power and LED strip connections to prevent damage.
- This controller is not waterproof. Install in a dry, well-ventilated location.
What's in the Box
- ✓1 x V3 3-Channel RF RGB LED Controller (Receiver)
- ✓1 x R13 RF RGB Remote (Transmitter)
- ✓1 x User Manual
🚚 Shipping & Warranty
Shipping: We ship worldwide. Orders are processed within 1-2 business days. Standard and expedited shipping options are available at checkout.
Warranty: This product is covered by a 5-year manufacturer's warranty against defects in material or workmanship.
Return Policy: We offer a 30-day return policy on all products. If you are not satisfied with your purchase, please contact us for a return authorization.
Frequently Asked Questions
Q: Is this a complete kit, or do I need to buy the remote separately?
A:This is a complete, pre-paired set that includes one V3 receiver and one R13 remote for immediate use right out of the box.
Q: What is the maximum length of RGB LED strip I can control?
A:It depends on the strip's power consumption (W/m). The controller supports a maximum of 144W at 12V or 288W at 24V. Always calculate your total load to ensure it's within this limit.
Q: Does the remote need a direct line of sight to the receiver?
A:No, this system uses a 2.4GHz RF (Radio Frequency) signal, which can travel through walls and other obstacles up to 30 meters away.
Q: Can I control multiple V3 receivers with just one R13 remote?
A:Yes, you can pair one R13 remote to control multiple V3 receivers. This allows you to synchronize the color and effects of different LED strips perfectly.
Q: Is this controller waterproof?
A:No, the V3 receiver is designed for indoor use only and should be installed in a dry, well-ventilated location away from moisture.
Q: Can I control this with a smartphone app or Alexa/Google Assistant?
A:Not directly. However, it is compatible with an optional SkyDance WiFi-Relay converter (sold separately) which adds support for app and voice control.
Q: What type of battery does the R13 remote use?
A:The R13 remote is powered by a standard 3V CR2032 coin cell battery, which is not included with the set.
