SK6812 5050SMD WW/NW/CW Digital Intelligent Addressable LED Chip, DIY LED Chip, 100PCS By Sale
The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.
The SK6812 is very similar to the WS2812B, and it can be used as a drop-in replacement in most applications because it features the same interface and color order (so LED strips based on the SK6812 and WS2812B can be chained together). The main difference between the two drivers is that the SK6812 has voltage-independent color and brightness over a wide voltage range, which means that the colors of the LEDs should not be affected by a drop in the supply voltage as much as they are on the WS2812B.
Standards and Certifications

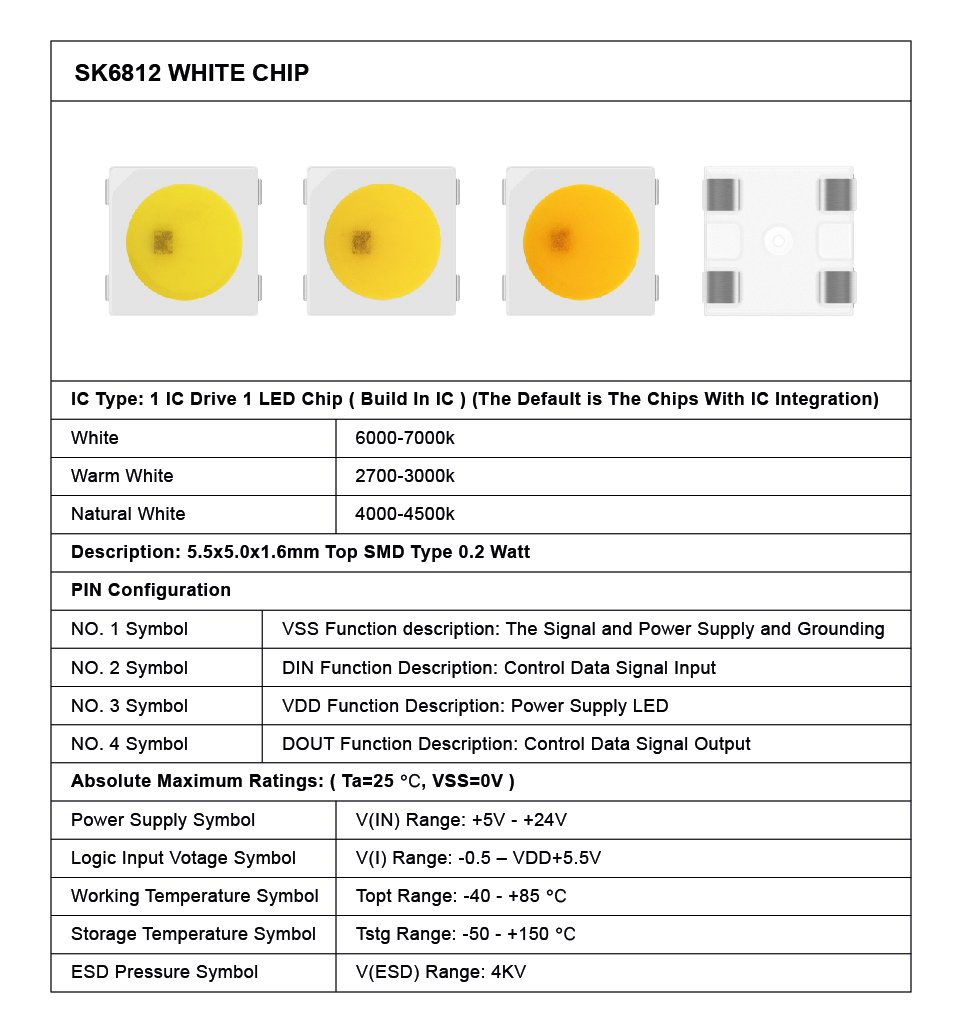

LED Chip Model: SMD5050
LED Resource: SK6812 LED
IC Type: SK6812 IC (1 IC drives 1 led chip)
PCB color: White/Black Available
Protection Rate: Non-waterproof

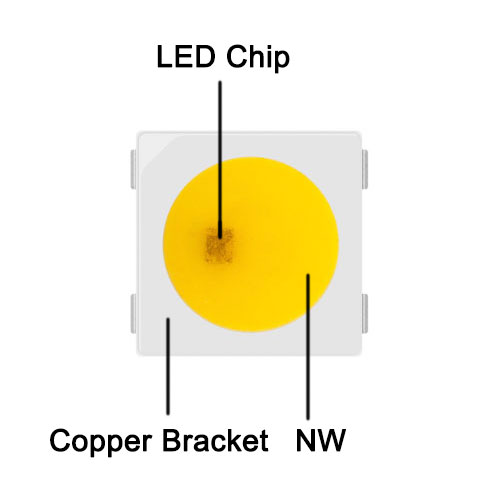

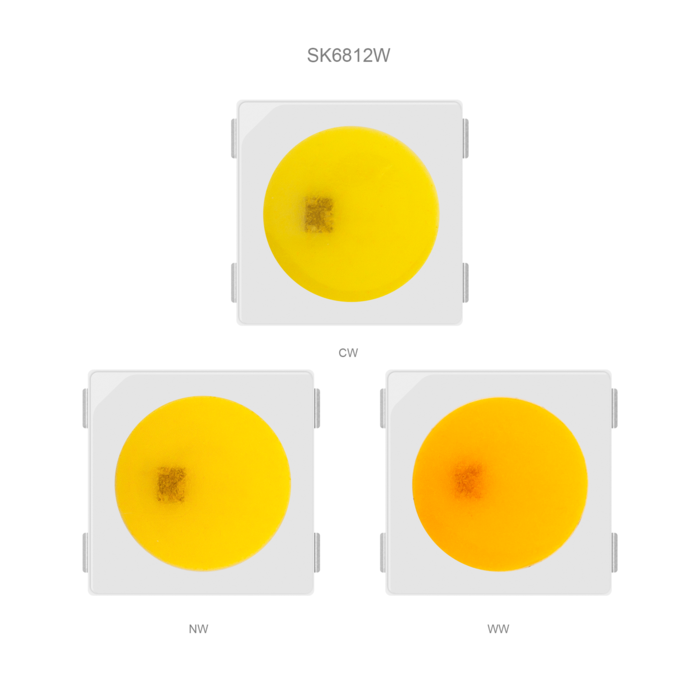

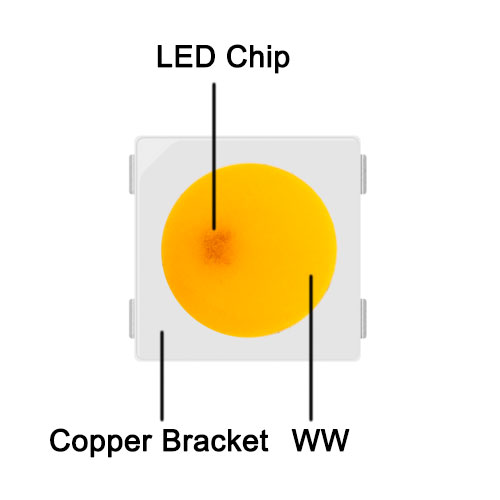

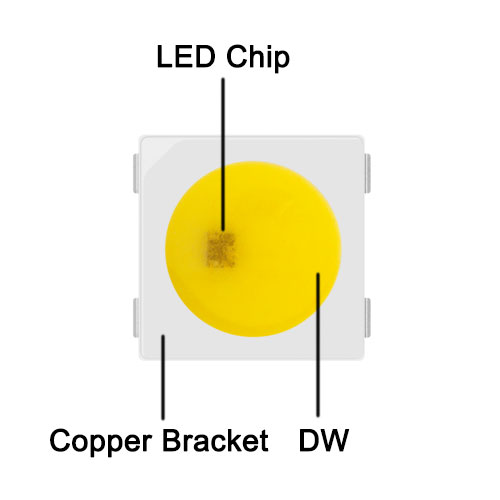

Color Temperature: WW/NW/DW
