WS2812 24 x 5050 RGB Neopixel Ring With Integrated Drivers

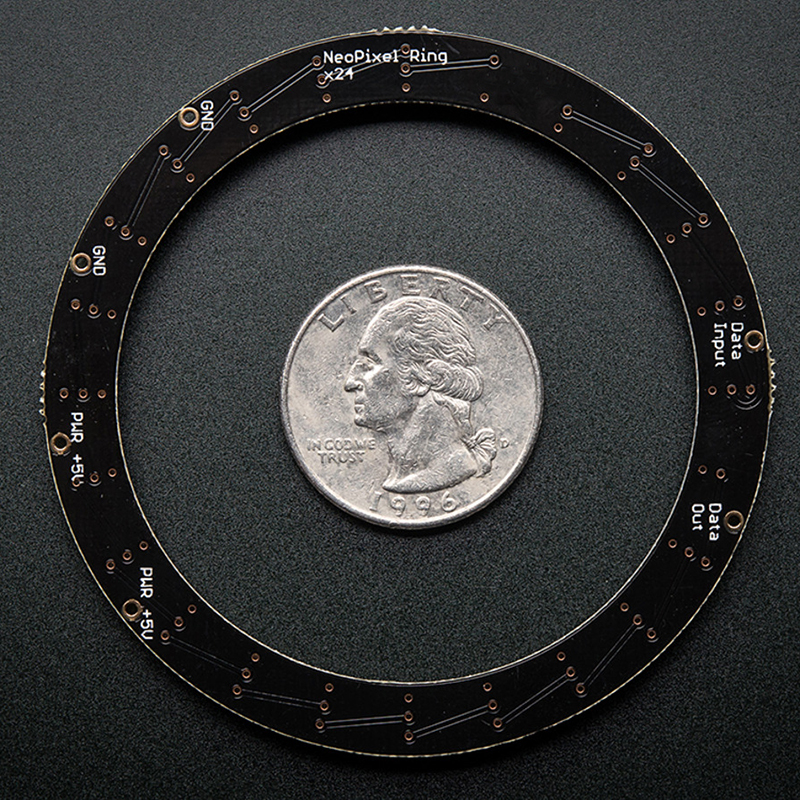

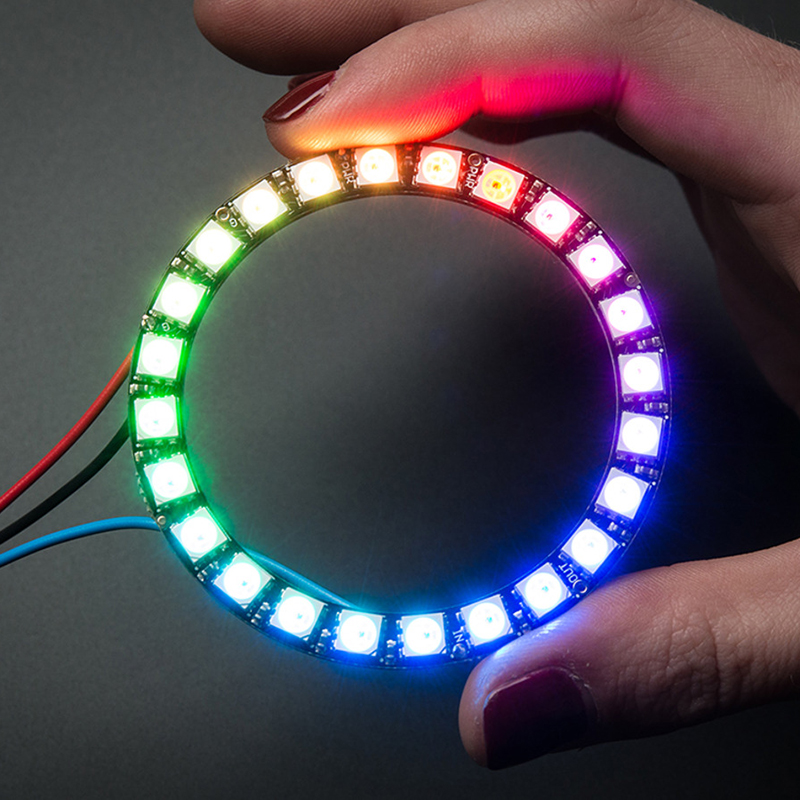

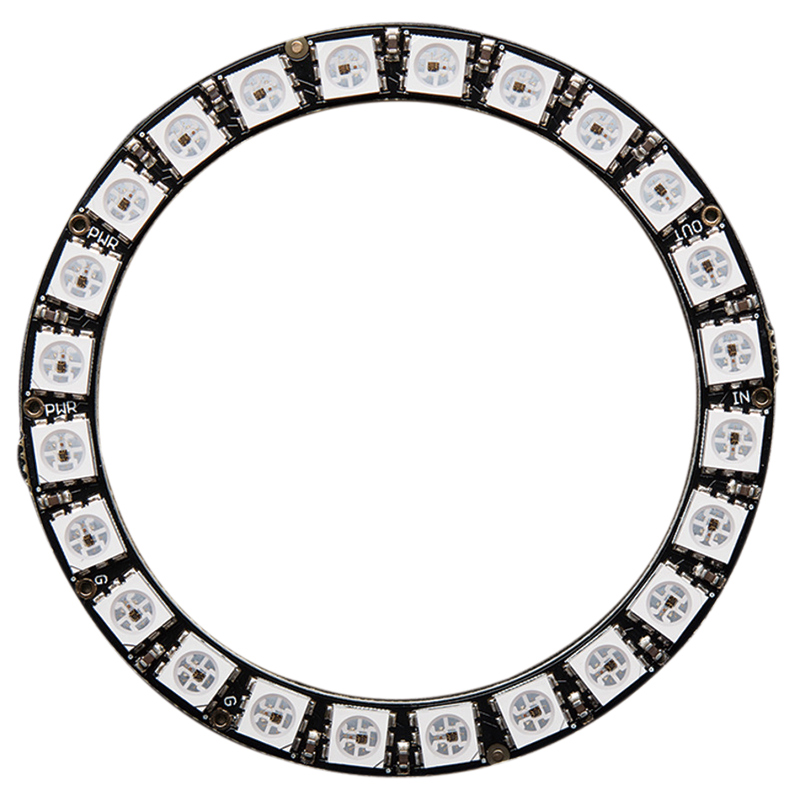

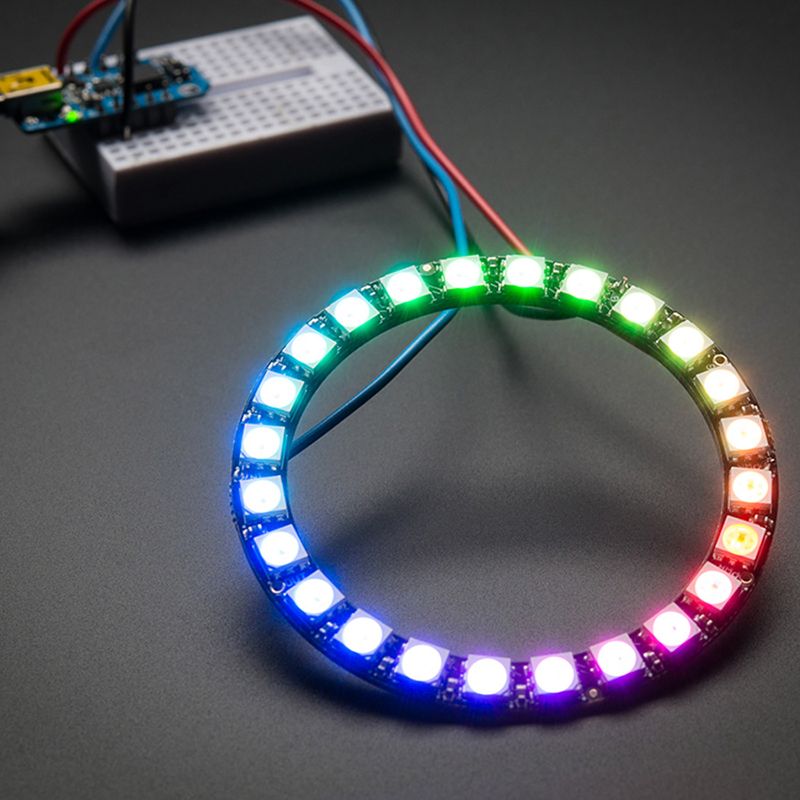

24 ultra-bright smart LED NeoPixels are arranged on a circular PCB with an outer diameter of 2.6ft (66mm). These neopixel ring shaped RGB lights can be simply cascaded through the output pins to connect one to the other input pins (DI-DO). By cascading this way, you can control as much as possible with only one single-chip microcomputer pin. LED lights. Each LED integrates a WS2812 driver chip inside, which makes our LEDs smart and addressable. The driving current of each LED lamp is the same, so the colour of each LED lamp is highly consistent, even if the voltage changes, it will not affect the brightness of the lamp beads. Neopixels has a built-in signal shaping circuit. After receiving the signal, any pixel will undergo waveform shaping and then output it to ensure that the line waveform distortion will not accumulate. The circular design of the ring-shaped lamp makes the whole product look simple and clean.
Single-wire communication can minimize the pressure on the I/O port of the single-chip microcomputer. In addition, this addressable RGB LED light uses the WS2812 driver chip so that the peripheral circuit only needs a capacitor to meet the circuit needs, and the circuit can be made simple and beautiful. Enjoy beauty. The three primary colours of each pixel circle maker can achieve 256 levels of brightness display, complete the full true colour display of 16,777,216 colours, and the scanning frequency is not less than 400Hz/s.
Standards and Certifications
Work Voltage: DC5V
LED Quantity: 24 LEDs
IC Chip: WS2812
Outer diameter: 65.6mm / 2.6"
Inner diameter: 52.3mm / 2.1"
Thickness: 6.7mm / 0.3"
