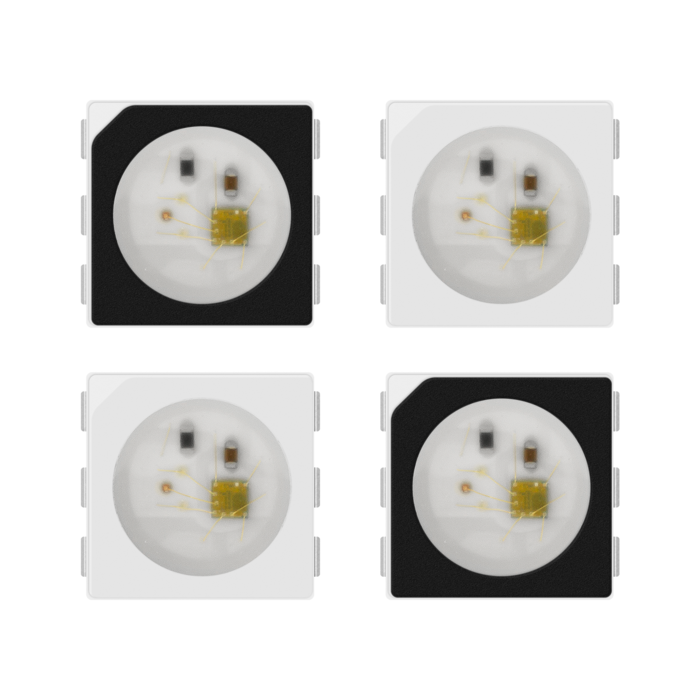

WS2813/CS2803 RGB 5050SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 100PCS By Sale

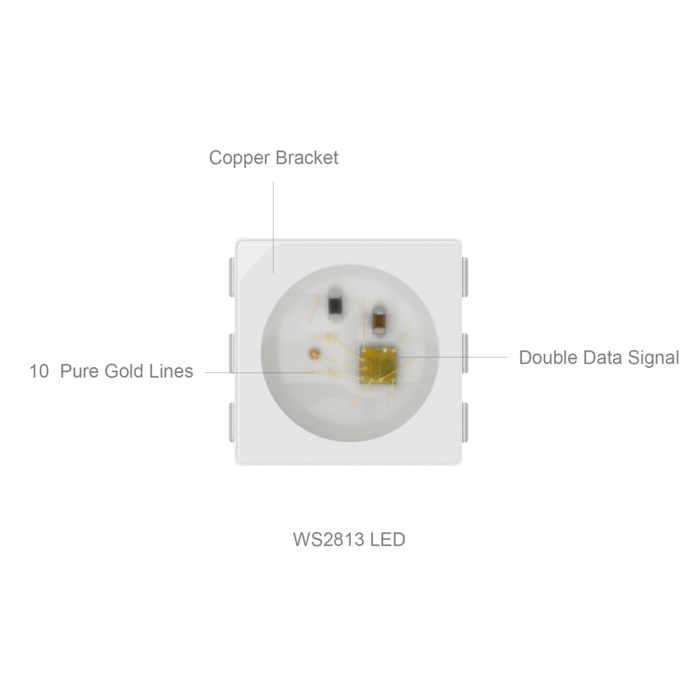

WS2813 /CS2803 LED have the following advantage:
1. Any pixel’s failure won’t affect signal transfer and its total emitting effect. Unless two consecutive adjacents LED is Broken.
2. Integrated capacitor and resistance enable the circuit of PCB is more simple, easy to make.
3. 250us or more of reset time, it won’t cause wrong reset while interruption, it works on the lower frequency and inexpensive MCU. l Refresh Frequency updates reach to 2KHz, Low Fram Frequency and no Flicker appear in HD Video Camera, improving excellent display effect.
Standards and Certifications

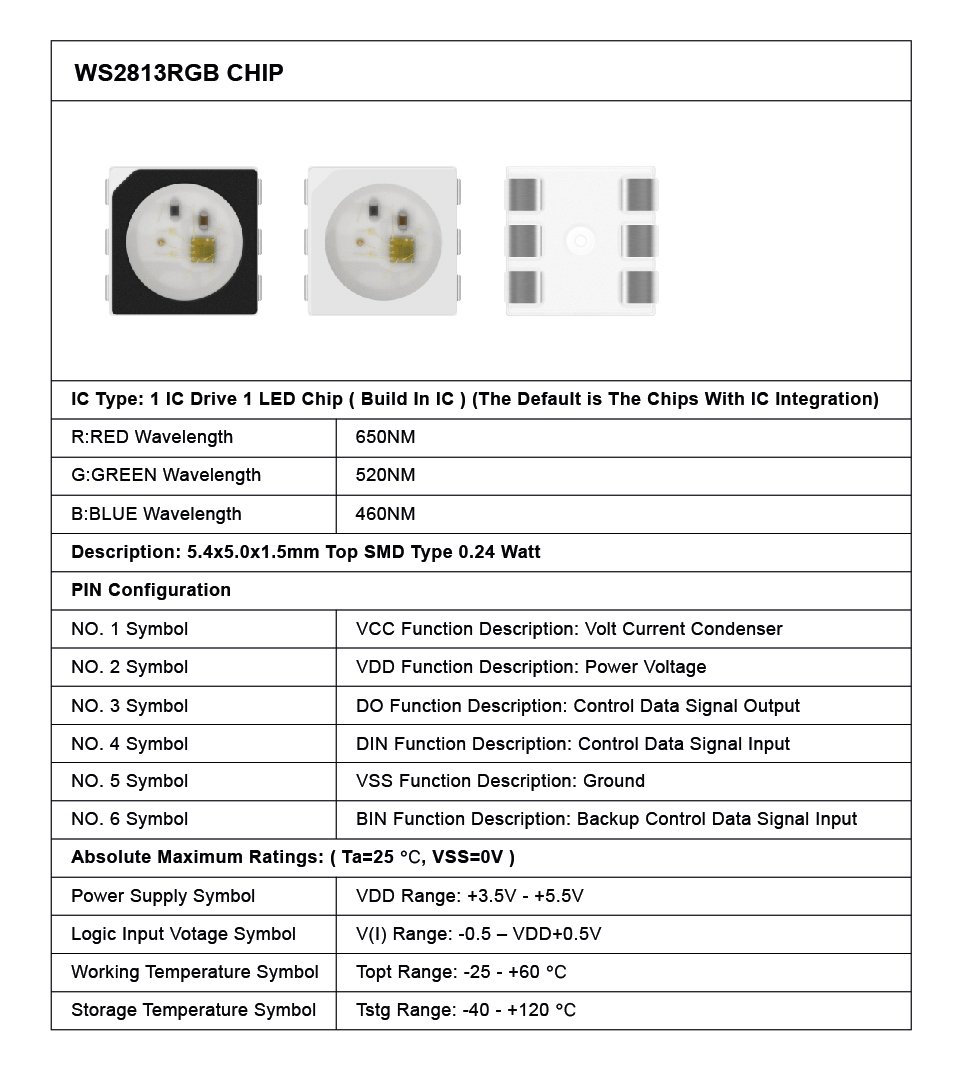

LED Chip Model: SMD 5050
LED Resource: WS2813 /CS2803LED
IC Type: WS2813/CS2803 IC (1 IC drives 1 led chip)
PCB Color: White/Black Available
Protection Rate: Non-waterproof
LED Quantity: 100pcs
