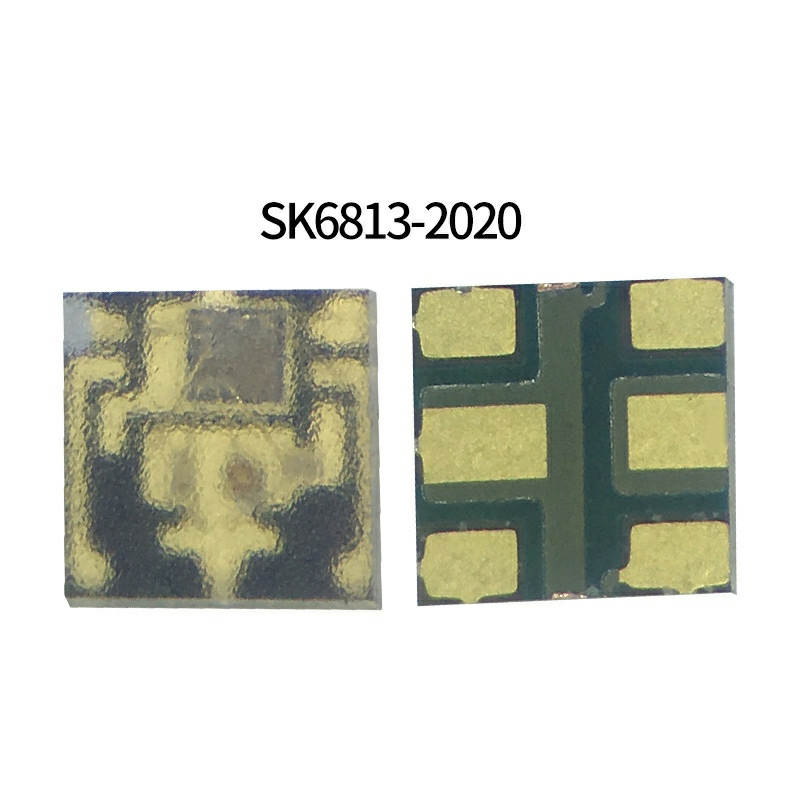

SK6812/SK6813/SK9822/ RGB 2020SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 100PCS By Sale

Model: SK6812/6813/9822-2020-RGB CHIP
SK6812/SK6813/SK9822/ RGB 2020SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 100PCS By Sale
  • SK6812/SK6813/SK9822/ RGB 2020SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 100PCS By Sale
  • SK6812/SK6813/SK9822/ RGB 2020SMD  Digital Intelligent Addressable LED Chip, DIY LED Chip, 100PCS By Sale
  • SK6812/SK6813/SK9822/ RGB 2020SMD  Digital Intelligent Addressable LED Chip, DIY LED Chip, 100PCS By Sale

Select Specifications:

Select Quantity:

Select Waterproof Rating:

$29.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
10
$29.98
10-19
$29.38
20-49
$28.48
50+
$27.28
* Discounts may vary based on options above
Qty: -+Min:  10
*Mixed OFF

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Features

    1. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you.

    2. The top SMD integrates high quality external control line series cascade constant current IC internally.

    3. It has a very little size with 2.0mm*2.0*0.9mm, which has much more advantage for the smaller than 5050 led with 5.0*5.0mm.

    4. These tiny surface-mount LEDs are an easy way to add a lot of very small(but bright!) colorful dots to your project.Cause they are tiny ,so it may be a bit difficult to hand solder, SMT techniques with solder paste and hot air will work best here.

    5. RGB chip in the control circuit and EC2020 component, forming complete pixel control, color uniformity and consistency.

    6. The typical data transmision frequency is 800 Kbps, and when the refresh rate is 30 frames per second, the amounts of cascade exceed 1024 points.

    7. Applications:Telecommunication, office automation,home appliances, industrial equipment, Status indicator, Signal and symbol luminaire,  Front panel backlighting, Full-color strip, Indoor decorative lighting/curtain display.



    Standards and Certifications

    DC5V CE FCC RoHS ISA SGS ISO LIFETIME warranty led factory



    Specifications

    LED Chip Model:   SMD 2020 RGB

    LED Resource:   SK6812/6813/9822 LED

    IC Type:   SK6812/6813/9822 IC (1 IC drives 1 led chip)

    Voltage:   5V

    LED Quantity:   100pcs

    Power:   0.1W

    Current:   5mA

    Size:   2.0*2.0.0.9mm

    PCB Color:   Black Available

    Protection Rate:   Non-waterproof

    Working Temperature:   -40°C ~ 70°C

    Storage Temperature:   -50°C ~ 120°C

    Gray Scale:   256



    digital rgb addressable led strip applications



    SK6812/SK6813/SK9822/ RGB 2020SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 100PCS By Sale

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

    SK6812/SK6813/SK9822/ RGB 2020SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 100PCS By SaleSK6812/SK6813/SK9822/ RGB 2020SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 100PCS By SaleSK6812/SK6813/SK9822/ RGB 2020SMD Digital Intelligent Addressable LED Chip, DIY LED Chip, 100PCS By Sale
