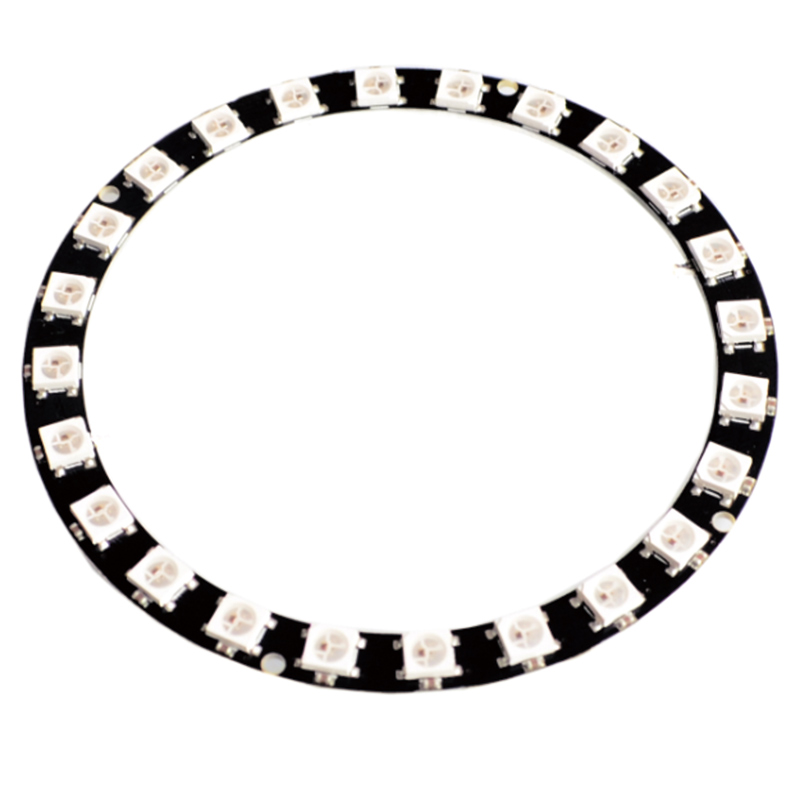

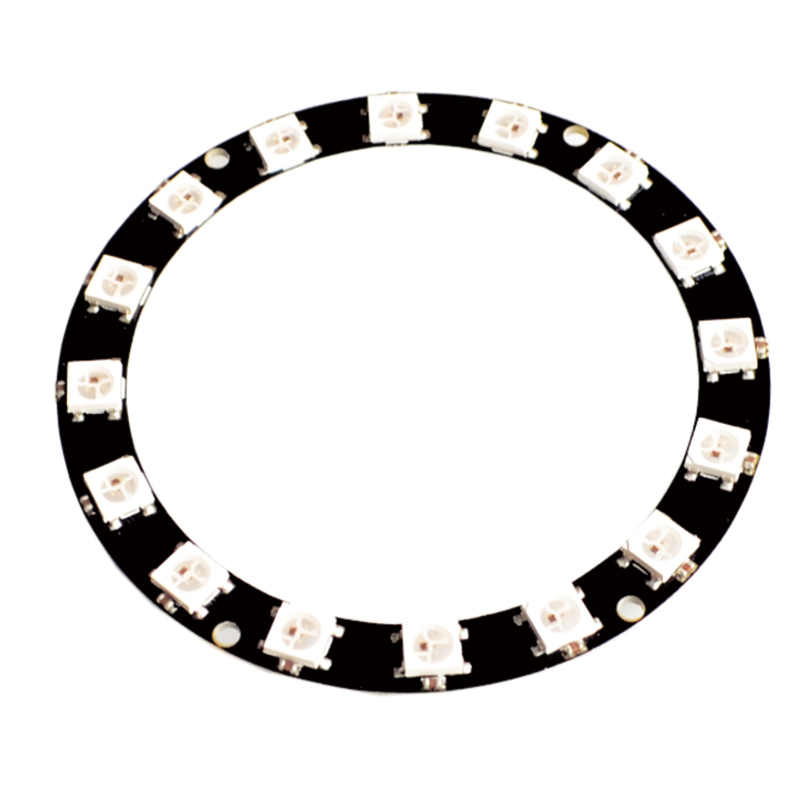

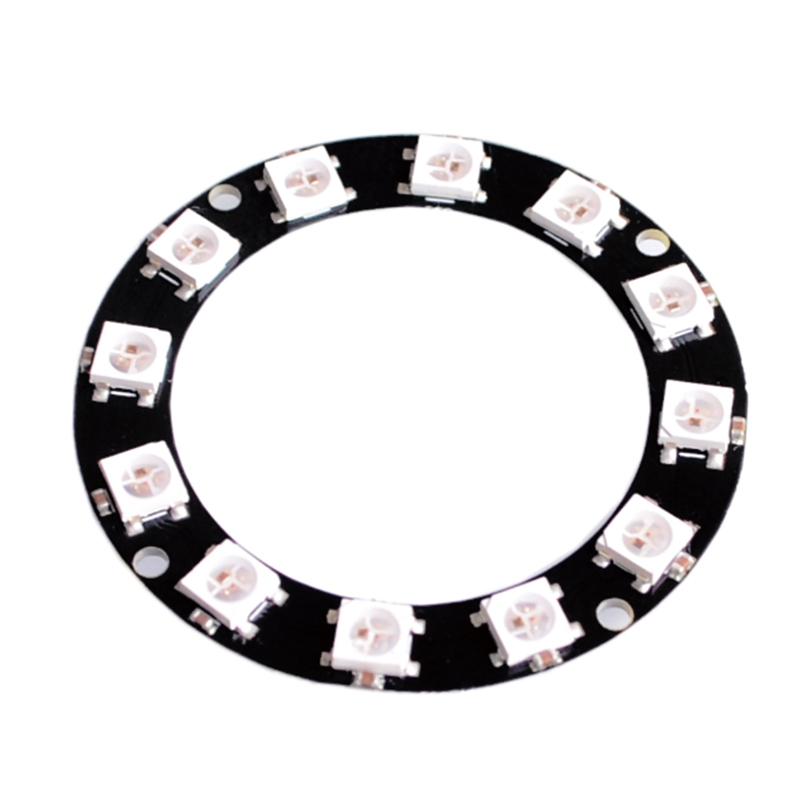

WS2812 1/3/8/12/16/24X5050 RGB Pixel Circle Maker LED With Integrated Drivers
Superlightingled Neopixel's IC control circuit shares a power supply with the LED point light source, with intelligent reverse connection protection, and the reverse connection of the power supply will not damage the IC. These neopixel ring shaped RGB led lights can be simply cascaded through the output pins to connect one to the other input pins. In this way, only one single pin can be used to control multiple LED lights. The serial cascade interface can complete data reception and decoding through a signal line. Single-wire communication can minimize the pressure on the I/O port of the microcontroller. In addition, this RGB lamp uses the WS2812 driver chip so that the peripheral circuit only needs a capacitor to meet the circuit needs, making the circuit simple and beautiful to the greatest possible extent. Give people the enjoyment of beauty. This ring-shaped LED light can be cascaded with another RGB light using the same chip through a DOUT output port, regardless of the ring-shaped limitation. The three basic colors of each pixel lights can achieve 256-level brightness display, and complete true color display of 16,777,216 colors. The current of each pixel led lamp is the same, so the color of each LED lamp is highly consistent, even if the current changes, it will not affect the brightness of the lamp beads.
Main application areas:
LED full-color luminous character string light, LED full-color module, LED full-color flexible light bar, hard light bar, LED guardrail tube.
LED point light source, LED pixel screen, LED special-shaped screen, various electronic products, electrical equipment marquee.
Standards and Certifications
LED Color: RGB
IC Chip: WS2812
PCB Color: Black

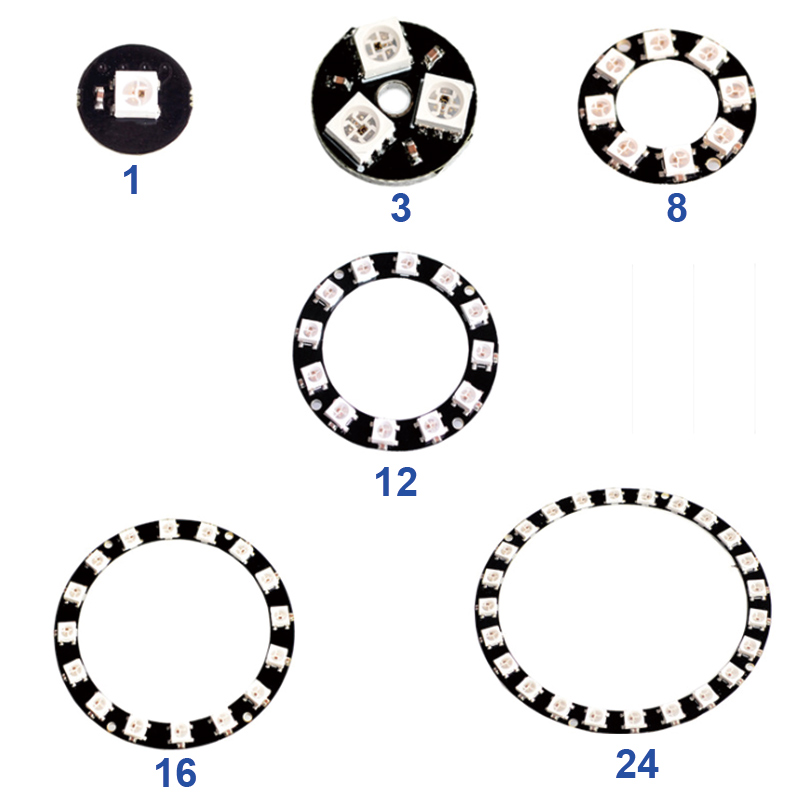

LED Quantity: 1/3/8/12/16/24
