SM16703(Similar to WS2811) DC12V Addressable Dream Color 90LEDs/M LED Strip Light, 16.4ft/5m, Pixels Full Color 3535RGB LED Flexible Strips

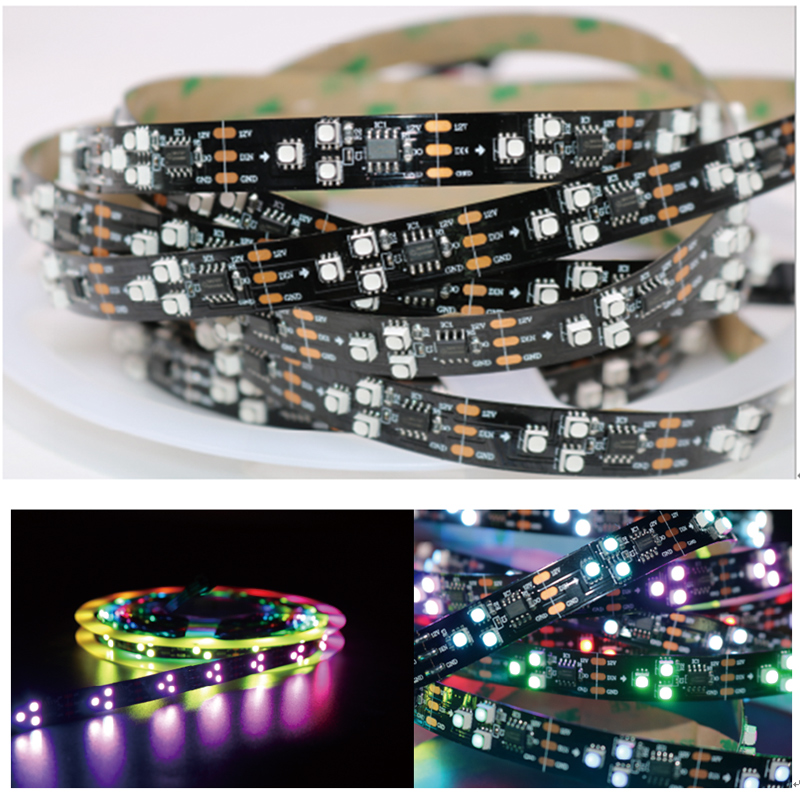

Superlightingled full-colour series SM16703 RGB LED light strips are made of imported chips with low luminous decay and high brightness, using SOP-8 Symphony Driver IC (WS2811/SM16703) as the driving source, SM16703 is similar to WS2811, and every 3 LEDs consist of a number SM16703 IC control so that RGB lamp beads can emit different colours. The dream colour led strip light adopts DC12V low-voltage cascade circuit design, which is safe and power-saving, stable, and environmentally friendly. The colour-changing LED light strip drive part has a simple structure and few components, which greatly reduces the probability of failure and prolongs the life of the full-colour light bar. This Flexible led strip light is soft and easy to bend. Every 3-LED is divided into a section, so every 3LEDs can be cut. You can cut the length you want according to your needs. Addressable LED light strips can replace neon lights and other traditional lights and are widely used in KTV, buildings, bridges, hotels, home decoration, etc.
Standards and Certifications
Input Voltage(V): DC12V
LED Chip: SM16703 IC
Working Temperature: --40°C-80°C
LED Quantity: 90LEDs/M
Working Power: 21.6W/M,108W/16.4ft
PCB Width: 12mm
Display gray level: 256
Lamp beads: 3535RGB
WaterProof: Non-waterproof IP20, waterproof IP65/IP67

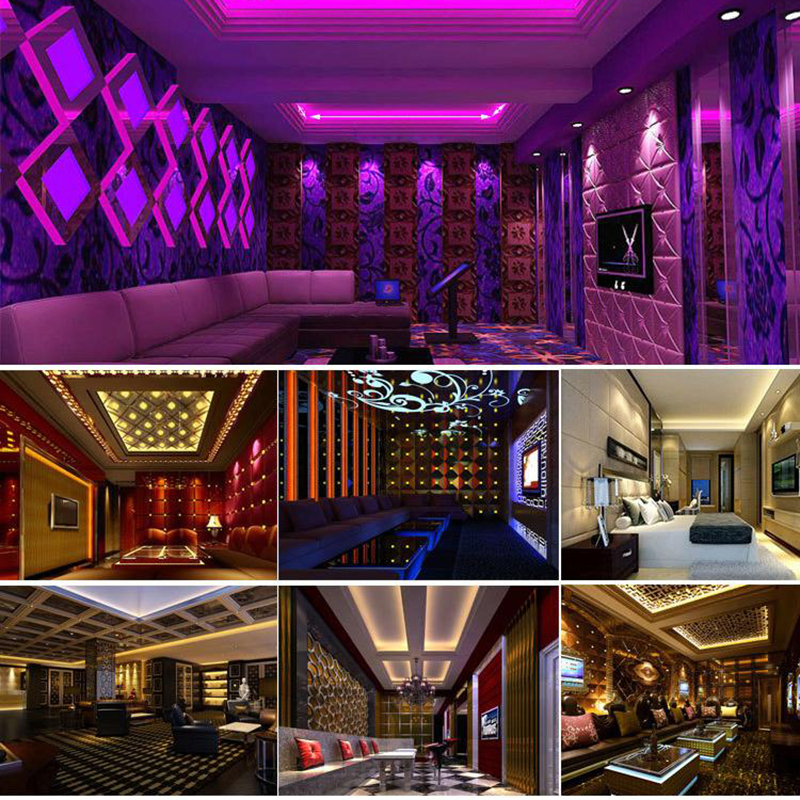

Polygonal walls and water drop ceilings in hotels, nightclubs and KTV lighting venues play the role of decoration and setting off the atmosphere;
Decoration of buildings, advertising walls, signboards, holidays, etc.;
Home decoration lighting, such as stairs, door frames, bar counters, wine cabinets, wardrobes, TV cabinets, DIY home decoration;
Outline outlines of landmark buildings, buildings, pavilions, bridges, parks, etc.;
The lighting of the canopy and the edge of the bridge arch, amusement parks, theatres, and aircraft cabins.
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
