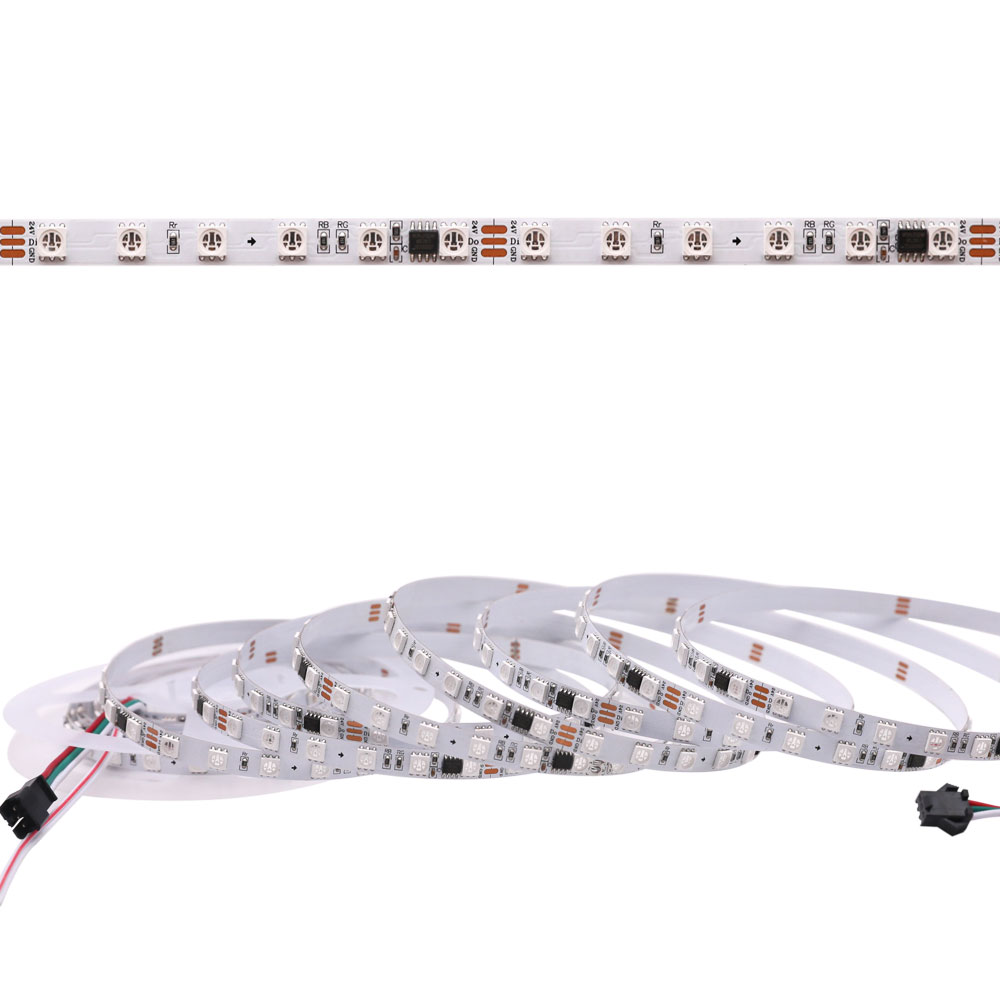

WS2811 DC24V SMD5050 72LEDs/m 8mm Flexible Addressable RGB LED Strip Light 5m/16.4ft
Related Products
WS2811 DC24V SMD5050...
$34.98Mean Well LPV-100-5 DC5V...
$44.98 $34.9822% offDC5-24V SP107E Wireless...
$16.98Mean Well LRS-100-5 DC5V...
$29.00 $25.9810% offLC-2000B SPI LED WIFI...
$80.00 $44.9844% offDC5-24V SP108E WiFi LED...
$21.99-
Special Price: $34.98

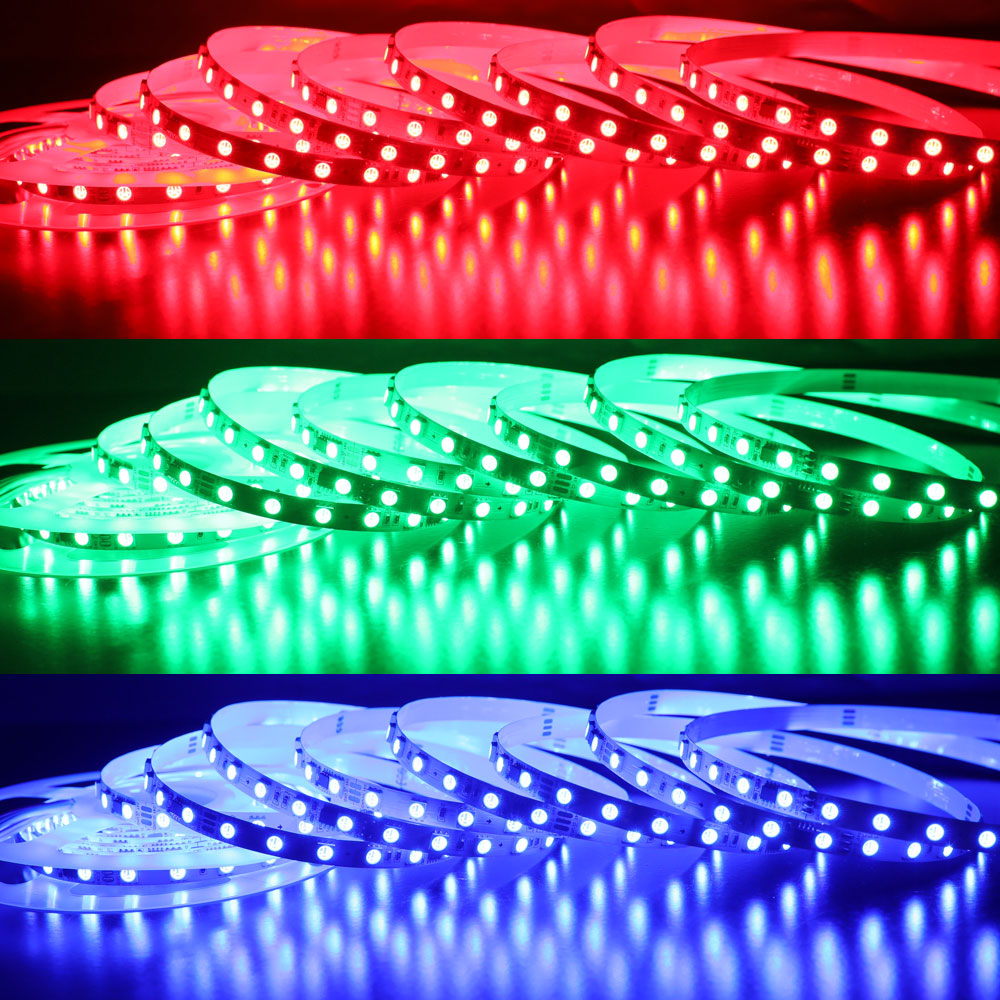

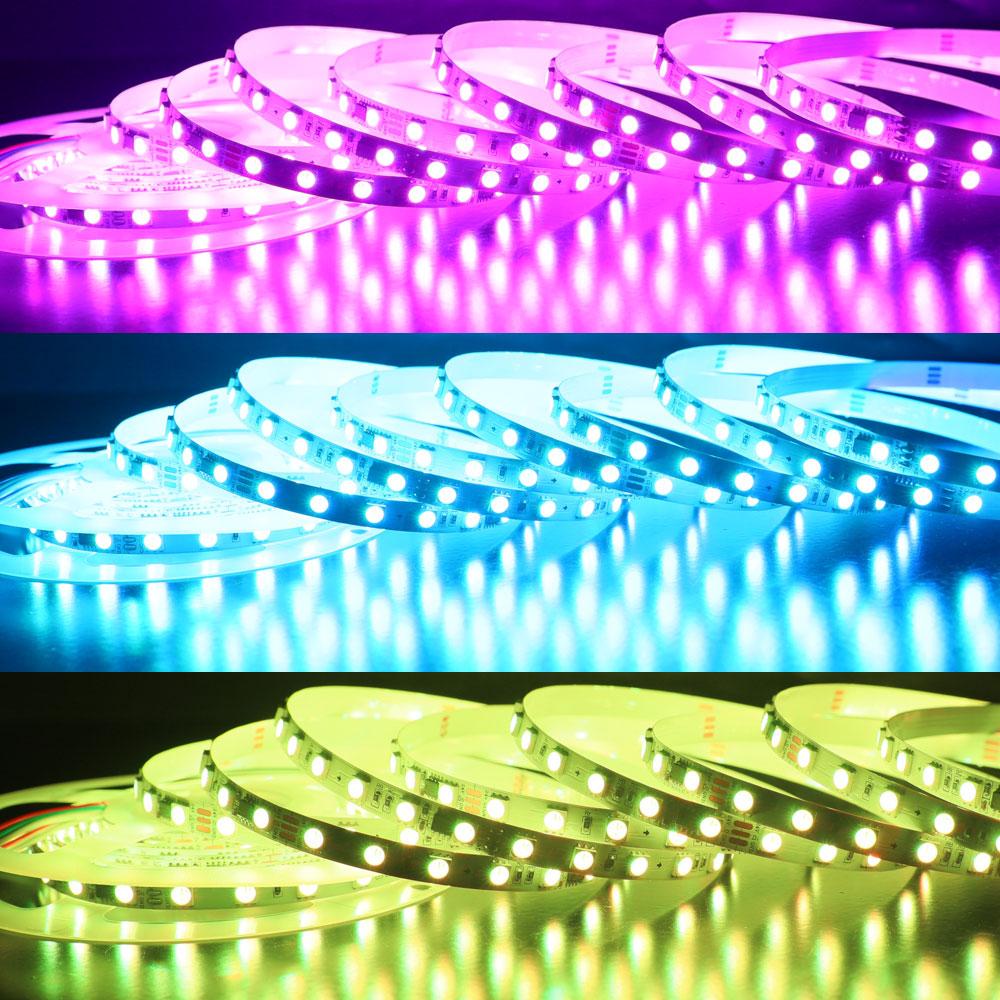

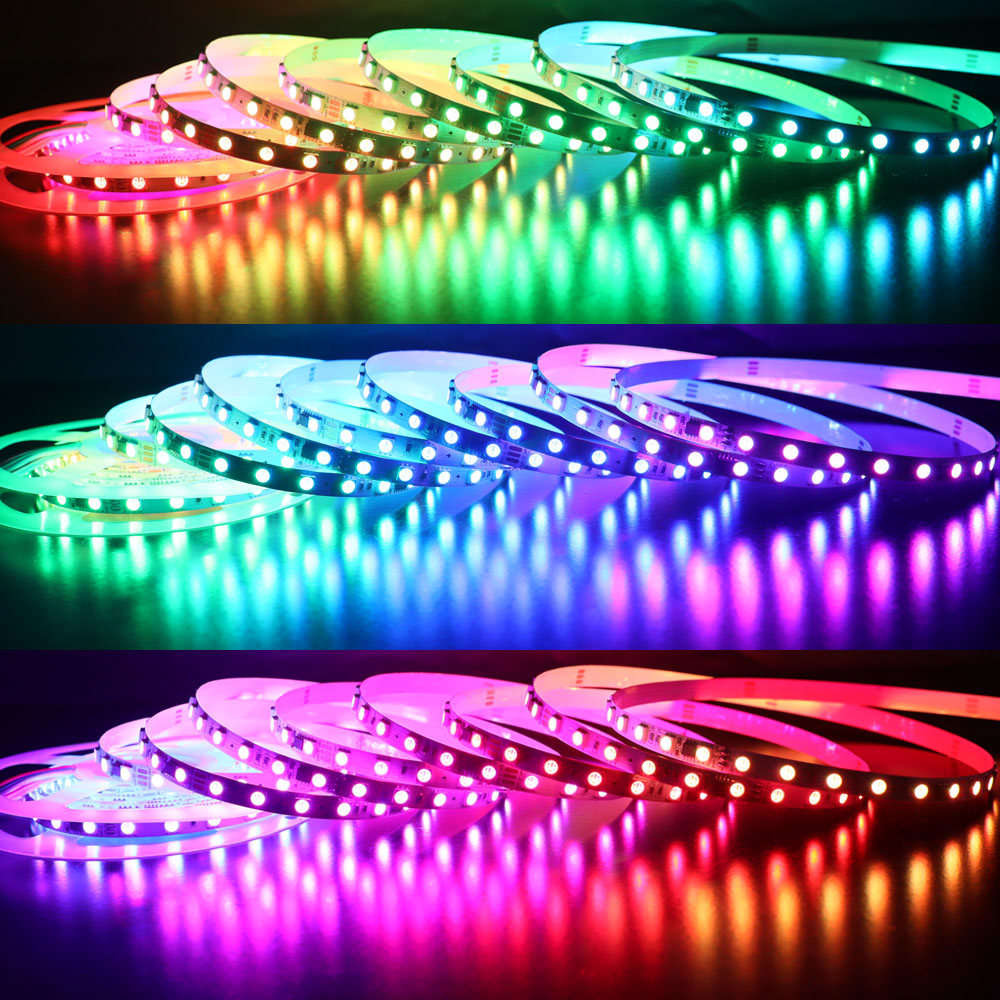

1. Universal WS2811 dynamic color chasing, sequencing, changing, and also static color modes available on the dream color led trip. Addressable LEDs allow for sequencing modes. Flexible LED light strip with 360 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2811 IC chip control, 16.4ft Per Reel By Sale.

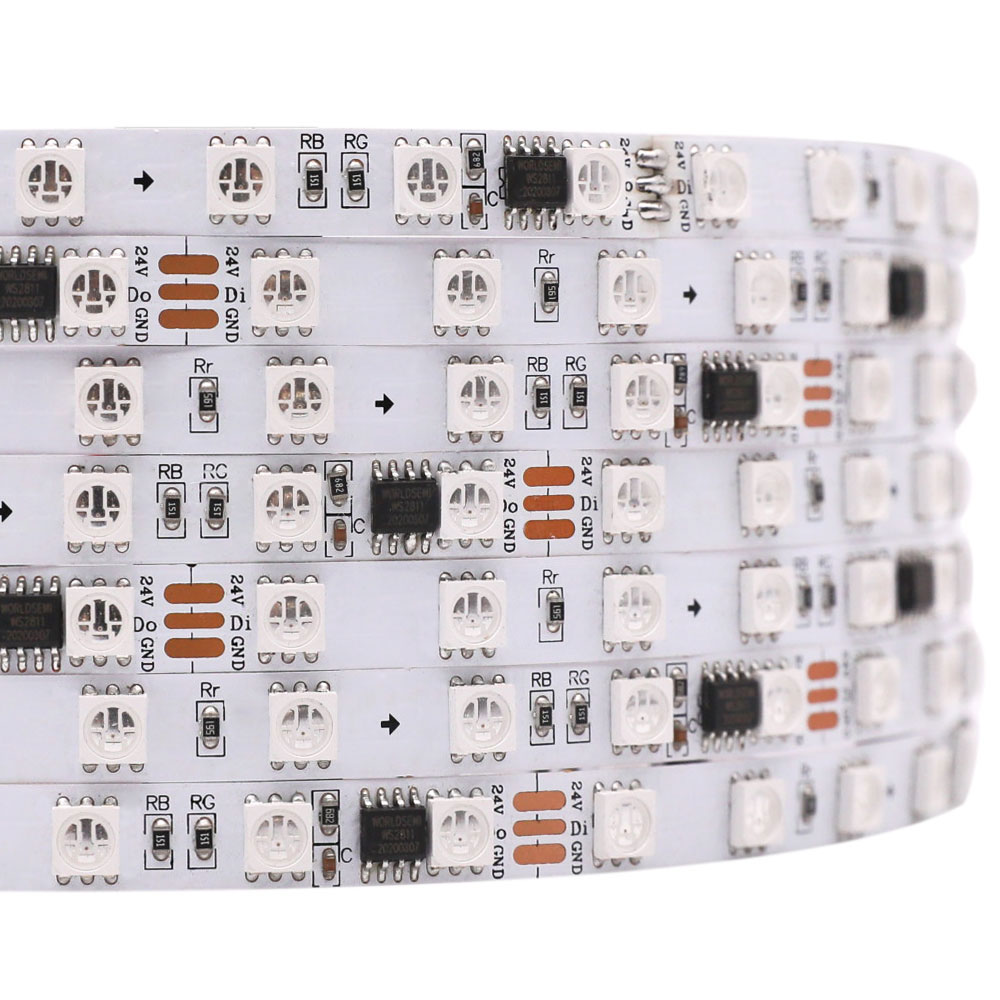

2. This programmable light strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.

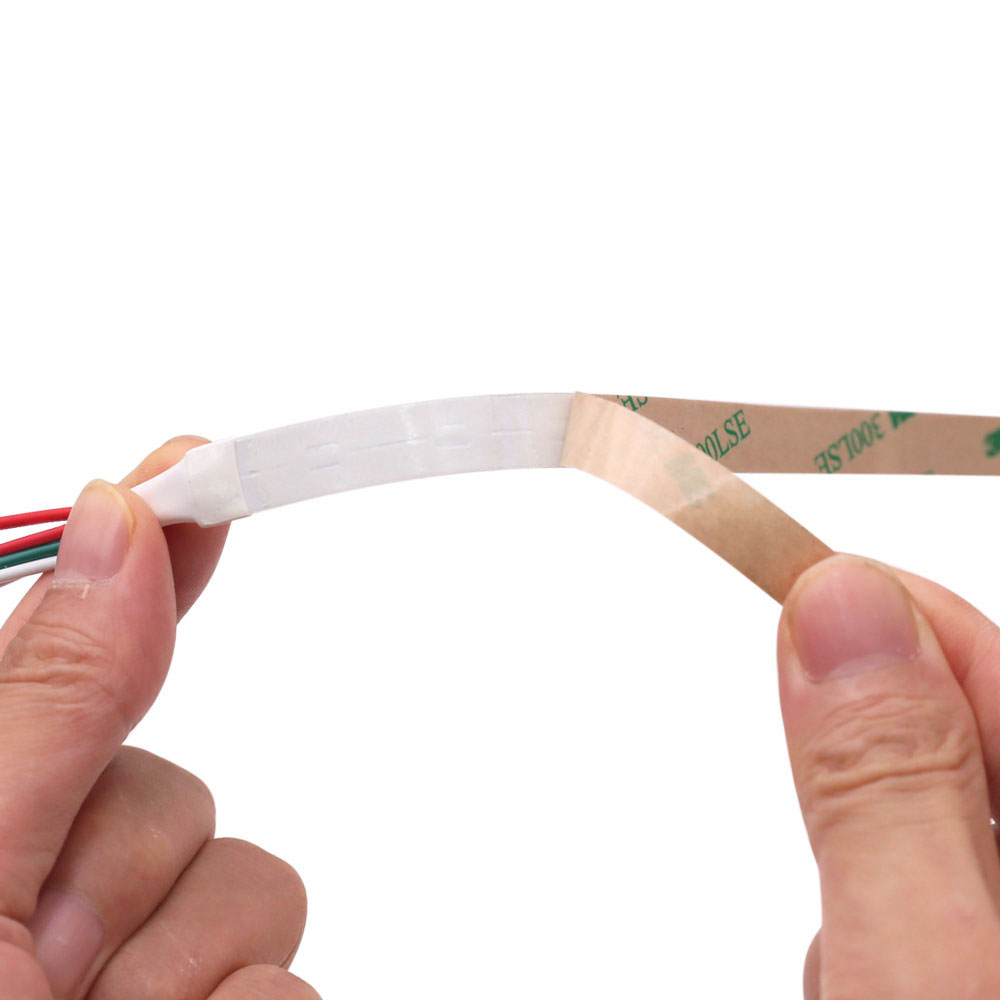

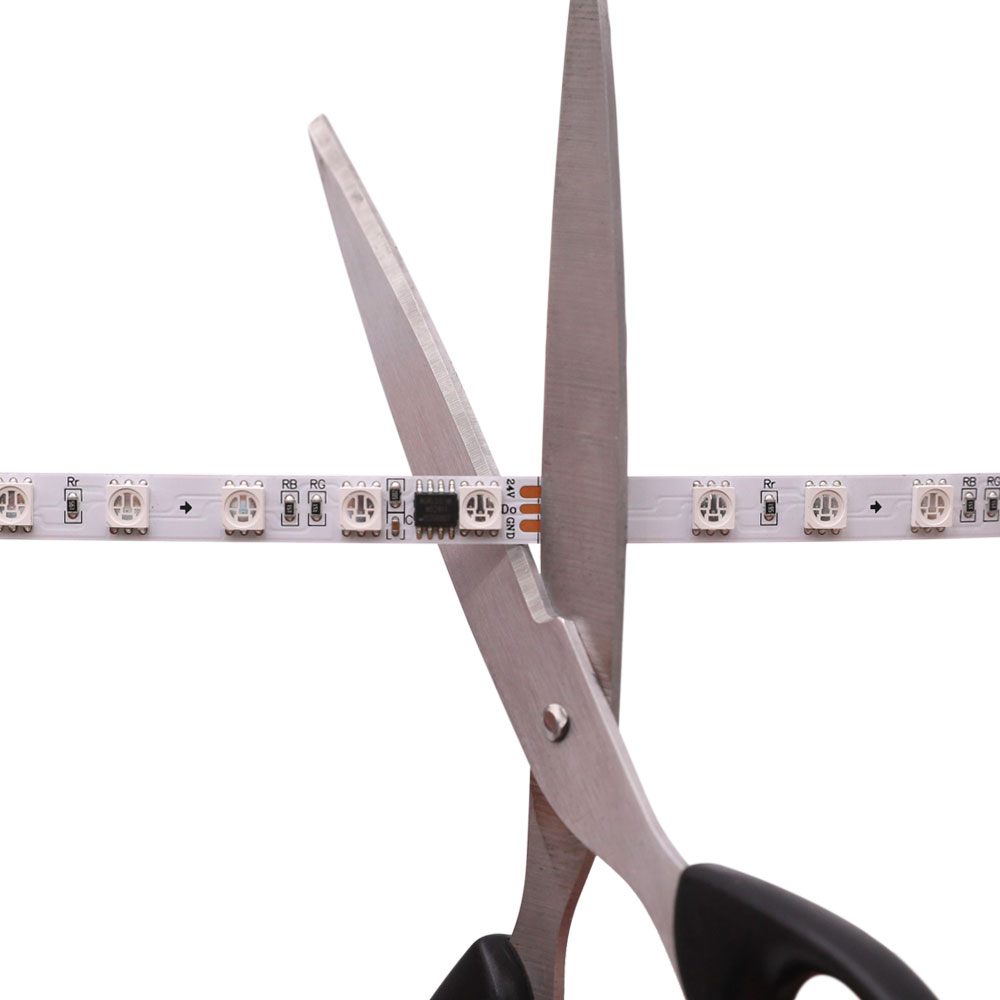

3. This WS2811 strip light is soft and easy to bend for installation. With adhesive backing and can be stuck just about anywhere (except IP67/IP68 waterproof type which should be fixed by mounting brackets). Can be cut into 6-LED segments (83.3mm), so you could cut a different length for your project and request.
4. The color chansing led strip lighting has low light decline and long lifespan, LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life, and other advantages. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation.
5. 24V DC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable.
6. The WS2811 chip has a built-in 1.2mhz high-speed 7-bit PWM for each channel - meaning it can provide each LED with 21-bit color (in a way that is easier to recognize than the eyes). Once the LED brightness level is set, your microcontroller can turn off and perform other operations without constant updates.
7. It comes with a 3-pin JST connector and a separate power/ground wire at each end. To power this 16.4ft WS2811 addressable RGB light strip, you should choose a 24V power supply which has a 104W compacity. One roll led strip light can be powered with one power input without a color difference and voltage drop.
1.Offline controllers, online controller work with a computer, Such as LEDedit,ledstudio, etc
2.DMX console,
3.Artnet led controller, support Madrix software & map, and any other artnet software.
4.Also the single chip,such as the Arduino.
WS2811 Chips Specifications Download
Standards and Certifications
LED Strip Type: | SMD 5050 Addressable RGB LED Strip |
LED Chip: | WS2811 IC Super Brights Chip |
Input Voltage: | DC24V |
Power: | 17.28W/m 86.4W/roll Max |
Working Temperature: | -20℃~+45℃ |
Storage Temperature: | -20℃~+60℃ |
LED Color Temperature: | Addressable 6000K Daylight White + 4000K Natural White + 2700K Warm White |

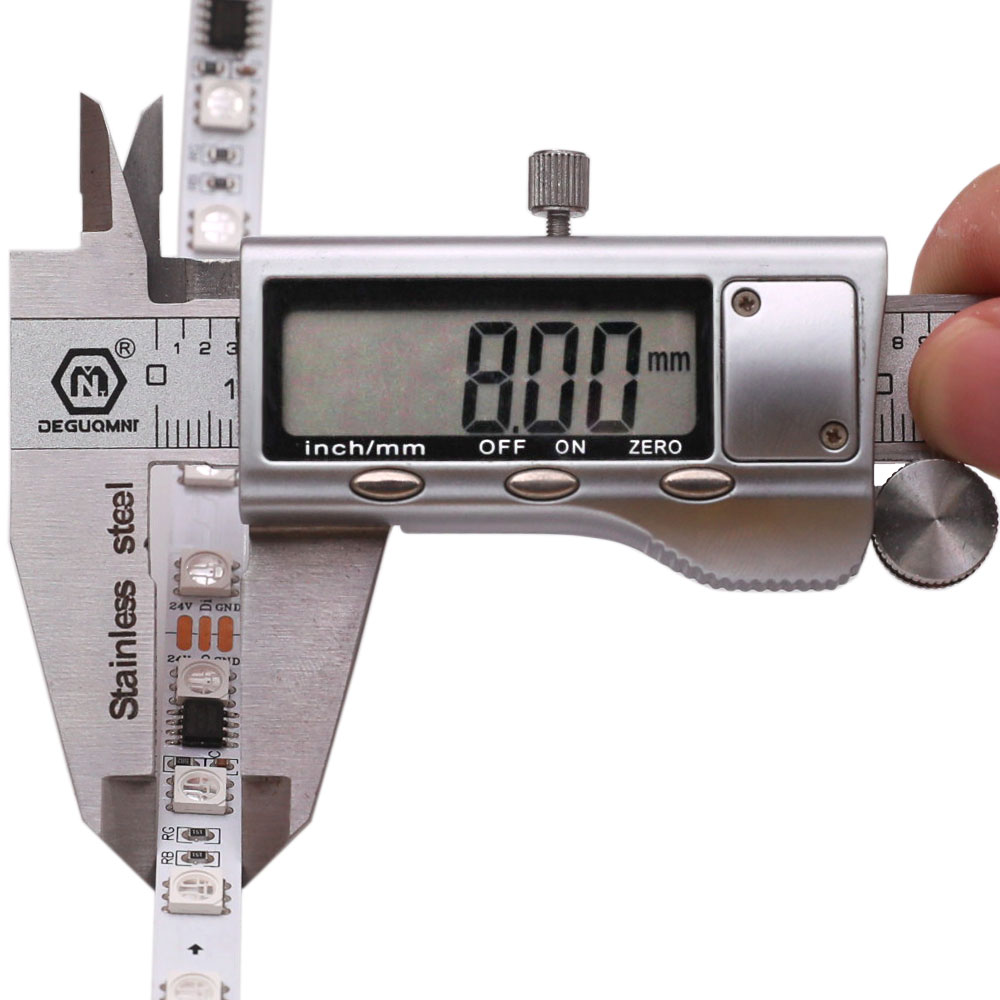

PCB Width: | 8mm |
LED Quantity: | 72 LEDs per meter (3.28 ft), 12 pixels per meter |
Waterproof Rating: | Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68 |

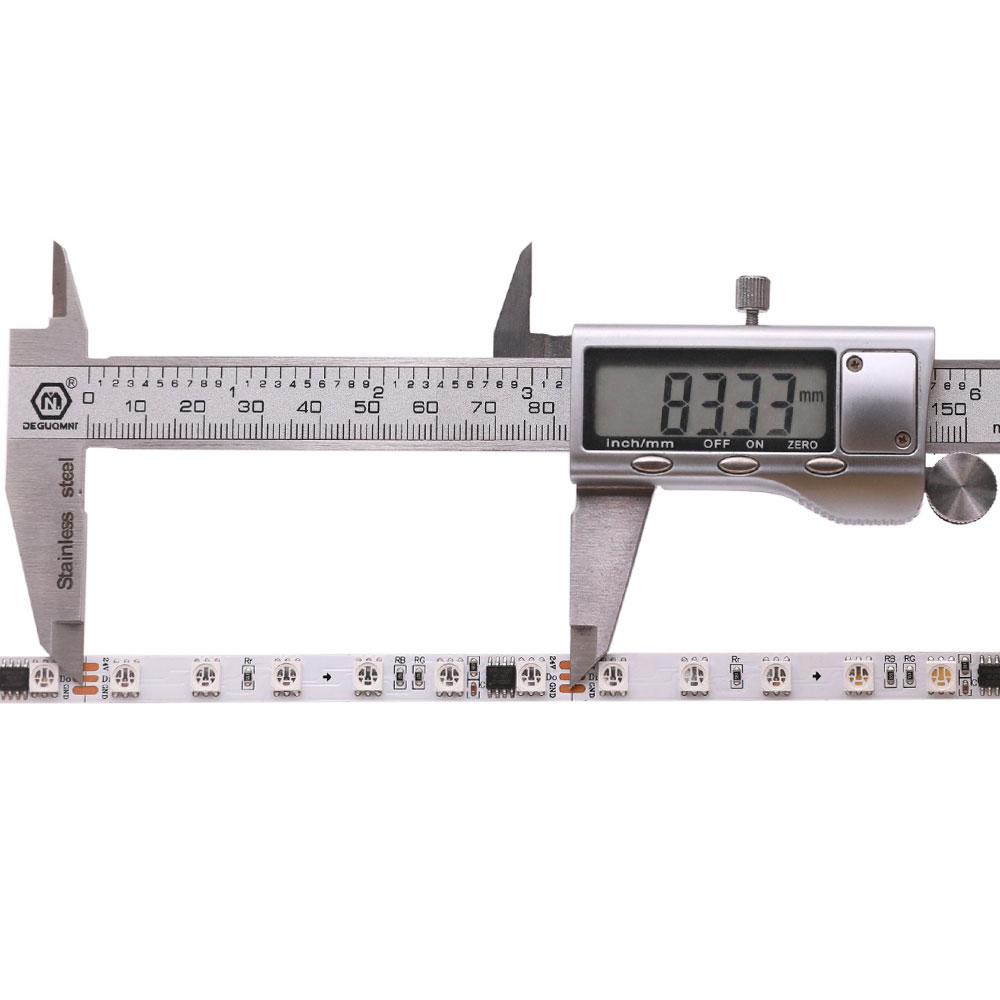

Cutable: | 6 LEDs (one IC control 6 lights), 83.3mm |
PCB Color: | White |
Lifespan: | 50,000+hours |
Beam Angle: | 120° |
Strip Length: | 5m/16.4ft |
How to Wire Addressable LED Strip Lights?
WS2811 Addressable LED Strip Light Wiring Diagram:
Available Strip Lighting Fixtures:
Silicone LED diffuser is flexible and waterproof, there are different internal structures, allowing you to change the light-emitting angle and luminous type.
Aluminum LED channel also has multiple types to create your linear lighting, surface mount, recessed mount, or suspended mount, etc. And they all evenly diffuse the LED strip lighting and protect the strip lights.
Applications
-
LED programmable digital display
-
Hotels decoration use
-
Backlighting decoration
-
Concealed lighting, Cove decoration
-
Theaters, clubs, shopping malls lighting
-
Architectural decorative lighting
-
Boutique atmosphere lighting
-
Auditorium walk stairway lighting
-
Hidden groove, Wine cabinet decoration
-
Show exhibition decoration
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
