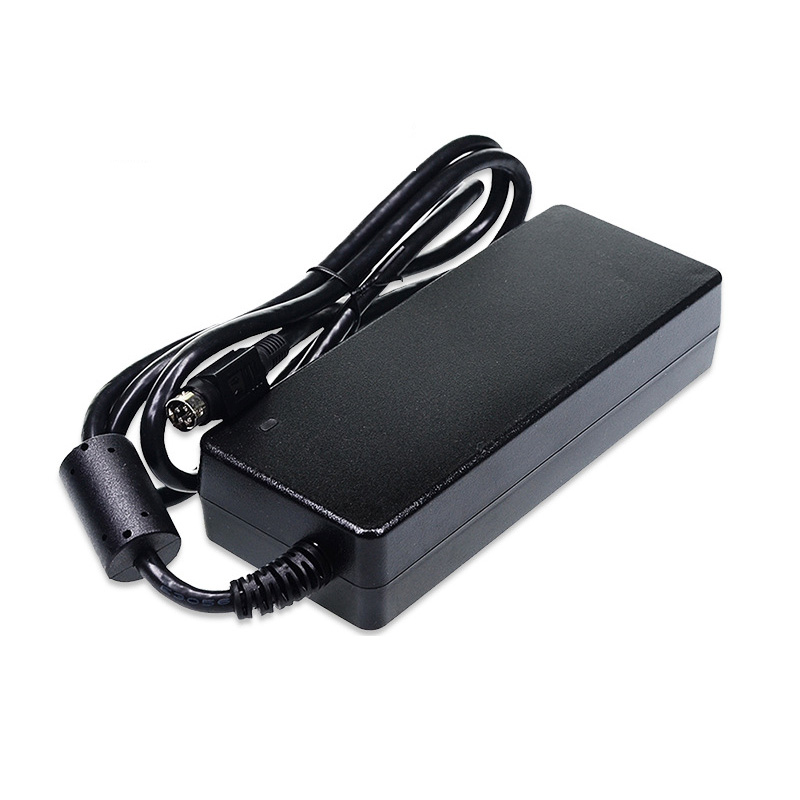

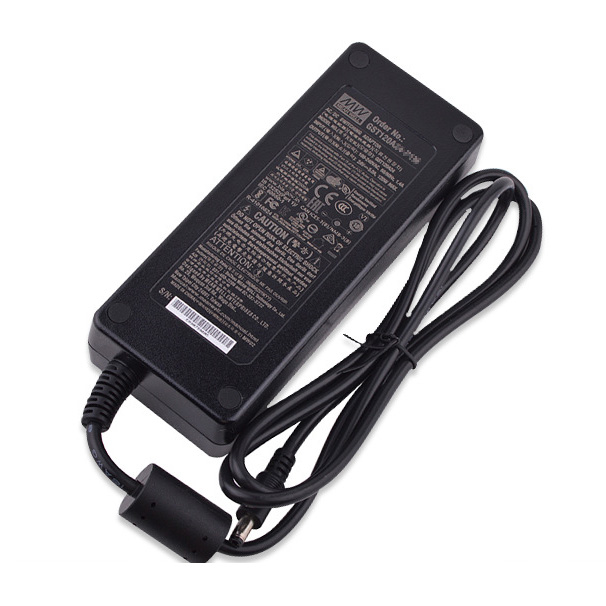

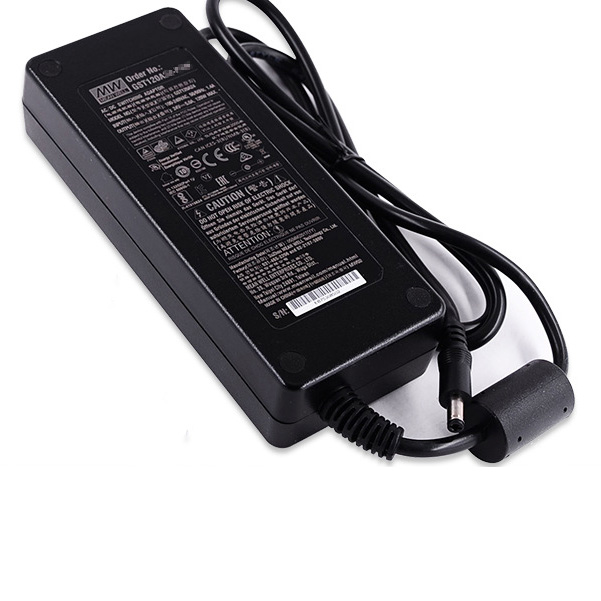

MeanWell DC12V 8.5A 102W GST120A12 AC To DC Reliable Green Industrial LED Power Adaptor
- $49.98 $41.9816% off
- $9.98 $2.2977% off
- $80.00 $64.9819% off
- $30.00 $17.9840% off

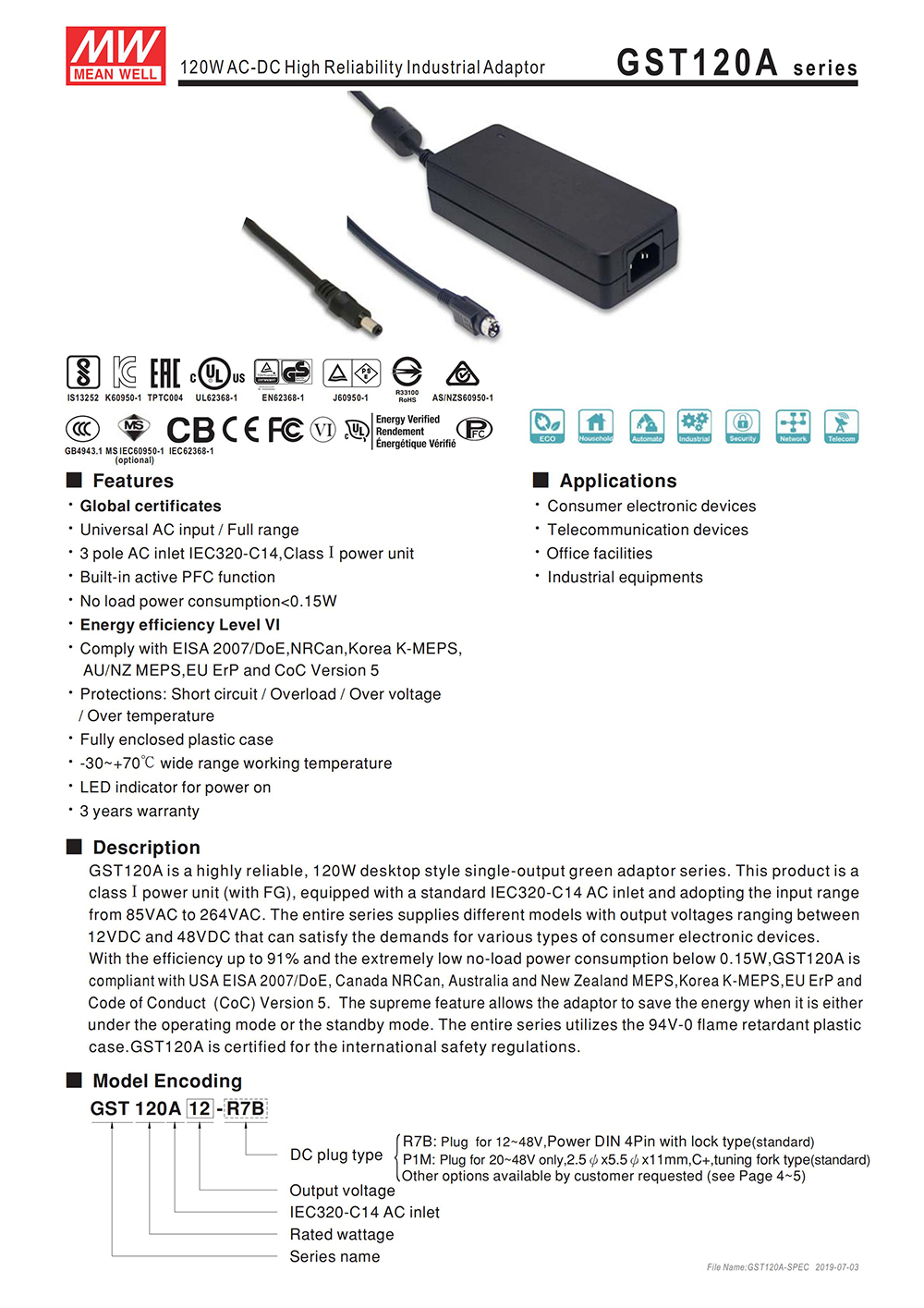

GST120A12 input voltage 85-264VAC; output voltage is DC12V, output current is 8.5A, total power is 102W, suitable for DC12V LED light.
This item is power adapter (transformer) of AC -DC Low Voltage for 12V Parapet lights, Spot Light, Wall Washer, Grow Light, Single colour RGB or dream color LED strip lights and led module string.
Please be kindly informed that the total wattage of LED strip lights should not exceed the max wattage 85% of this Power supply adaptor, Otherwise it will affect the brightness of the LEDs and the service life of the power supply.
Standards and Certifications
Universal AC input / Full range

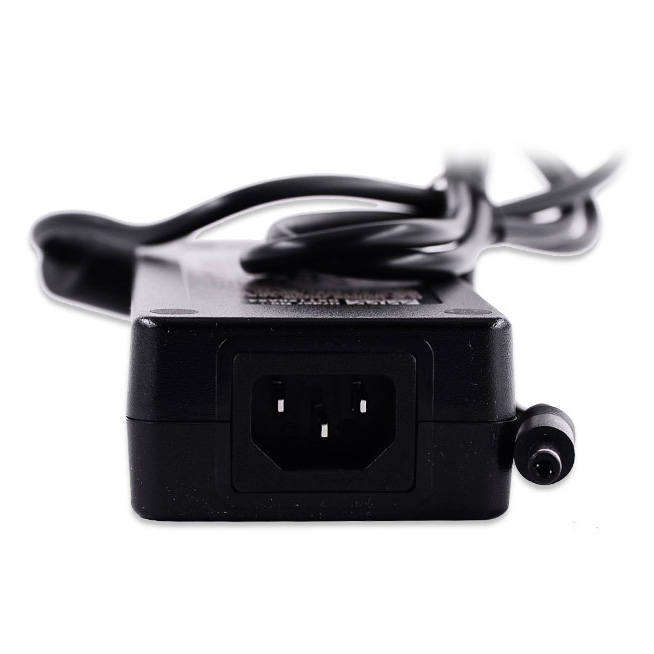

3 pole AC inlet IEC320-C14,Class I power unit
No load power consumption< 0.15W
Energy efficiency Level VI
Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
Protections: Short circuit / Overload / Over voltage/Over temperature
Fully enclosed plastic case
-30~+70°C wide range working temperature
LED indicator for power on
Built-in active PFC function
3 years warranty

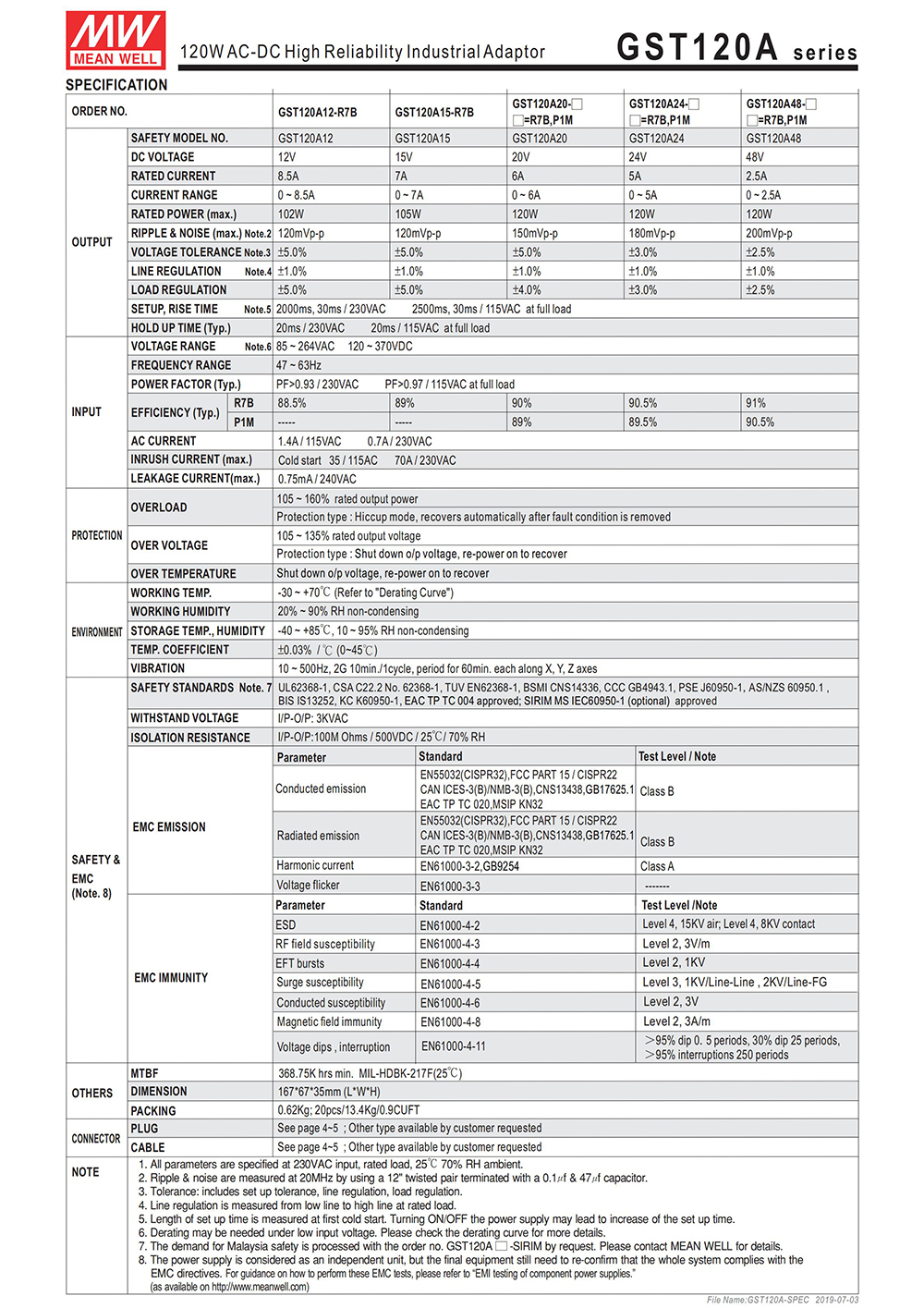

Primary Output Voltage: 12VDC
Output Current: 8.5A
Maximum Output Power: 102W

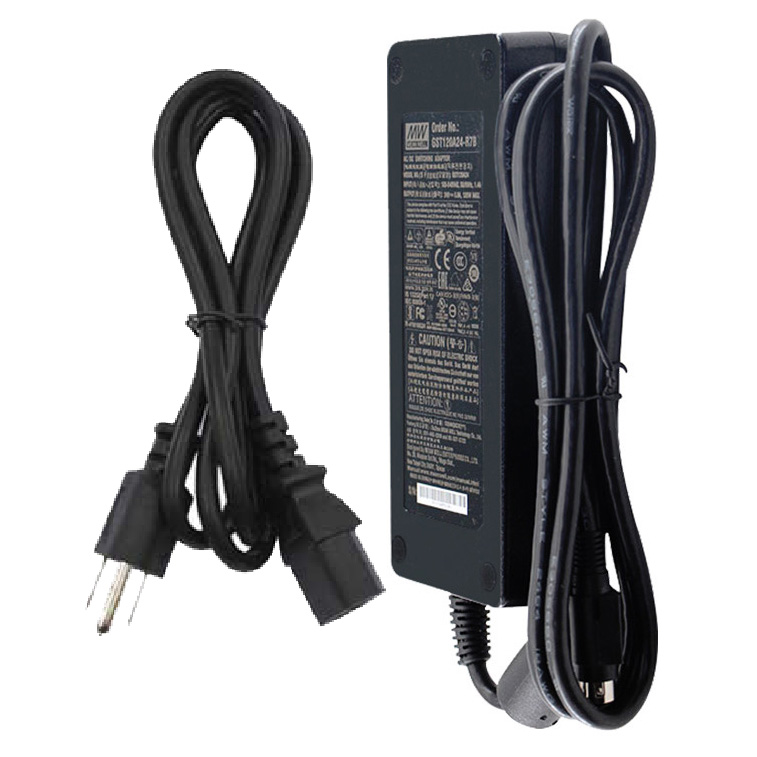

AC Power Cord: included
Input Voltage: 85 to 264VAC
Input Frequency: 47 to 63
Maximum Input Current: 1.4A/115VAC, 0.7A/230VAC
Output Connector Type: Cylindrical Female
Polarity: Center Positive
Number of Outputs: 1
Product Type: AC to DC Power Supply
Agency Approvals: UL/CUL/TUV/BSMI/CCC/FCC/CE
Operating Temperature-Min (Cel): -30
Operating Temperature-Max (Cel): 70
Product Note: Level VI
Type: Auto Switching
Style: Desktop Adapter
1* GST120A12 LED power adaptor
