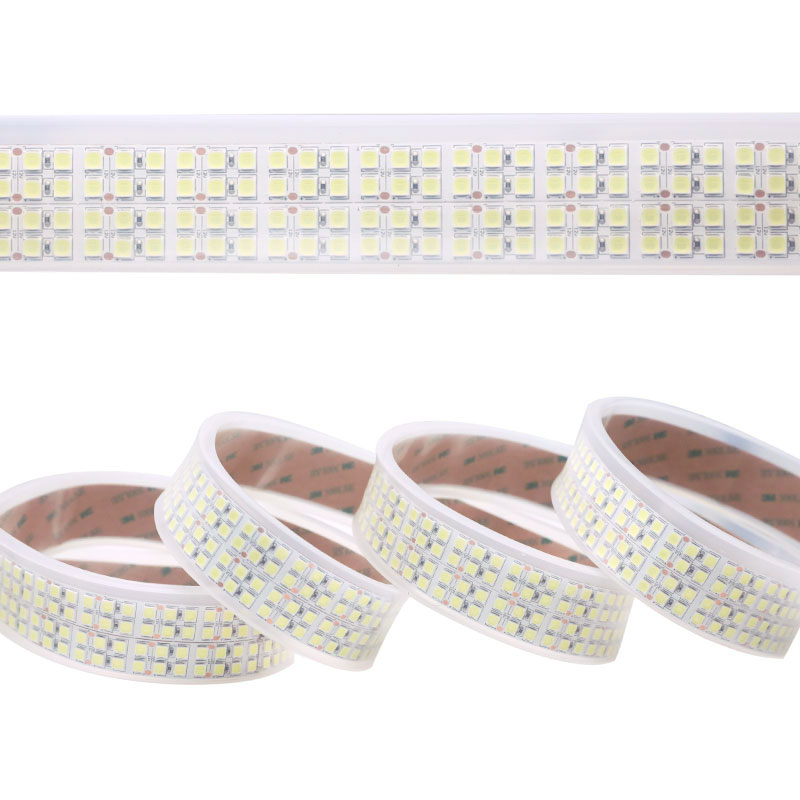

SMD5054 Quad Row 3000K / 9000K IP67 Bright Outdoor LED Strip Lights
This bright quad row white led strip is IP67 rated and fully suitable for outdoor lighting. It is encapsulated in a transparent silicone tube, end caps at both ends are sealed with silicone adhesive to protect the tape light from dust and water.
There are 480 lights per meter, super high density and high brightness, 2400 LED lights in total per roll. Plus it adapts large SMD5054 LED chips (larger light-emitting area), making this strip very bright for tasking lighting and lighting of open spaces.
We provide 3000K warm white (warm yellow light) and 9000K cool white (cool blue light) the two color temperatures for you to choose from.
The 3000K or 9000K IP67 led strip can be directly connected to a 12 volt power supply. To dim the lights, please add a high power LED dimmer addtionally. We have non-waterproof/waterproof led controller or led driver for sale, check it out in our product categories.
Note: Please decide carefully whether to cut it or not. If you want to cut this outdoor led strip light, prepare suitable end caps. For indoor dry places, they can be done without silicone glue.
This item does not come with any adhesive tape or mounting clips, please purchase extra if needed.
Standards and Certifications
|LED Strip Type:||Bright Outdoor LED Strip Lights|
|LED Chip:||SMD5054 Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||9000K cool white, 3000K warm white|
|LED Quantity:||480 LEDs per meter, 2400 LEDs/roll|

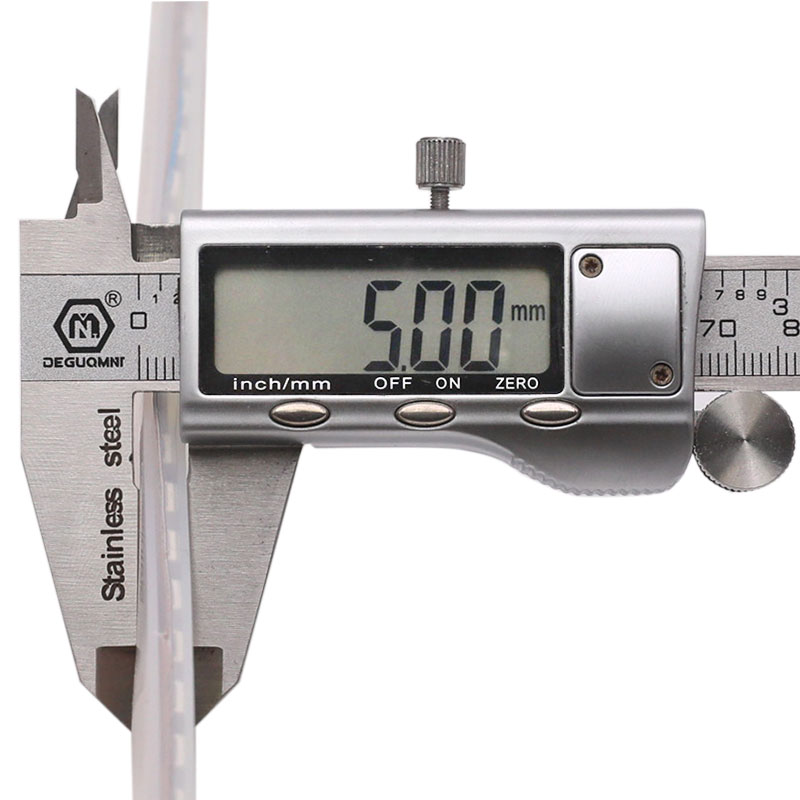

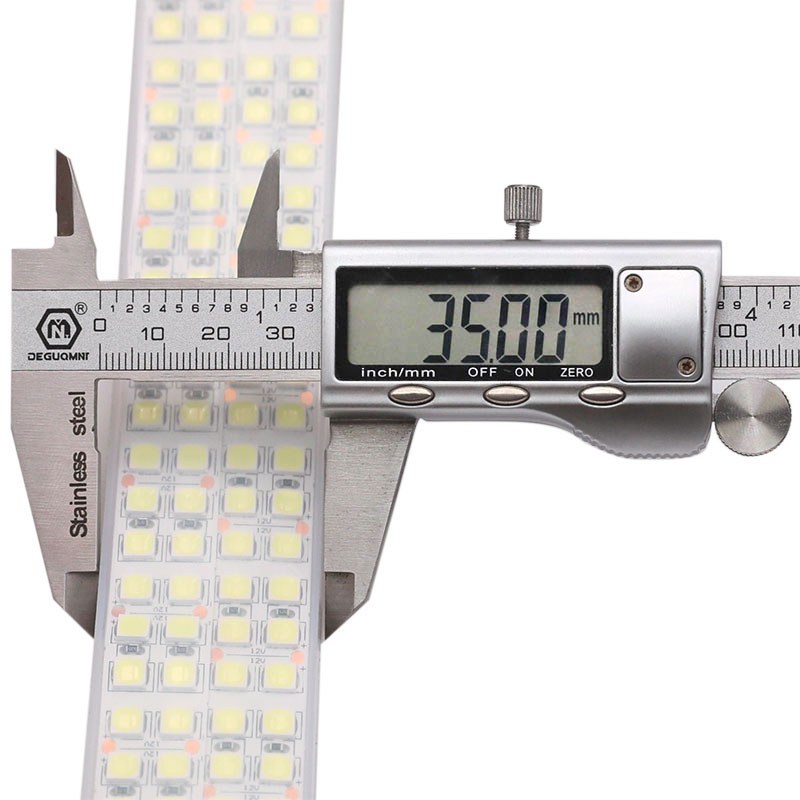

|Dimensions:||L500cm(196.8 in ) x W3.5cm(1.38 in ) x H0.5cm(0.2 in )|
|Input Voltage(V):||12 VDC|
|Working Power:||28W/m, 140W /16.4ft Max|
|Cut:||25mm/0.98", every 12pcs LEDs can be cut|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Outdoor waterproof IP67|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
